The EOTech G45 is a 5x magnifier that sits behind a holographic or red dot sight, and G45.STS is the black version supplied on EOTech's Switch-to-Side quick-detach mount.
Five times is the most magnification EOTech put behind a holographic sight. It is the difference between seeing that something is out there and knowing what it is.

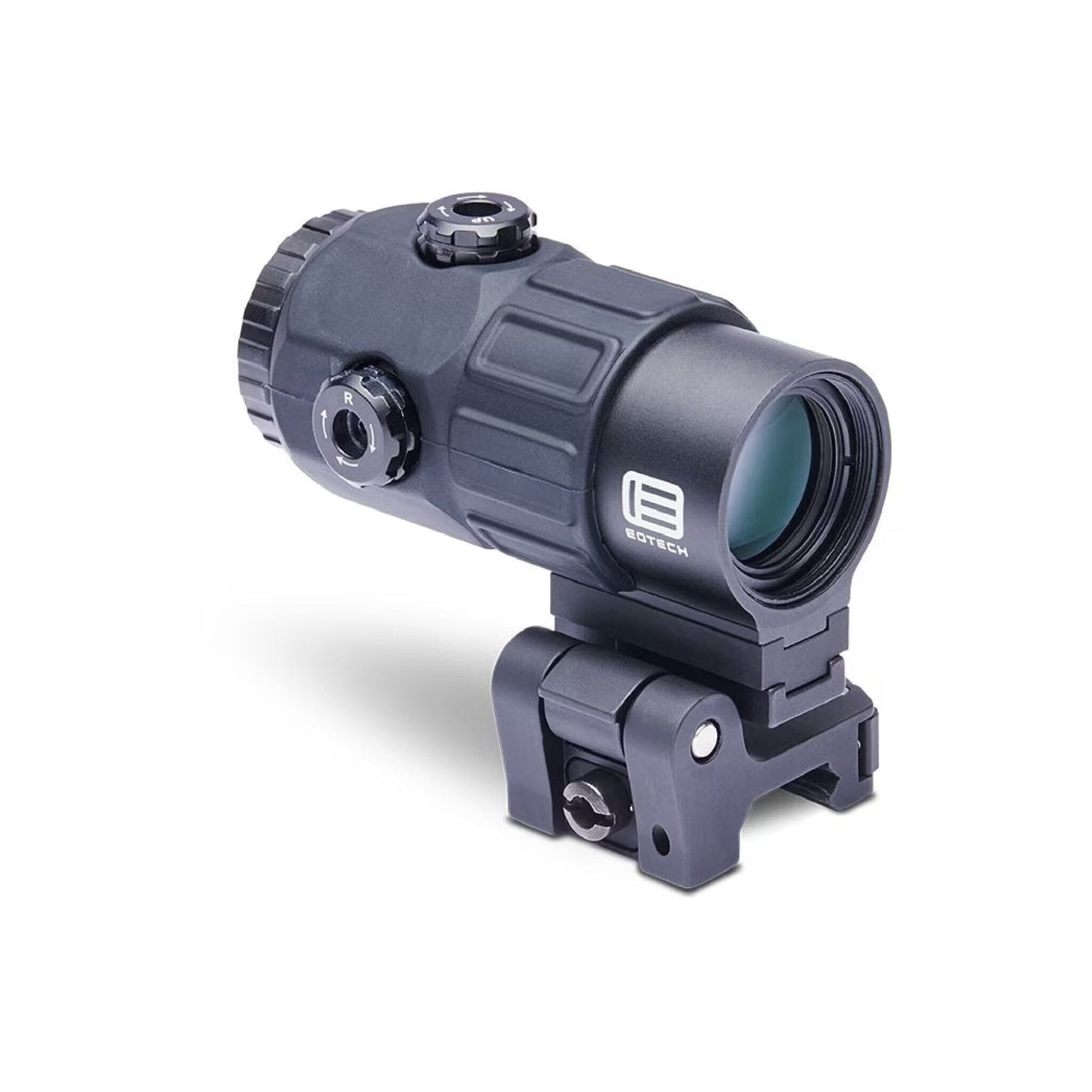

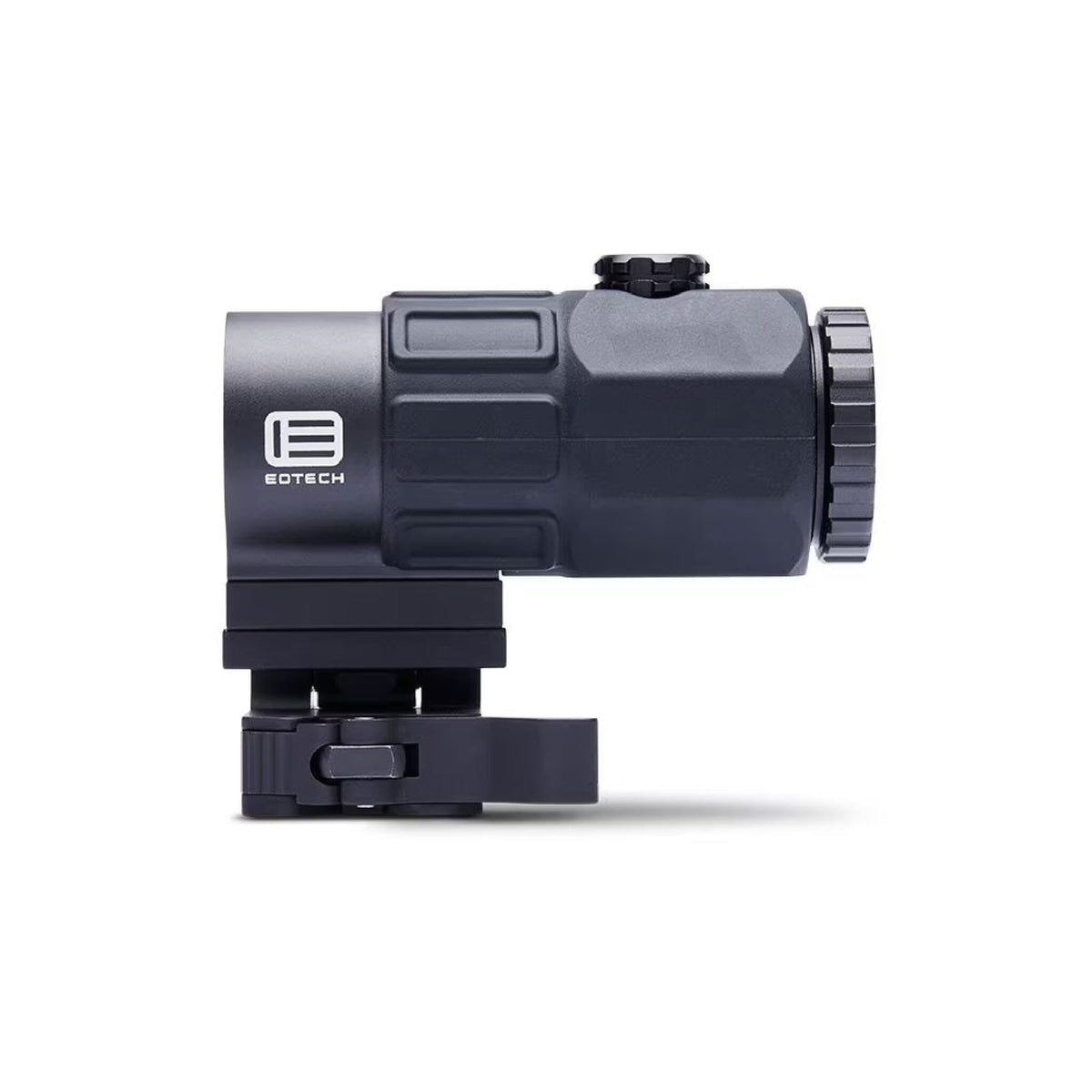

The aluminium body measures 3.9 x 2.3 x 3.3 in (99 x 58.4 x 83.8 mm) and weighs 12.8 oz (362.9 g) complete with the STS mounting system, which clamps to a 1in Weaver or MIL-STD-1913 rail with a quick-detach lever. Eye relief is 2.6 in (66 mm), the dioptre ring is adjustable to suit the individual eye, and windage and elevation are corrected without tools. EOTech state it is assembled in the USA and give the field of view as 4 degrees.
The magnifier has no reticle of its own; it enlarges whatever the sight in front of it is projecting, so the zero stays with the sight and the G45 simply swings aside when 1x is wanted again. What 5x costs is length, mass and a narrow 4 degree field, which is why plenty of shooters still choose a 3x behind a fast holographic sight. If most of your shooting is close and quick, that is the honest recommendation.
Why shooters choose the G45
-
Magnification — 5x, the highest in the EOTech magnifier range
-

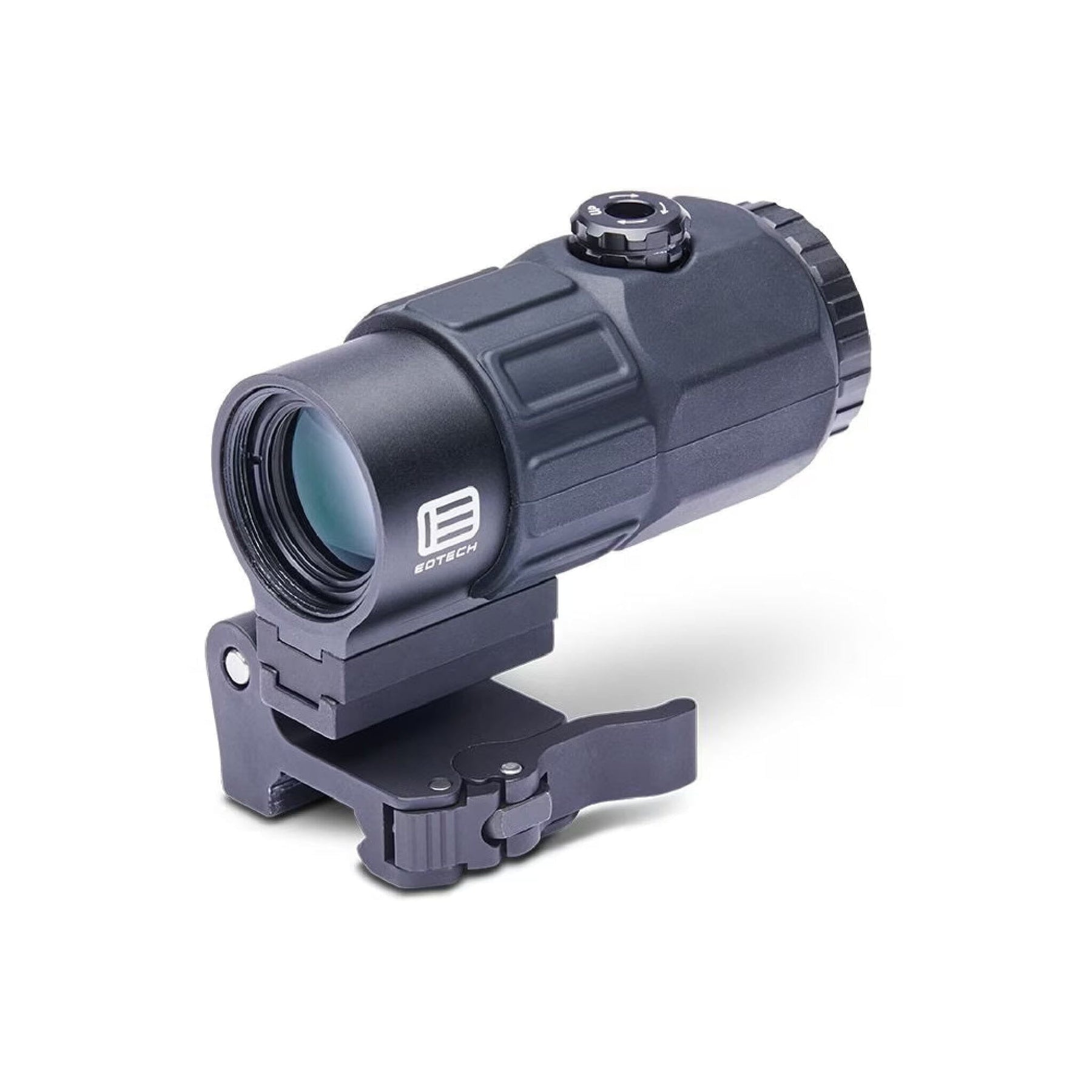

Mount — Switch-to-Side quick-detach mount included, for 1in Weaver or MIL-STD-1913 rails
-
Eye relief — 2.6 in (66 mm)
-
Adjustment — tool-free windage and elevation, plus an adjustable dioptre
-
Field of view — 4 degrees
-
Size — 3.9 x 2.3 x 3.3 in and 12.8 oz (362.9 g) with the STS mount
What the G45 fits
It goes behind a holographic or red dot sight on a 1in Weaver or MIL-STD-1913 rail, with enough rail left behind the sight for the mount. The same magnifier is offered in Tan on the STS mount, and without a mount in black if you already run a mount you like. For a shorter, lighter option at 3x, see the G43 or browse the red dot magnifiers.
Specifications
| Magnification |
5x |
| Mount |
STS (Switch-to-Side) quick-detach, 1in Weaver or MIL-STD-1913 |
| Eye relief |
2.6 in (66 mm) |
| Field of view |
4 degrees |
| Adjustment |
Windage and elevation, tool-free; adjustable dioptre |
| Dimensions |
3.9 x 2.3 x 3.3 in (99 x 58.4 x 83.8 mm) |
| Weight |
12.8 oz (362.9 g) with STS mount |
| Finish |
Black |
| Origin |
Assembled in USA |
| MPN |
G45.STS |
If the question at distance is what rather than where, this is the answer EOTech sell. Order the G45 today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
