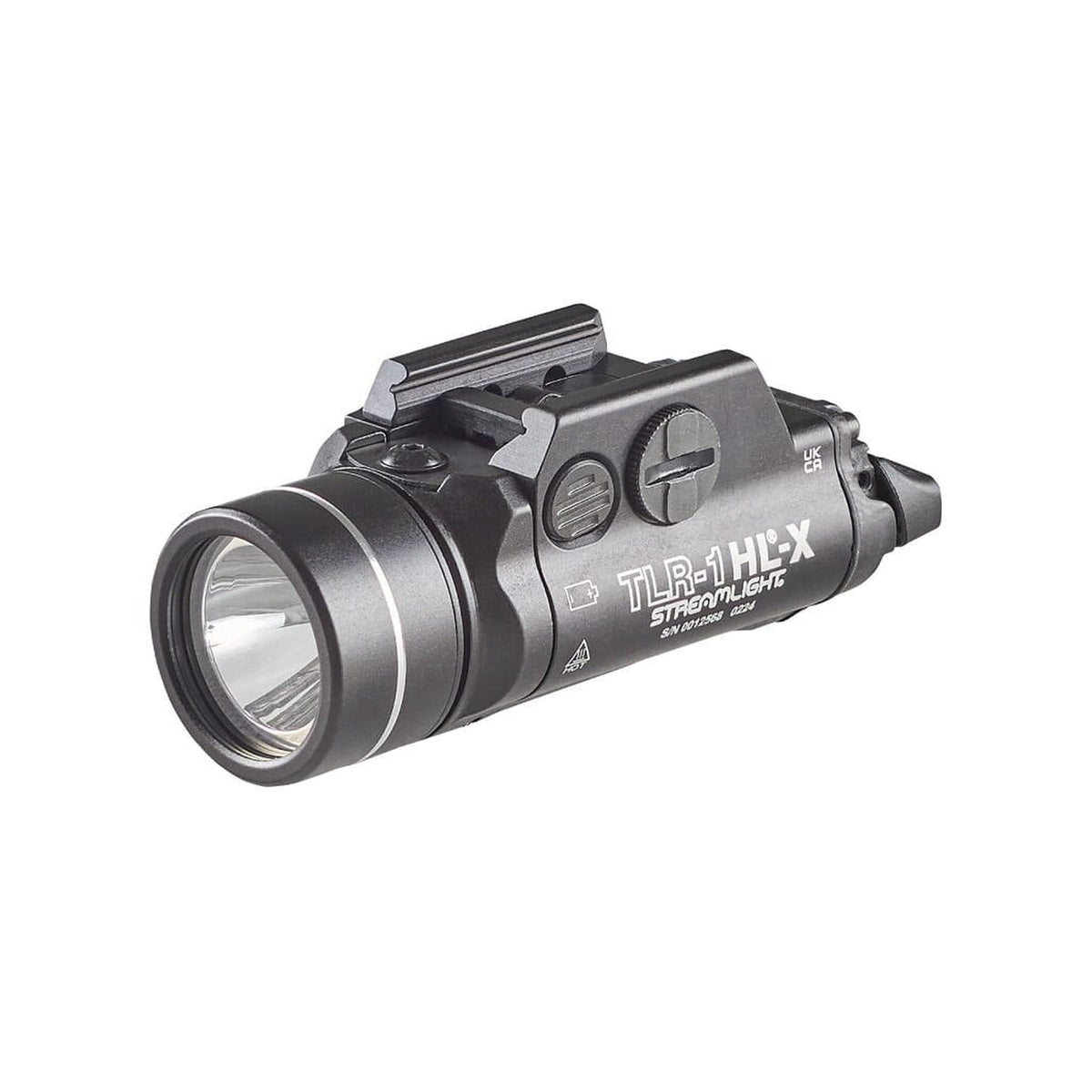

The Streamlight TLR-1 HL-X, part 69500, is a full-size rail-mounted weapon light for pistols and long guns, supplied with two CR123A lithium cells.
It is one light with two ceilings. On the primaries in the box it makes 1000 lumens and 15,000 candela; put a pair of SL-B9 rechargeable packs in and the same head climbs to 1500 lumens and 20,000 candela.

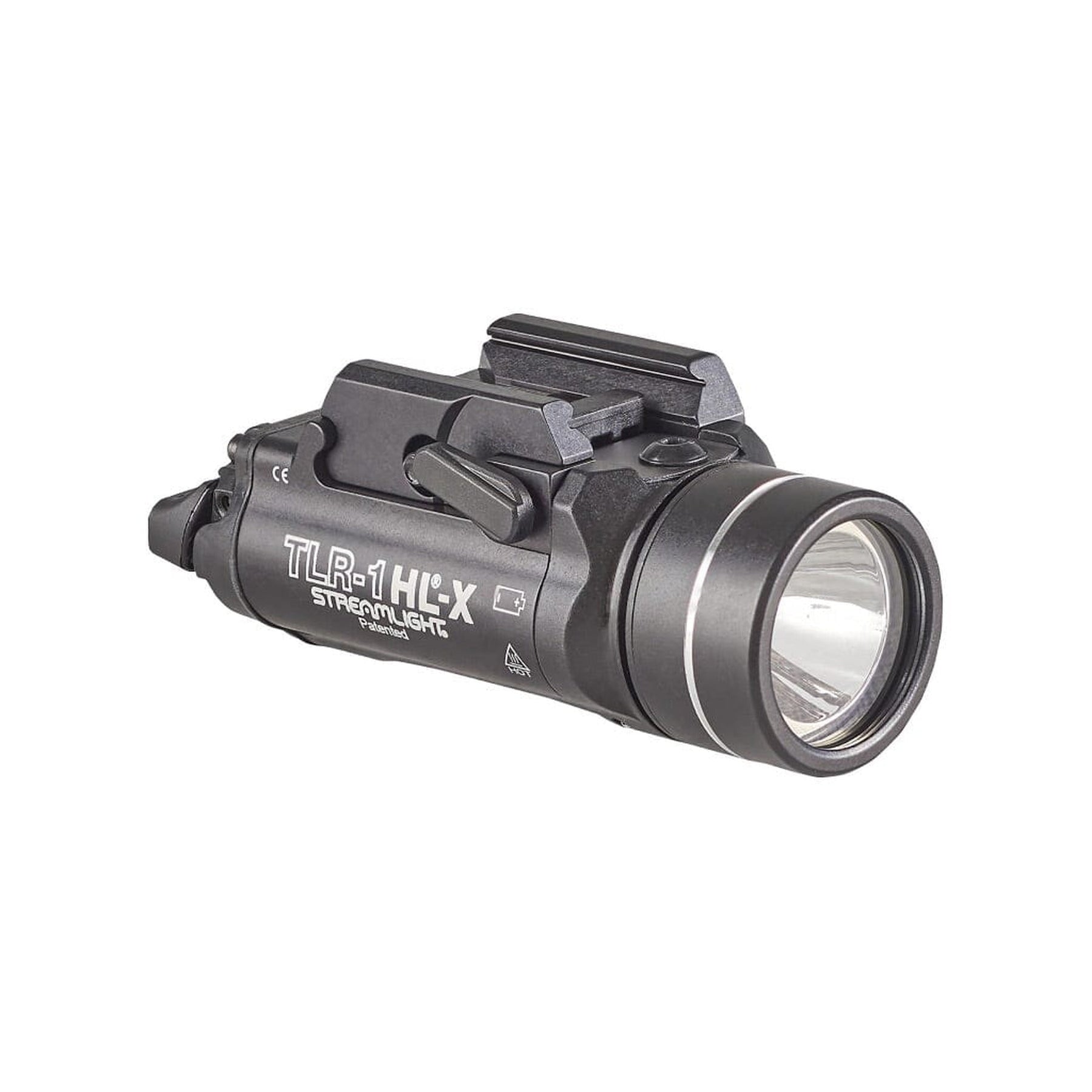

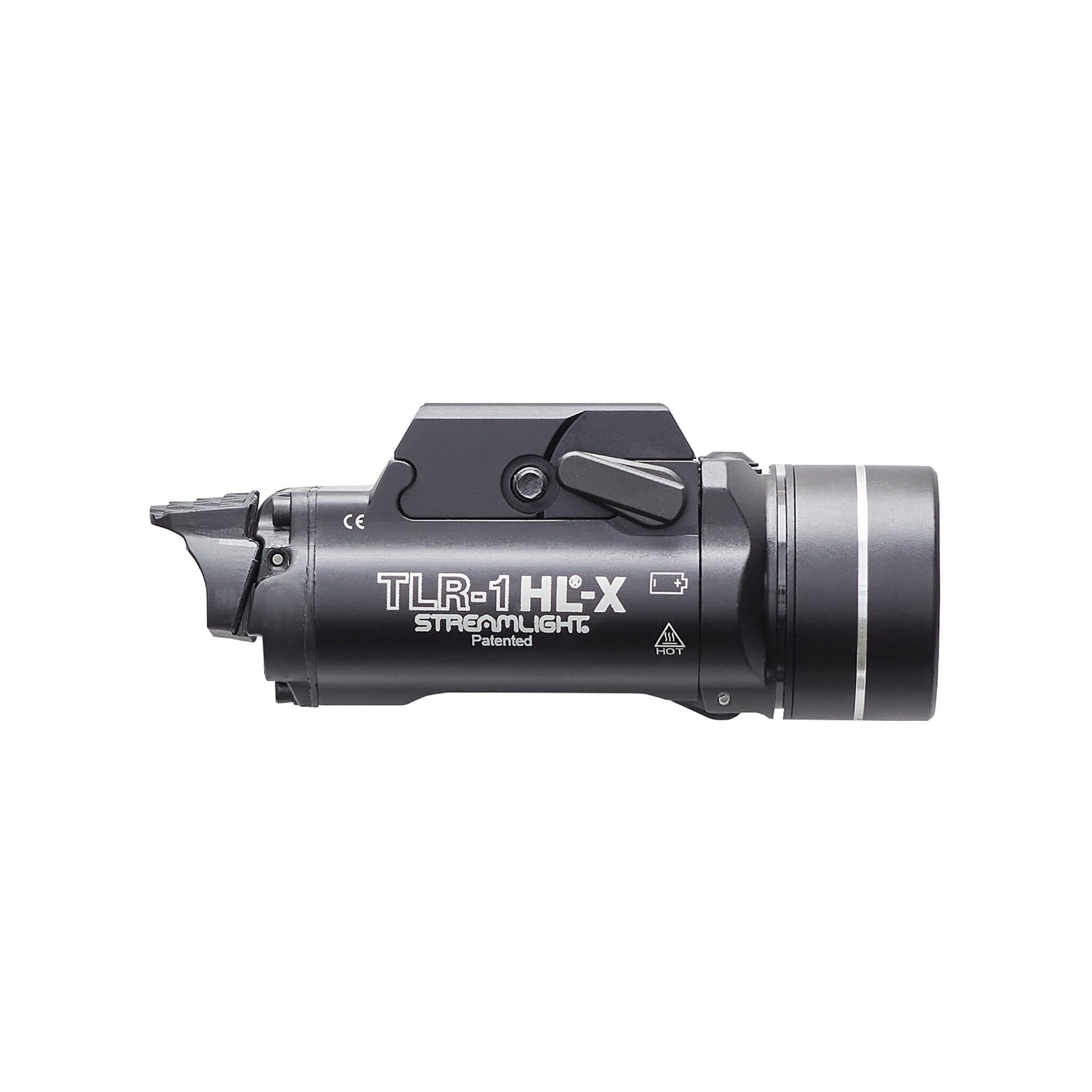

Beam distance follows the same split: 245 metres on CR123A and 283 metres on SL-B9. Runtime runs the other way, 1.5 hours on the primaries against 1 hour at the higher output. The housing is 6000-series aircraft aluminium in a black anodised finish, 3.45 in (8.76 cm) long, 4.94 oz (140 g) with CR123A cells or 5.19 oz (147 g) on SL-B9, and rated IPX7 for a metre of water over half an hour.

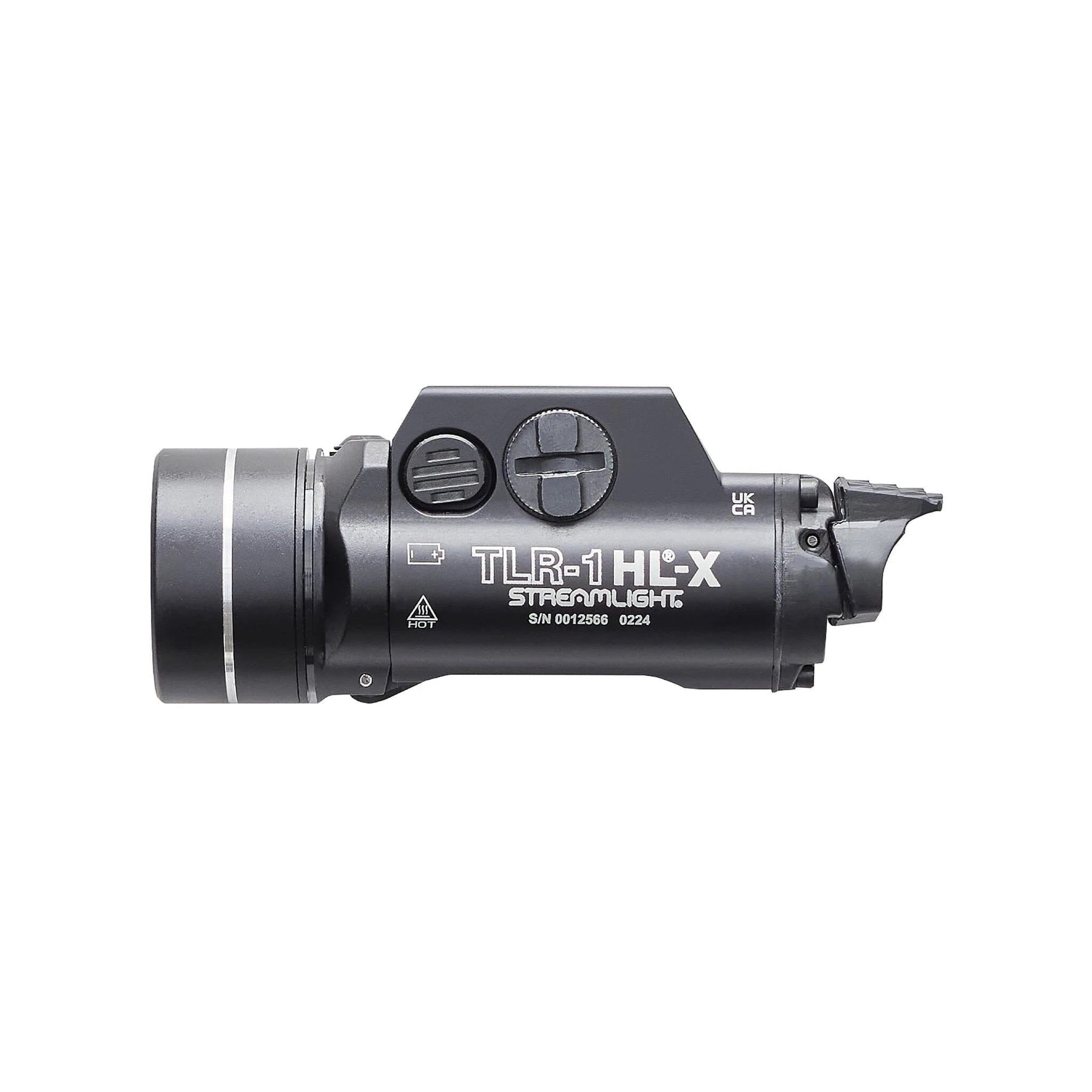

Streamlight supply two rear paddle switches, High and Extended High, so the reach of the control can be matched to the hand and to the shape of the trigger guard, and either one works from both sides. It clamps on with a rail grip clamp using the locating keys in the box. The thing to be clear about is the battery package: this part number ships with primaries and the SL-B9 packs are bought separately, so if you want the rechargeable route in the box you are looking at the wrong part number.
Why shooters choose the TLR-1 HL-X
-
Output — 1000 lumens and 15,000 candela on CR123A, or 1500 lumens and 20,000 candela on SL-B9
-
Reach — 245 metres on the cells supplied, rising to 283 metres on SL-B9 packs
-
Runtime — 1.5 hours on CR123A, or 1 hour at the higher output on SL-B9
-
Switching — ambidextrous rear paddles, with High and Extended High both supplied
-
Mounting — rail grip clamp with locating keys included
-
Build — 6000-series aircraft aluminium, black anodised, rated IPX7
What the TLR-1 HL-X fits
The rail grip clamp fits full-size rail-equipped pistols and long guns carrying a compatible rail, using the locating keys supplied. If you would rather the rechargeable packs came in the box, that is the TLR-1 HL-X USB, part 69501. For the long gun package with a remote switch, look at the TLR-1 HL Long Gun Kit, and the classic TLR-1 HL in black is the simpler light beneath it. Browse all weapon lights.
Specifications
| Output |
1000 lumens on CR123A / 1500 lumens on SL-B9 |
| Peak beam intensity |
15,000 candela / 20,000 candela |
| Beam distance |
245 m / 283 m |
| Runtime |
1.5 hours on CR123A / 1 hour on SL-B9 |
| Battery |
Two CR123A lithium cells included; also runs SL-B9 USB-C rechargeable packs |
| Switching |
Ambidextrous rear paddles; High and Extended High supplied |
| Mount |
Rail grip clamp with rail locating keys |
| Length |
3.45 in (8.76 cm) |
| Weight |
4.94 oz (140 g) with CR123A; 5.19 oz (147 g) with SL-B9 |
| Material |
6000-series aircraft aluminium, black anodised |
| Water resistance |
IPX7, to 1 metre for 30 minutes |
| Brand |
Streamlight |
| MPN |
69500 |
Buy it for the primaries and it will still take the rechargeable route later. Order the TLR-1 HL-X today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
