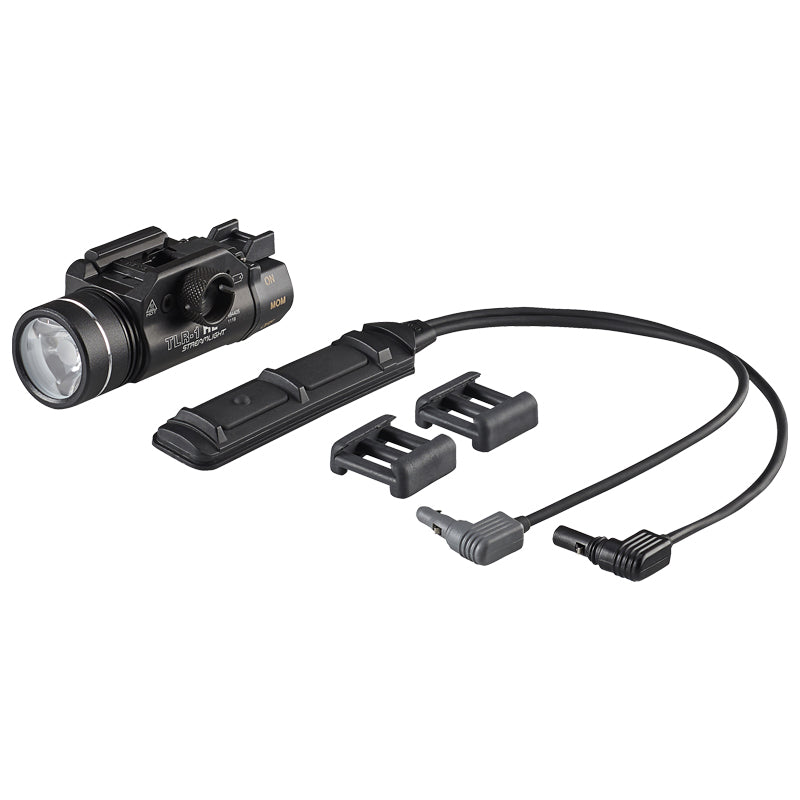

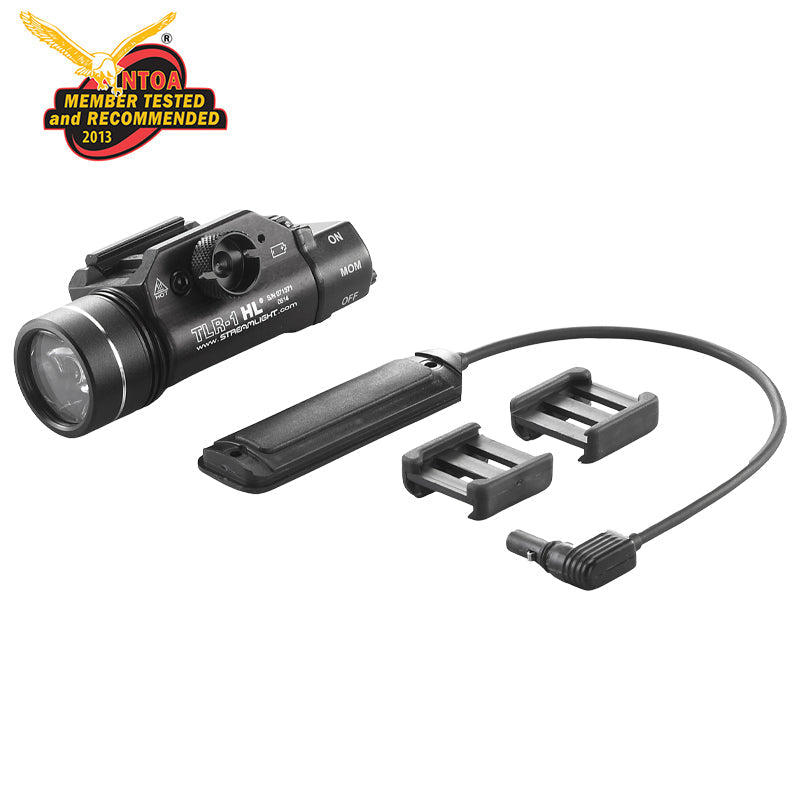

The Streamlight TLR-1 HL Long Gun Kit, part number 69262, is the 1000 lumen TLR-1 HL weapon light packaged for rifles and carbines with a remote pressure switch, a safe-off remote door switch, a standard door switch and mounting clips.
The light is the same one that has been bolted to pistols for years. What the kit adds is a way to work it with the hand that is already holding the forend.
Output is 1000 lumens with 20,000 candela of peak beam intensity, giving a wide 283 m beam and 1.5 hours of runtime from two CR123A lithium cells, which are included. The head is 6000-series aluminium rated IPX7, 3.39 in (8.61 cm) long and 4.32 oz (122.5 g) as Streamlight states it. Attachment is by the tool-free TLR-1 rail-grip clamp, and the strobe is user-programmable.
The push-button on the light and the remote pressure switch work independently of one another, so a cable pinched under a rail cover or a pad that has come unstuck does not take the light out of action — you still have the button. The safe-off door switch is there for the times you want the light physically unable to come on. The beam is deliberately wide rather than tight: 20,000 candela over 283 m is a searching beam, not a spotlight for identifying something at the far end of a field.
Why shooters choose the TLR-1 HL Long Gun Kit
-
Output — 1000 lumens and 20,000 candela, a wide beam reaching 283 m
-
Runtime — 1.5 hours on two CR123A lithium cells, supplied
-
Switching — push-button and remote pressure switch, operating independently
-
In the kit — safe-off remote door switch, standard door switch and mounting clips
-
Mounting — tool-free TLR-1 rail-grip clamp
-
Build — 6000-series aluminium, IPX7, 3.39 in and 4.32 oz
What the TLR-1 HL Long Gun Kit fits

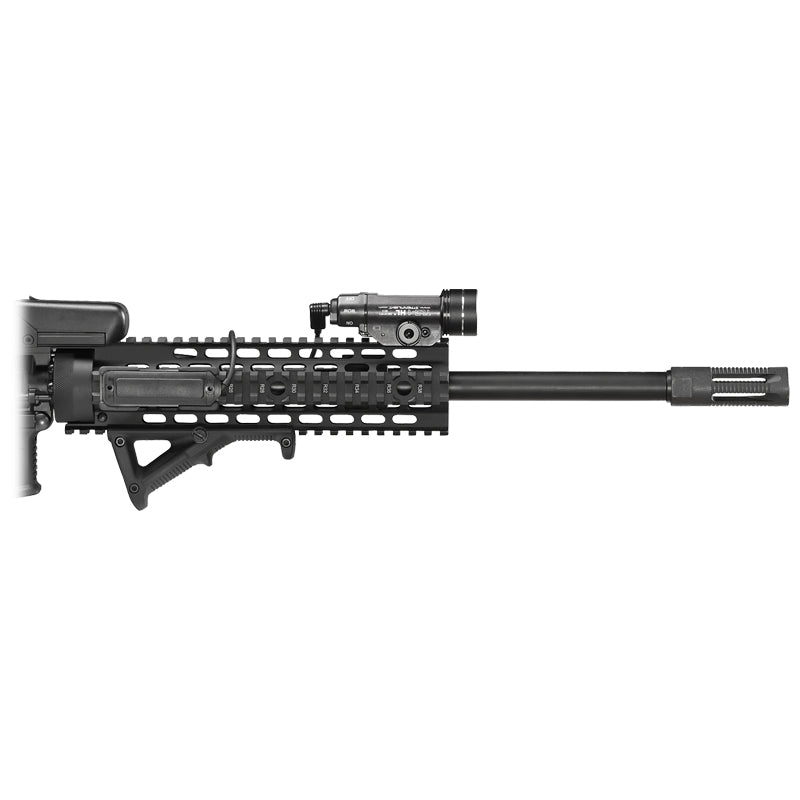

The TLR-1 rail-grip clamp attaches without tools to Picatinny and 1913 rail, which covers rifle and carbine forends and rail-equipped shotguns. If you want the same head with a tighter, longer-throwing beam on a rifle, the TLR-1 HP Long Gun Kit is the focused version, and the plain pistol package of this light is the TLR-1 HL in black. More are in weapon lights.
Specifications
| Output |
1000 lumens / 20,000 candela / 283 m |
| Runtime |
1.5 hours |
| Battery |
Two CR123A lithium cells, included |
| Switching |
Push-button plus remote pressure switch, operating independently |
| Modes |
User-programmable strobe |
| Mount |
Tool-free TLR-1 rail-grip clamp |
| Length |
3.39 in (8.61 cm) |
| Weight |
4.32 oz (122.5 g) |
| Housing |
6000-series aluminium, IPX7 |
| In the box |
Light, safe-off remote door switch, remote pressure switch, mounting clips, standard door switch, two CR123A cells |
| MPN |
69262 |
One light, two ways to switch it, and no shopping list of accessories to make it work on a long gun. Order the TLR-1 HL Long Gun Kit today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
