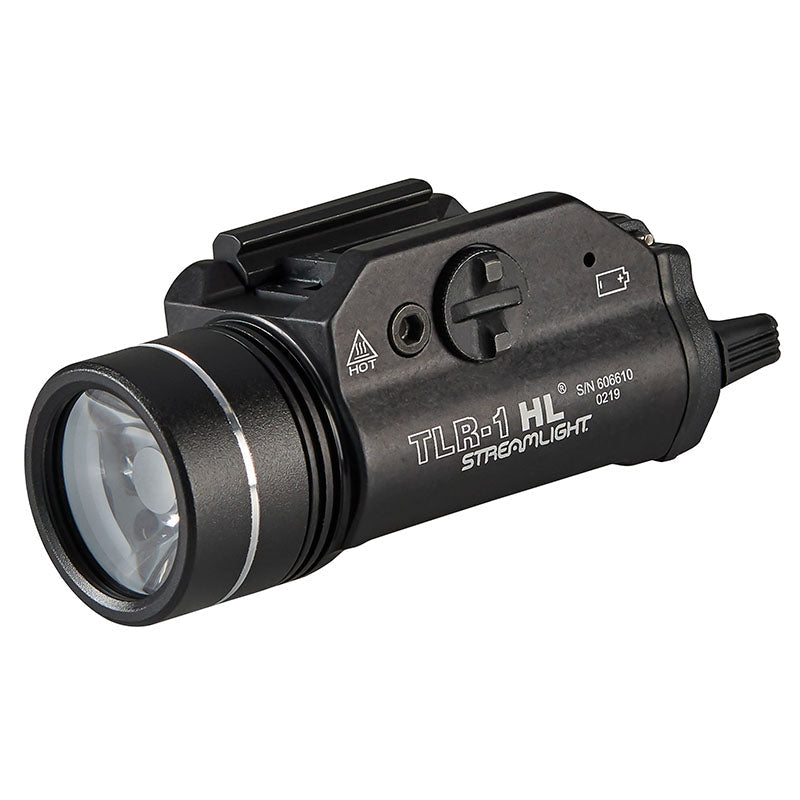

The Streamlight TLR-1 HL in black, part 69260, is a rail-mounted pistol light producing 1000 lumens and 20,000 candela for a 283 metre beam.
It is the footprint holster makers cut for. If your holster is already moulded for a TLR-1, this is the light that drops into it.
The housing is 6000-series aluminium, 3.39 in long and 4.32 oz, rated IPX7. Two CR123A lithium cells are included and give around 1.5 hours of runtime. The rail-grip clamp tightens in seconds without tools, and five rail locating keys are supplied to cover Glock-style, MIL-STD-1913, Beretta 90two, S&W SW99, S&W TSW and SIG Sauer P320 rails.
A 20,000 candela beam at 1000 lumens is wide rather than tight — it fills a room and still reaches out, which is what most people want from a handgun light. The ambidextrous paddle switch works from either side, and the strobe is user-programmable if you want it out of the way. If you want a narrow, long-throw beam instead, this is not that light and no setting will make it one.
Why shooters choose the TLR-1 HL
-
Output — 1000 lumens and 20,000 candela, for a 283 metre wide beam
-
Runtime — around 1.5 hours on two CR123A lithium cells, included
-

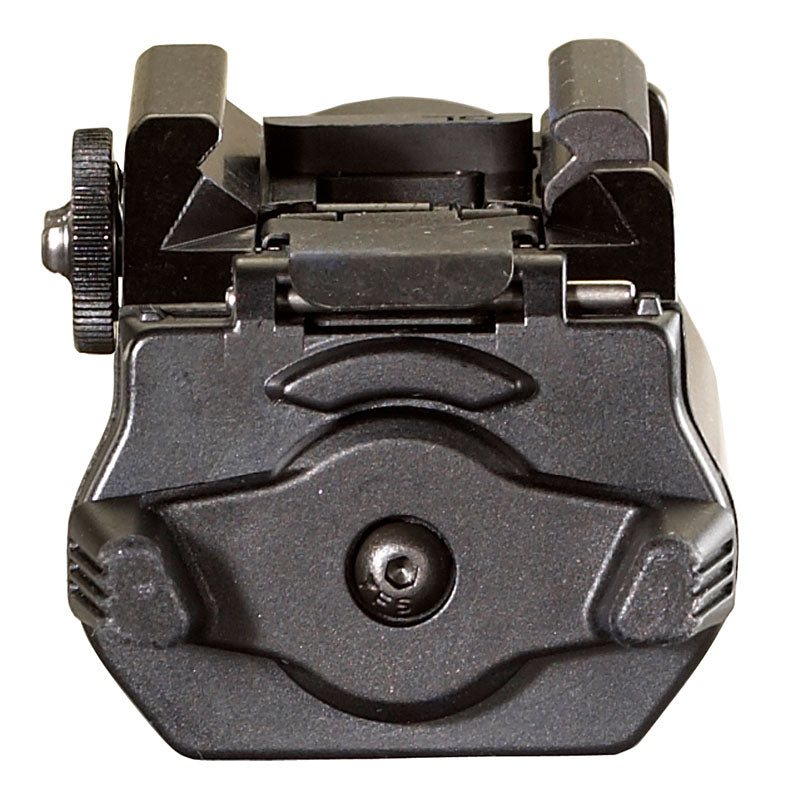

Switching — ambidextrous paddle switch, with a user-programmable strobe
-
Mounting — tool-free rail-grip clamp with five rail locating keys
-
Rails — Glock-style, MIL-STD-1913, Beretta 90two, S&W SW99 and TSW, SIG Sauer P320
-
Body — 6000-series aluminium, 3.39 in and 4.32 oz, IPX7 rated
What the TLR-1 HL fits

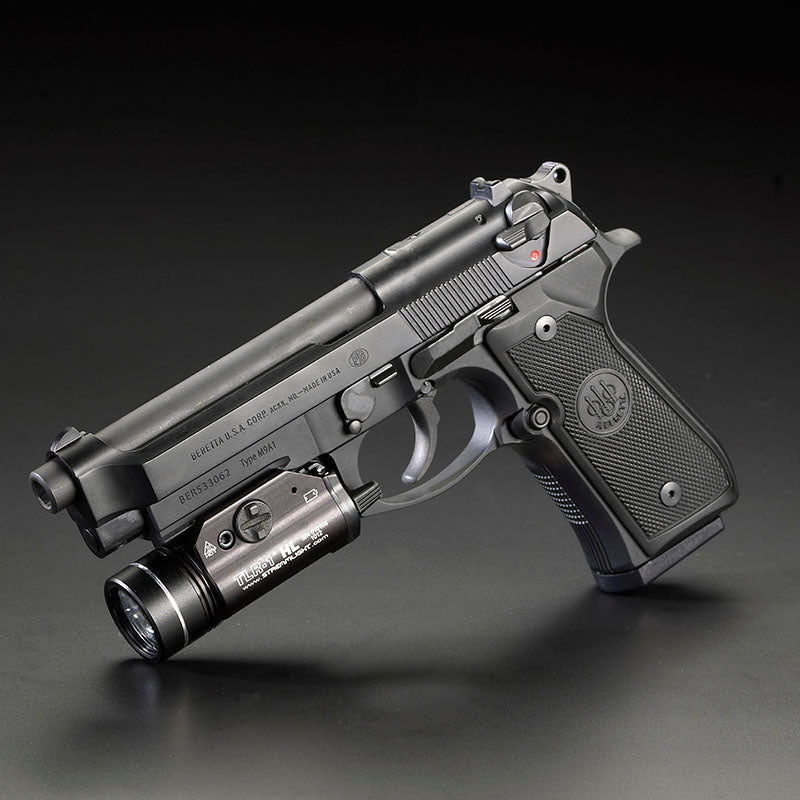

Rail-equipped pistols on any of the five key patterns supplied, and MIL-STD-1913 rails on carbines and pistol-calibre carbines. The same light in earth tones is the TLR-1 HL in Flat Dark Earth and the TLR-1 HL in FDE Brown; for remote switching on a long gun, the TLR-1 HL Long Gun Kit adds the hardware for it. More sit in Weapon Lights.
Specifications
| Output |
1000 lumens / 20,000 candela / 283 m |
| Runtime |
1.5 hours |
| Battery |
Two CR123A lithium cells, included |
| Switch |
Ambidextrous paddle switch, user-programmable strobe |
| Fits |
Glock-style, 1913 Picatinny, Beretta 90two, S&W SW99 and TSW, SIG P320 |
| Mount |
Tool-free rail-grip clamp with five rail locating keys |
| Housing |
6000-series aluminium, black |
| Water resistance |
IPX7 |
| Length |
3.39 in (8.61 cm) |
| Weight |
4.32 oz (122.5 g) |
| MPN |
69260 |
The standard that everything else on the pistol was built around. Order the TLR-1 HL today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
Explore more: Weapon Lights, TLR-1 HL-X or browse all Streamlight.
