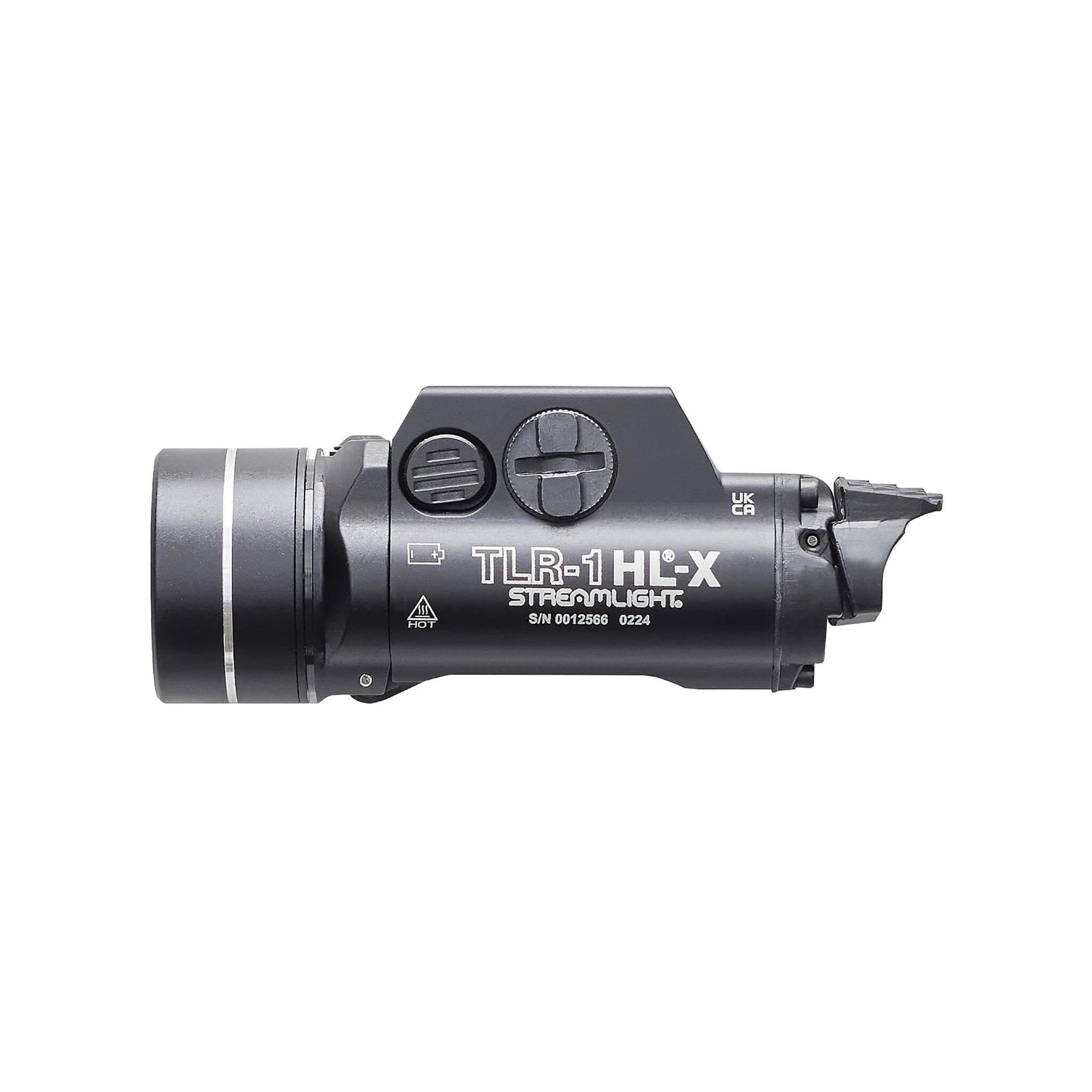

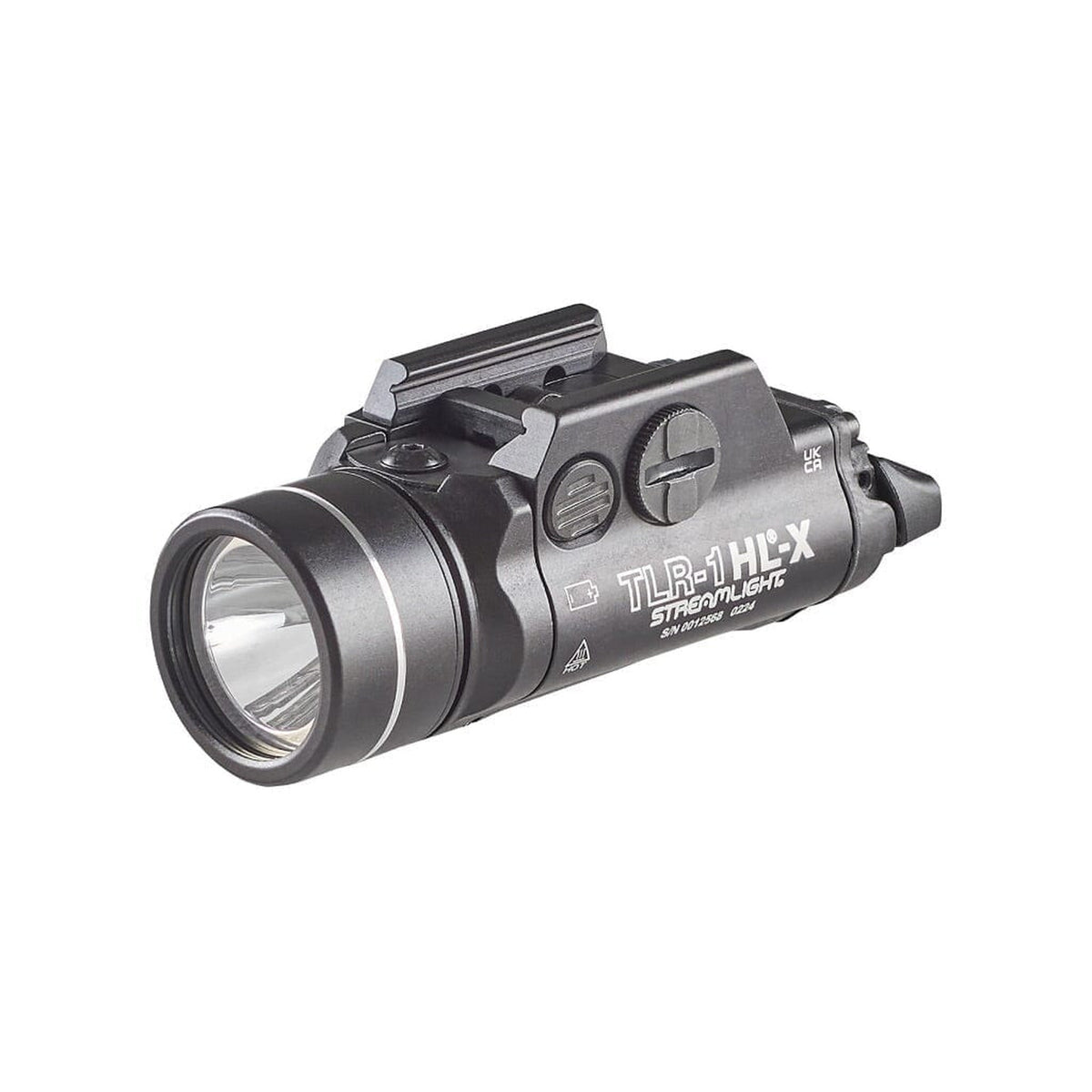

The Streamlight TLR-1 HL-X USB, part 69501, is a full-size rail-mounted weapon light supplied with two SL-B9 USB-C rechargeable packs and a charging cord.
It is multi-fuel, and the fuel decides the output: 1500 lumens on the rechargeable packs, 1000 lumens on a pair of CR123A primaries, with no change to the light itself.

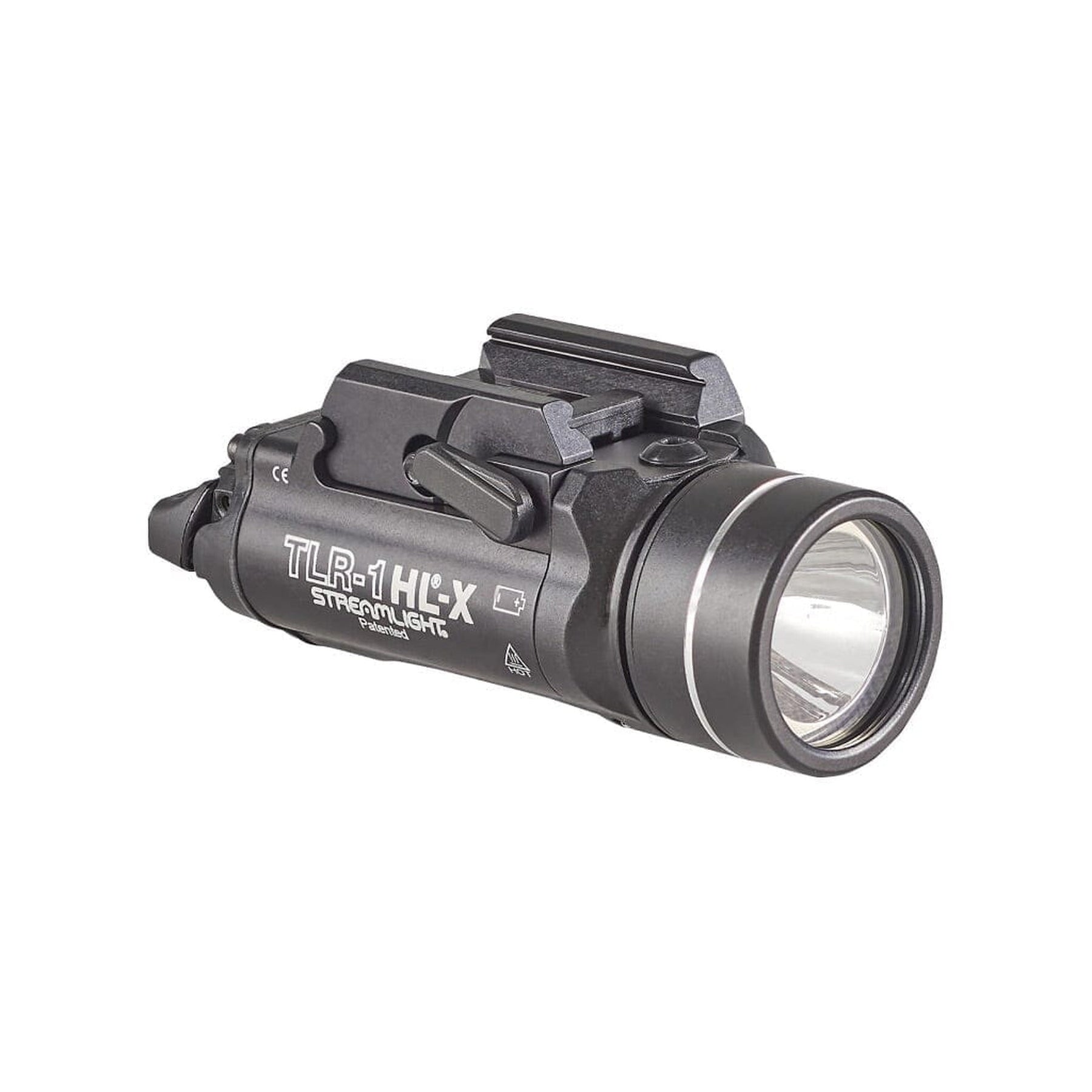

On the SL-B9 packs it produces 1500 lumens at 20,000 candela for a 283-metre beam and runs an hour; on CR123A cells it gives 1000 lumens at 15,000 candela for 245 metres and runs an hour and a half. The head measures 3.45 in (8.76 cm) overall, and the light weighs 5.19 oz (147 g) on the packs or 4.94 oz (140 g) on primaries. The body is 6000-series aircraft aluminium, black anodised, sealed to IPX7 and rated waterproof to one metre for thirty minutes.

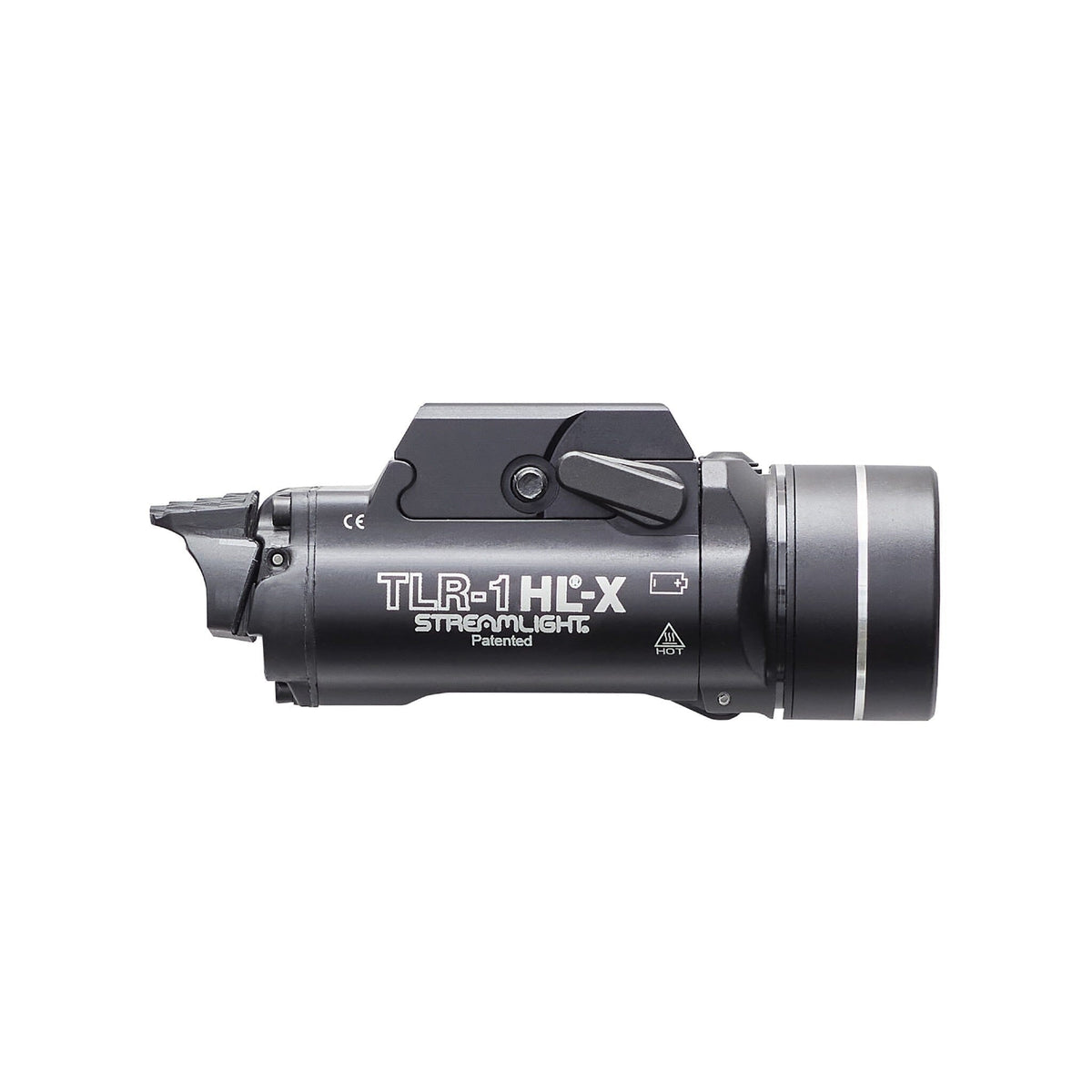

Batteries load from the front, so cells can be swapped without taking the light off the rail and disturbing where it sits. Rear paddle switches are ambidextrous, and both High and Extended High switches are supplied so the throw of the lever can be matched to your reach. It mounts by a rail grip clamp with the supplied locating keys, which covers full-size railed pistols and long guns with a compatible rail; there is no laser in this model.
Why shooters choose the TLR-1 HL-X USB
-
Rechargeable output — 1500 lumens, 20,000 candela and 283 metres on the SL-B9 packs, for 1 hour
-
Primary output — 1000 lumens, 15,000 candela and 245 metres on CR123A cells, for 1.5 hours
-
Battery access — front-loading compartment, so cells change without unmounting the light
-
Switching — ambidextrous rear paddles, with High and Extended High switches supplied
-
Build — 6000-series aircraft aluminium, black anodised, IPX7 to 1 metre for 30 minutes
-
Size — 3.45 in (8.76 cm) and 5.19 oz (147 g) with the SL-B9 packs fitted
What the TLR-1 HL-X USB fits
The rail grip clamp and locating keys fit full-size pistols with an accessory rail and long guns carrying a compatible rail section. If you would rather run lithium primaries and skip the charging kit, part 69500 is the same light as the TLR-1 HL-X on CR123A, and the long gun package is the TLR-1 HP Long Gun Kit.
Specifications
| Output |
1500 lumens (SL-B9) / 1000 lumens (CR123A) |
| Peak beam intensity |
20,000 candela (SL-B9) / 15,000 candela (CR123A) |
| Beam distance |
283 m (SL-B9) / 245 m (CR123A) |
| Runtime |
1 hour (SL-B9) / 1.5 hours (CR123A) |
| Battery |
Two SL-B9 USB-C rechargeable packs included; also two CR123A cells |
| Switching |
Ambidextrous rear paddles, High and Extended High supplied |
| Mount |
Rail grip clamp with locating keys |
| Body |
6000-series aircraft aluminium, black anodised |
| Sealing |
IPX7, waterproof to 1 metre for 30 minutes |
| Length / weight |
3.45 in (8.76 cm) / 5.19 oz with SL-B9, 4.94 oz with CR123A |
| MPN |
69501 |
Charge it or feed it primaries, and it still throws the length of a range. Order the TLR-1 HL-X USB today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
