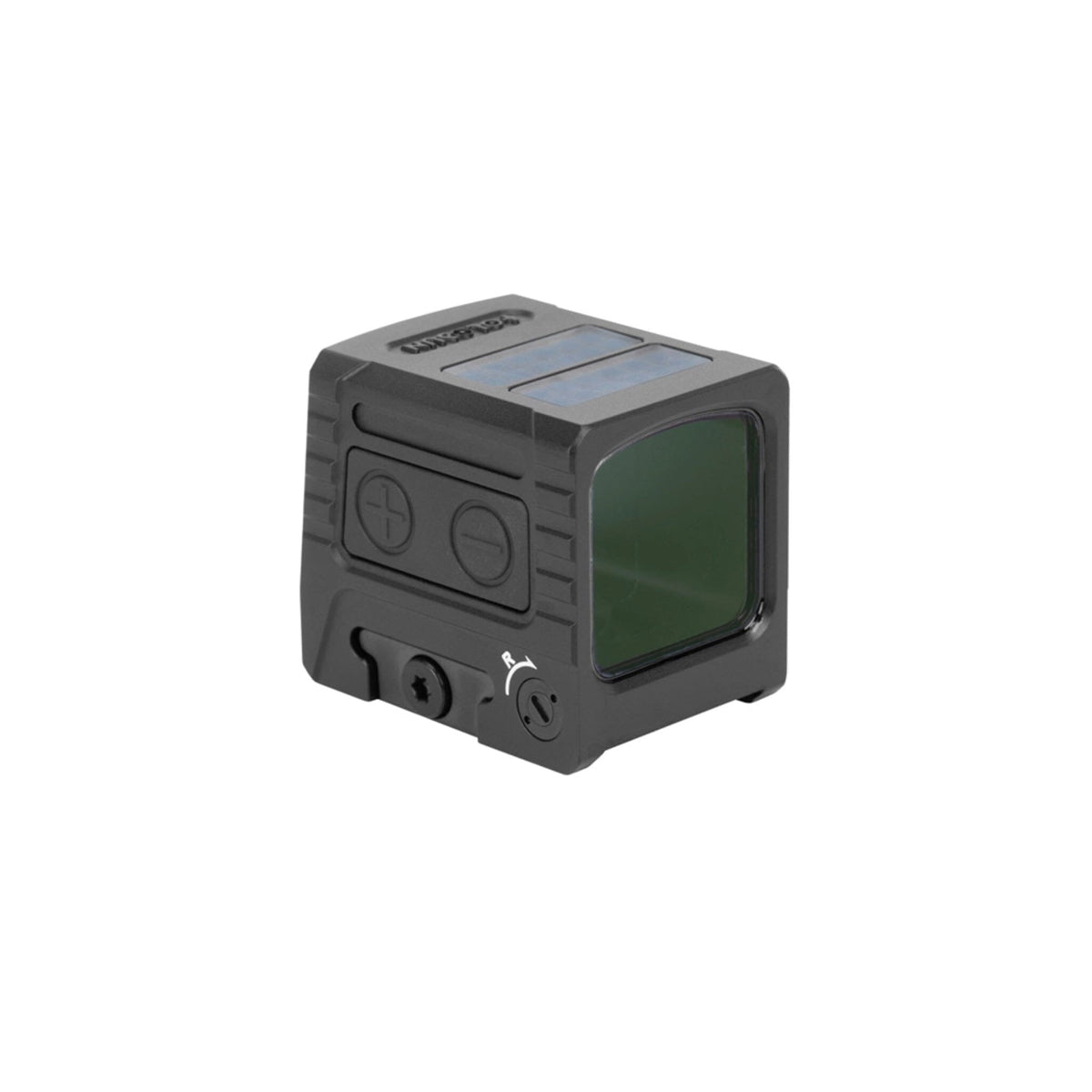

The Holosun AEMS Macro Red Dot Sight, AEMS-MACRO-RD, is a 1x enclosed-emitter sight on the 509T footprint, projecting Holosun's Multi-Reticle System from a 650nm red LED.

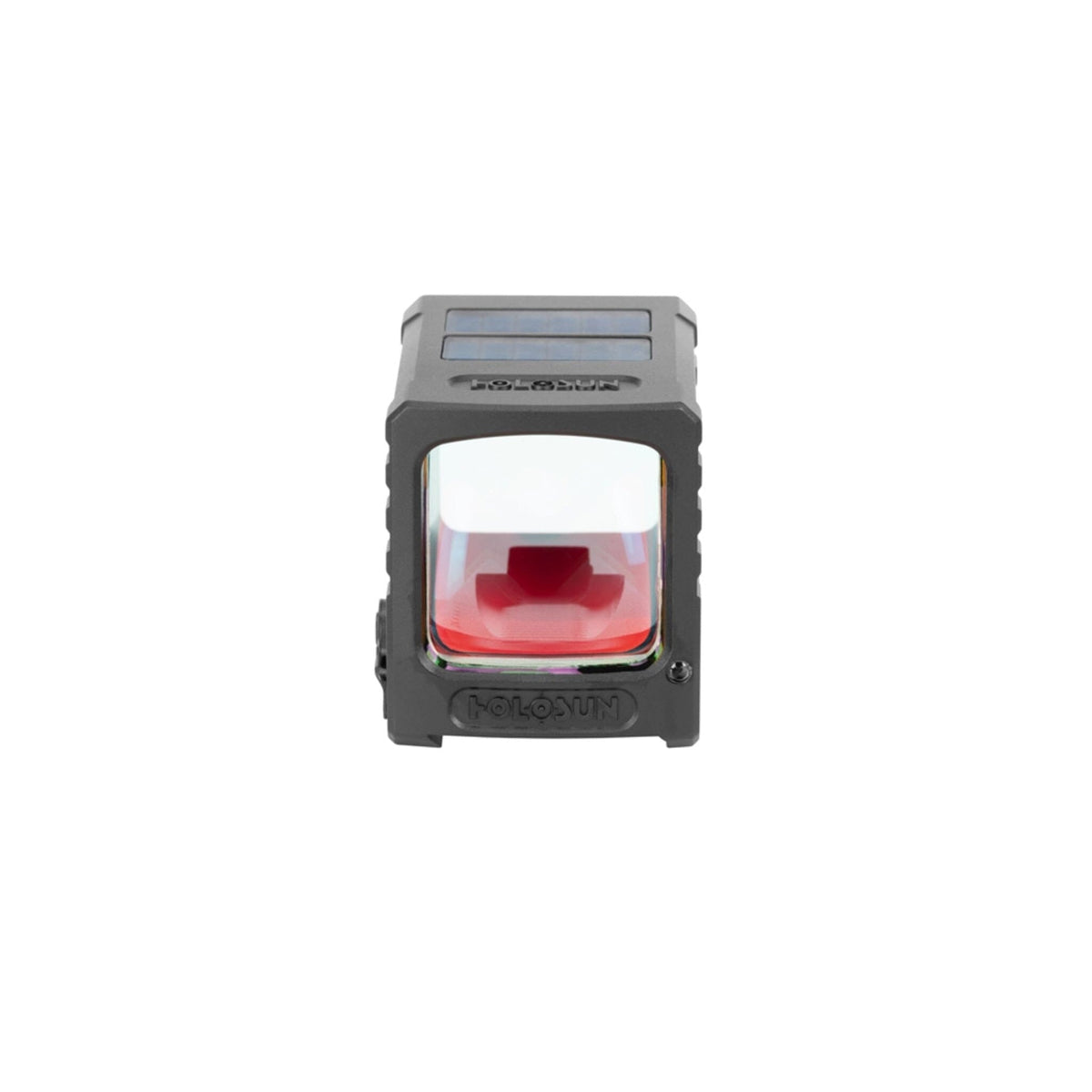

The window is the reason to buy it. At 0.9 x 0.9 in it is far closer to a rifle sight picture than a mini reflex, and the emitter behind it is sealed, so rain and pocket lint cannot blank the reticle.

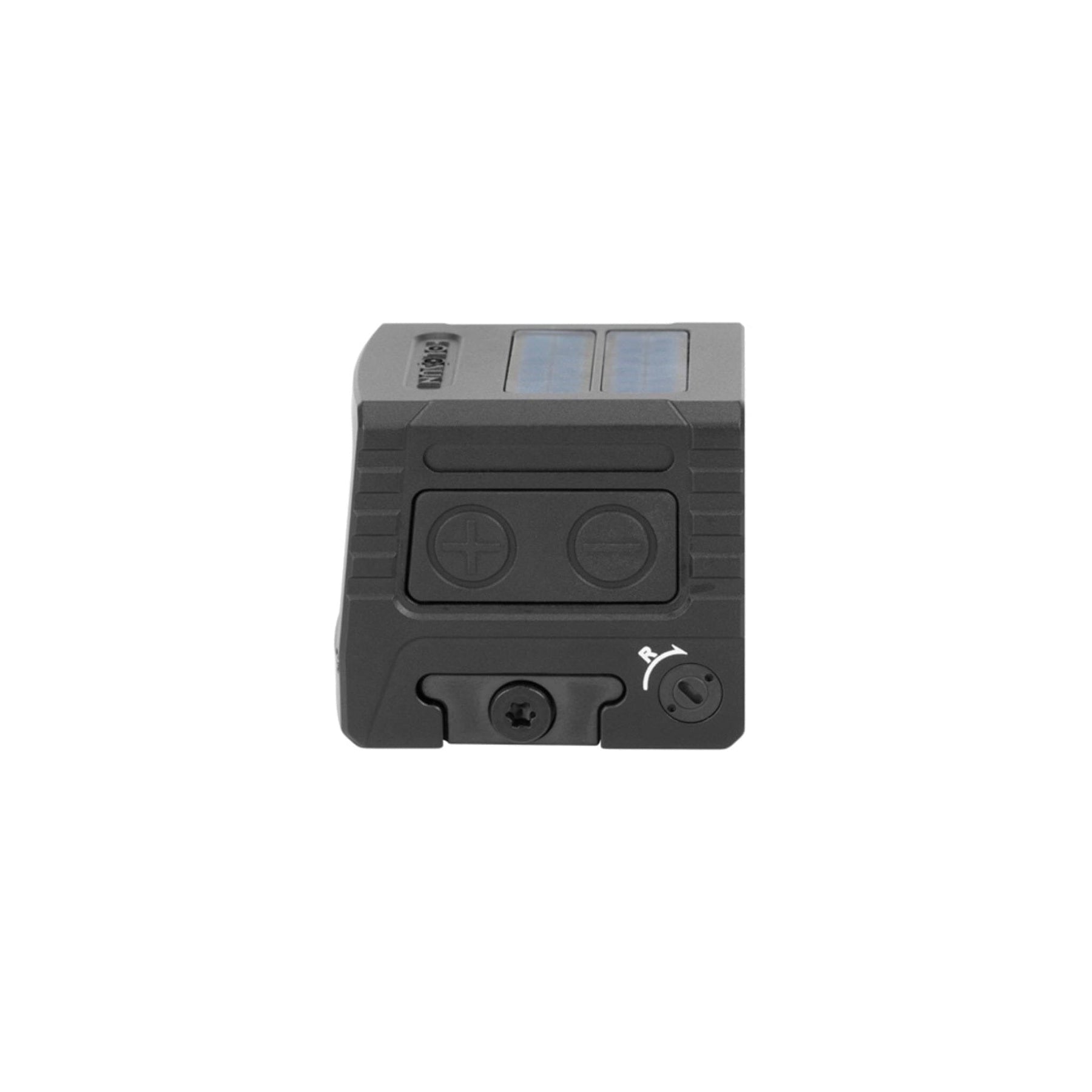

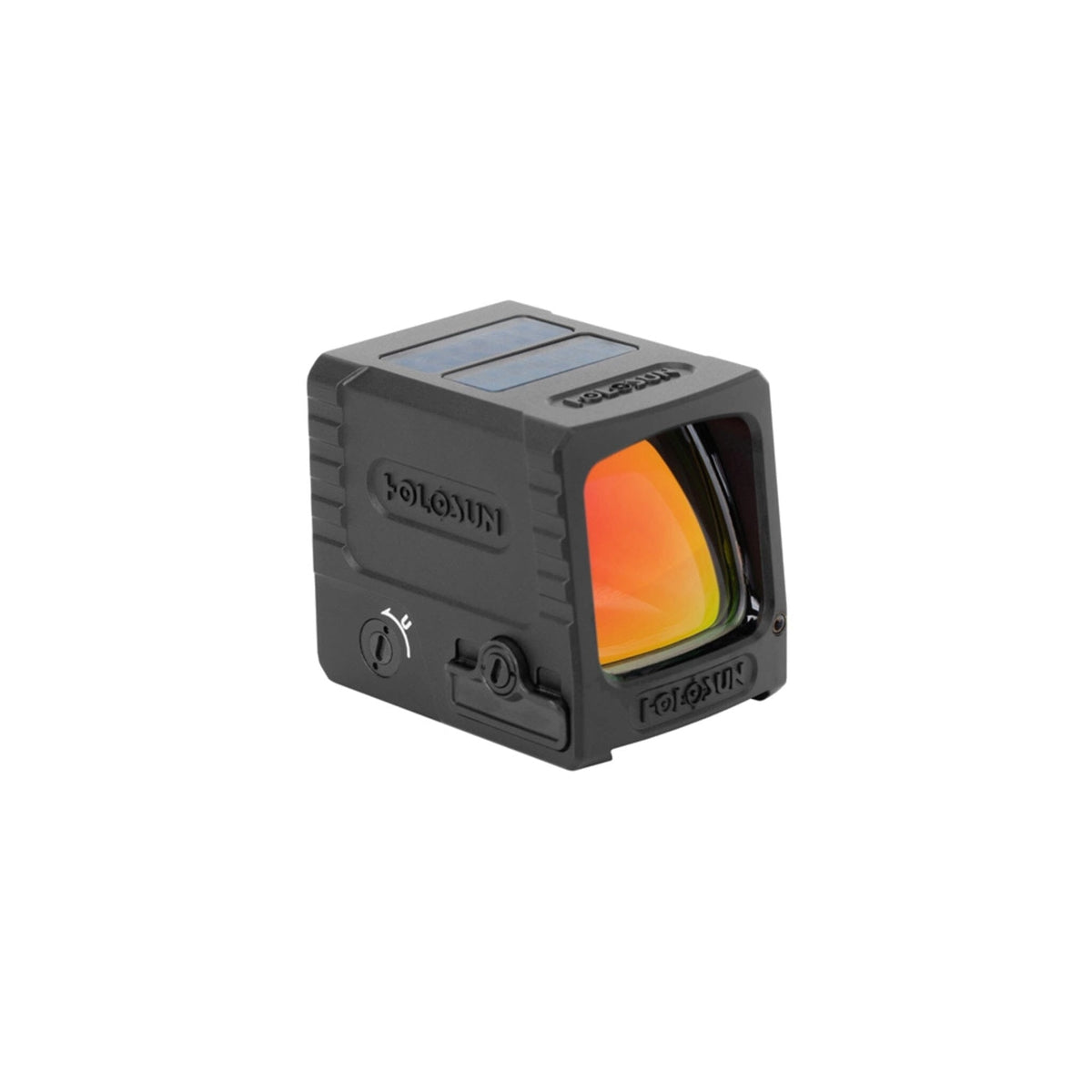

The housing is 7075 aluminium, rated IPX8 for immersion and tested to 5000G of vibration, at 2.5 oz (71 g). Power comes from a CR1632 cell rated up to 100,000 hours, backed by Solar Failsafe, with Shake Awake putting the reticle to sleep when the gun is still and Lock Mode stopping the brightness being nudged. There are 12 settings: eight for daylight and four for night vision.

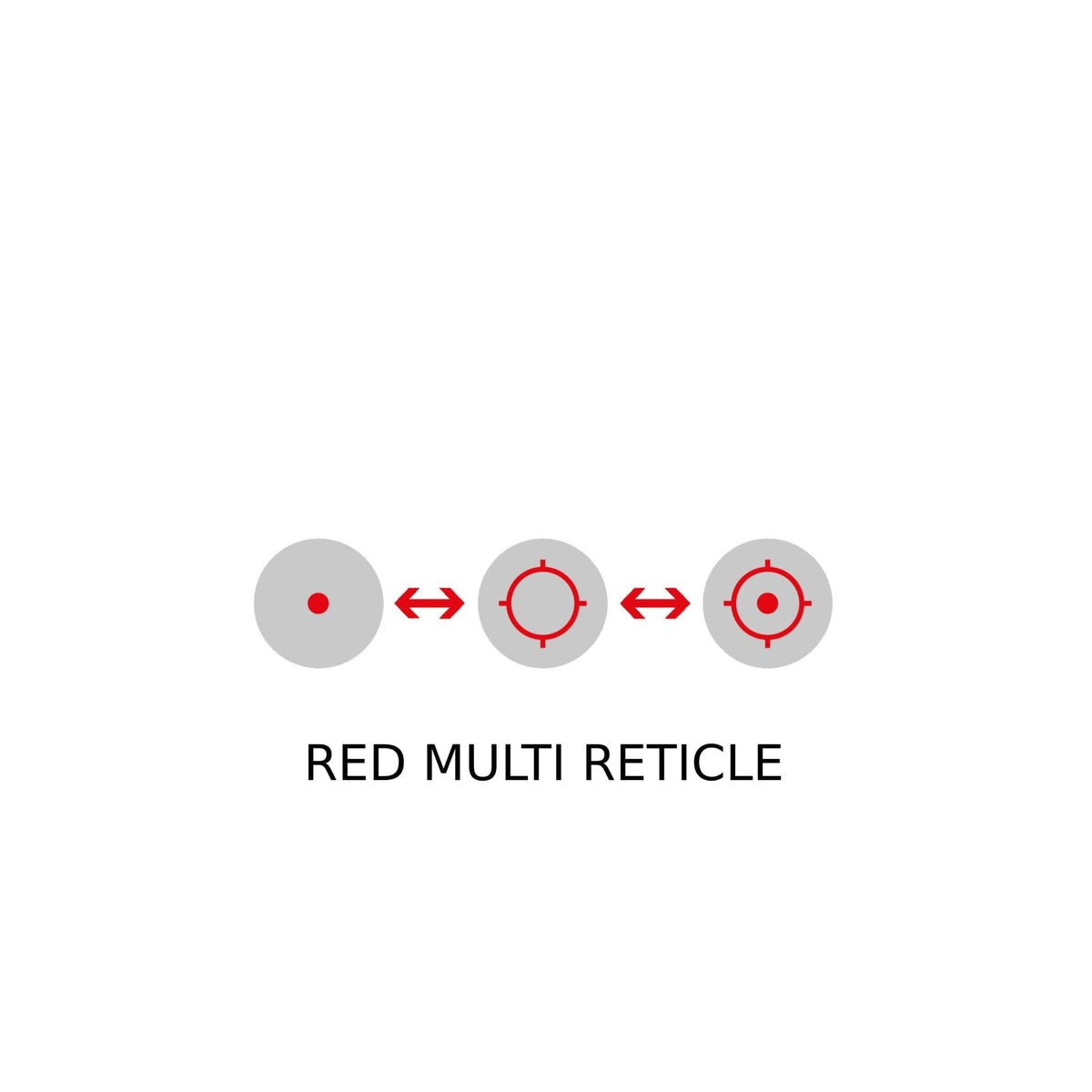

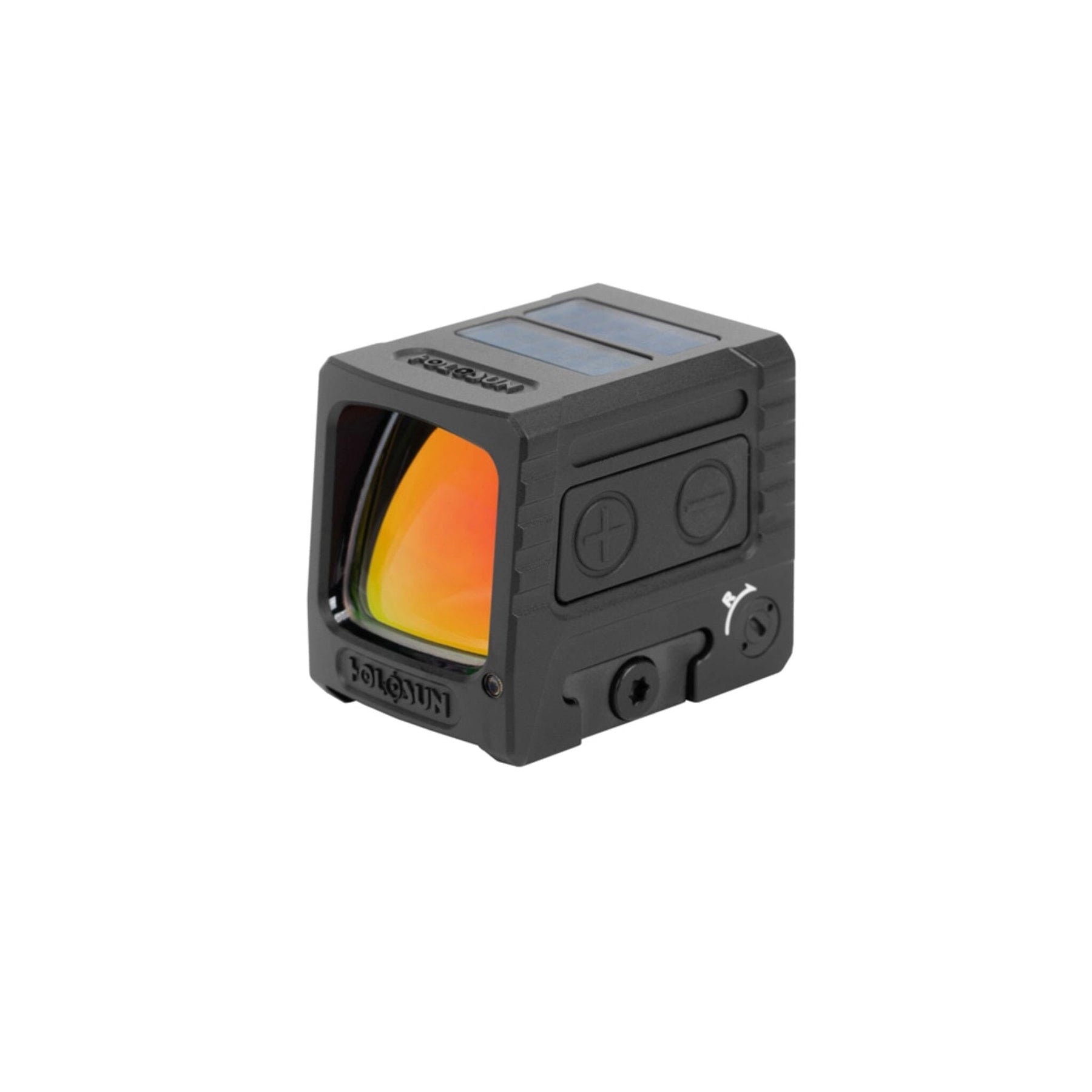

The Multi-Reticle System switches between a 2 MOA dot on its own, a 65 MOA circle on its own, or both together, so one sight covers a deliberate shot and a fast one. Adjustment is 0.5 MOA per click with plus or minus 50 MOA of travel. The honest limitation is size: an enclosed sight with a window this big is taller and heavier than an open reflex, and it needs the 509T footprint underneath it.
Why shooters choose the AEMS Macro
-
Reticle — Multi-Reticle System — 2 MOA dot, 65 MOA circle, or both together
-

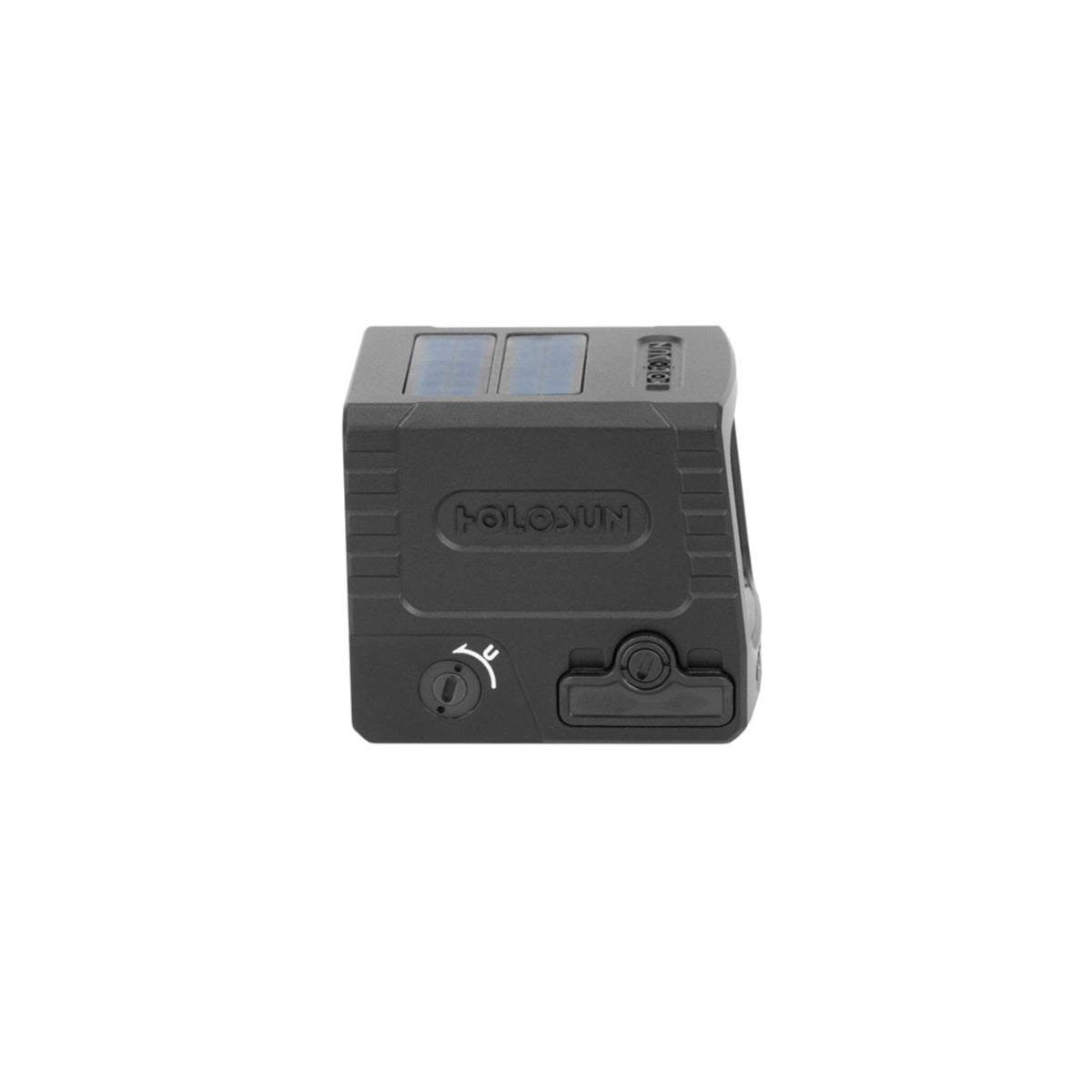

Emitter — fully enclosed and sealed against dust, lint and rain
-
Window — 0.9 x 0.9 in (23 x 23 mm)
-
Power — CR1632 with Solar Failsafe and Shake Awake, up to 100,000 hours
-
Adjustment — 0.5 MOA per click, plus or minus 50 MOA
-
Housing — 7075 aluminium, IPX8, 5000G vibration rated
What the AEMS Macro fits

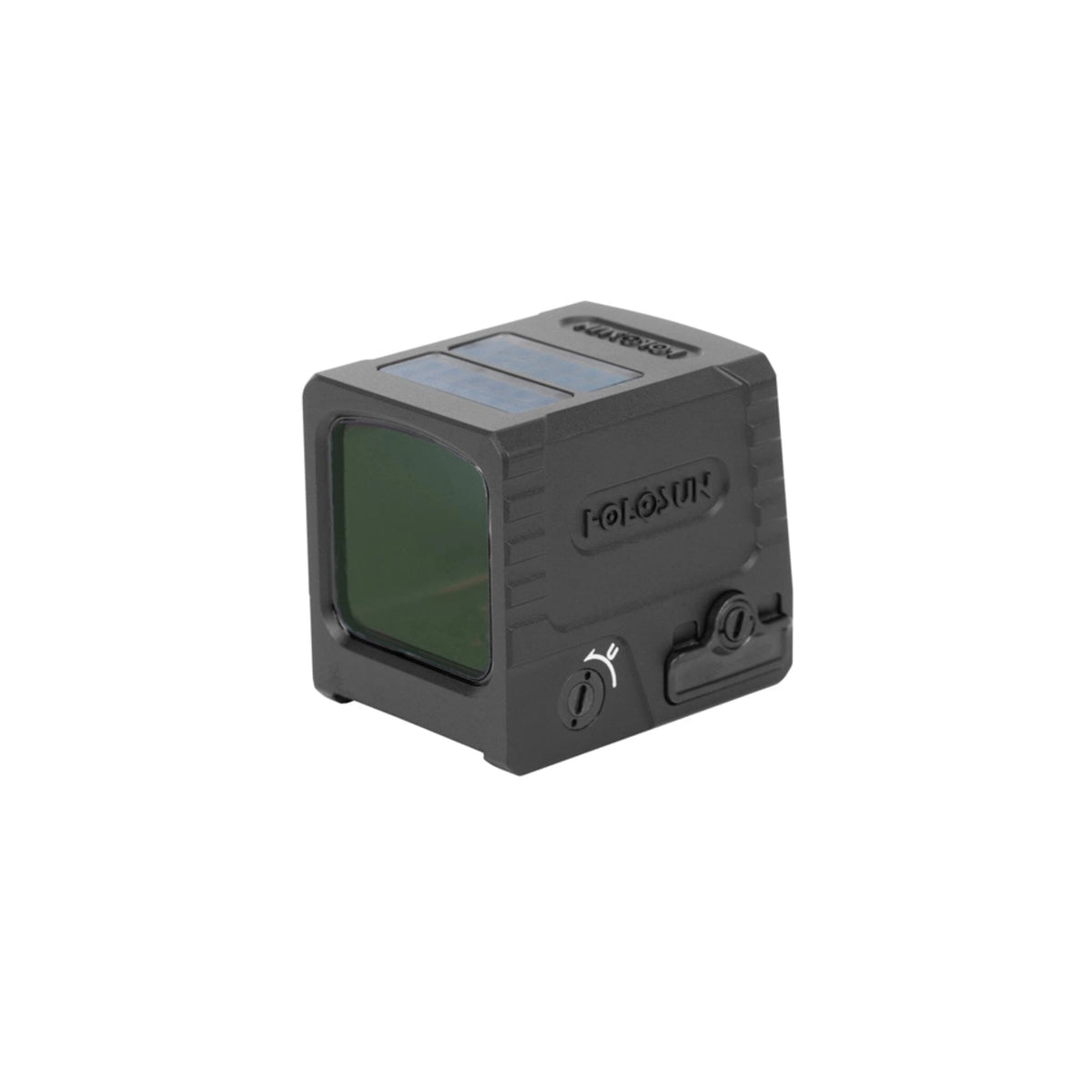

Any mount or slide cut to the Holosun 509T footprint. The same optic is made with a green emitter as the AEMS Macro Green and a gold one as the AEMS Macro Gold, and the smaller-bodied version of the same idea is the AEMS Micro Red. The wider family sits in Enclosed Red Dot Sights.
Specifications
| Type |
Enclosed emitter red dot sight, 1x |
| Reticle |
Multi-Reticle System — 2 MOA dot and 65 MOA circle |
| Emitter |
650nm red LED |
| Window size |
0.9 x 0.9 in (23 x 23 mm) |
| Illumination |

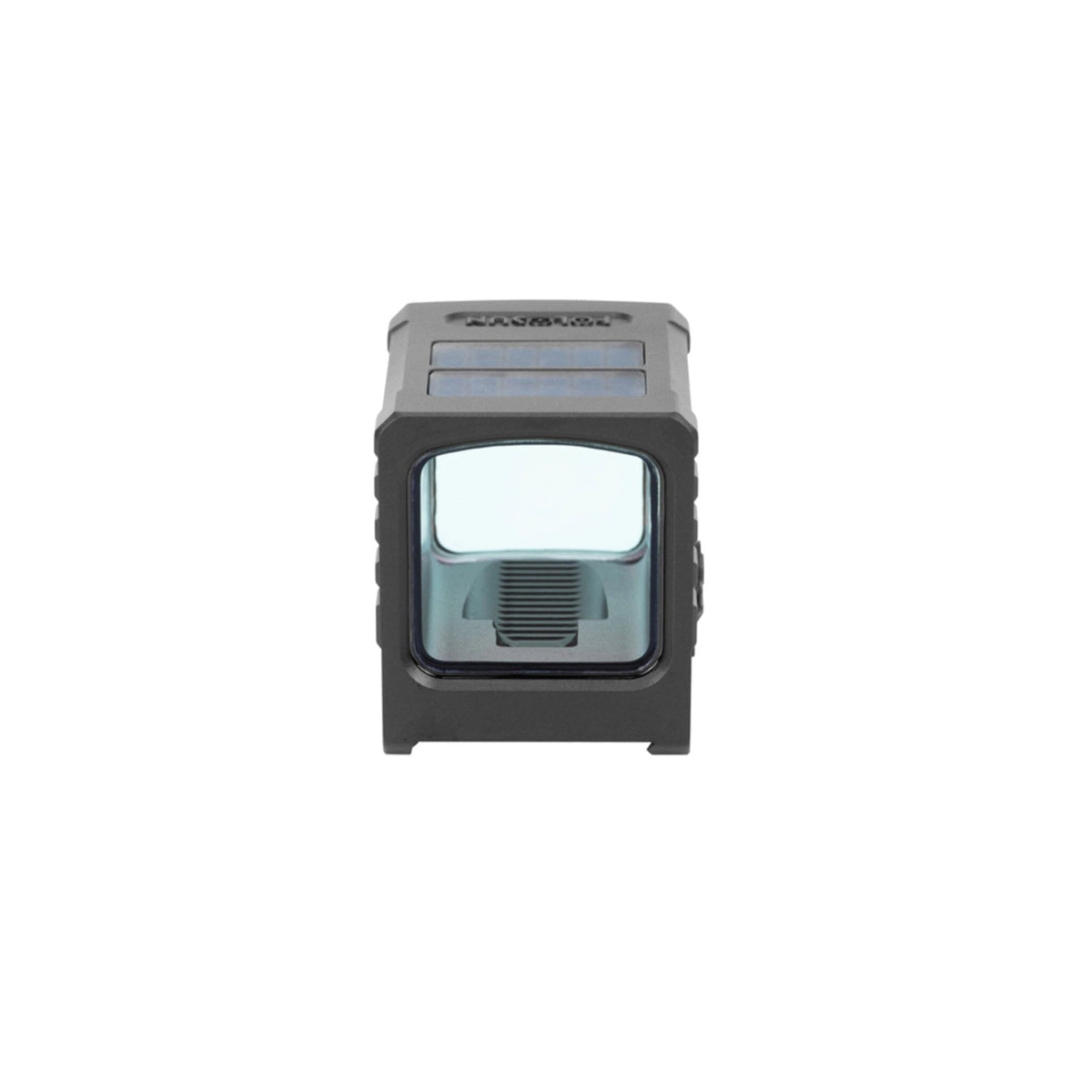

12 settings — 8 daylight, 4 night vision |
| Click value |
0.5 MOA |
| Adjustment range |
Plus or minus 50 MOA |
| Battery |
CR1632, up to 100,000 hours, with Solar Failsafe |
| Power management |
Shake Awake and Lock Mode |
| Footprint |
509T |
| Housing |
7075 aluminium, IPX8, 5000G |
| Weight |
2.5 oz (71 g) |
| MPN |
AEMS-MACRO-RD |
A big sealed window changes how quickly the eye finds the reticle. Order the AEMS Macro today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
Explore more: Enclosed Red Dot Sights, AEMS Micro Red or browse all Holosun.
