The Holosun AEMS Macro (AEMS-MACRO-GD) is a 1x enclosed-emitter sight with a gold reticle, using Holosun's Multi-Reticle System behind a 0.9 x 0.9 in (23 x 23 mm) window.
A sealed emitter behind a square window the size of a rifle optic, on a body light enough to live on a slide.

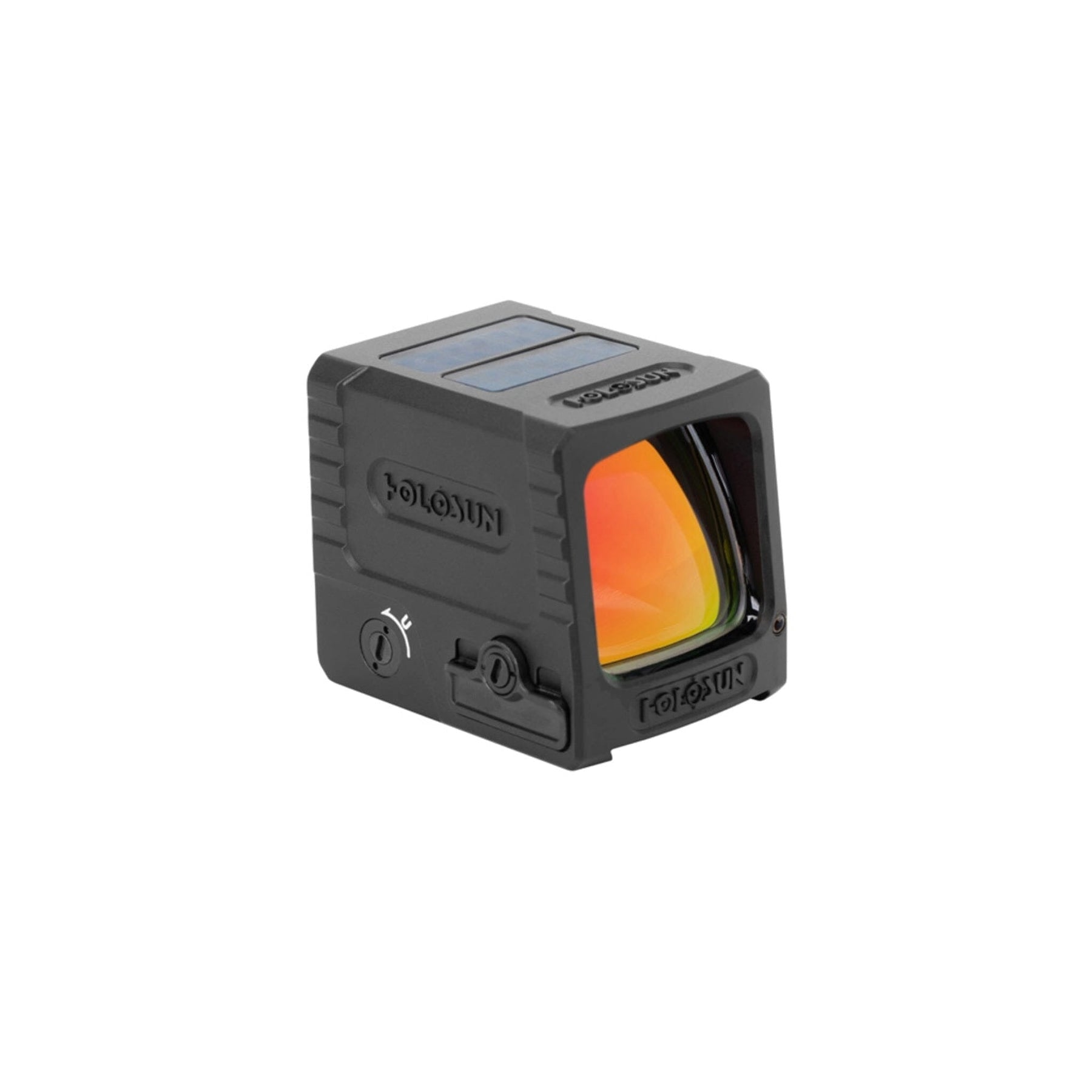

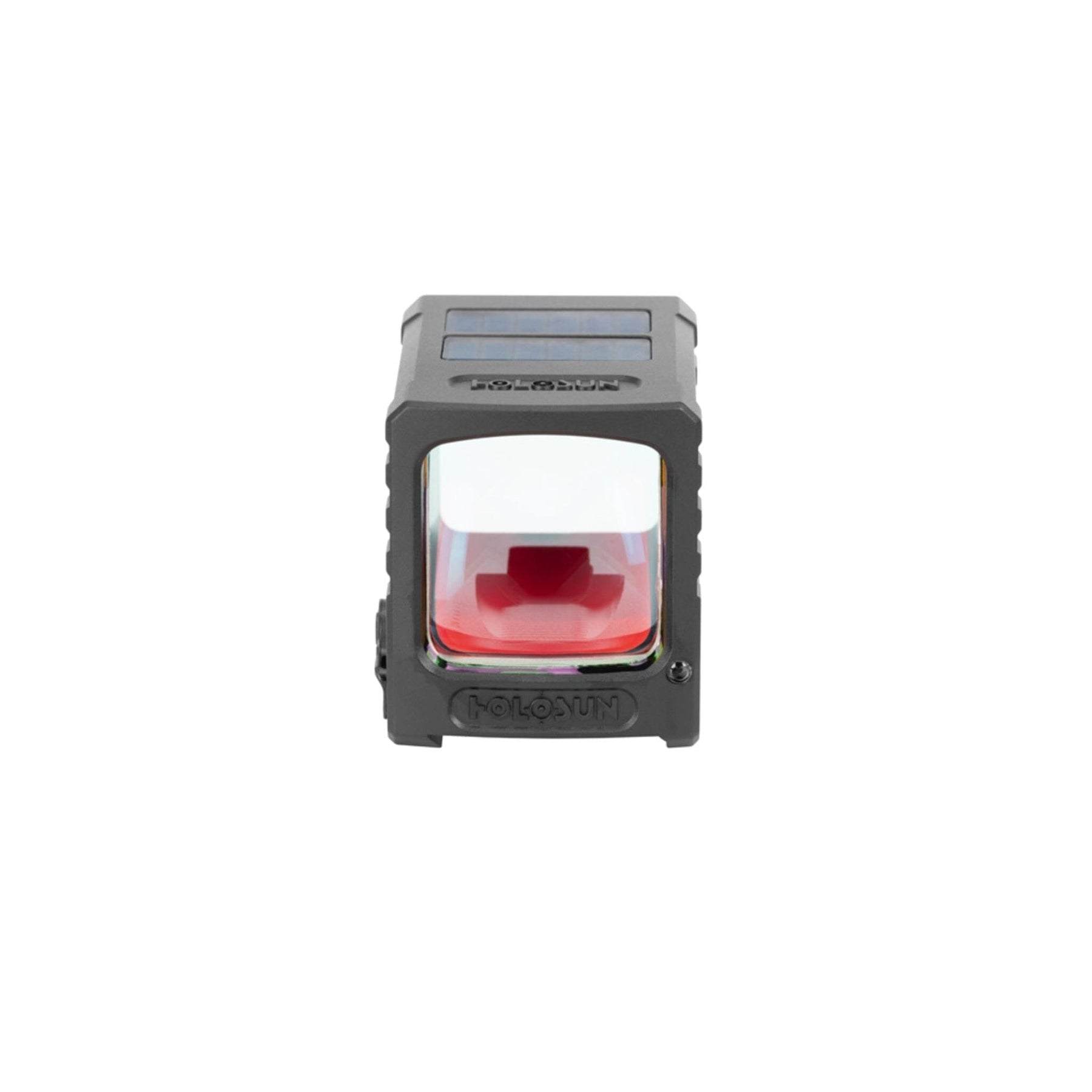

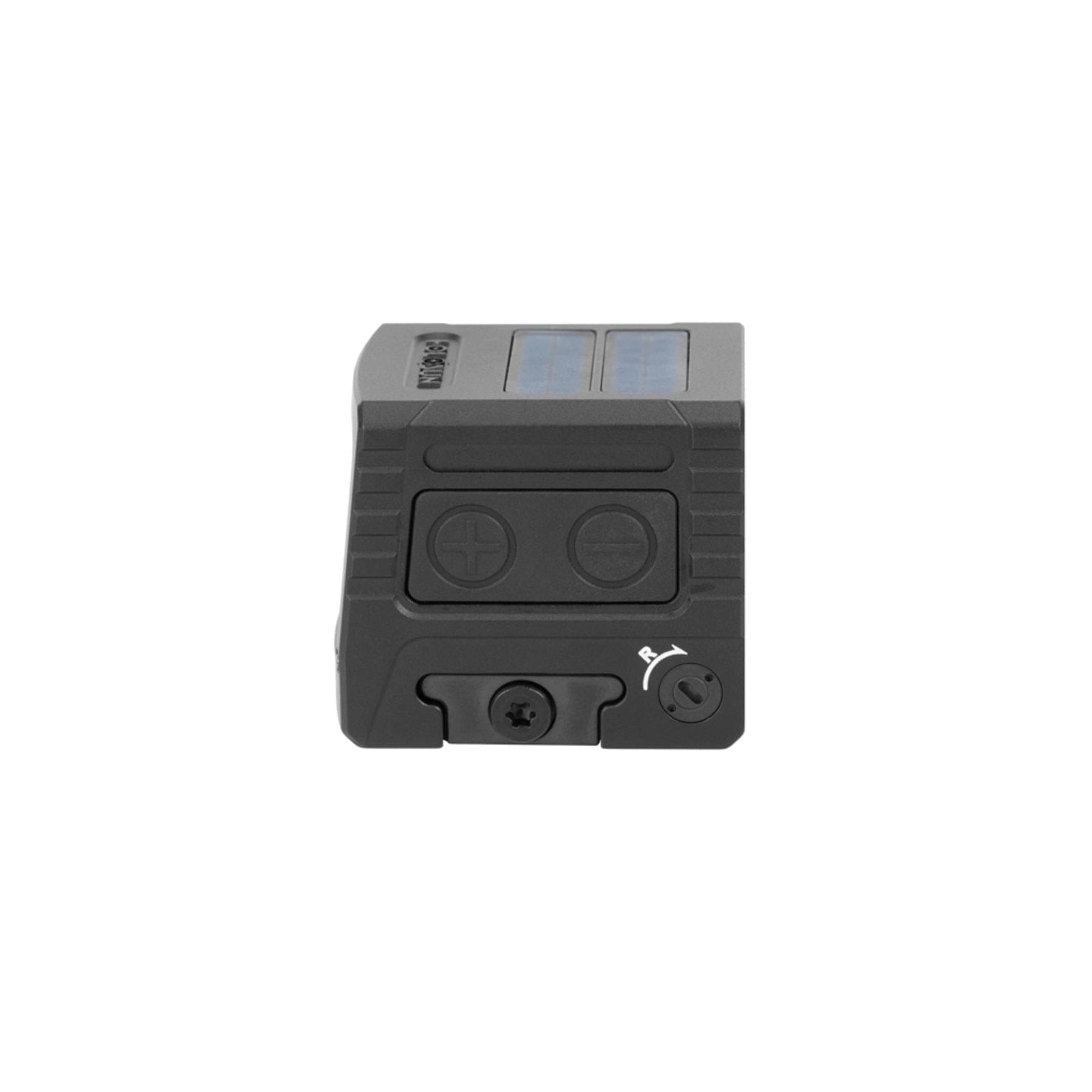

The housing is 7075-T6 aluminium with a hard anodised finish, rated IPX8, measuring 1.62 x 1.2 x 1.4 in and weighing 2.5 oz (71 g). Power comes from a CR1632 coin cell rated for up to 100,000 hours, supported by Solar Failsafe, with Shake Awake to sleep the reticle when the gun is still and Lock Mode to stop settings being nudged. Twelve brightness settings are provided: eight for daylight and four that work behind a night vision device.

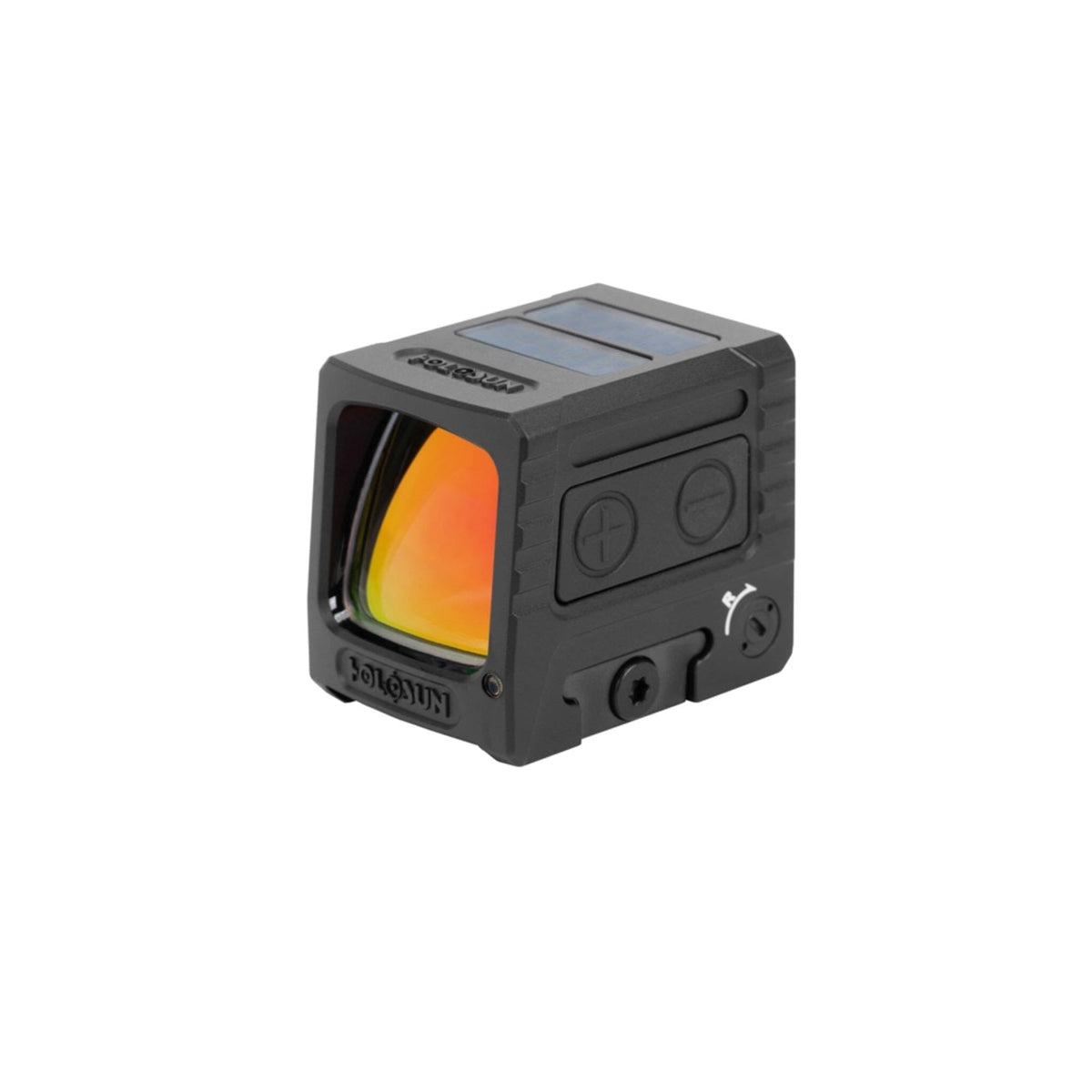

Gold sits between red and green in the way it reads against a background, and it holds contrast well on pale, washed-out targets where a red dot can disappear. The Multi-Reticle System switches between a 2 MOA gold dot for precision, a 32 MOA circle for speed, or both together. Mounting is by the 509T footprint, and Holosun supplies an RMR-to-509T plate in the box, so an RMR-cut host is covered without a separate purchase. Windage and elevation move in 1 MOA clicks with plus or minus 30 MOA of travel.
Why shooters choose the AEMS Macro
-

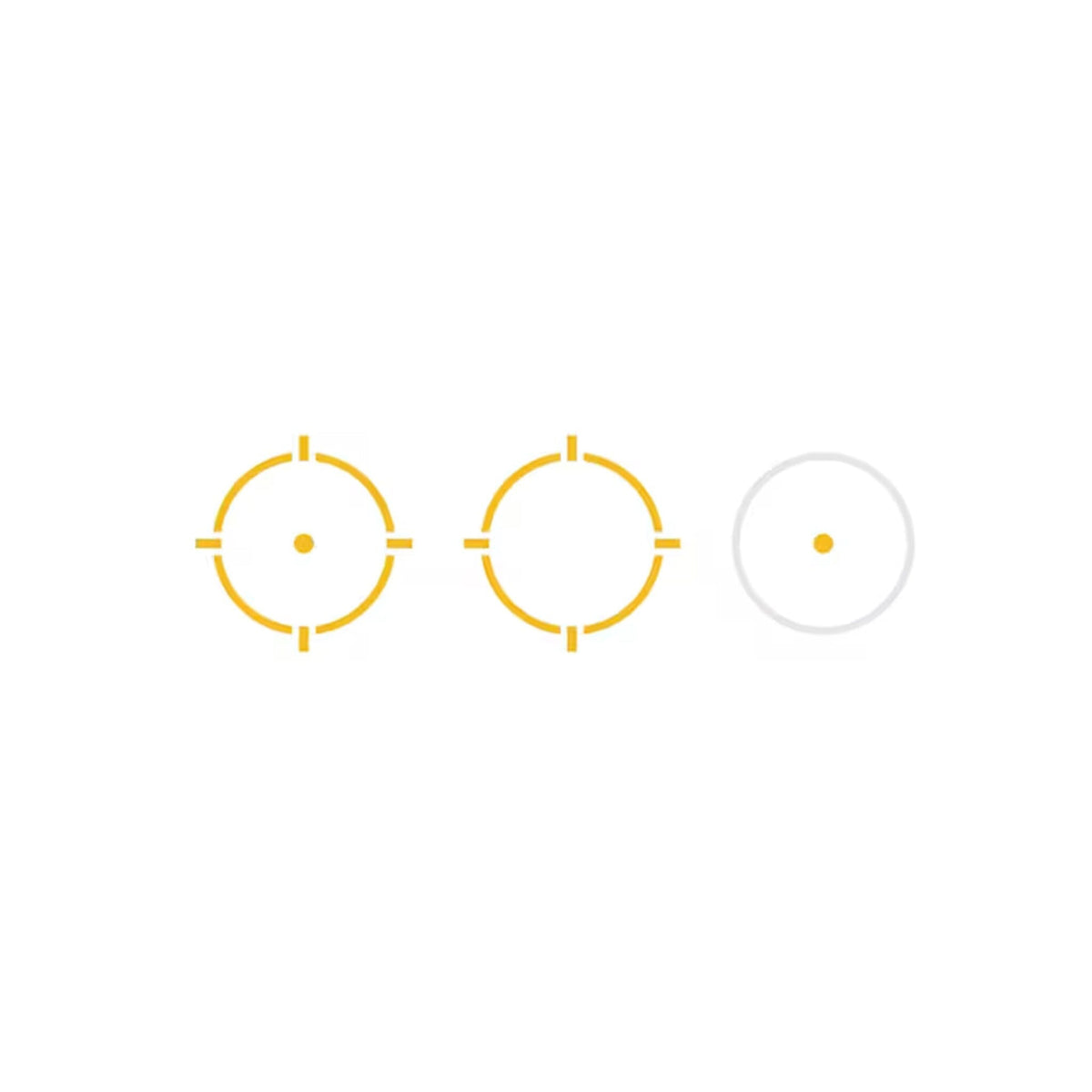

Reticle — Multi-Reticle System — 2 MOA gold dot, 32 MOA circle, or circle-dot
-

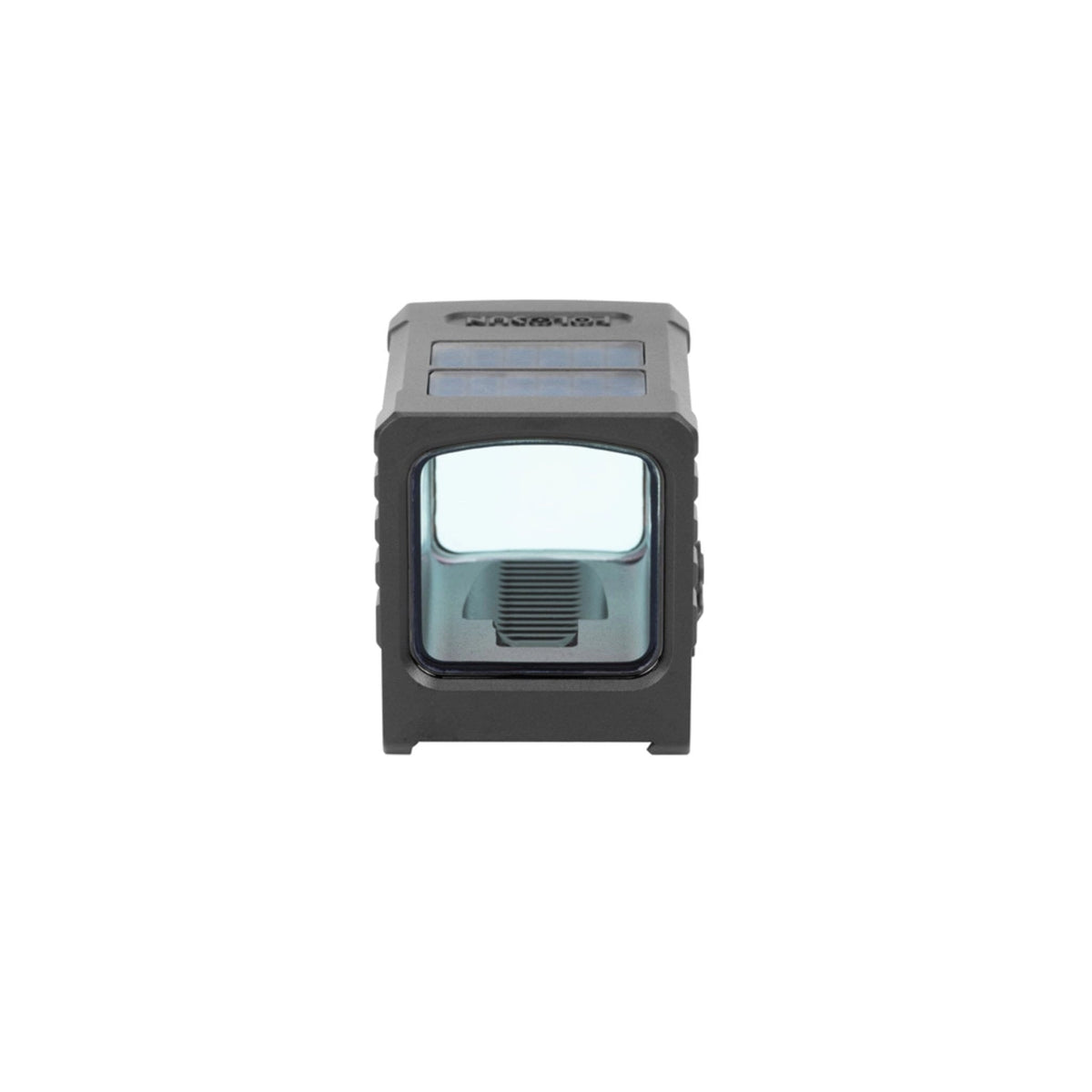

Window — 0.9 x 0.9 in (23 x 23 mm), squarer and wider than a typical mini reflex
-

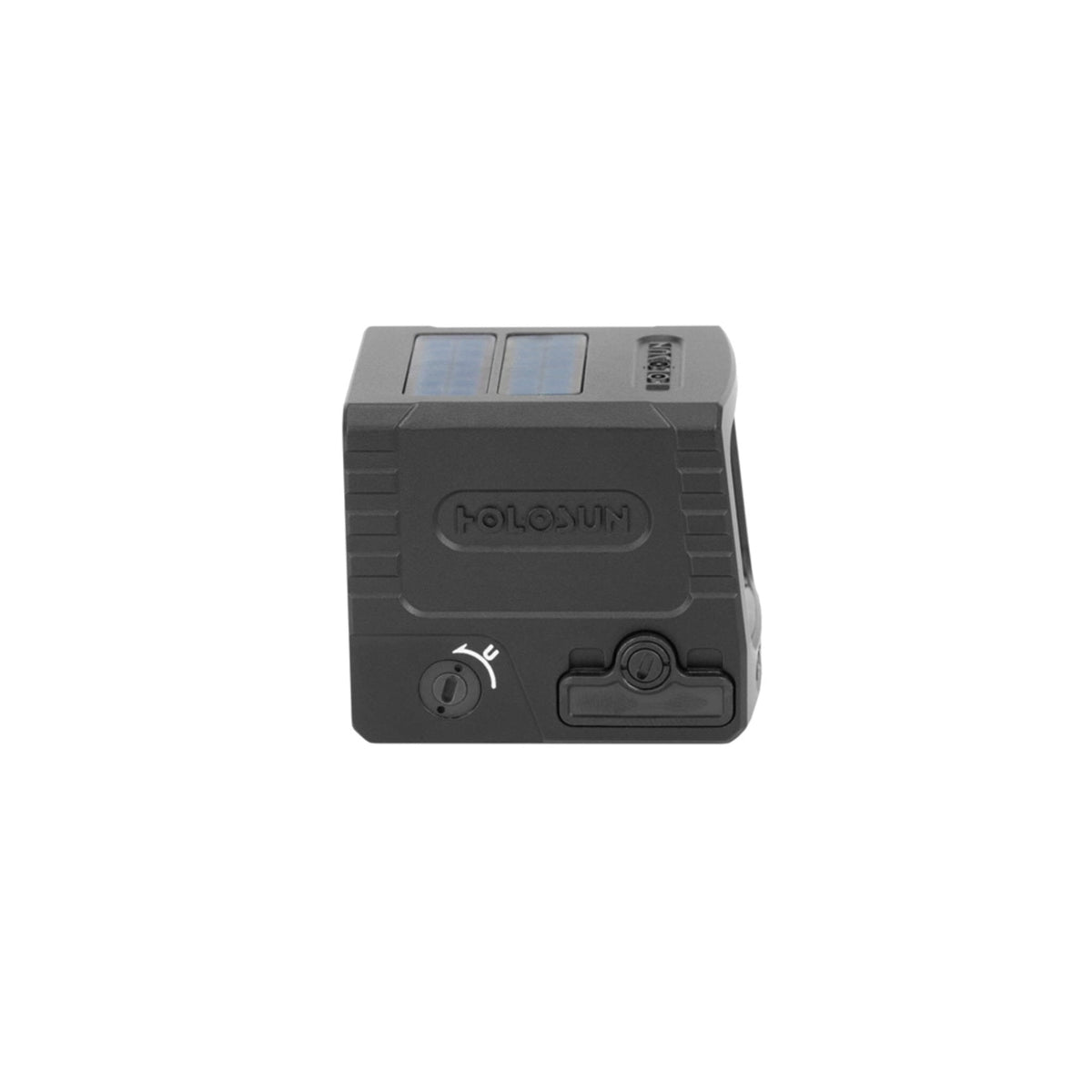

Emitter — fully enclosed, so rain, dust and lint cannot reach it
-
Power — CR1632 with Solar Failsafe, Shake Awake and Lock Mode, up to 100,000 hours
-
Footprint — 509T, with an RMR-to-509T plate supplied
-

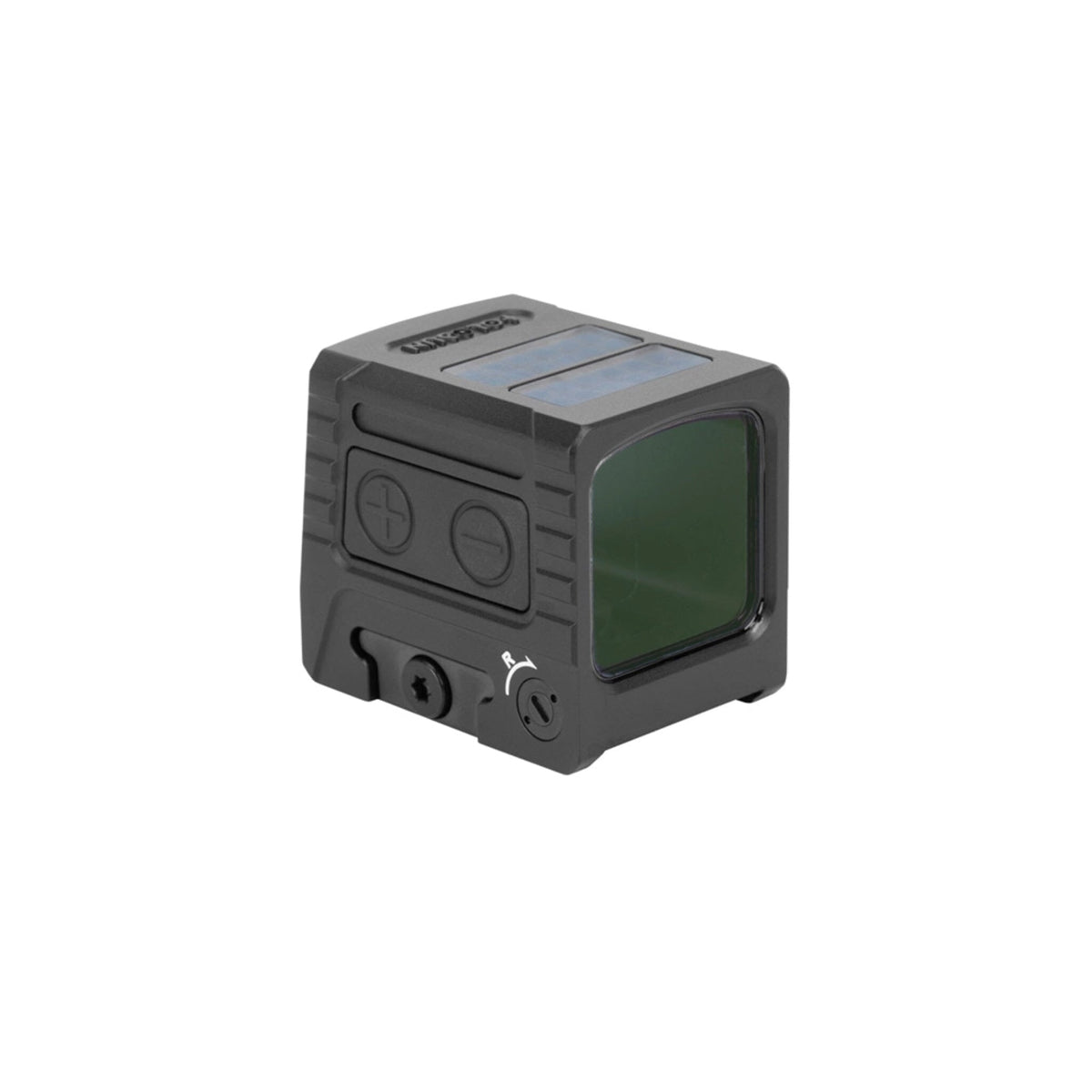

Housing — 7075-T6 aluminium, hard anodised and IPX8 rated, at 2.5 oz (71 g)
What the AEMS Macro fits
Hosts cut for the 509T footprint take it directly, and RMR-cut slides and mounts are covered by the adapter plate in the box. The same optic is made with a red reticle and a green reticle, and the smaller body is the AEMS Micro in gold.
Specifications
| Optic type |
Enclosed emitter gold dot sight, 1x |
| Reticle |
Multi-Reticle System: 2 MOA gold dot, 32 MOA circle, circle-dot |
| Window |
0.9 x 0.9 in (23 x 23 mm) |
| Illumination |
12 settings: 8 daylight, 4 night vision compatible |
| Click value |
1 MOA |
| Adjustment range |
Plus or minus 30 MOA windage and elevation |
| Battery |
CR1632, up to 100,000 hours, with Solar Failsafe |
| Power management |
Shake Awake and Lock Mode |
| Footprint |
509T, RMR-to-509T plate included |
| Housing |
7075-T6 aluminium, hard anodised, IPX8 |
| Dimensions |
1.62 x 1.2 x 1.4 in |
| Weight |
2.5 oz (71 g) |
| MPN |
AEMS-MACRO-GD |
The enclosed AEMS sight picture in gold, at a size that suits a pistol or an offset mount. Order the AEMS Macro today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
