The Holosun AEMS EVO Dual is a 1x enclosed-emitter rifle red dot sight with a visible green laser and an infrared laser built into the same housing, running Holosun's Multi-Reticle System.
Two devices become one. The lasers live inside the optic rather than on a separate rail-mounted module, so there is no second unit eating rail space, no second mount to knock loose and one less thing to align.
The reticle set switches between a 2 MOA dot, a 65 MOA circle and both together, behind a 1.26in x 0.98in window, and adjustment is 0.5 MOA per click with 50 MOA of travel each way. The green laser is 520nm Class 3R and the infrared laser is 850nm Class 1. Power is a single CR123A, which Holosun rates at 300,000 hours for the dot at setting 6, backed by Solar Failsafe and Shake Awake; the lasers draw far more, at 12 hours for the green and 50 hours for the IR. The 7075 T6 aluminium body is hard anodised, rated IPX8 and tested to 1000G of vibration, with 8 daylight and 4 night-vision brightness settings. Holosun gives the body as 3.03in x 2in x 2.68in and the weight as 10.6 oz, and supplies a Picatinny direct mount at 1.63in mount height.
It earns its place on a night-vision rig, where the IR laser is the aiming device and the enclosed emitter keeps working in weather that fouls an open reflex sight. Two honest points: at 10.6 oz with the mount this is a heavy optic by red dot standards, and the laser runtimes mean you should treat the lasers as something you switch on for the task, not leave running.
Why shooters choose the AEMS EVO Dual
-

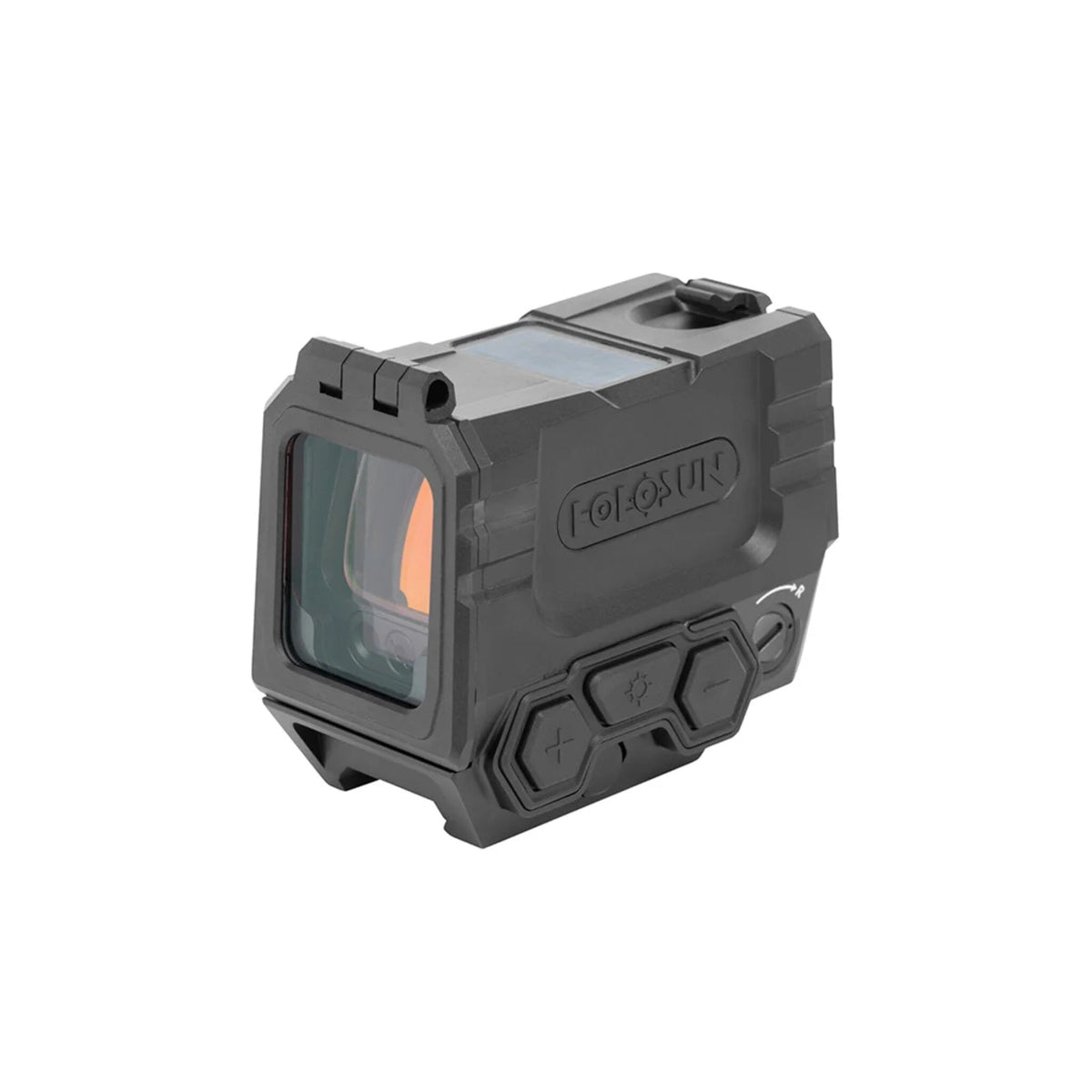

Reticle — Multi-Reticle System, a 2 MOA dot, a 65 MOA circle, or circle-dot together
-

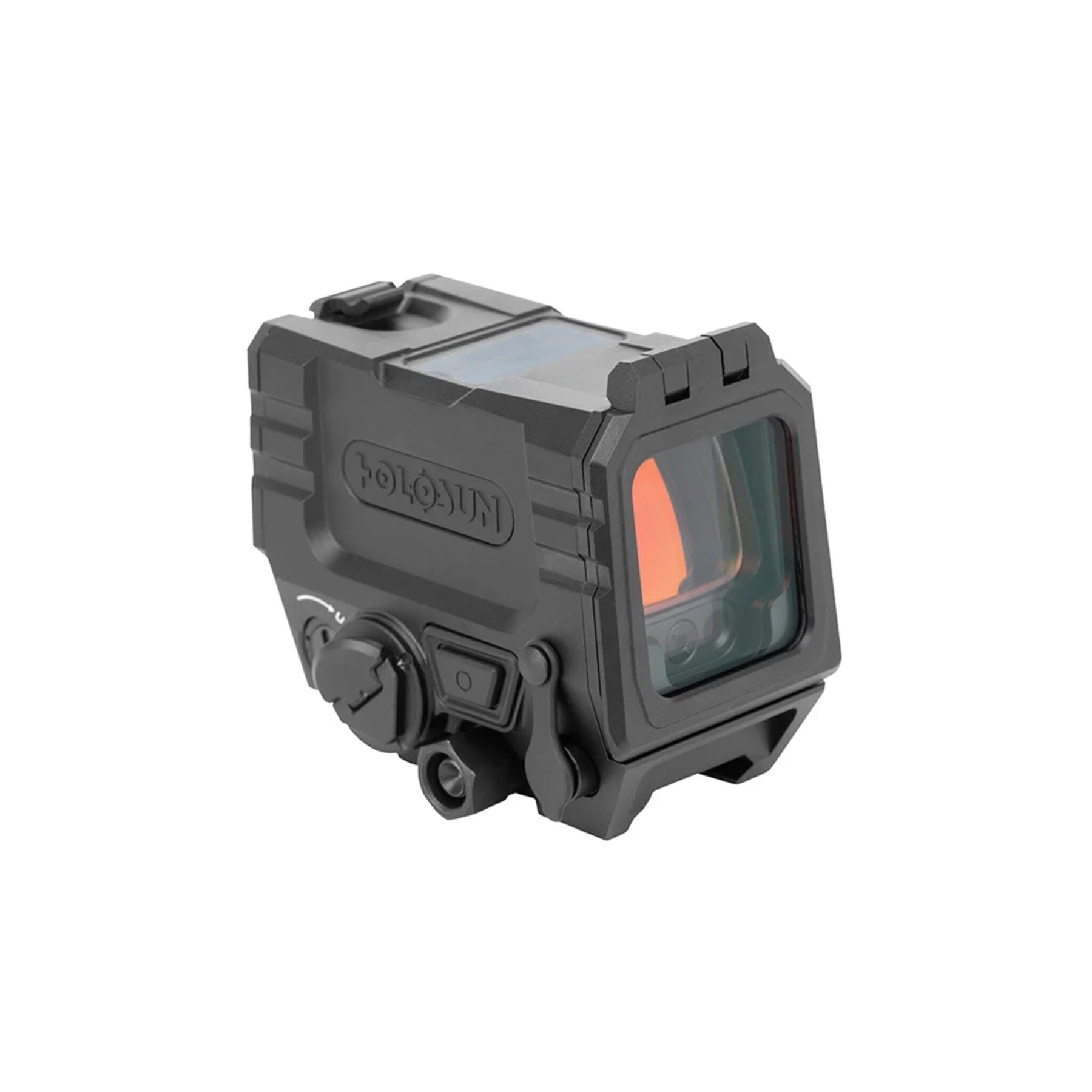

Lasers — integrated 520nm Class 3R green and 850nm Class 1 infrared
-

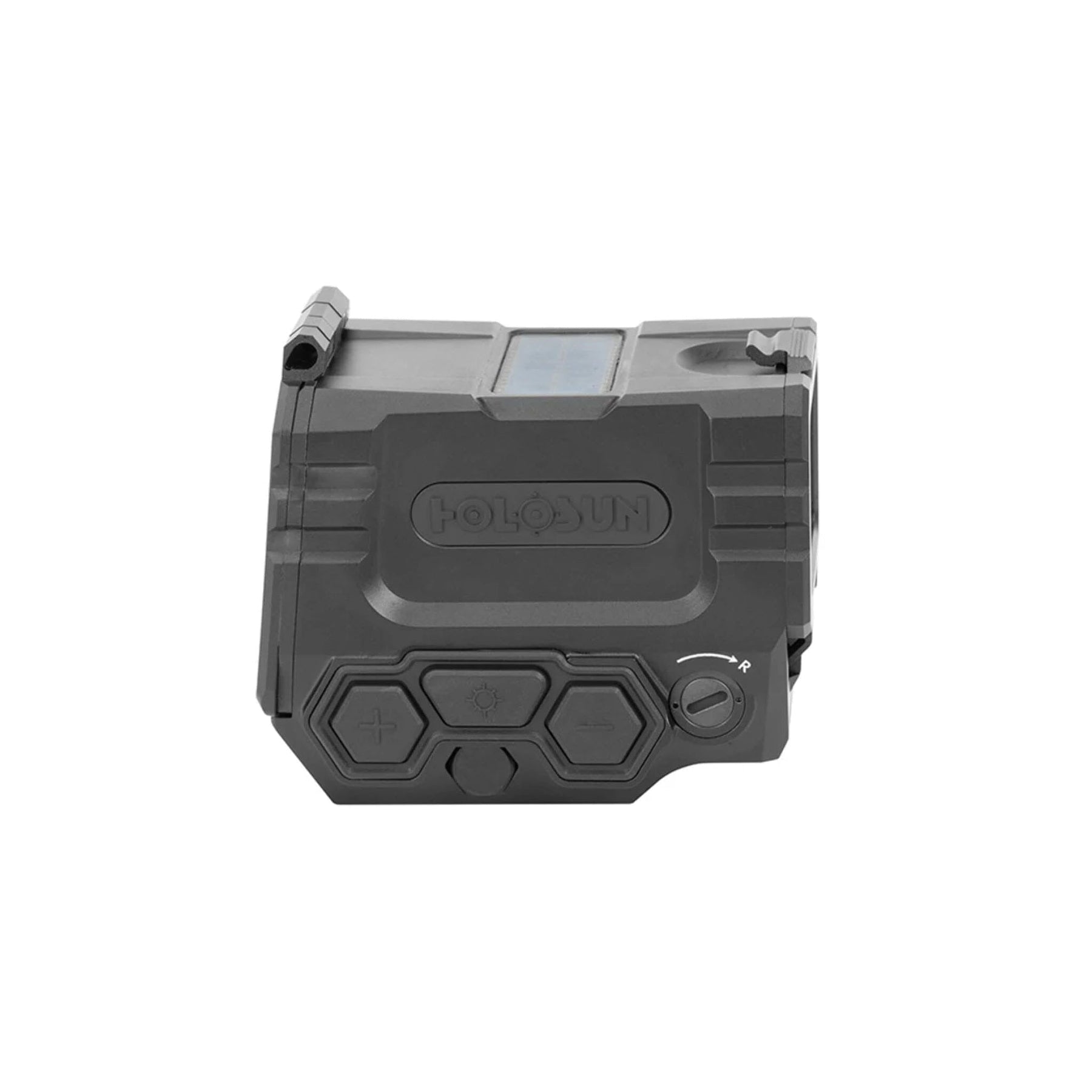

Emitter — fully enclosed and sealed against rain, mud and debris
-

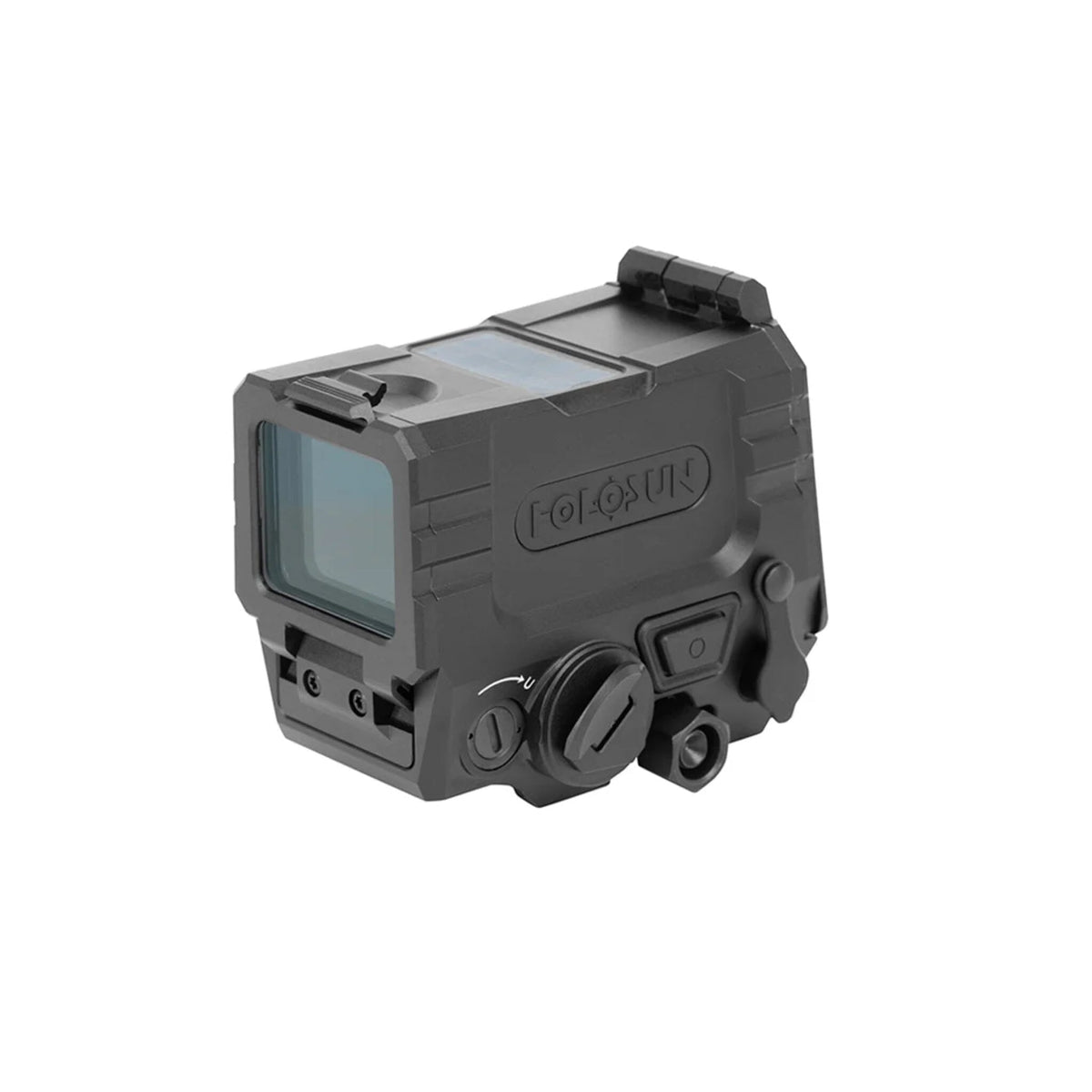

Power — CR123A with Solar Failsafe and Shake Awake, 300,000 hours for the dot at setting 6
-
Illumination — 8 daylight and 4 night-vision settings
-

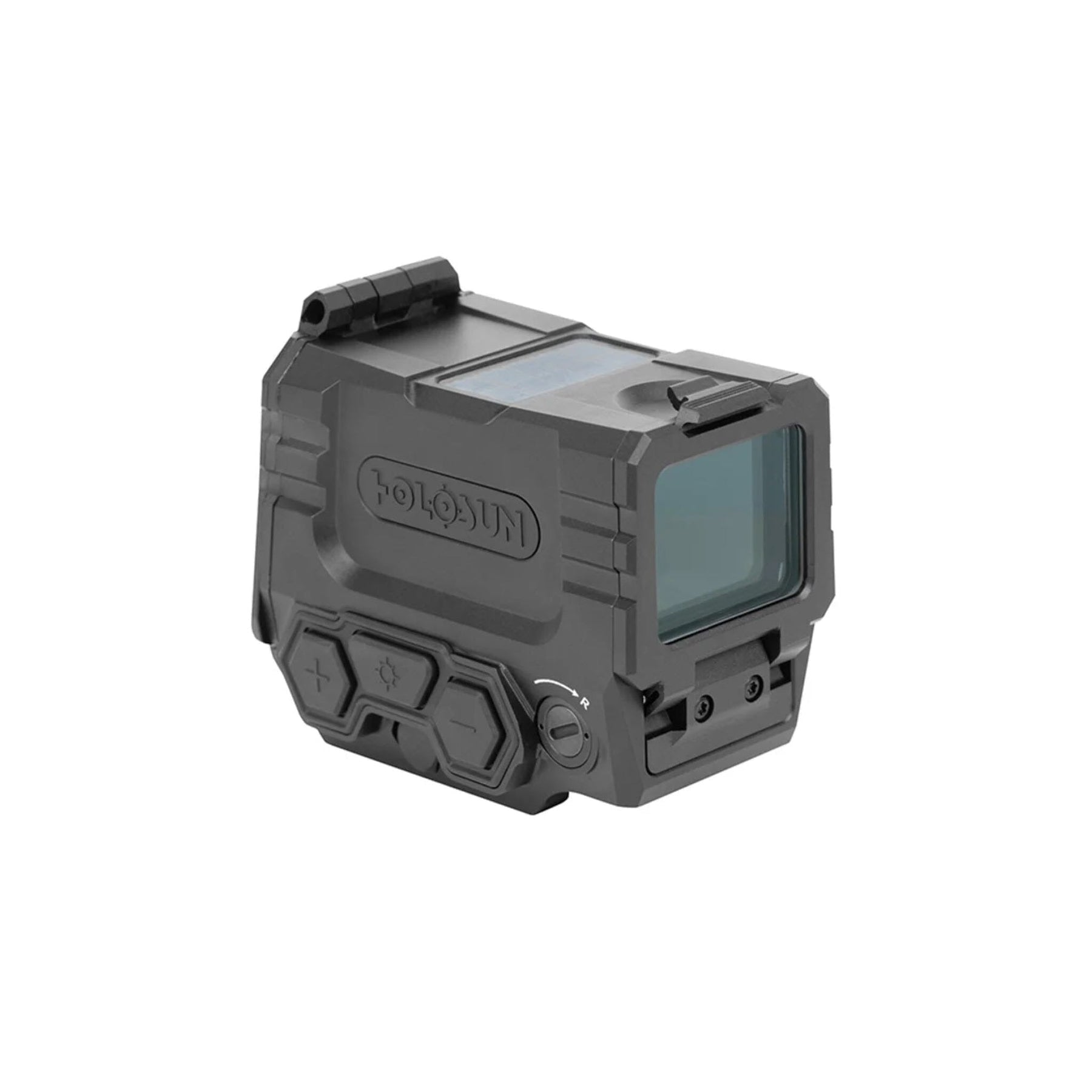

Housing — hard anodised 7075 T6 aluminium, IPX8, 1000G vibration
-

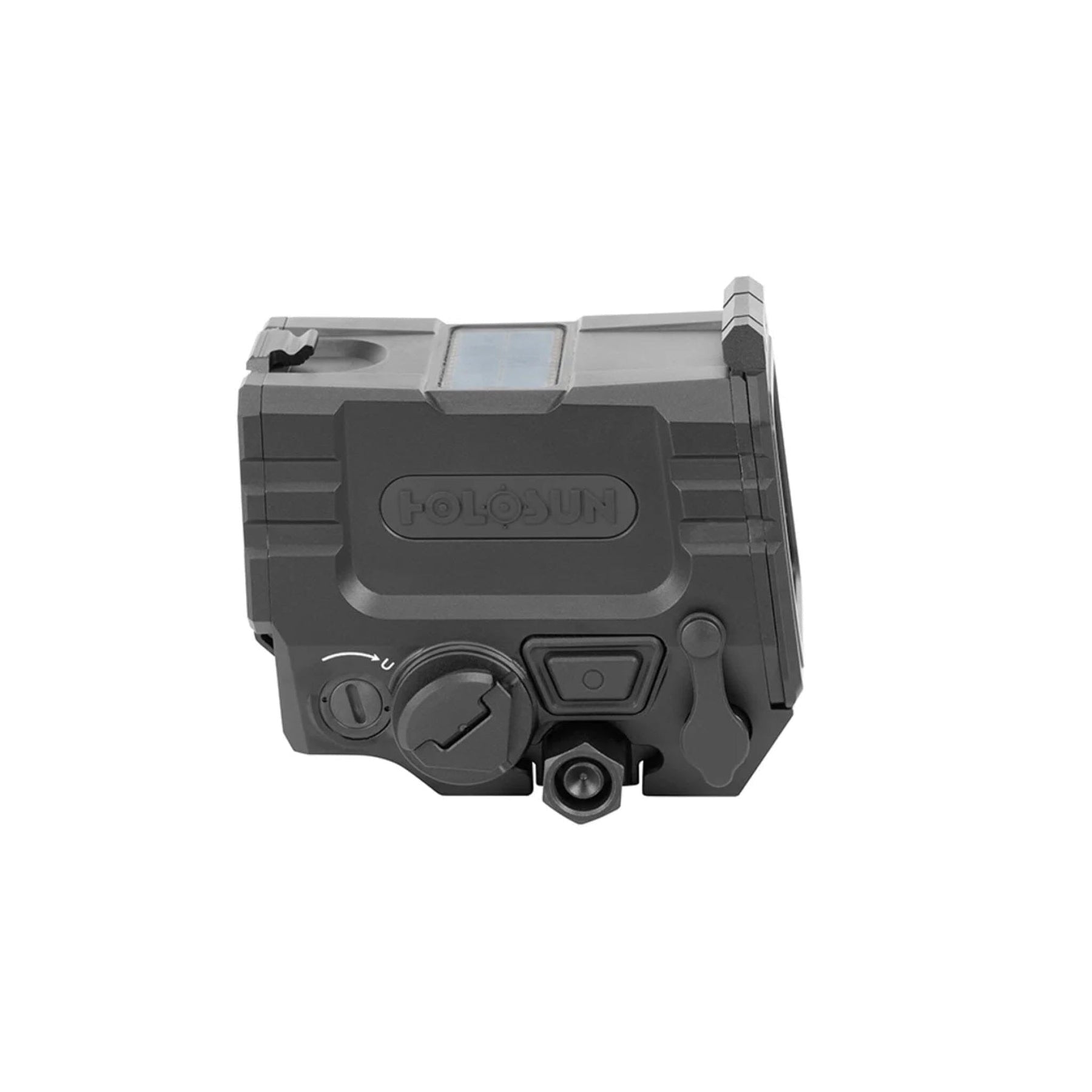

Mount — Picatinny direct mount included at 1.63in mount height
What the AEMS EVO Dual fits
The supplied Picatinny mount goes straight onto an AR-pattern flat-top or any MIL-STD-1913 receiver rail, and the 1.63in mount height sets the sight line for you. Without the lasers, the AEMS EVO red dot is the plain enclosed version, with green and gold reticle options alongside it. More in enclosed red dot sights.
Specifications
| Type |
Enclosed-emitter rifle red dot sight with integrated lasers |
| Magnification |
1x (non-magnified) |
| Reticle |
Multi-Reticle System, 2 MOA dot / 65 MOA circle / circle-dot |
| Lasers |
Green 520nm Class 3R and IR 850nm Class 1 |
| Window |
1.26in x 0.98in |
| Illumination |
Solar Failsafe and Shake Awake, 8 daylight / 4 night vision |
| Adjustment |
0.5 MOA per click, 50 MOA travel each way |
| Battery |
CR123A; dot 300,000 hours at setting 6, green laser 12 hours, IR laser 50 hours |
| Housing |
7075 T6 aluminium, hard anodised, IPX8, 1000G |
| Dimensions |
3.03in x 2in x 2.68in |
| Weight |
10.6 oz |
| Mount |
Picatinny direct mount included, 1.63in height |
| MPN |
AEMS-EVO-DUAL |
One housing, one zero routine, dot and lasers together. Order the AEMS EVO Dual today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
