The Holosun AEMS EVO Red Dot Sight is a 1x enclosed-emitter rifle sight running Holosun's Multi-Reticle System behind a 1.26 × 0.98 in (32 × 25 mm) window, supplied with a lower 1/3 co-witness mount.

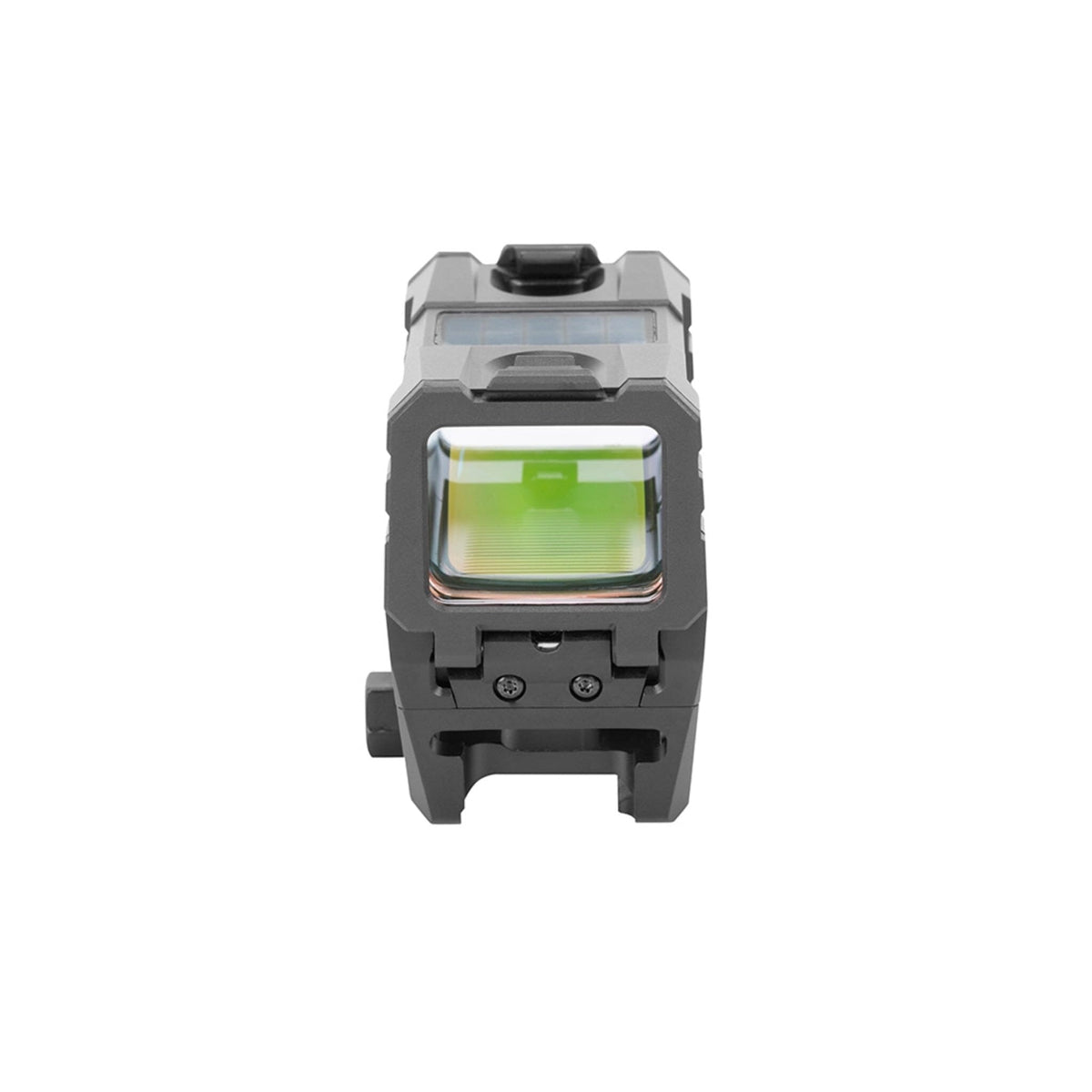

The window is the reason this shape exists: a wide, squared-off view that lets both eyes stay open and makes transitions between targets quick rather than deliberate.

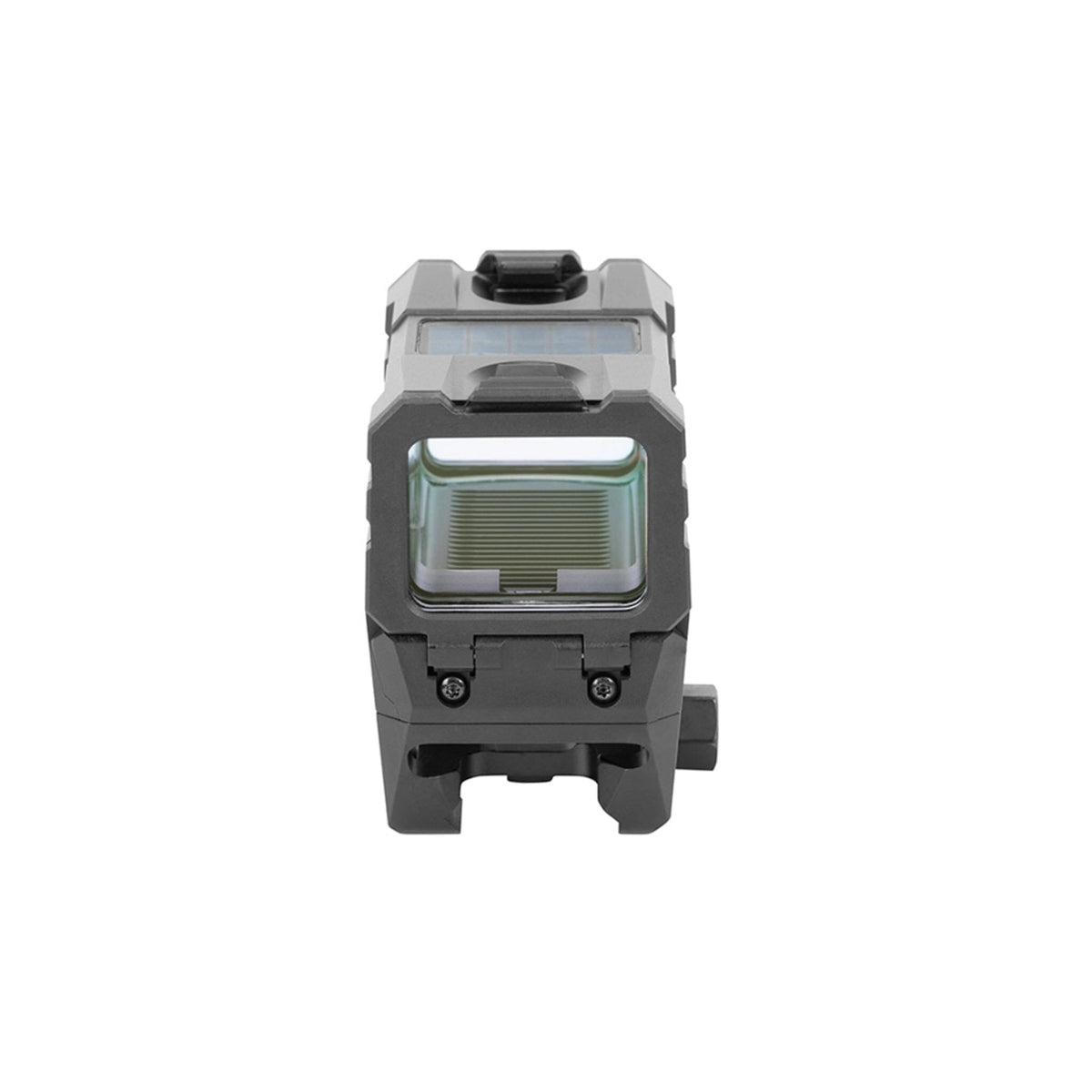

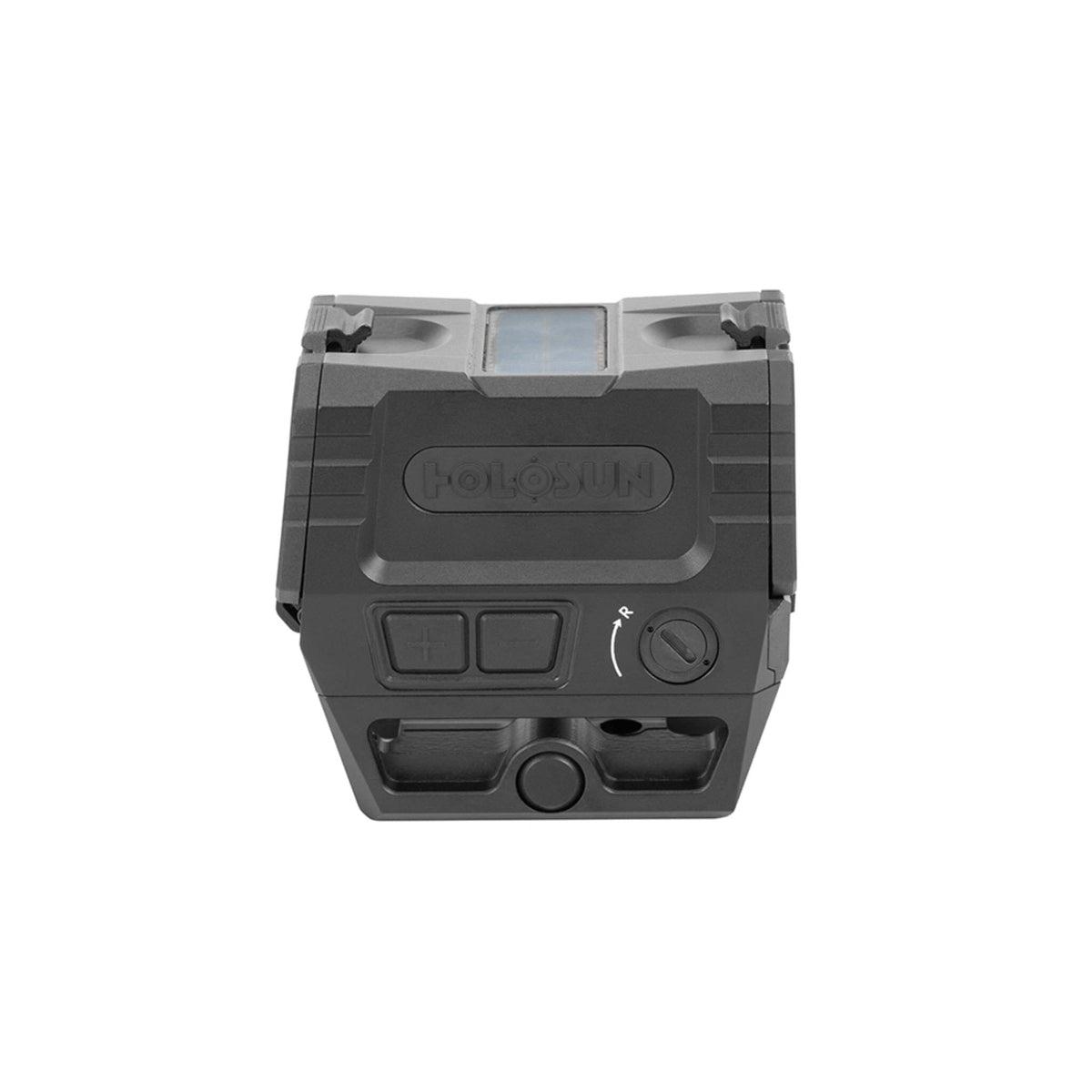

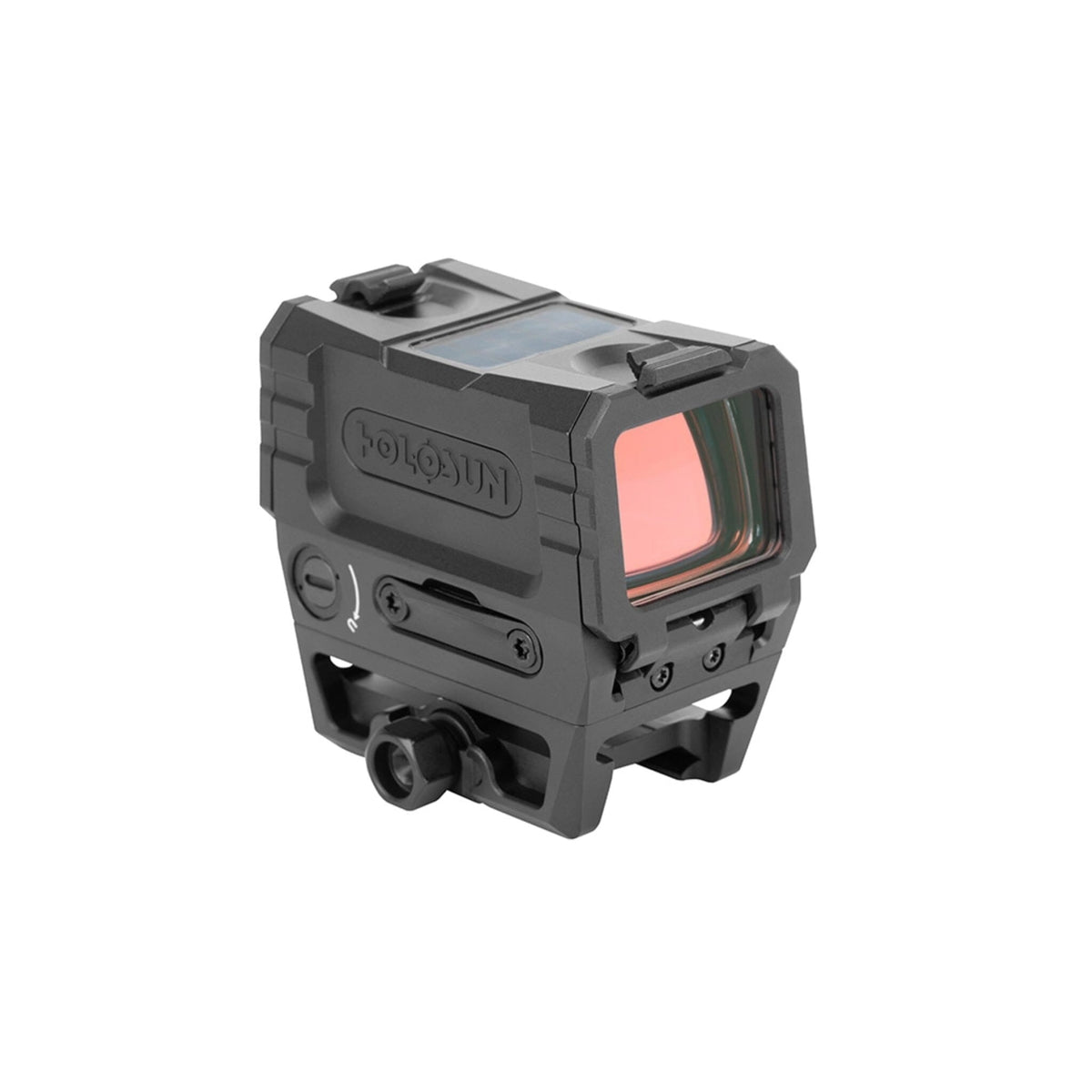

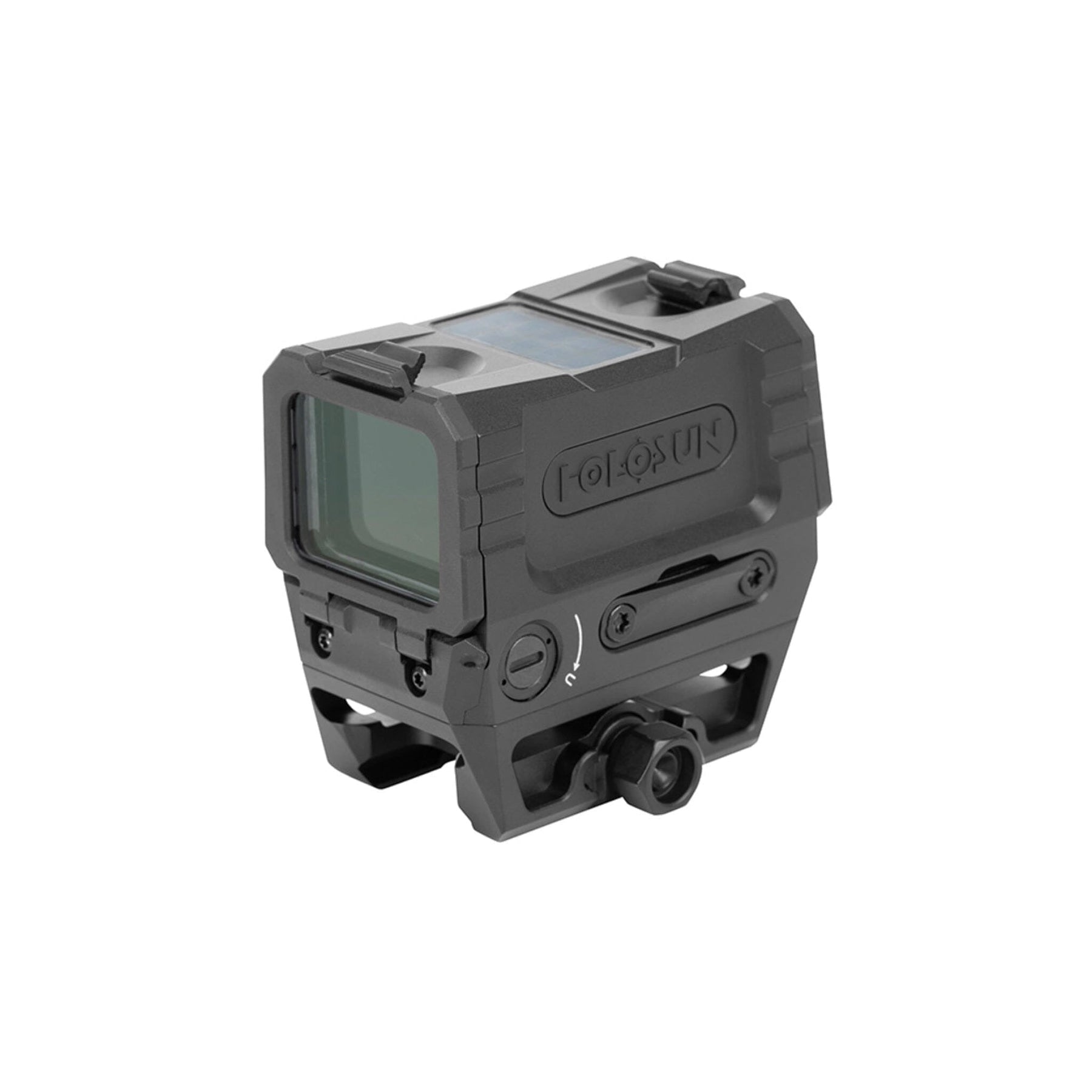

The housing is 7075-T6 aluminium, rated IPX8 for immersion and 1000G for shock, with the emitter sealed behind glass so rain, mud and grit cannot reach it. The optic weighs 8.15 oz and the supplied mount a further 2.45 oz. Power comes from a CR2032 in a side tray, rated at up to 100,000 hours, with Solar Failsafe drawing supplemental power in daylight and Shake Awake sleeping the reticle when the rifle is still.

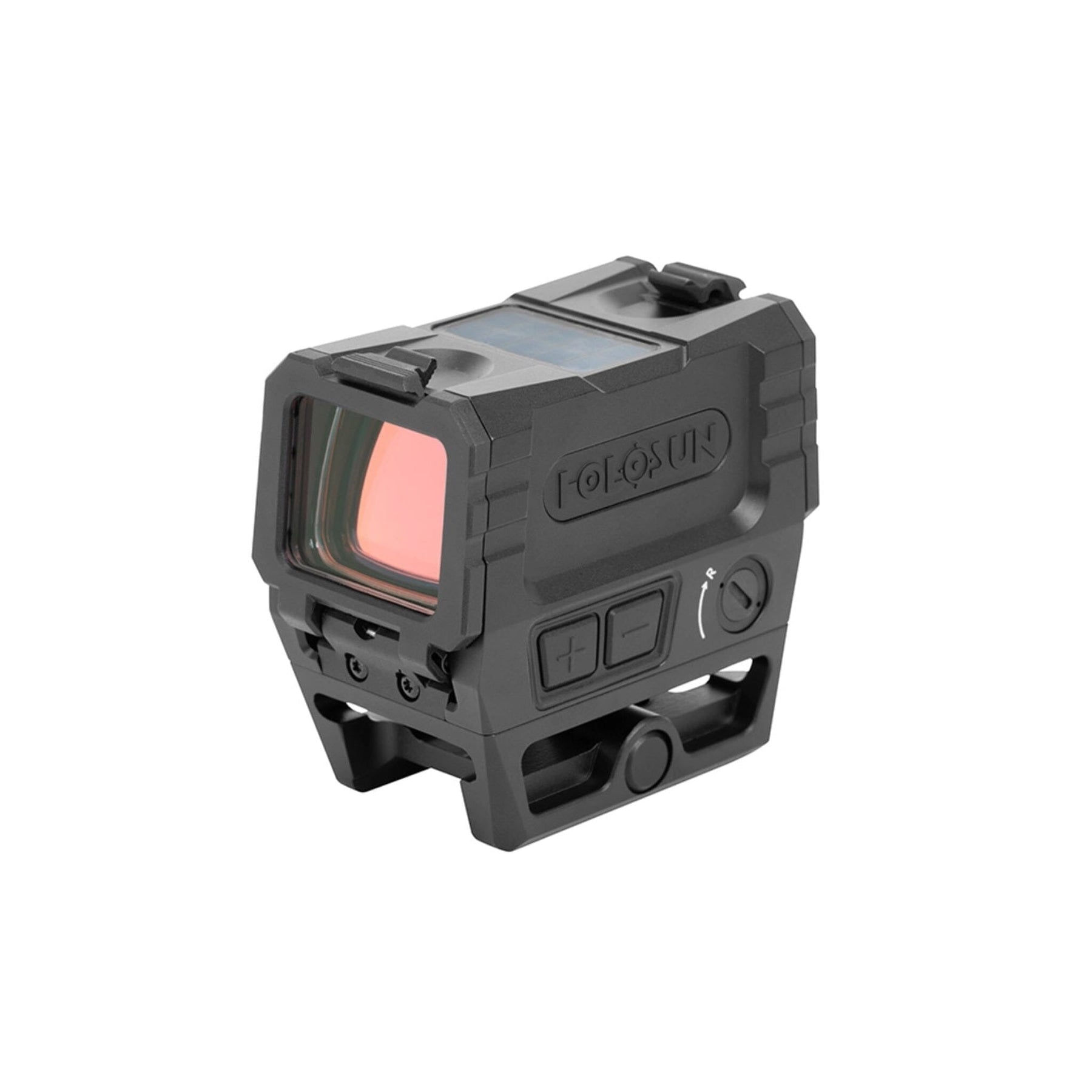

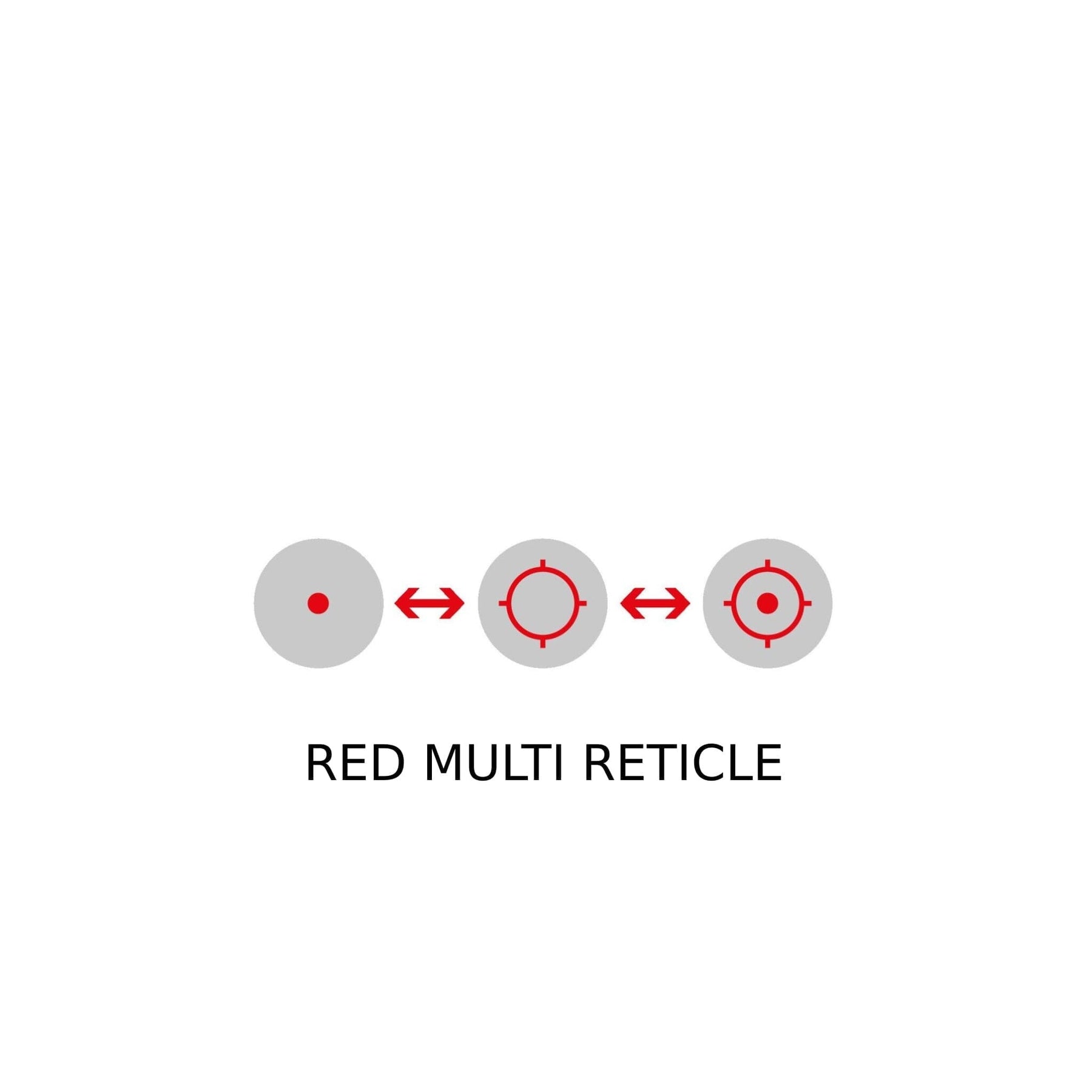

The Multi-Reticle System switches between a 2 MOA dot on its own, a 65 MOA circle on its own, and both together, so the same sight can be set fine for a deliberate shot or wide for close work. Adjustment is 0.5 MOA per click with ±50 MOA of travel, and there are eight daylight brightness levels and four that are night vision compatible. An enclosed sight is heavier than an open one for the same window, which is the trade you accept for an emitter that cannot be blocked by weather.
Why shooters choose the AEMS EVO
-
Reticle — Multi-Reticle System — 2 MOA dot, 65 MOA circle, or circle-dot
-
Window — 1.26 × 0.98 in (32 × 25 mm), squared off for a wide view
-
Emitter — fully enclosed and sealed against rain, mud and debris
-
Power — CR2032 with Solar Failsafe and Shake Awake, up to 100,000 hours
-
Illumination — 8 daylight levels and 4 night vision levels
-
Housing — 7075-T6 aluminium, IPX8 and 1000G rated
What the AEMS EVO fits

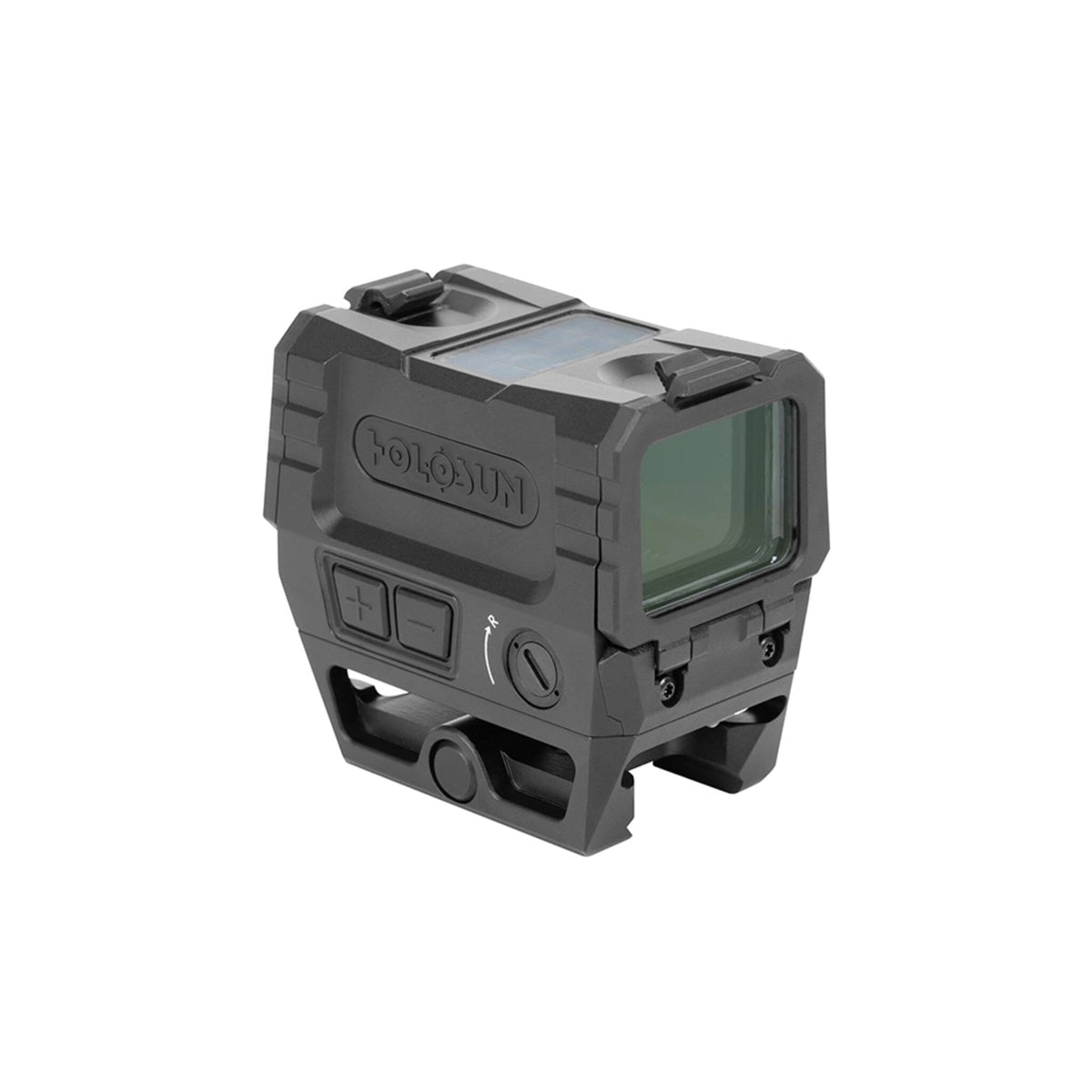

The included mount is cut for a lower 1/3 co-witness on AR-pattern rifles, so it drops onto a flat-top receiver or a straight-pull upper with a Picatinny rail. The same sight with a green emitter is the AEMS EVO Green, the smaller body is the AEMS Micro Red, and comparable optics sit in enclosed red dot sights.
Specifications
| Type |
Enclosed emitter rifle red dot sight, 1x |
| Reticle |
Multi-Reticle System, 2 MOA dot / 65 MOA circle / circle-dot |
| Window |
1.26 × 0.98 in (32 × 25 mm) |
| Illumination |
8 daylight, 4 night vision |
| Adjustment |
0.5 MOA per click, ±50 MOA |
| Battery |
CR2032, up to 100,000 hours |
| Power management |
Solar Failsafe and Shake Awake |
| Mount |
Lower 1/3 co-witness mount included |
| Housing |
7075-T6 aluminium |
| Durability |
IPX8, 1000G |
| Weight |
8.15 oz optic, 2.45 oz mount |
| MPN |
AEMS-EVO-RD |
A sealed sight with a window big enough to forget you are looking through one. Order the AEMS EVO today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
