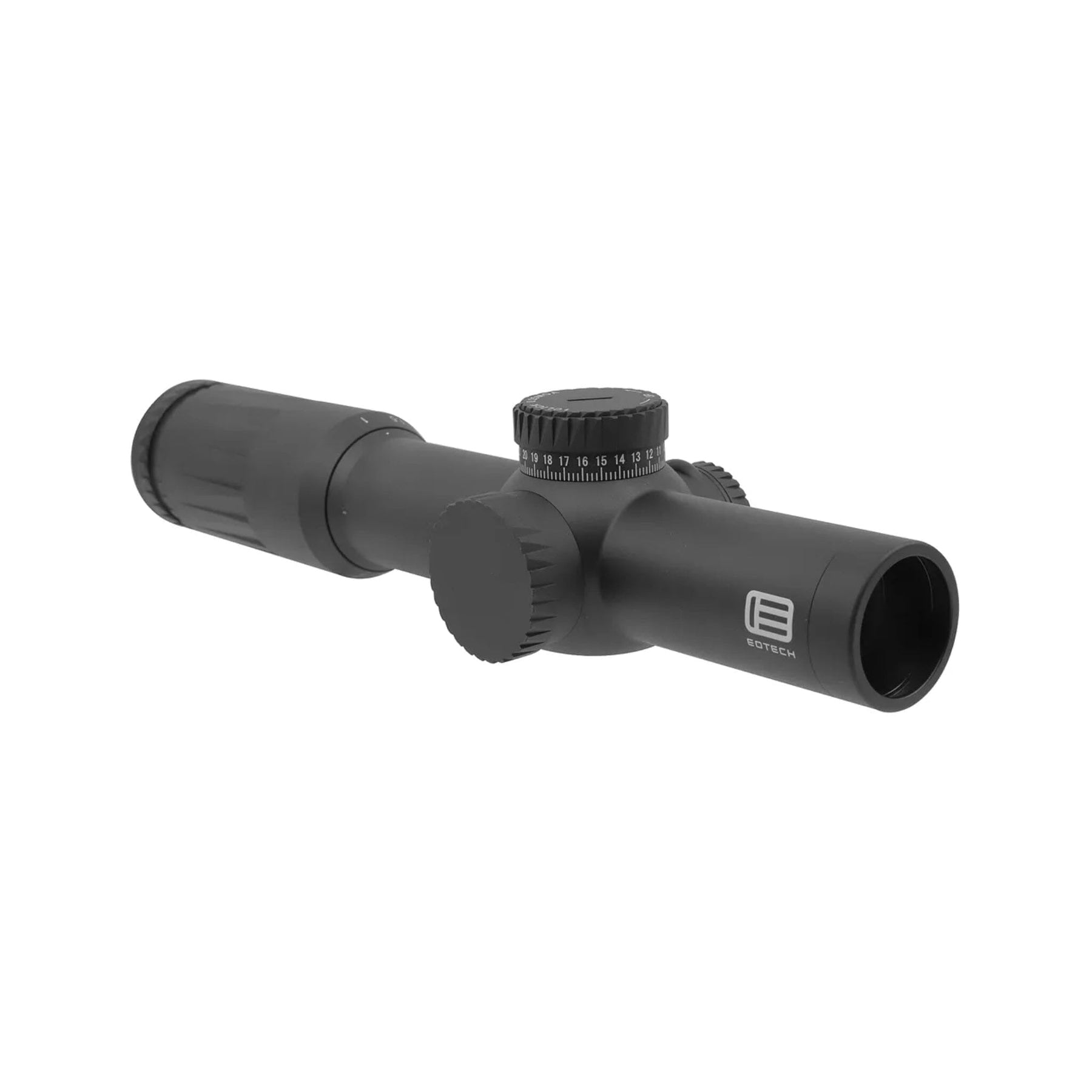

The EOTech Vudu 1-10x28 is a first focal plane low power variable optic with a 28 mm objective on a 34 mm tube, supplied in black with the illuminated SR4 reticle graduated in MOA.
A genuine 10x top end means one scope covers the red dot's job at 1x and the target scope's at 10x, and because the reticle lives in the first plane the holdovers stay honest at every power in between.
The SR4 is a duplex-style reticle graduated in minutes of angle with a precision 1 MOA centre aiming dot, which is the reason to choose this variant over the MRAD-based SR5. EOTech builds the scope on XC high-density glass in an aircraft-grade aluminium tube, with a locking elevation turret and a capped windage turret, and it is waterproof, fogproof and shock resistant. Illumination runs from a CR2032.
Eye relief measures 3.27-3.90 in at 1x and 3.35-3.62 in at 10x, and field of view at 100 yards runs from 116.6 ft at 1x down to 11.7 ft at 10x. It is 10.63 in (270 mm) long, weighs 21.3 oz (603 g) and is made in Japan. The weight is the honest limitation: 21.3 oz plus a 34 mm mount puts noticeably more on the receiver than a 1-6x, and 34 mm rings are not a shelf spare in the way 30 mm ones are.
Why shooters choose the Vudu 1-10x28
-
Magnification — 1-10x variable with a 28 mm objective
-
Reticle — illuminated SR4, first focal plane, graduated in MOA
-
Tube — 34 mm, so it needs 34 mm rings or a cantilever mount
-

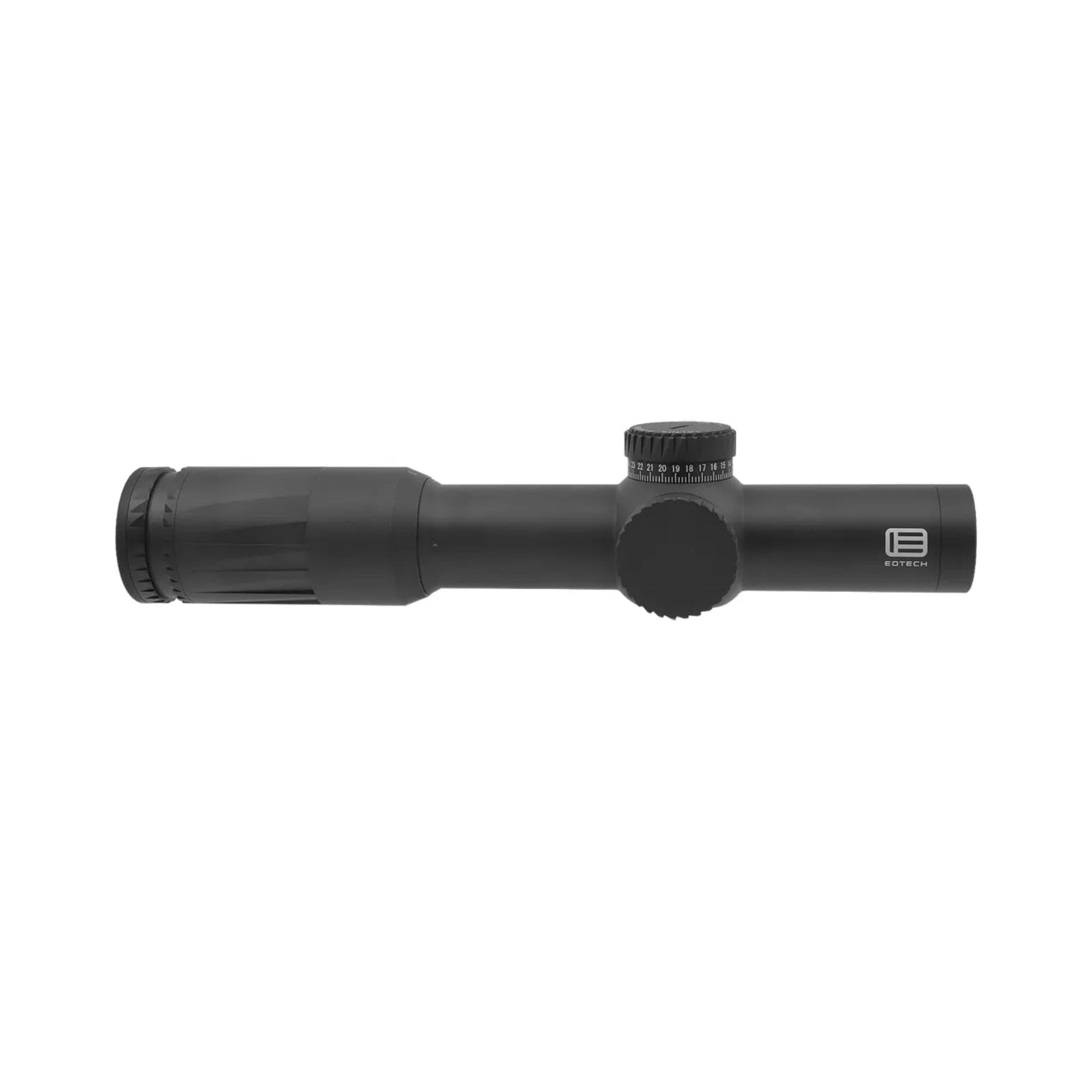

Glass — XC high-density lenses in an aircraft-grade aluminium tube
-

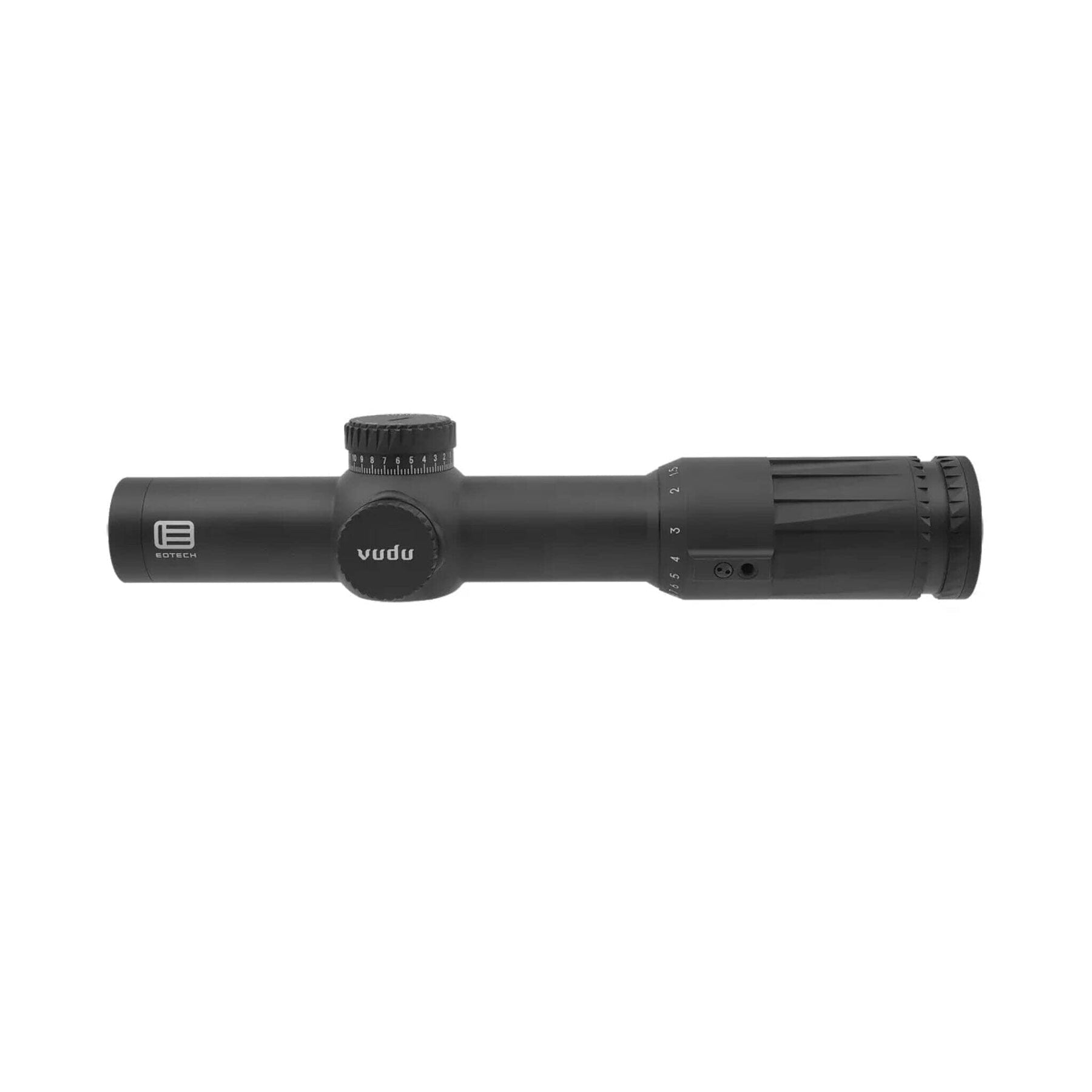

Turrets — locking elevation with a capped windage turret
-
Size — 10.63 in (270 mm) and 21.3 oz (603 g), running on a CR2032
What the Vudu 1-10x28 fits
It takes a 34 mm mount — a cantilever if it is going on an AR-pattern flat-top, rings if it is going on a bolt or straight-pull action with bases. If you work in milliradians rather than minutes, the Vudu 1-10x28 with the SR5 MRAD reticle is the same scope with MRAD graduations, and the same MOA scope in tan is the Vudu 1-10x28 SR4 in tan. Mounts for it sit in precision rifle scope mounts.
Specifications
| Type |
LPVO rifle scope |
| Magnification |
1-10x |
| Objective |
28 mm |
| Tube |
34 mm |
| Focal Plane |
First focal plane |
| Reticle |
SR4 MOA, illuminated |
| Eye Relief |
1x: 3.27-3.90 in / 10x: 3.35-3.62 in |
| Field of View at 100 yd |
1x: 116.6 ft / 10x: 11.7 ft |
| Length |
10.63 in (270 mm) |
| Weight |
21.3 oz (603 g) |
| Battery |
CR2032 |
| Finish |
Black |
| Origin |
Made in Japan |
| MPN |
VDU1-10FFSR4 |
One optic from close range to as far as the calibre will honestly reach. Order the Vudu 1-10x28 today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
Explore more: LPVO Rifle Scopes, Vudu 1-10x28 LE5 MRAD or browse all EOTech
