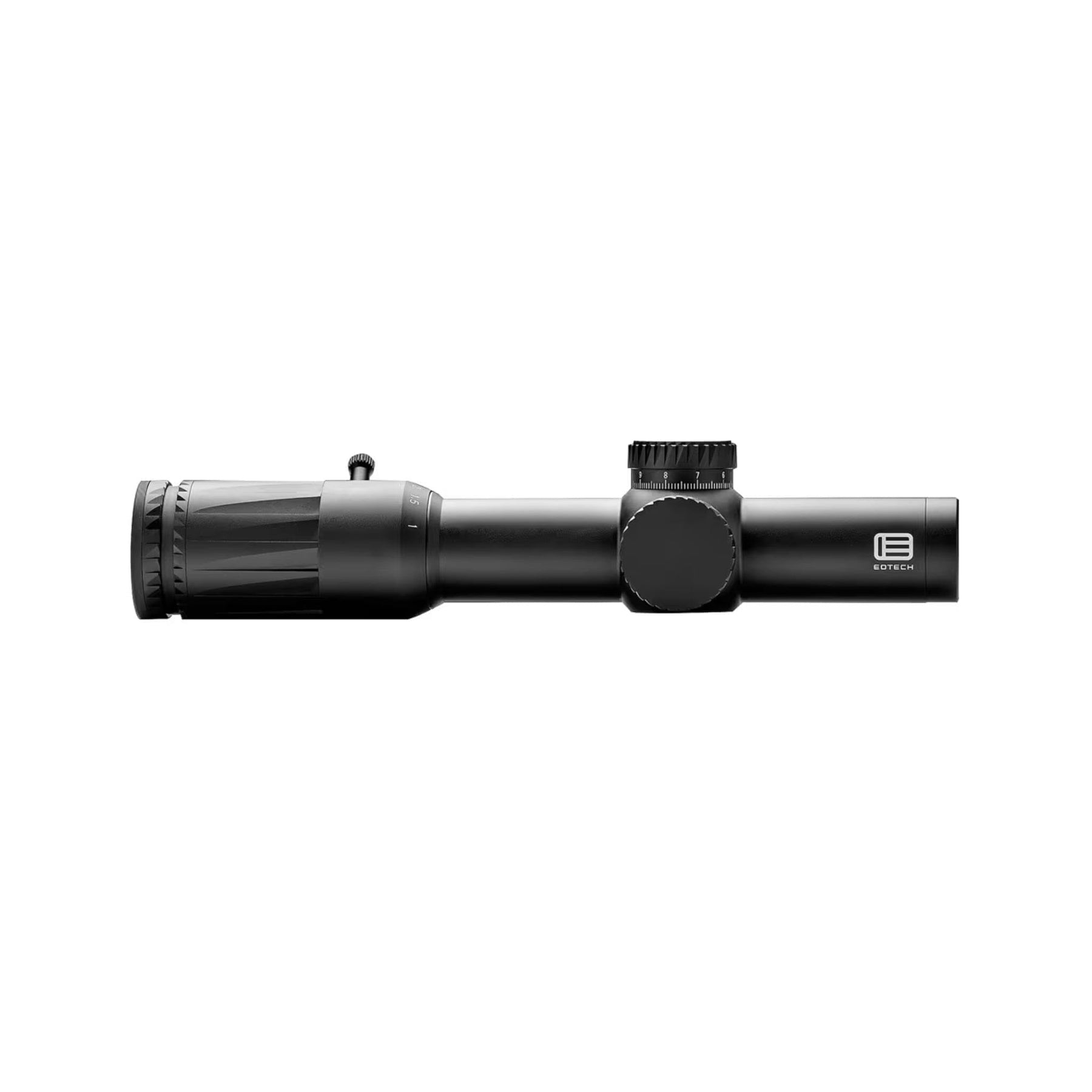

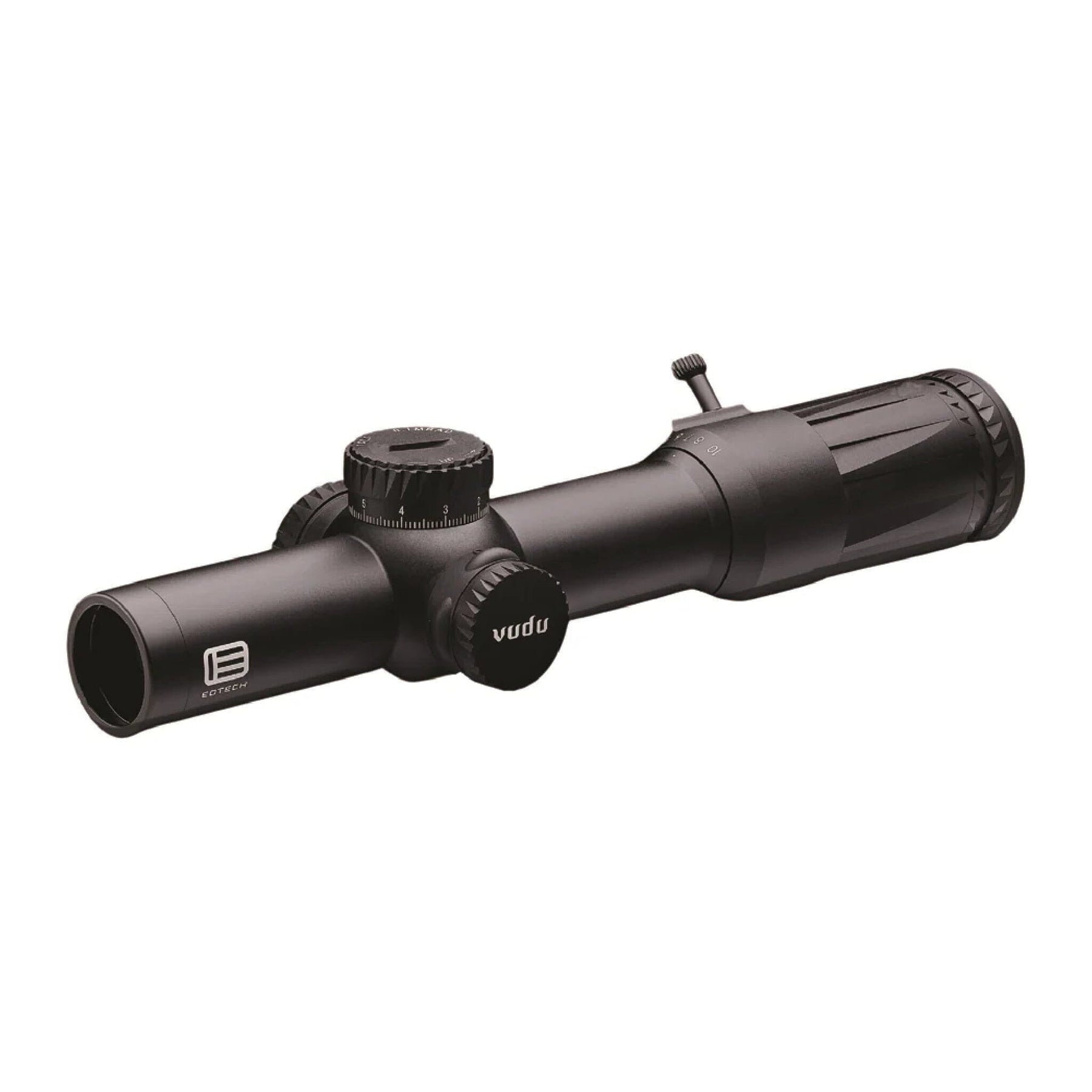

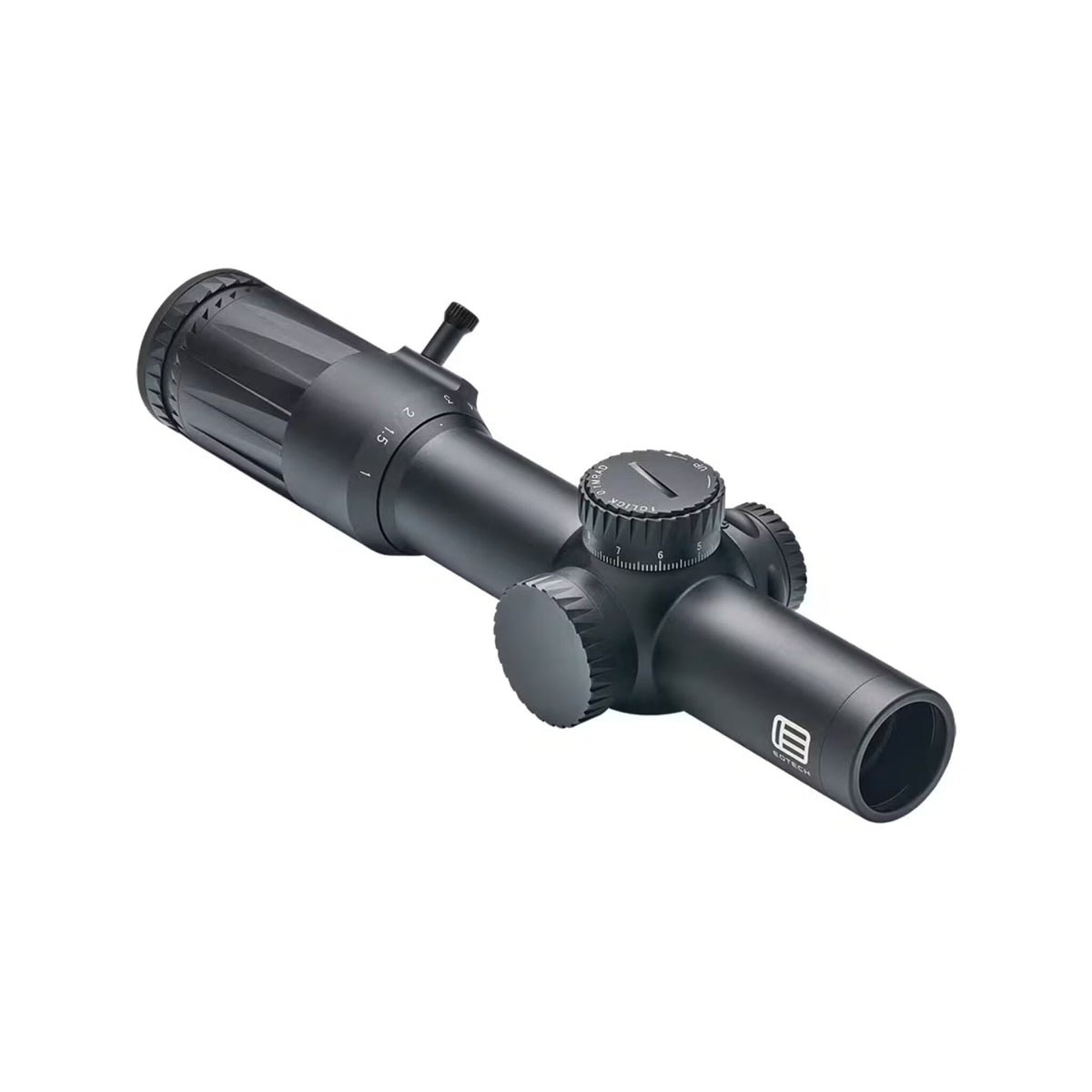

This EOTech Vudu 1-10x28 is the first focal plane variant carrying the illuminated LE5 milliradian reticle, on a 34 mm main tube with a 28 mm objective, part number VDU1-10FFLE5.

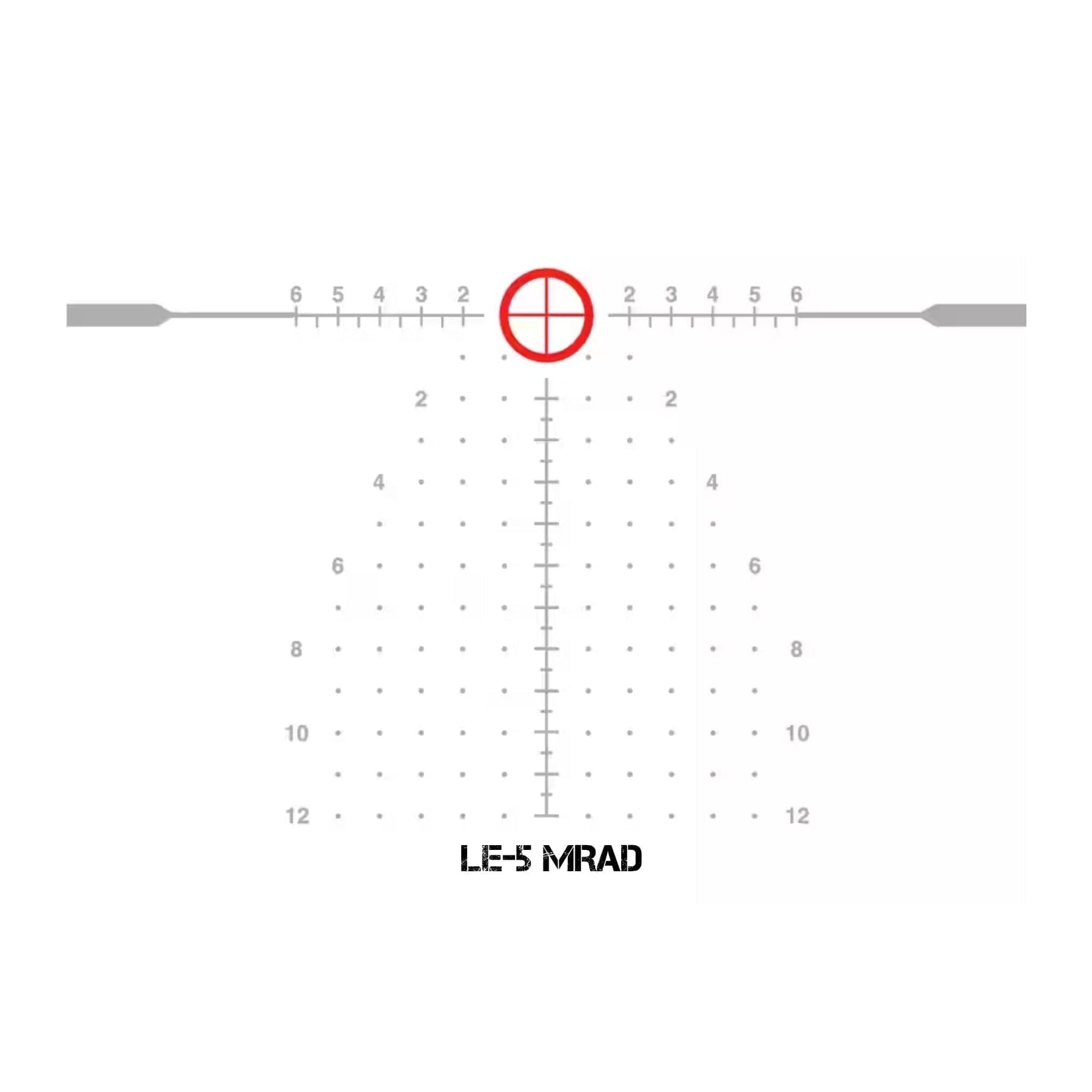

The LE5 is the sparser of the Vudu's milliradian reticles: fewer marks in the glass, a cleaner view at speed, and a scope aimed at the shooter who prefers to dial elevation rather than count hash marks.
EOTech builds it in Japan, and quotes 10.63 in (270 mm) of length and 21.3 oz (603 g) of weight. The reticle is etched in the first focal plane, so its subtensions hold true at every setting on the magnification ring rather than at one nominated power, and illumination lifts the centre out of a dark background. Field of view runs from 116.6 ft at 1x down to 11.7 ft at 10x, measured at 100 yd.
A 1-10x is the answer to running one optic on a rifle that has to shoot both close and far, and ten power is enough to identify and hold on a target well past what a dot will manage. Two things to be clear about: a first focal plane reticle is necessarily small and fine at 1x, and the 34 mm tube rules out the 30 mm rings you may already have on the shelf.
Why shooters choose the Vudu 1-10x28 LE5
-
Reticle — LE5 in MRAD, illuminated, first focal plane
-
Magnification — 1-10x over a 28 mm objective
-
Tube — 34 mm main tube
-
Field of view — 116.6 ft at 1x and 11.7 ft at 10x, measured at 100 yd
-
Size — 10.63 in (270 mm) and 21.3 oz (603 g)
-
Origin — made in Japan
What the Vudu 1-10x28 LE5 fits
It needs a 34 mm mount — a one-piece cantilever on an AR-pattern flat-top, or a pair of 34 mm rings on a bolt or straight-pull action. For a reticle with more holdover detail, the Vudu 1-10x28 SR5 MRAD is the same scope with the busier tree; in MOA it is the SR4 MOA version. Ring height is covered in our optic mount height guide.
Specifications
| Magnification |
1-10x variable |
| Objective |
28 mm |
| Tube |
34 mm |
| Focal Plane |
First focal plane (FFP) |
| Reticle |
LE5 MRAD, illuminated |
| Field of View at 100 yd |
116.6 ft at 1x / 11.7 ft at 10x |
| Length |
10.63 in (270 mm) |
| Weight |
21.3 oz (603 g) |
| Finish |
Black |
| Origin |
Made in Japan |
| MPN |
VDU1-10FFLE5 |
One scope, one to ten power, and a reticle that does not shout at you. Order the Vudu 1-10x28 LE5 today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
