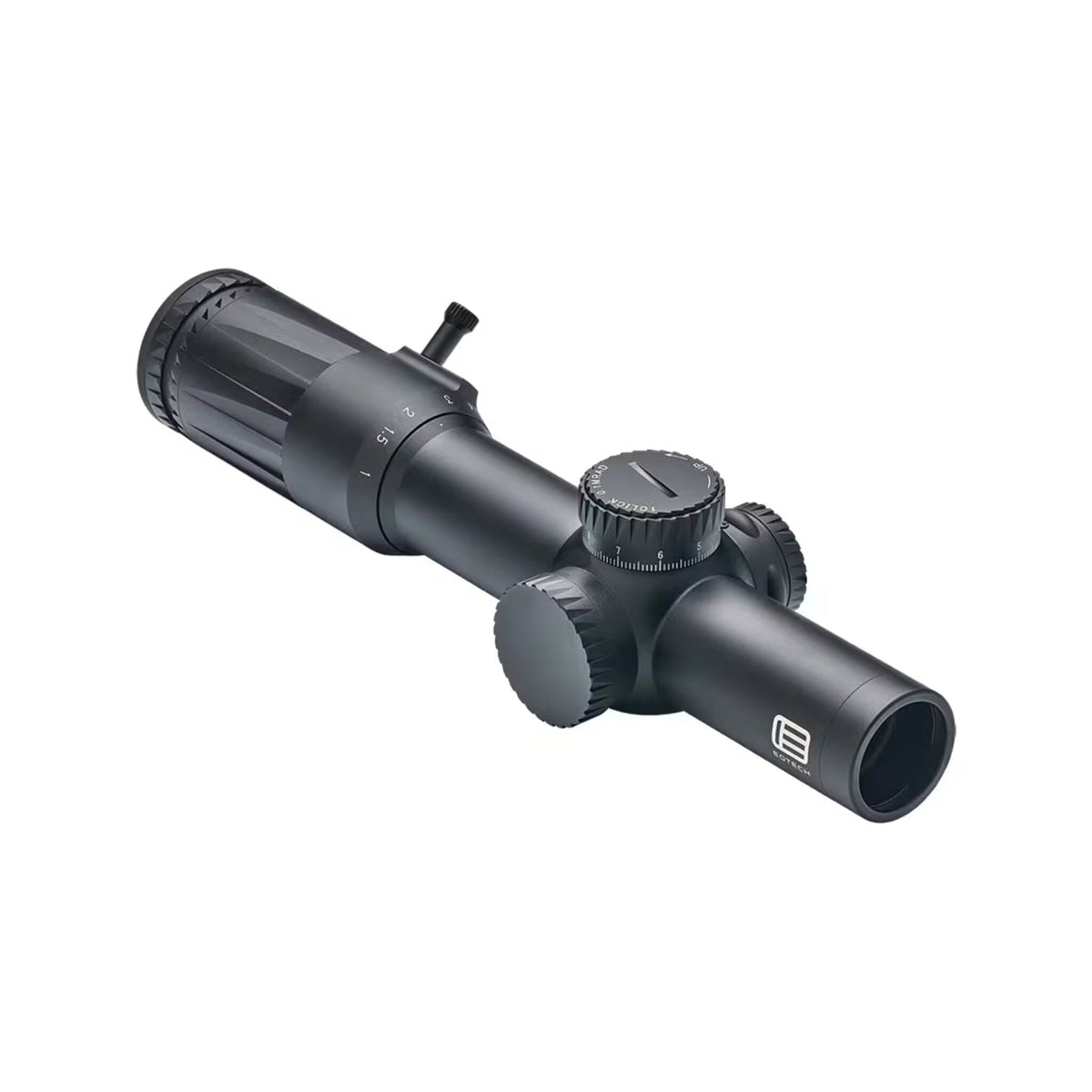

The EOTech Vudu 1-10x28 with the SR5 reticle is a first-focal-plane low power variable optic on a 34mm tube, with a 28 mm objective and milliradian holdovers that stay true at every magnification.
A ten-times erector is what makes one scope do two jobs: wound down it behaves like a dot for close work, wound up it is a 10x optic you can range and hold with.

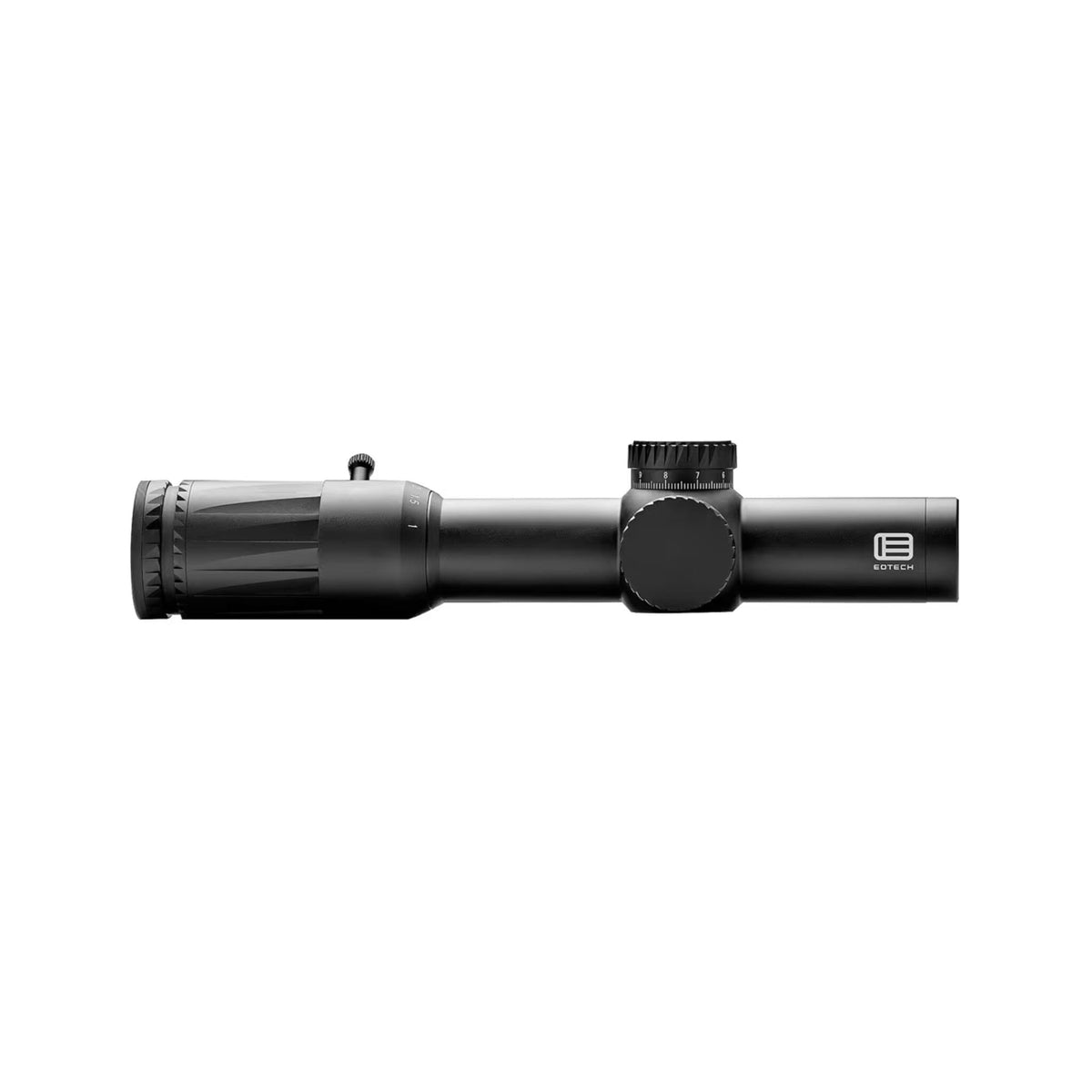

Because the reticle sits in the first focal plane it grows and shrinks with the image, so a subtension read at 4x means the same thing at 9x. The tube is 34mm aircraft aluminium, the glass is EOTech's XC high-density type, elevation locks and windage is capped. The scope measures 10.63 in (270 mm) and weighs 21.3 oz (603 g), it is waterproof, fogproof and shock-resistant, and it is made in Japan.
This is the MRAD half of the range, for shooters who think in mils and want turret units and reticle units to agree. Field of view is 116.6 ft at 1x and 11.7 ft at 10x measured at 100 yards. Two practical notes: a 34mm tube needs 34mm rings or a cantilever, which is a separate purchase, and at 21.3 oz this is a substantial optic — a lighter 1-6x is the honest answer if weight is the priority.
Why shooters choose the Vudu 1-10x28 SR5
-
Magnification — true 1-10x on a 34mm tube
-

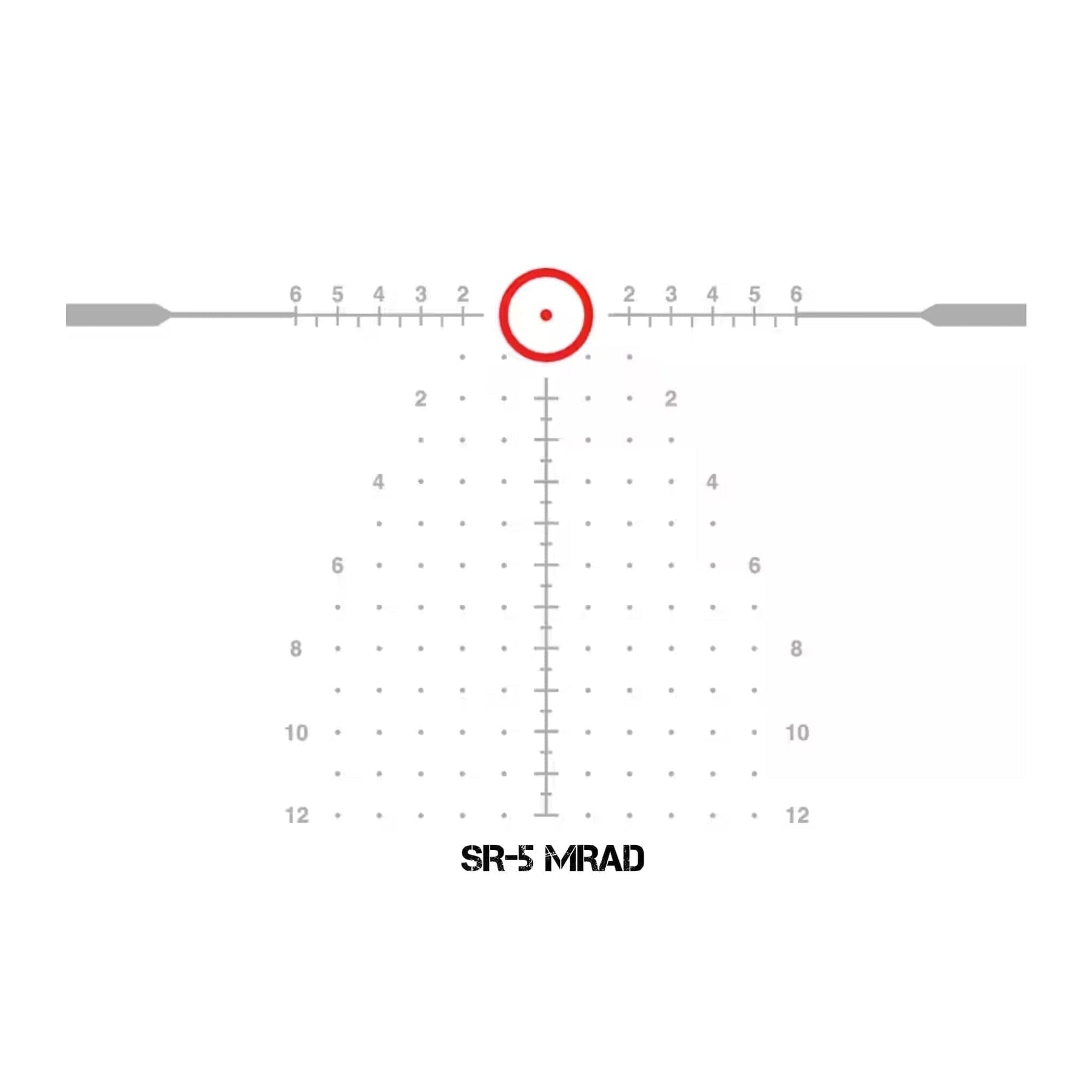

Reticle — illuminated SR5 in milliradians, first focal plane
-
Glass — XC high-density lens system
-

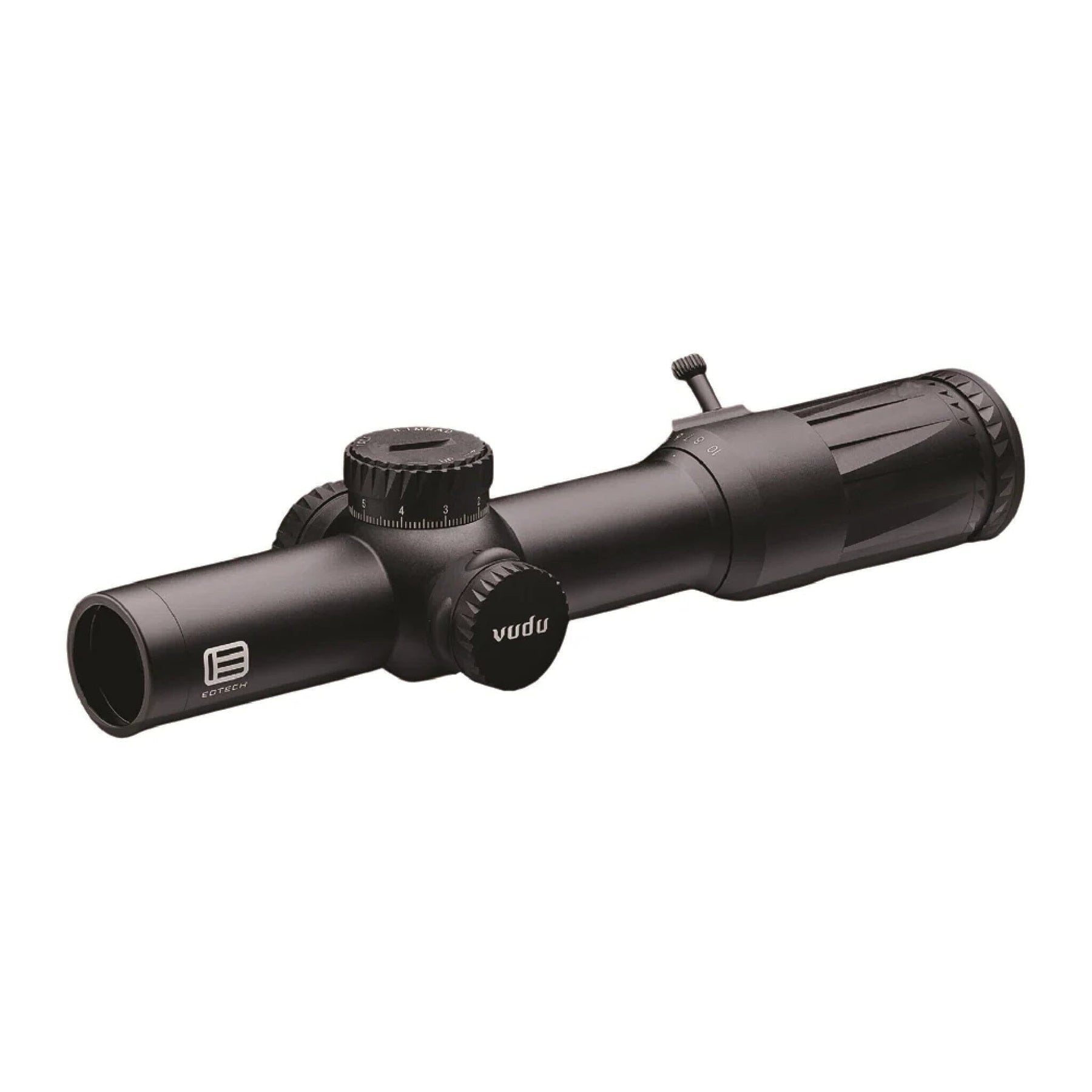

Turrets — locking elevation, capped windage
-
Field of view — 116.6 ft at 1x and 11.7 ft at 10x, at 100 yards
-
Build — waterproof, fogproof and shock-resistant, made in Japan
What the Vudu 1-10x28 SR5 fits
It needs a 34mm mount or cantilever, which is not included, and suits AR-pattern and straight-pull rifles with enough rail to set eye relief properly. If you would rather hold in minutes of angle, the Vudu 1-10x28 with the SR4 MOA reticle is the same scope in MOA, and the SR5 version in Tan matches tan furniture. Mounts live in precision rifle scope mounts.
Specifications
| Type |
Low power variable rifle scope |
| Magnification |
1-10x |
| Objective |
28 mm |
| Tube |
34 mm |
| Focal Plane |
First focal plane |
| Reticle |
SR5 MRAD, illuminated |
| FOV at 100 yd |
116.6 ft at 1x / 11.7 ft at 10x |
| Length |
10.63 in (270 mm) |
| Weight |
21.3 oz (603 g) |
| Finish |
Black |
| Origin |
Made in Japan |
| MPN |
VDU1-10FFSR5 |
One optic for the close stage and the far one, with the maths in mils from end to end. Order the Vudu 1-10x28 SR5 today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
Explore more: LPVO Rifle Scopes, Vudu 1-10x28 SR4 MOA or browse all EOTech
