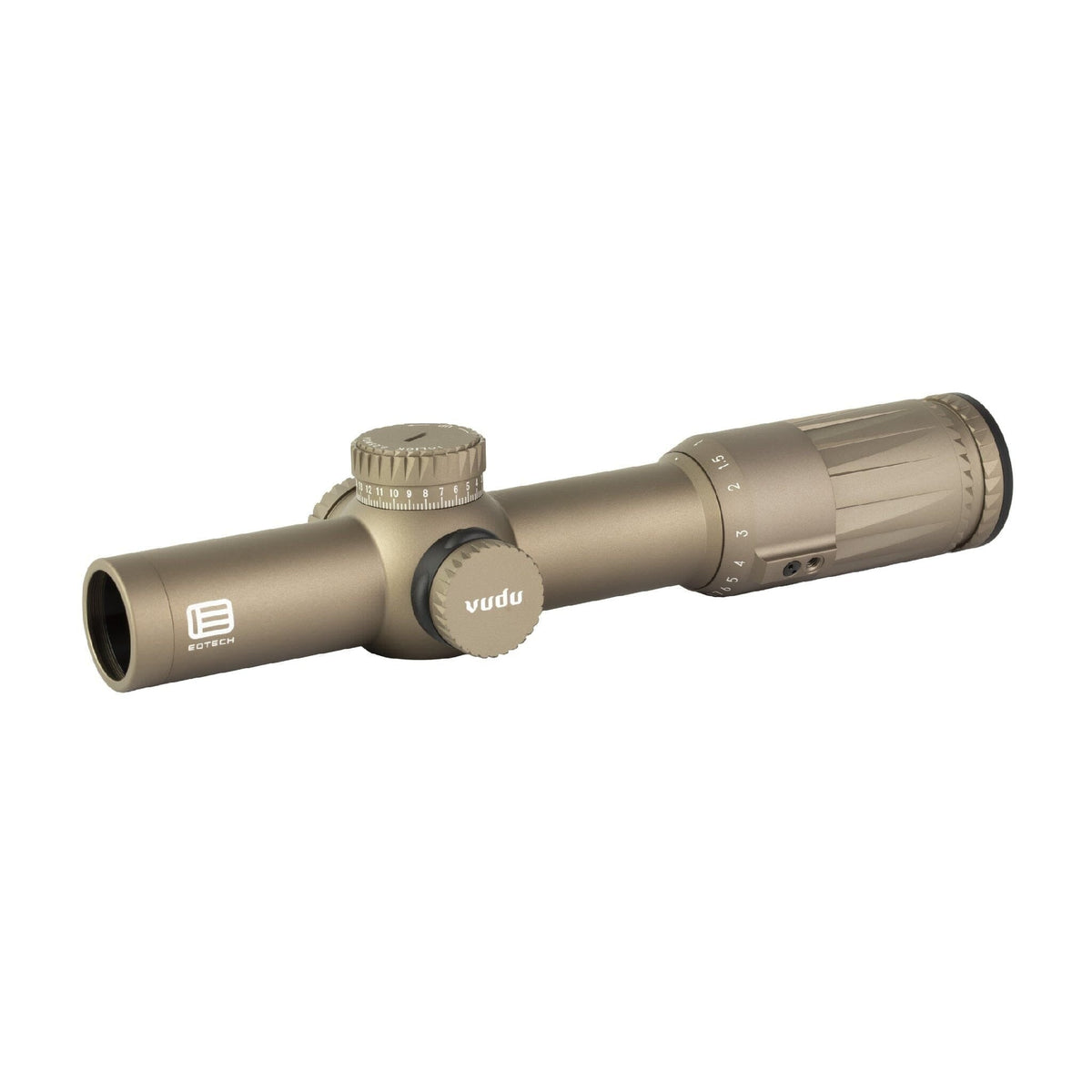

The EOTech Vudu 1-10x28 in tan is a first focal plane low power variable optic with a true 10x top end and the illuminated SR4 reticle, which works in minutes of angle around a 1 MOA centre dot.
First focal plane is the reason to buy this one: the reticle grows and shrinks with the magnification, so a holdover measured at 4x is the same holdover at 10x and the ranging marks never lie to you.

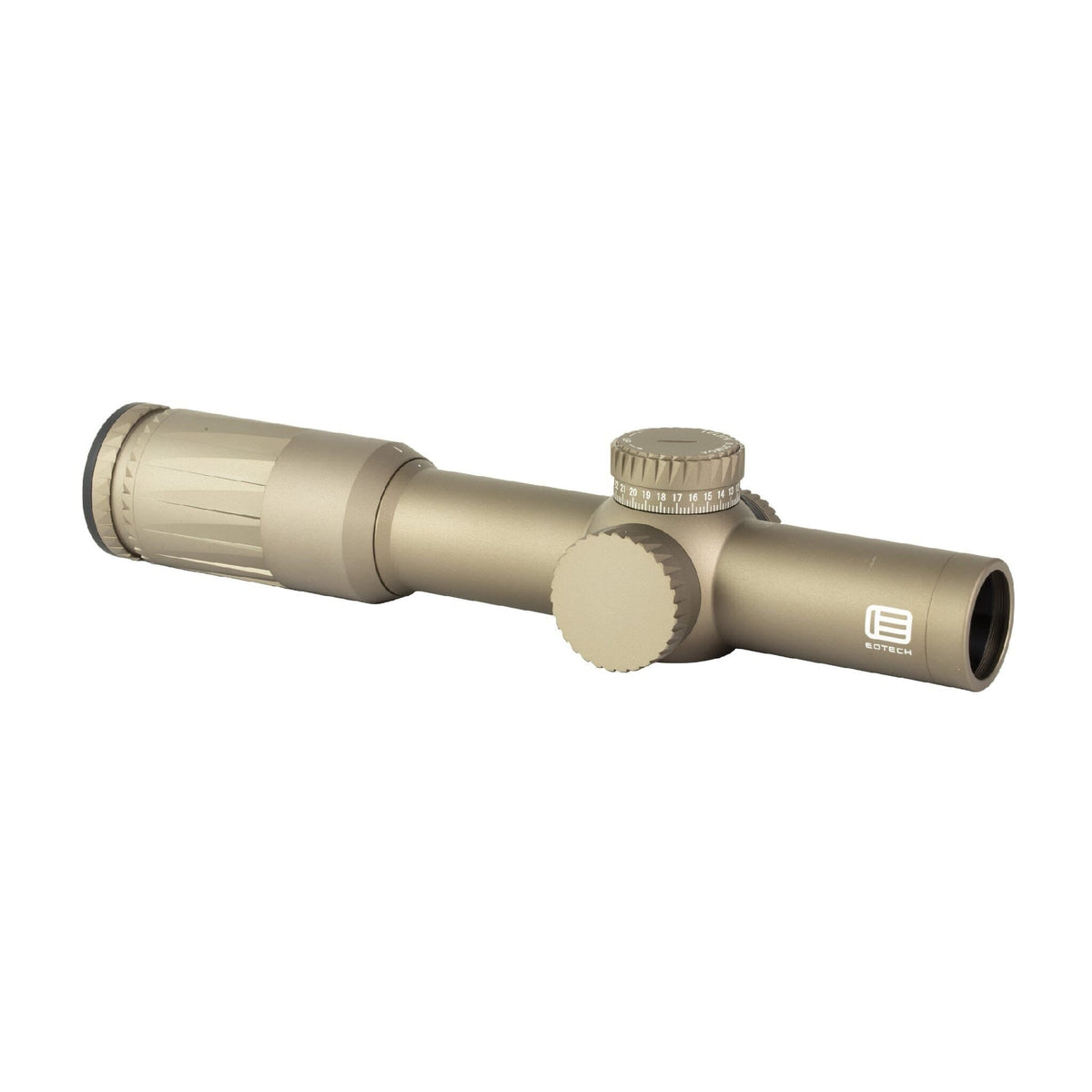

It is built on a 34mm aircraft-grade aluminium tube with a 28mm objective and EOTech's XC high-density glass, with a locking elevation turret and a capped windage turret that move in 0.25 MOA clicks. Total travel is 100 MOA of elevation and 80 MOA of windage. Illumination runs from a CR2032, the scope measures 10.63 in (270 mm) and weighs 21.3 oz (604 g), and it is waterproof, fog-proof and shock-resistant. This one is finished in tan and made in Japan.
It is a one-optic answer for a rifle that has to shoot a close stage and a distant one without a change of glass, which is why it lands on practical, target and 3-Gun builds. Two things to weigh up: 21.3 oz on a 34mm tube is not a light package, and an MOA reticle only makes sense if you think and call your corrections in MOA rather than milliradians.
Why shooters choose the Vudu 1-10x28 SR4
-
Optic — 1-10x28 first focal plane LPVO on a 34mm tube
-

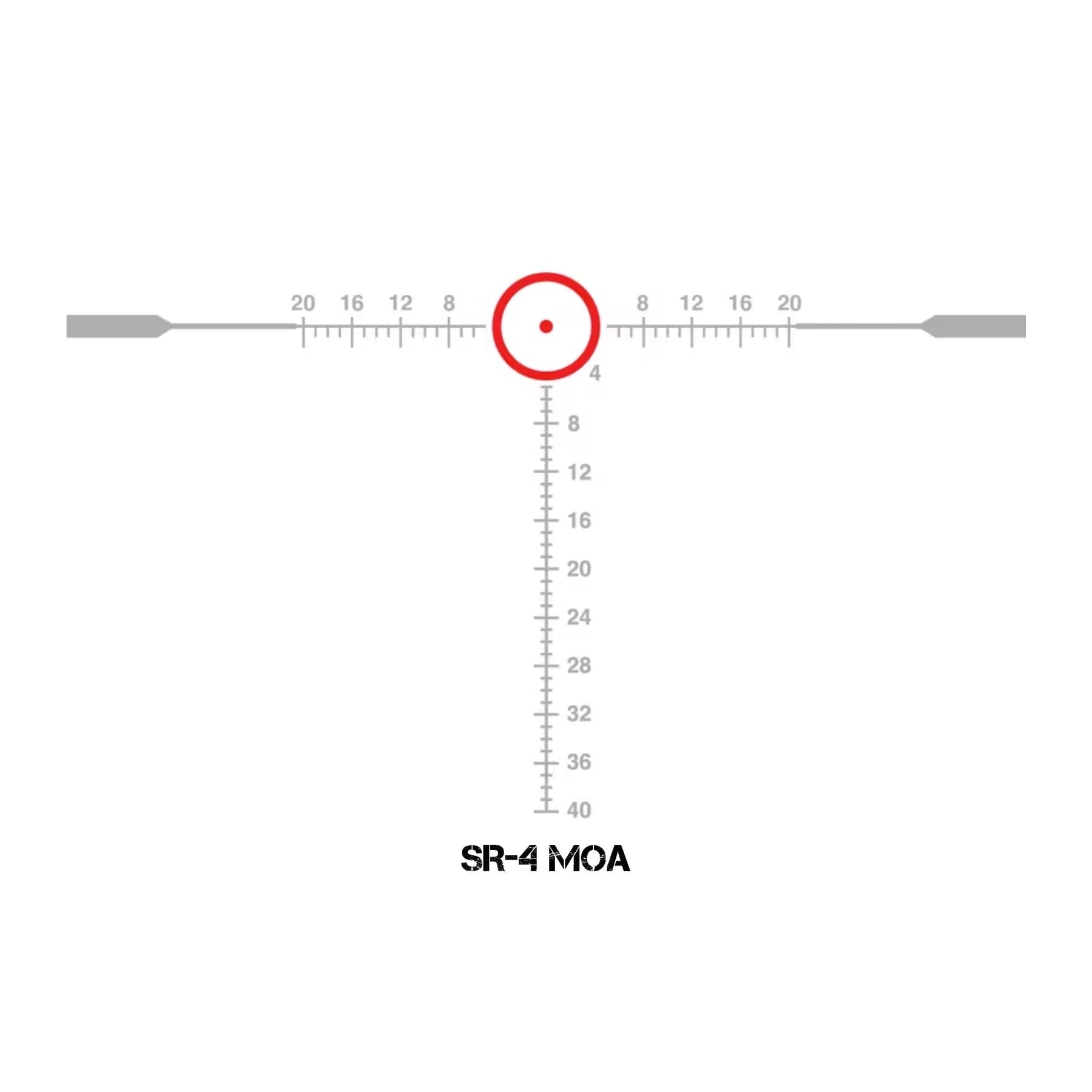

Reticle — illuminated SR4, MOA-based, with a 1 MOA centre aiming dot
-
Turrets — 0.25 MOA clicks, locking elevation and capped windage
-
Travel — 100 MOA elevation and 80 MOA windage
-
Glass — XC high-density glass for light transmission and clarity
-
Build — aircraft-grade aluminium, tan finish, 21.3 oz (604 g), made in Japan
What the Vudu 1-10x28 SR4 fits
The 34mm main tube means 34mm rings or a 34mm cantilever mount, sold separately, and eye relief runs 3.27 to 3.90 in at 1x and 3.35 to 3.62 in at 10x. The identical scope in black is the Vudu 1-10x28 SR4 in black, and for milliradian shooters the Vudu 1-10x28 SR5 MRAD in tan is the same optic in MRAD. See also LPVO rifle scopes and precision rifle scope mounts.
Specifications
| Type |
LPVO rifle scope |
| Magnification |
1-10x variable |
| Objective |
28 mm |
| Tube |
34 mm |
| Focal Plane |
First focal plane |
| Reticle |
SR4 MOA, illuminated, 1 MOA centre dot |
| Adjustment |
0.25 MOA per click |
| Travel |
100 MOA elevation / 80 MOA windage |
| Eye Relief |
3.27-3.90 in at 1x / 3.35-3.62 in at 10x |
| Battery |
CR2032 |
| Length |
10.63 in (270 mm) |
| Weight |
21.3 oz (604 g) |
| Finish |
Tan |
| Origin |
Made in Japan |
| MPN |
VDU1-10FFSR4TAN |
