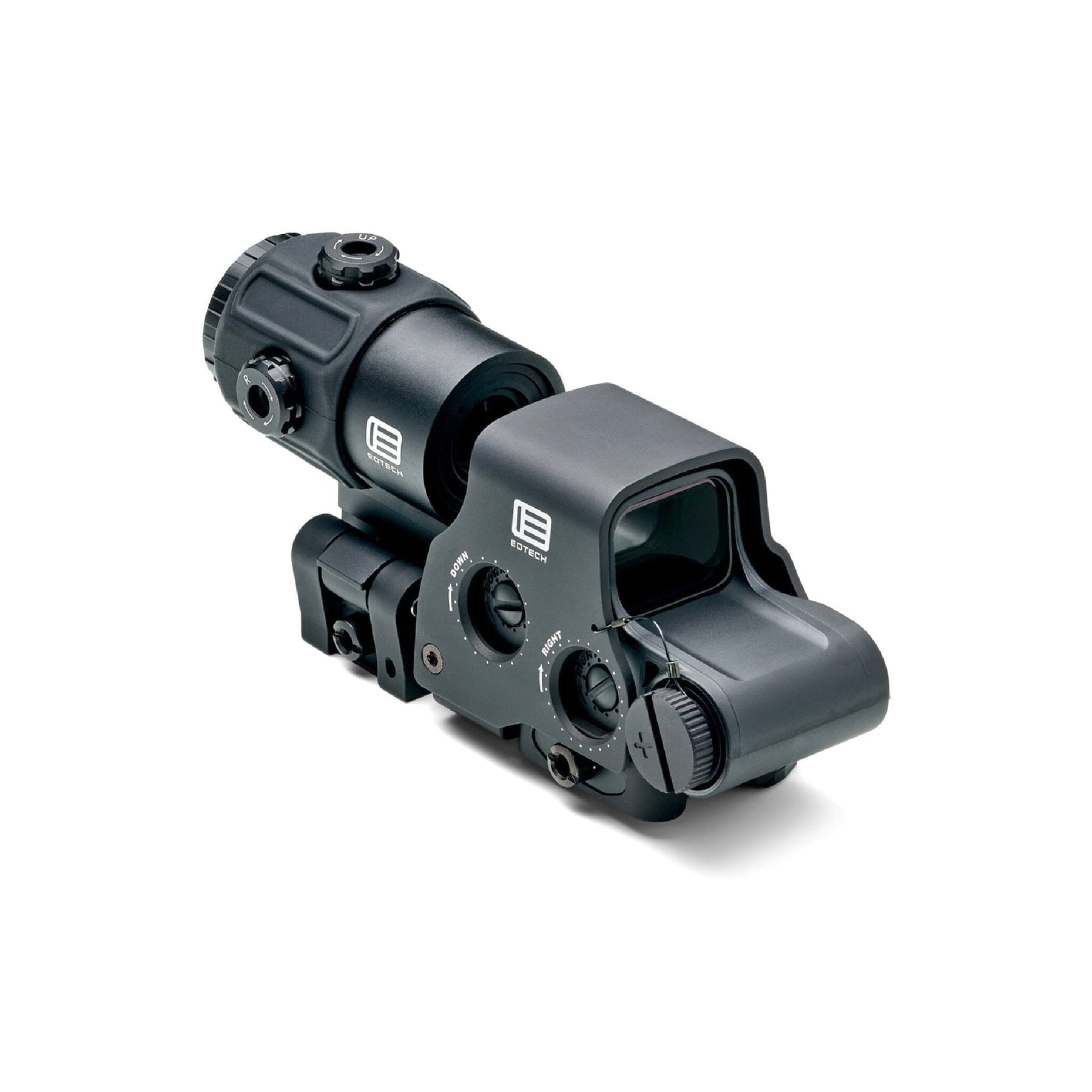

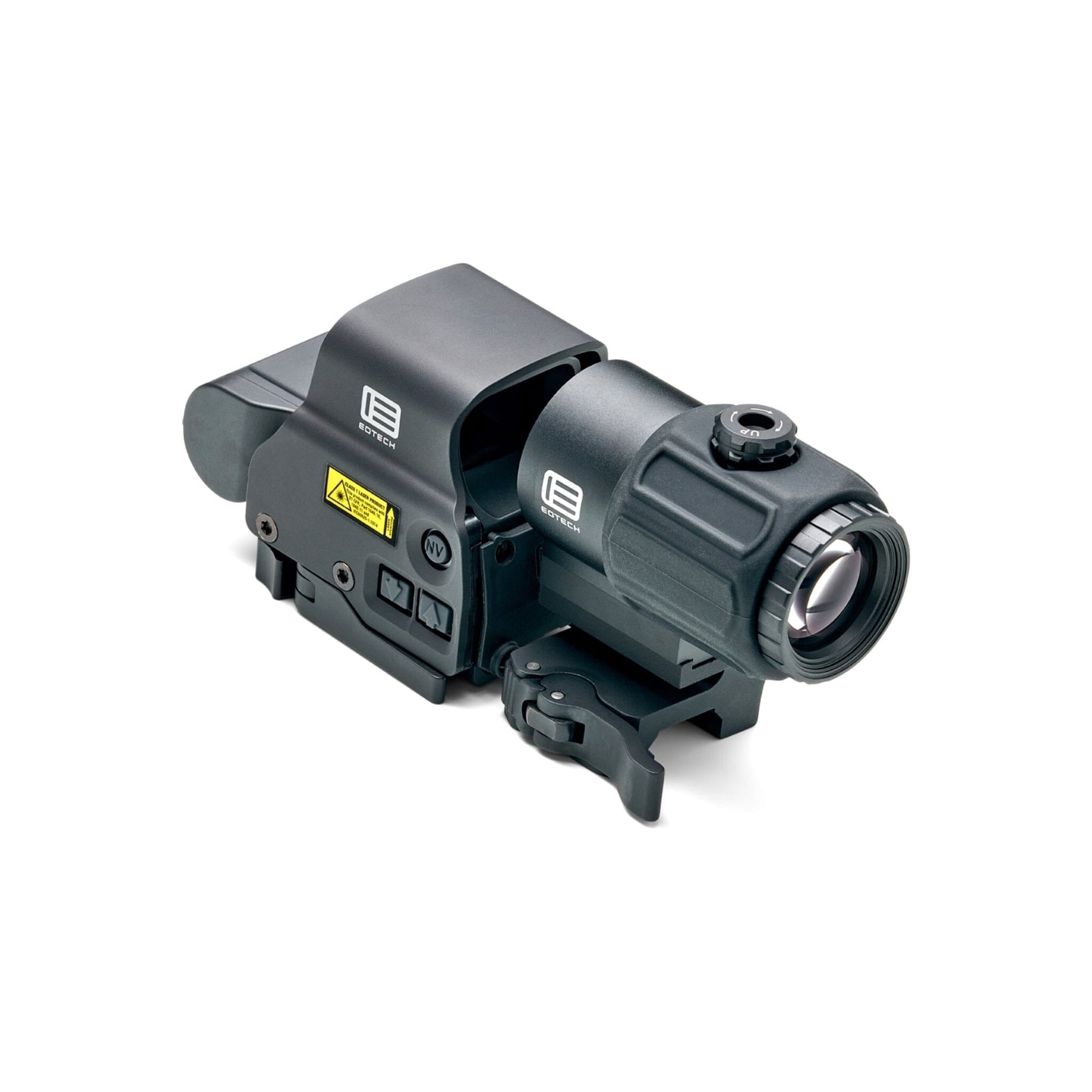

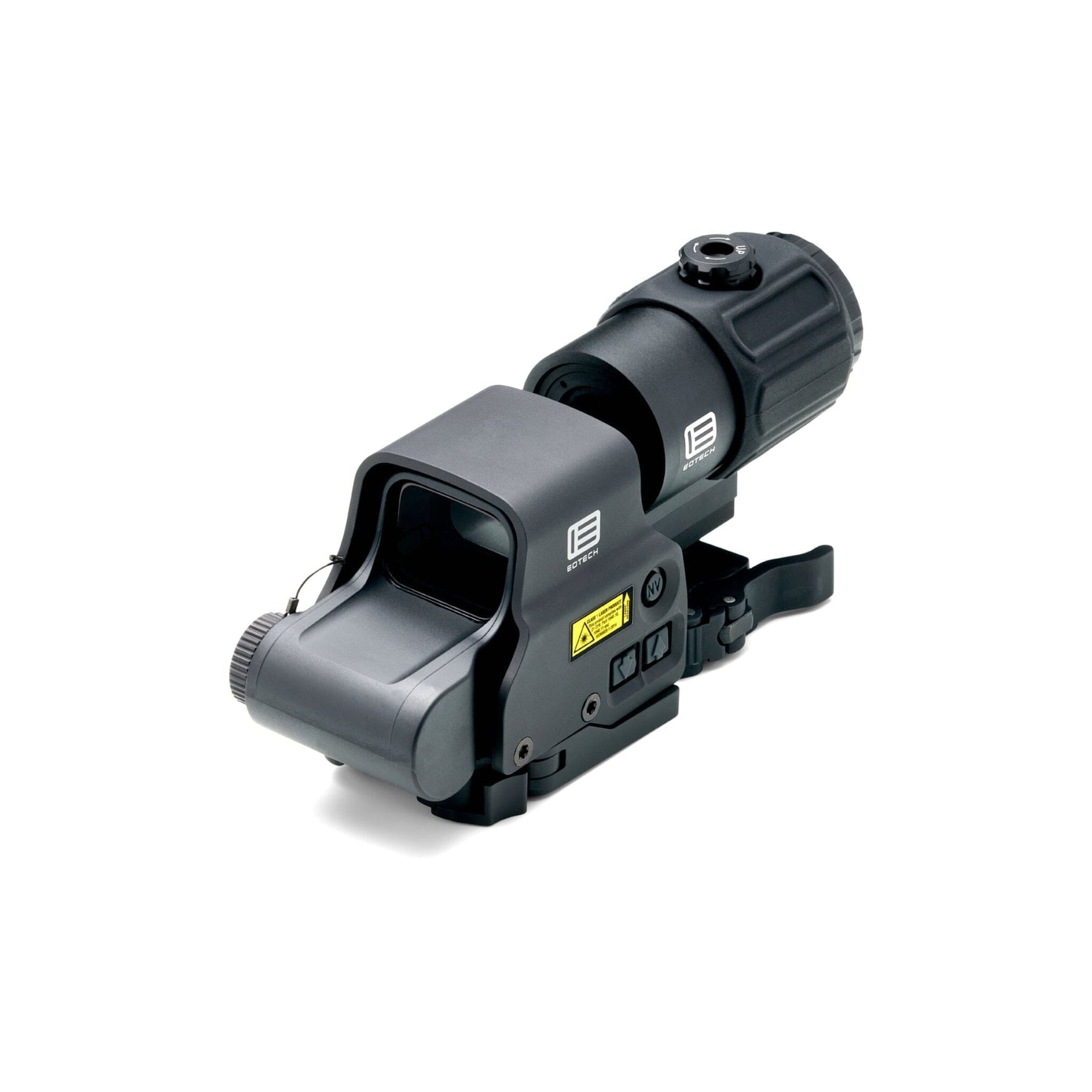

The EOTech HHS VI is a matched Holographic Hybrid Sight System: the EXPS3-2 holographic weapon sight supplied together with the G43 magnifier at 3x on EOTech's Switch-to-Side quick-detach mount.
Bought as a system, the magnifier arrives already on the mount that swings it out of the way, so the rifle goes from 1x to 3x with a thumb rather than a toolkit.

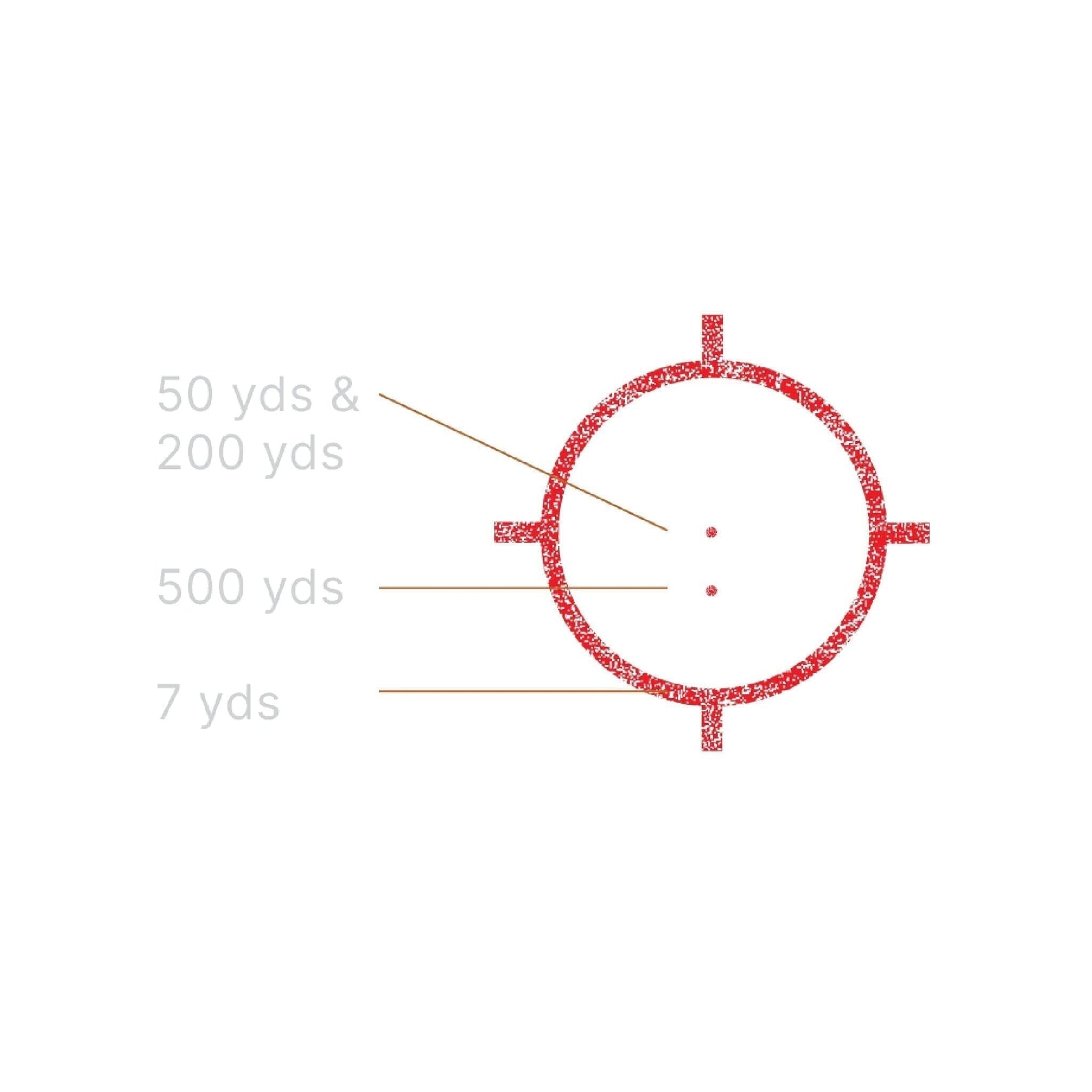

The sight projects a red 68 MOA ring carrying two 1 MOA aiming dots at 1x, adjusts through tool-less windage and elevation turrets at 0.5 MOA per click, and runs from a single CR123 lithium cell. Both halves clamp to a 1in Weaver or MIL-STD-1913 rail with quick-detach levers. EOTech give the assembled system as 23.1 oz (654.8 g) and 6.9 in long.
Twenty daylight settings and ten night-vision settings for Gen I to Gen III+ devices cover everything from a bright day on the stubble to passive aiming after dark, and the two-dot reticle keeps a secondary holdover reference under the main dot without cluttering the window. The system is not light: nearly a pound and a half sits on the rail once both units are fitted, which is the weight penalty for carrying magnification and a 1x sight at once. EOTech do not publish an eye relief figure or a water resistance rating for the HHS VI, so we do not quote either.
Why shooters choose the HHS VI
-
Sight — EOTech EXPS3-2 holographic weapon sight at 1x
-

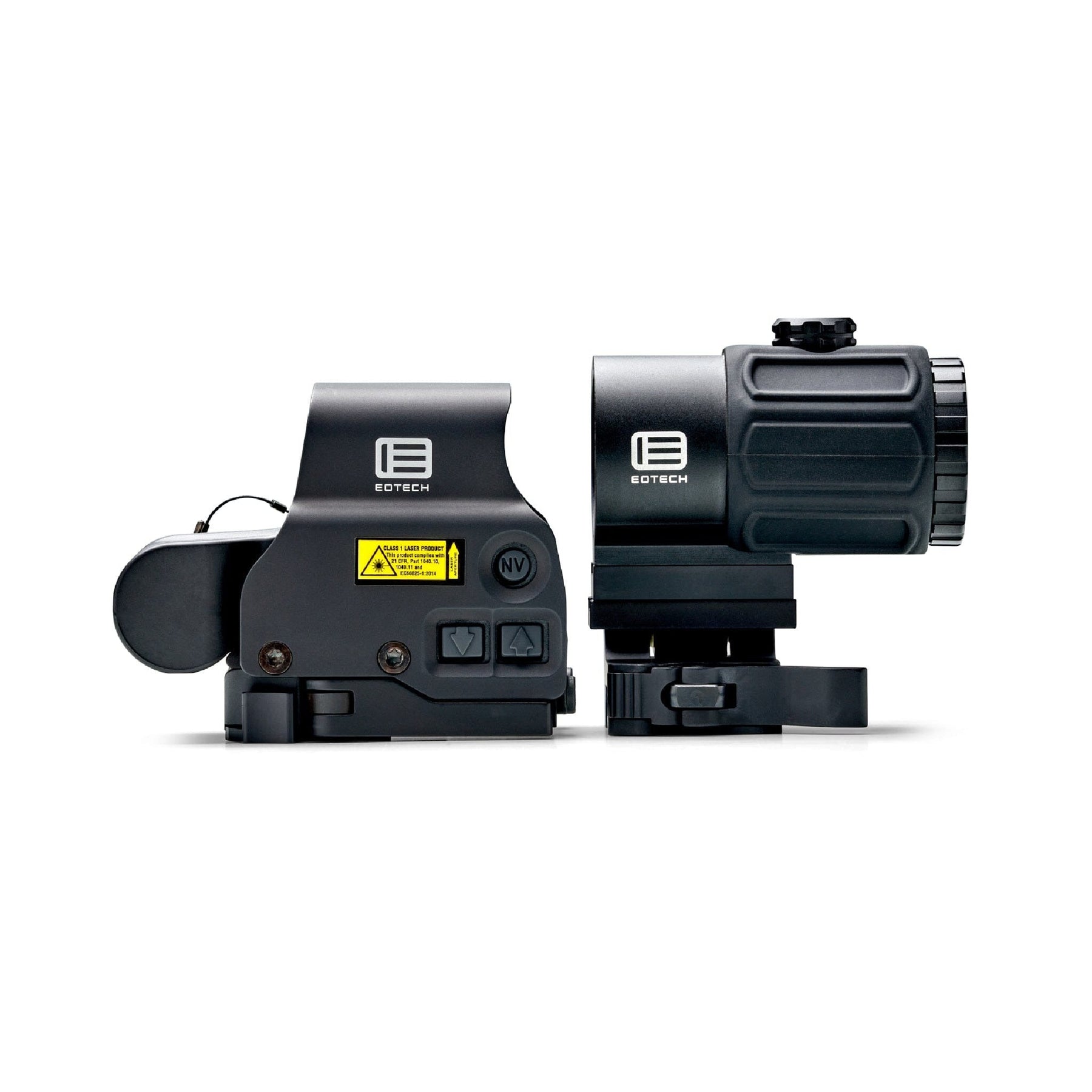

Magnifier — EOTech G43 at 3x on a Switch-to-Side quick-detach mount
-
Reticle — red 68 MOA ring with two 1 MOA dots
-
Illumination — 20 daylight settings and 10 night-vision settings for Gen I to Gen III+
-
Turrets — 0.5 MOA per click, tool-less windage and elevation
-
System size — 23.1 oz (654.8 g) and 6.9 in assembled
What the HHS VI fits
Both units mount to a 1in Weaver or MIL-STD-1913 rail, which on most builds means a flat-top receiver with a continuous top rail long enough to carry sight and magnifier in line. If you want more magnification and a four-dot reticle, the HHS V pairs an EXPS3-4 with the 5x G45, and the HHS VIII in Tan uses a single-dot EXPS3-0 with the G33.
Specifications
| Sight |
EOTech EXPS3-2 holographic weapon sight, 1x |
| Magnifier |
EOTech G43, 3x |
| Reticle |
68 MOA ring with two 1 MOA dots, red |
| Illumination |
20 daylight / 10 night vision (Gen I to Gen III+) |
| Adjustment |
0.5 MOA per click, windage and elevation |
| Mount |
Quick detach, 1in Weaver or MIL-STD-1913; Switch-to-Side magnifier mount |
| Battery |
1 x CR123 lithium |
| System weight |
23.1 oz (654.8 g) |
| System length |
6.9 in |
| MPN |
HHS VI |
One box, one zero and a magnifier that is already where it needs to be. Order the HHS VI today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
