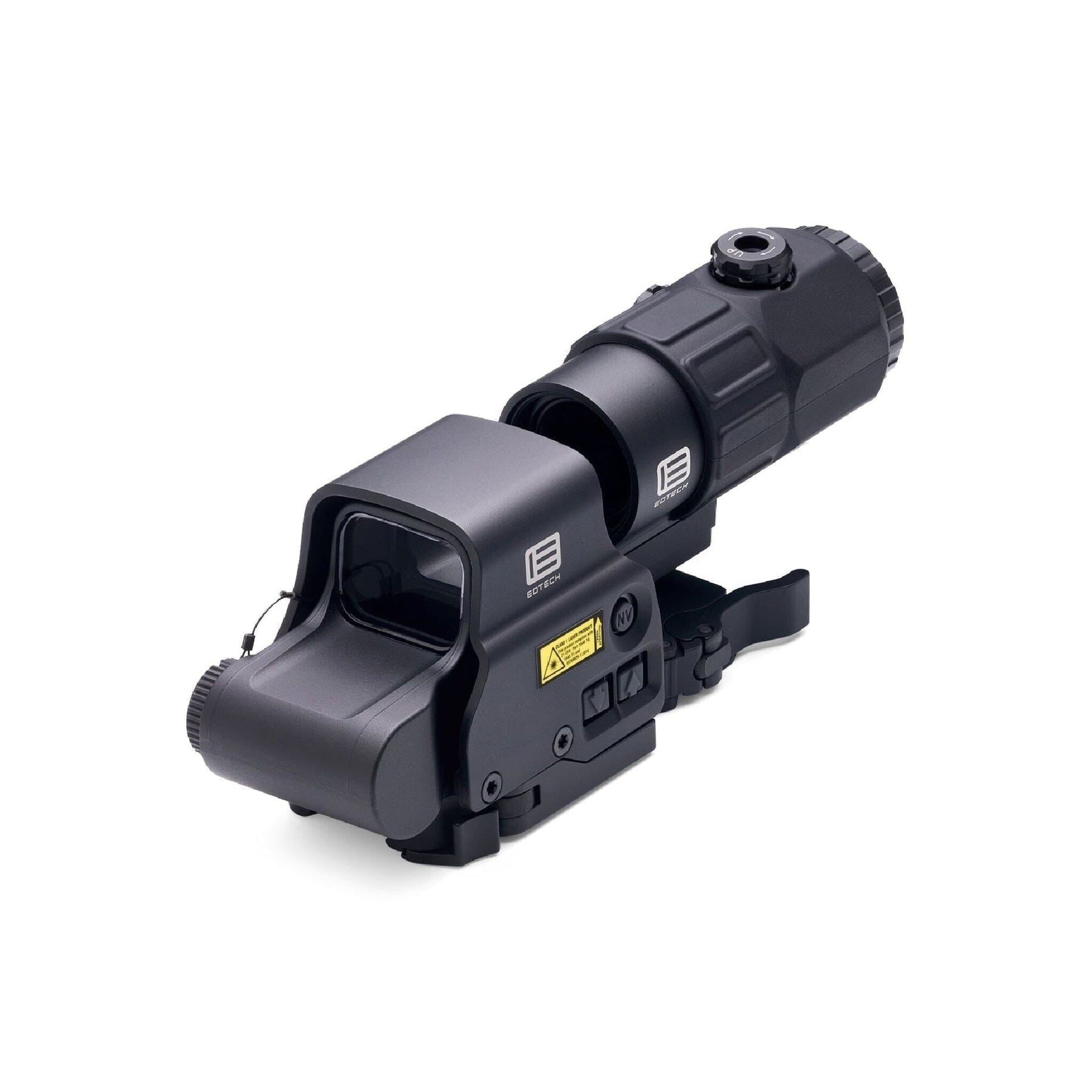

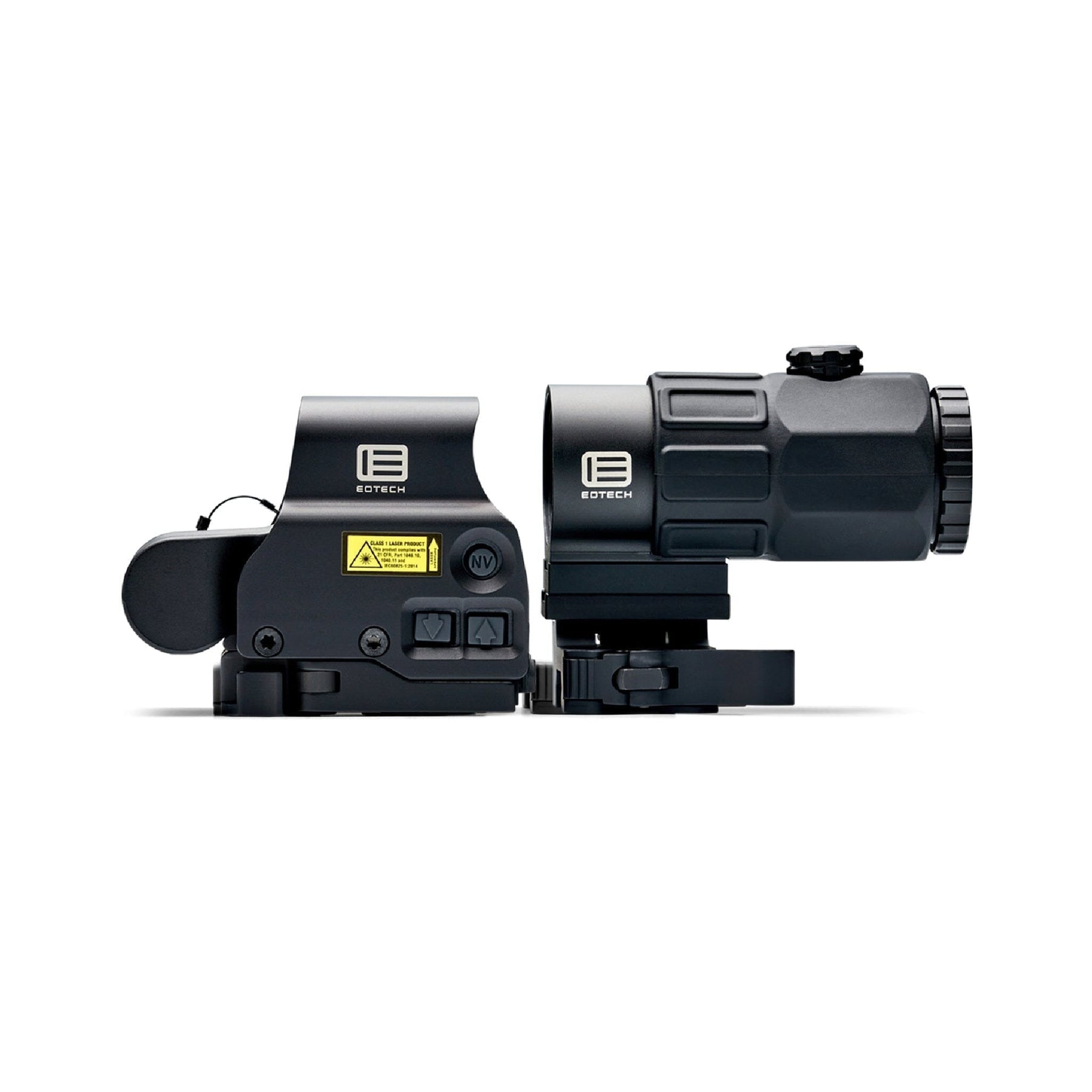

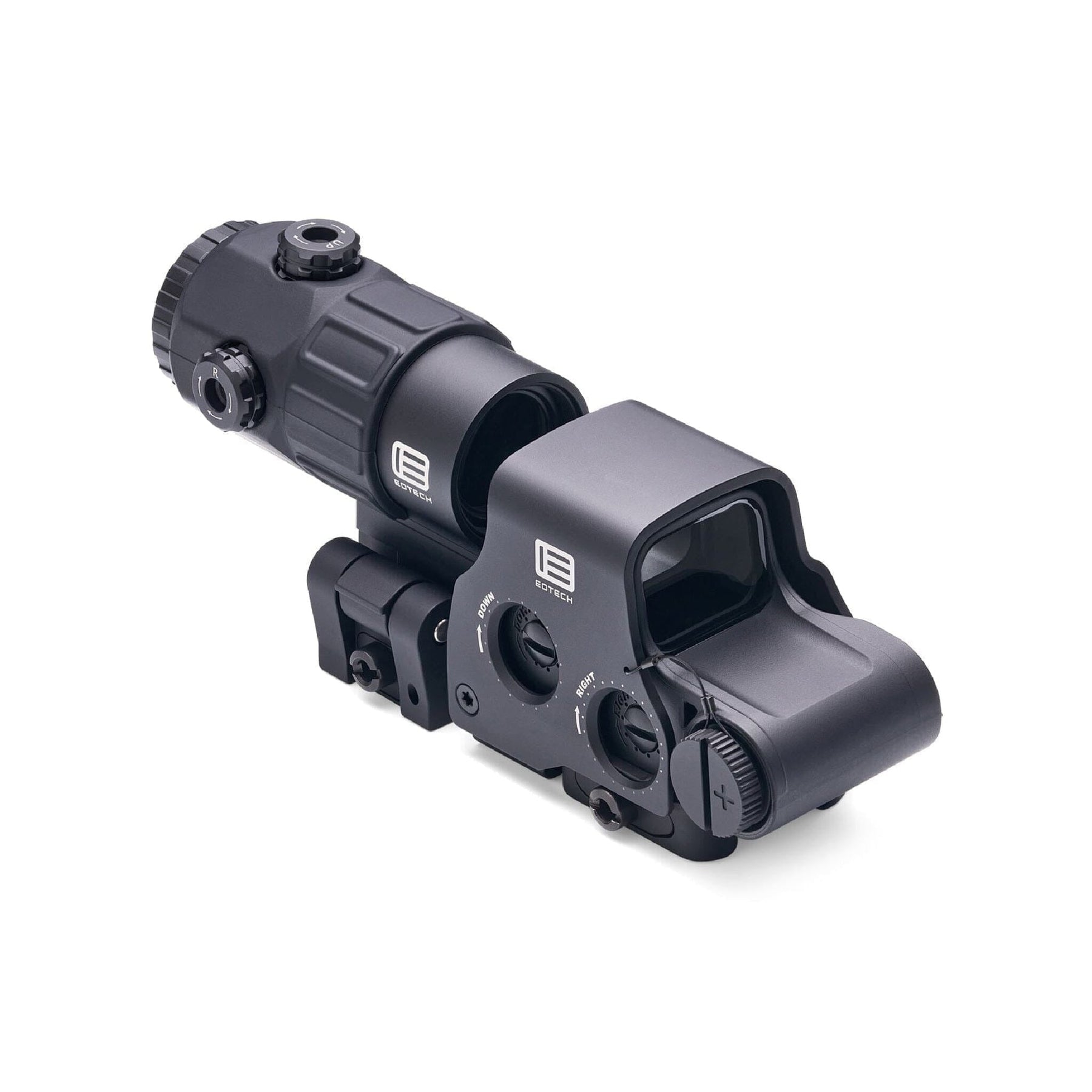

The EOTech HHS V is a matched Holographic Hybrid Sight System: the EXPS3-4 holographic weapon sight together with the G45 magnifier at 5x on EOTech's Switch-To-Side quick-detach mount.

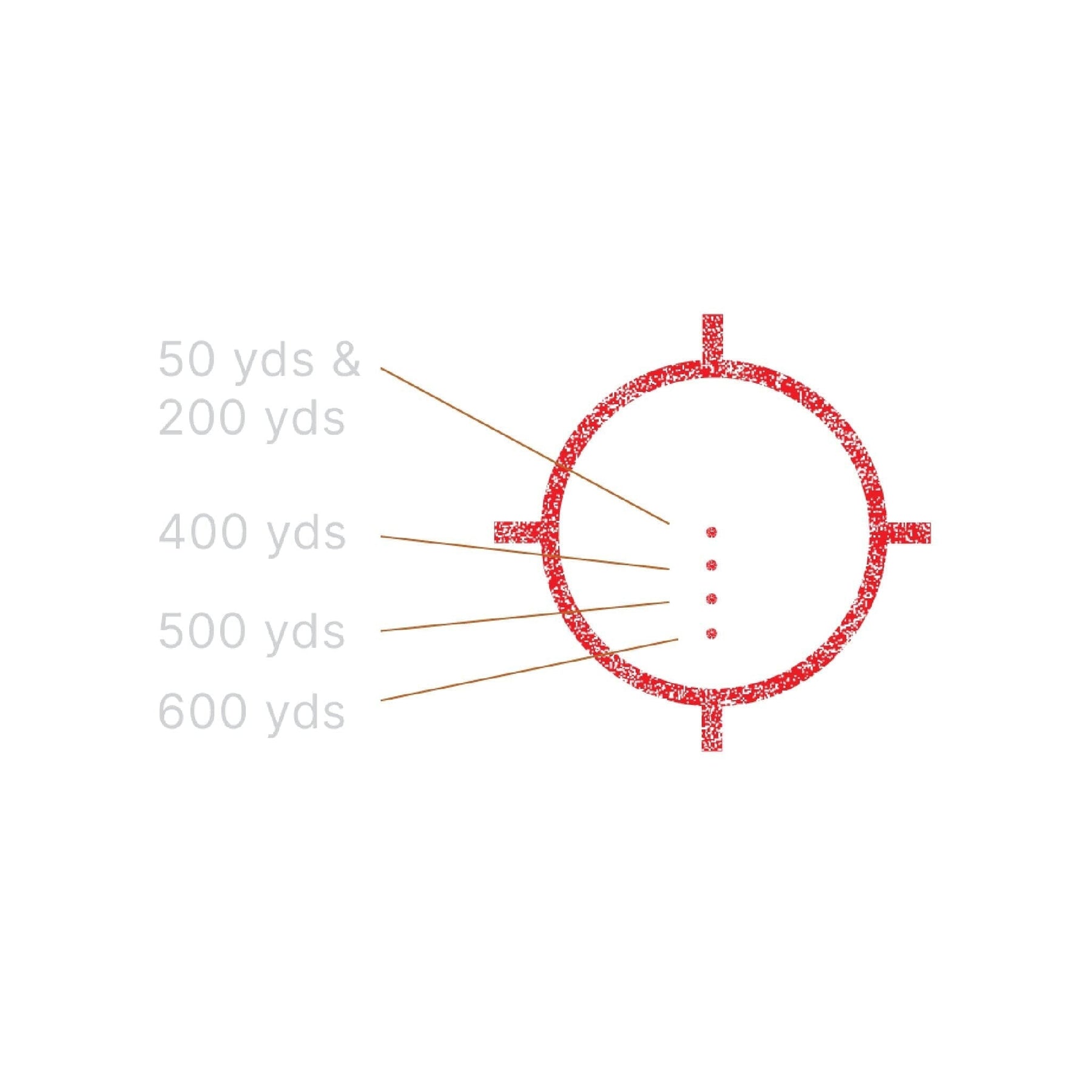

Bought as a pair, the magnifier arrives already on its swing-aside mount behind a sight whose 4-Dot Speed Ring reticle carries three extra holdover references below the main aiming point.

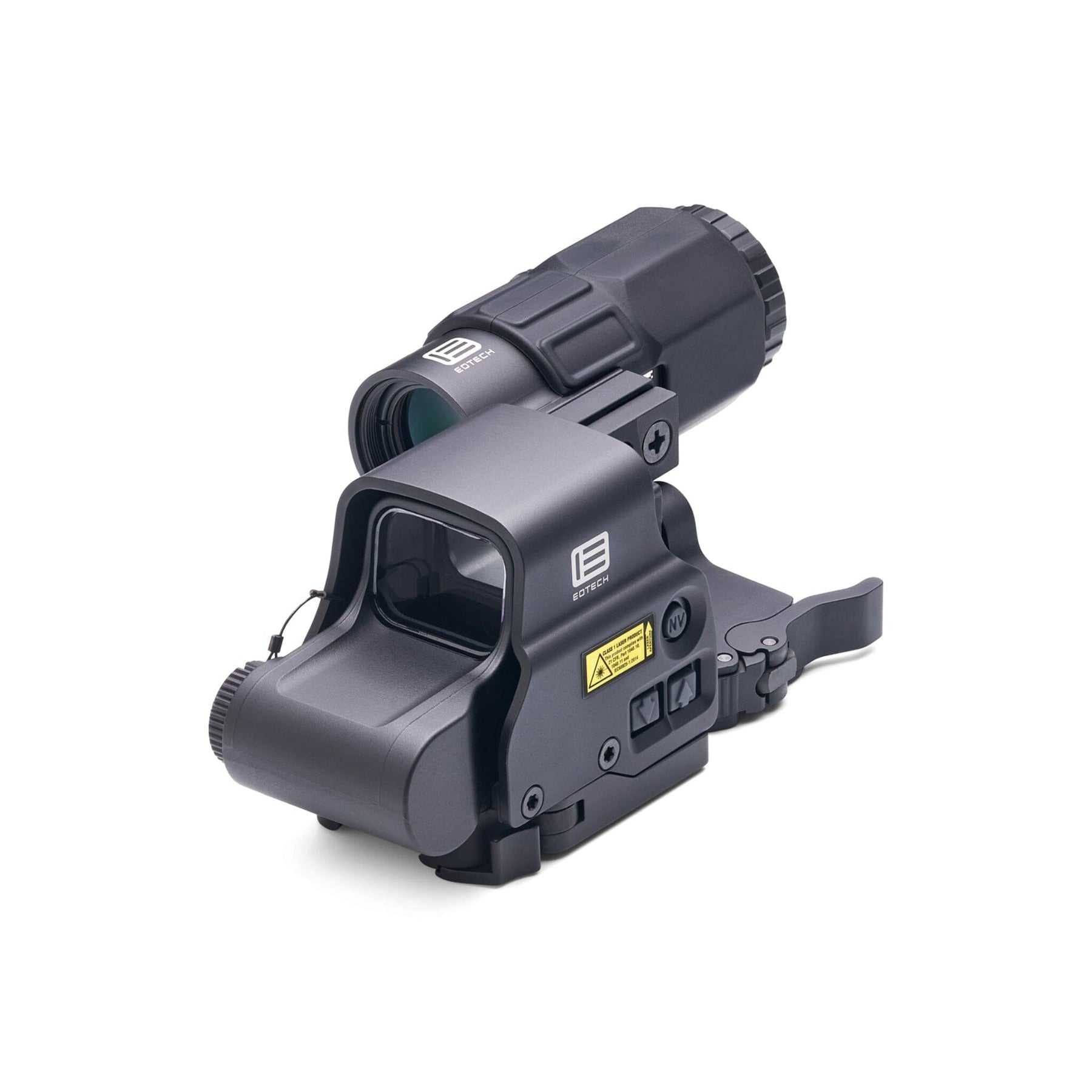

The sight is a 1x holographic unit projecting a red 68 MOA ring set with four 1 MOA dots, adjusted through tool-less windage and elevation turrets at 0.5 MOA per click, and powered by a single CR123 lithium cell. Both halves clamp to a 1in Weaver or MIL-STD-1913 rail, the magnifier through the Switch-To-Side quick-detach base. EOTech give the system as 24 oz and 7.7 x 2.3 x 3.3 in.
Twenty daylight settings and ten night-vision settings mean the reticle can be dialled from bright sun down to a level that will not bloom under a tube, and the extra dots let distance be taken up in the reticle rather than on the turrets. The trade-off is honest enough: 24 oz for the pair is real weight on a flat-top receiver, and the magnifier swings out of the way rather than leaving the rifle, so it goes on adding mass whether you are using it or not.
Why shooters choose the HHS V
-
Sight — EOTech EXPS3-4 holographic weapon sight at 1x
-
Magnifier — EOTech G45 at 5x, the longest reach in the hybrid range
-
Reticle — 68 MOA ring with four 1 MOA dots, in red
-
Illumination — 20 daylight and 10 night-vision brightness settings
-
Turrets — tool-less windage and elevation at 0.5 MOA per click
-
Power — one CR123 lithium cell
What the HHS V fits
Both halves need a 1in Weaver or MIL-STD-1913 rail with enough length to carry sight and magnifier in line, which on most builds means a flat-top upper. If 5x is more magnification than you want, the HHS VI pairs an EXPS3-2 with a 3x G43 and the HHS VIII in Tan uses the G33. The rest sit in Holographic Sights.
Specifications
| Optic type |
Holographic weapon sight with magnifier |
| Sight |
EOTech EXPS3-4, 1x |
| Magnifier |
EOTech G45, 5x |
| Reticle |
68 MOA ring with four 1 MOA dots, red |
| Illumination |
20 daylight / 10 night vision, night-vision compatible |
| Adjustment |
Tool-less windage and elevation, 0.5 MOA per click |
| Battery |
CR123 lithium |
| Mount |
Switch-To-Side quick detach, 1in Weaver / MIL-STD-1913 |
| Weight |
24 oz |
| Dimensions |
7.7 x 2.3 x 3.3 in |
| MPN |
HHS V |
If you want holographic speed up close and the most reach EOTech put in a hybrid kit, this is the pairing. Order the HHS V today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
Explore more: Holographic Sights, HHS II Hybrid Sight System or browse all EOTech.
