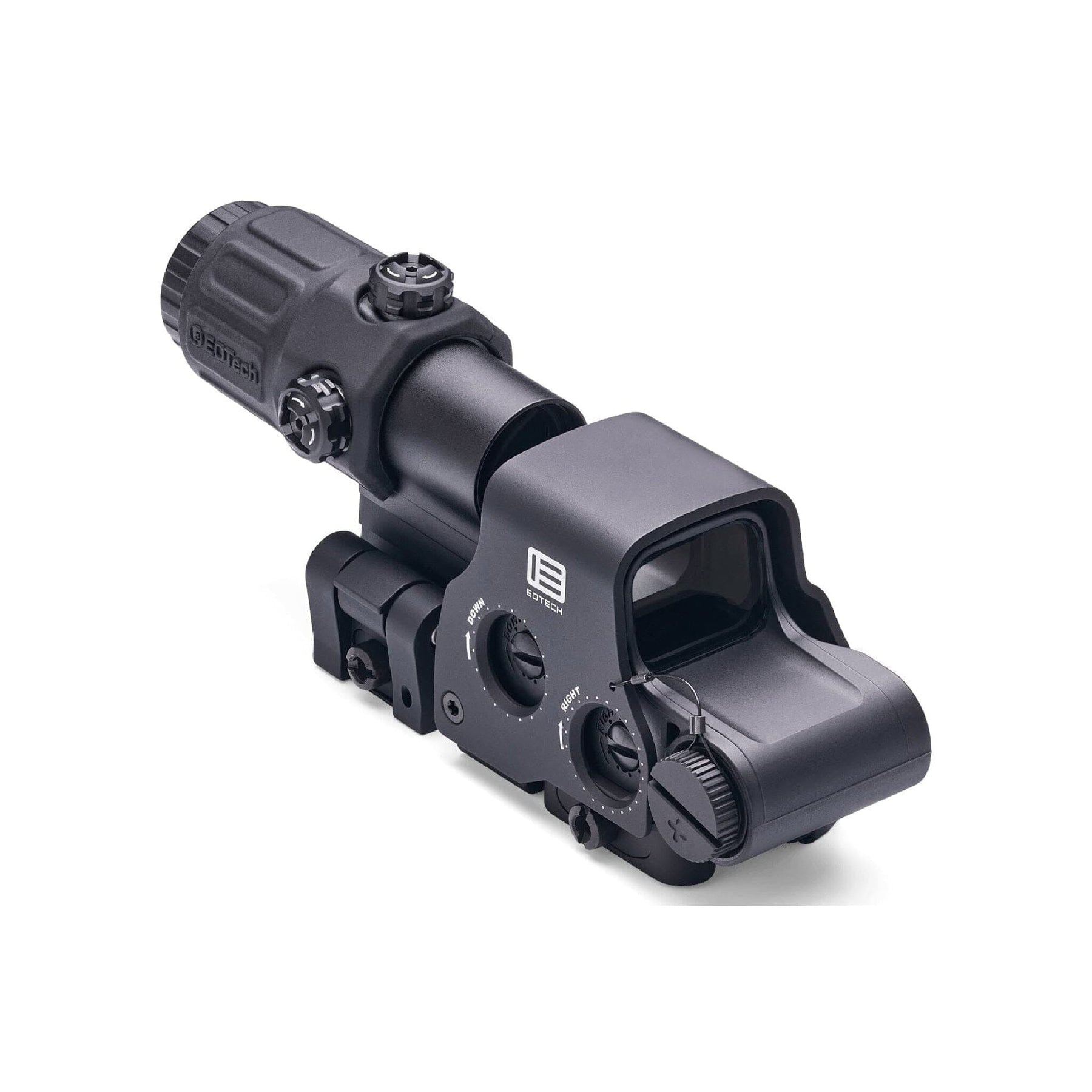

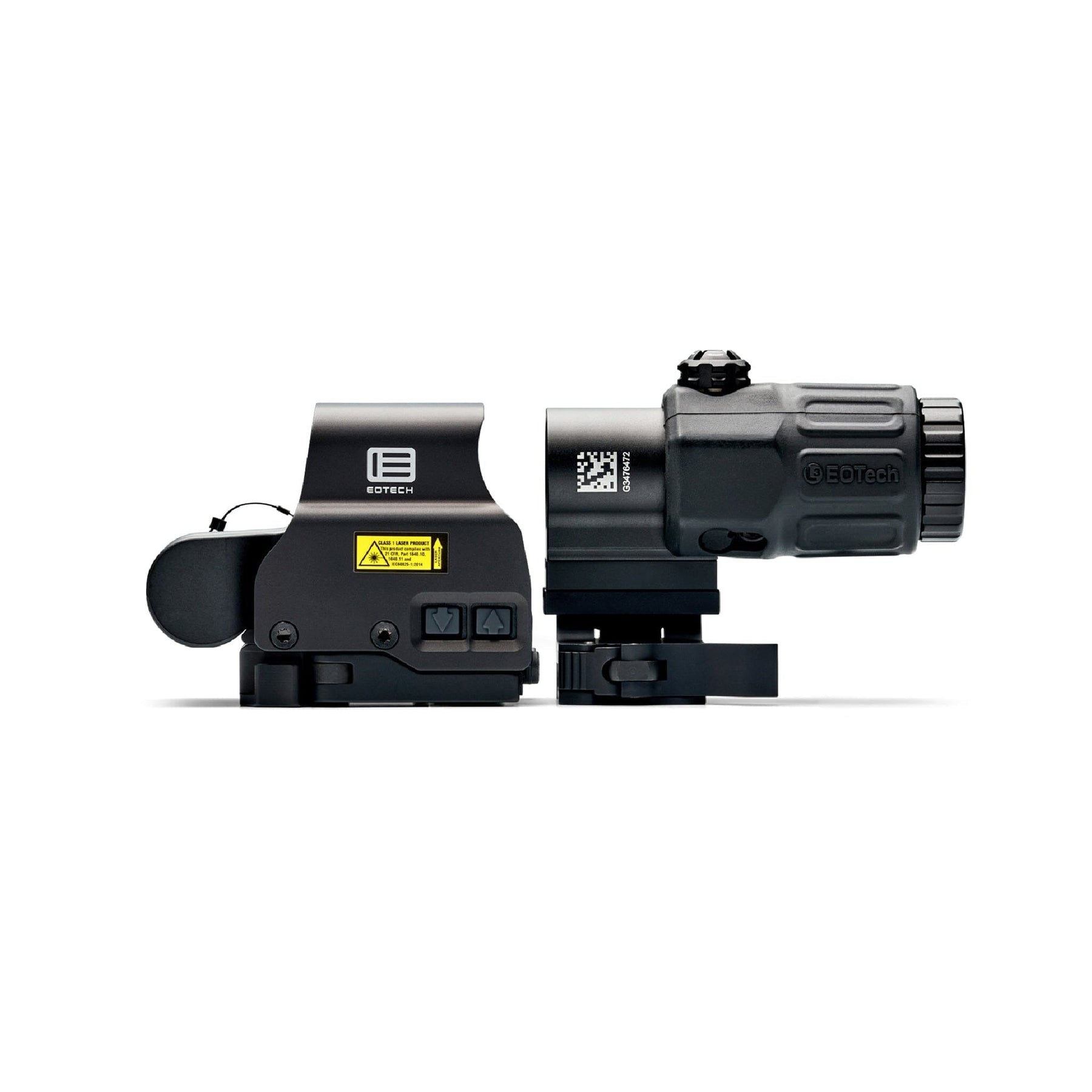

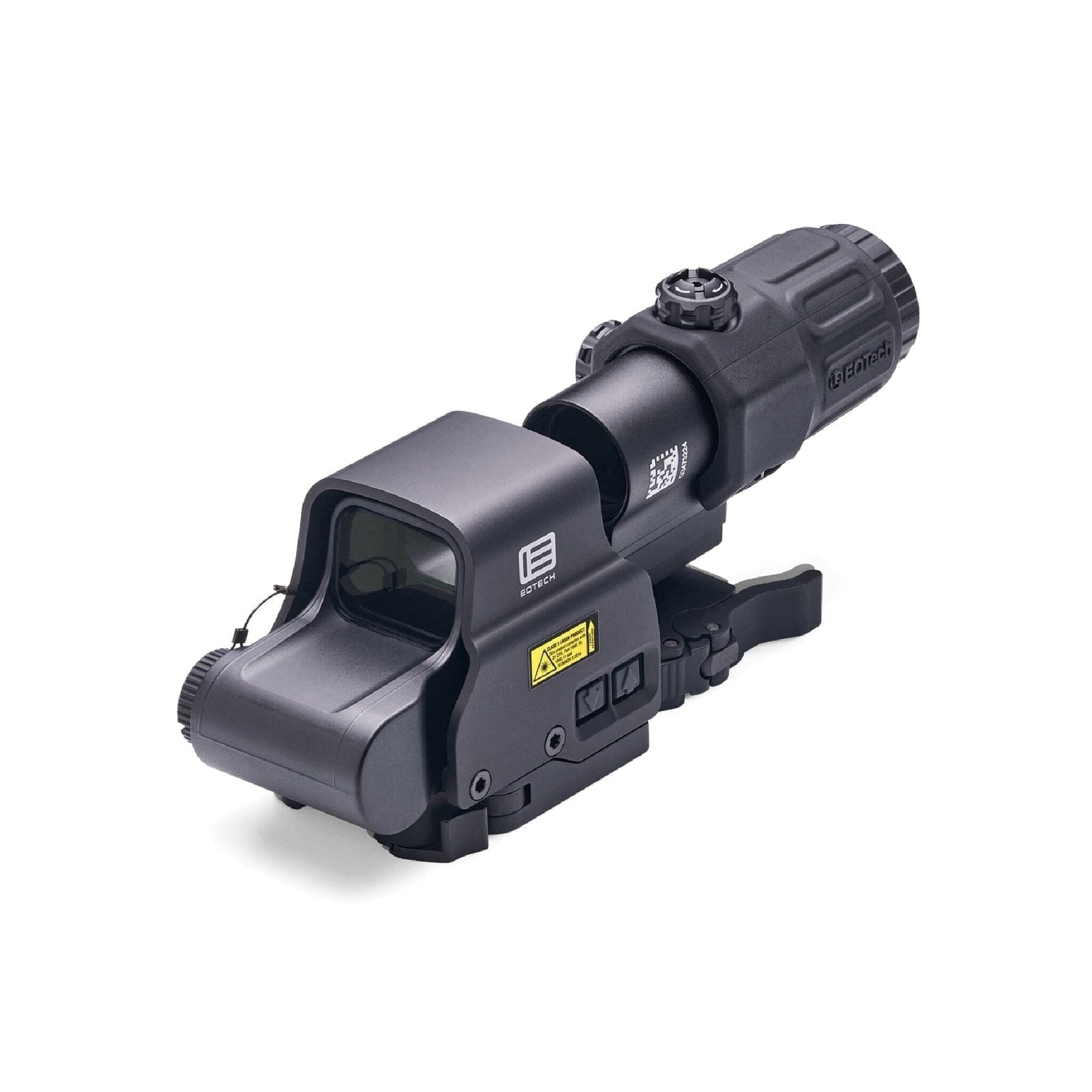

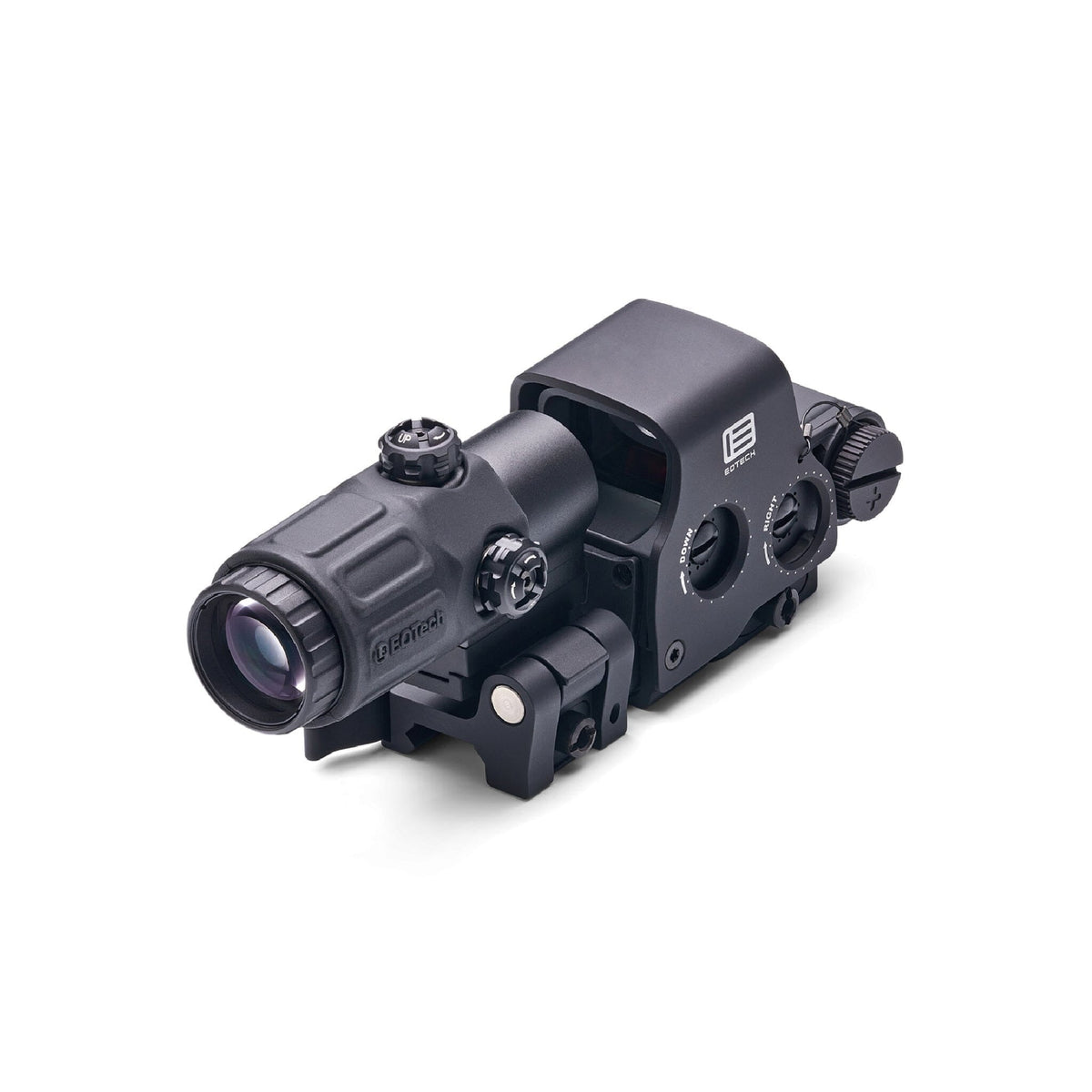

The EOTech HHS II is a matched two-part system that pairs the EXPS2-2 holographic weapon sight with the G33 3x magnifier on EOTech's Switch-to-Side quick-detach mount.
Bought together the two pieces already agree on height, so the magnified image lands centred on the reticle with no shims, no packing washers and no trial fitting.
The sight throws a 68 MOA ring with two 1 MOA aiming dots in red, across 20 daylight brightness settings, and runs from a single CR123 lithium cell rated by EOTech for 1,000 continuous hours. The STS mount clamps to a 1 in Weaver or MIL-STD-1913 rail and detaches by lever. As a complete system it measures 7.9 x 2.3 x 3.3 in (198.1 x 58.4 x 83.8 mm) and weighs 22.4 oz (635 g), and EOTech rates it for submersion to 10 ft (3 m).
The point of the pairing is that neither half has to be a compromise: the holographic sight stays at 1x with both eyes open for close work, and the magnifier swings in behind it when a target needs identifying rather than merely hitting. Swinging it aside is a thumb movement, not a rail job. One honest limitation decides whether this is your kit: the EXPS2-2 is the daylight-only sight and is not night-vision compatible, so anyone shooting behind a night vision device wants an EXPS3-based system instead.
Why shooters choose the HHS II
-
Sight — EOTech EXPS2-2 holographic weapon sight, 1x
-

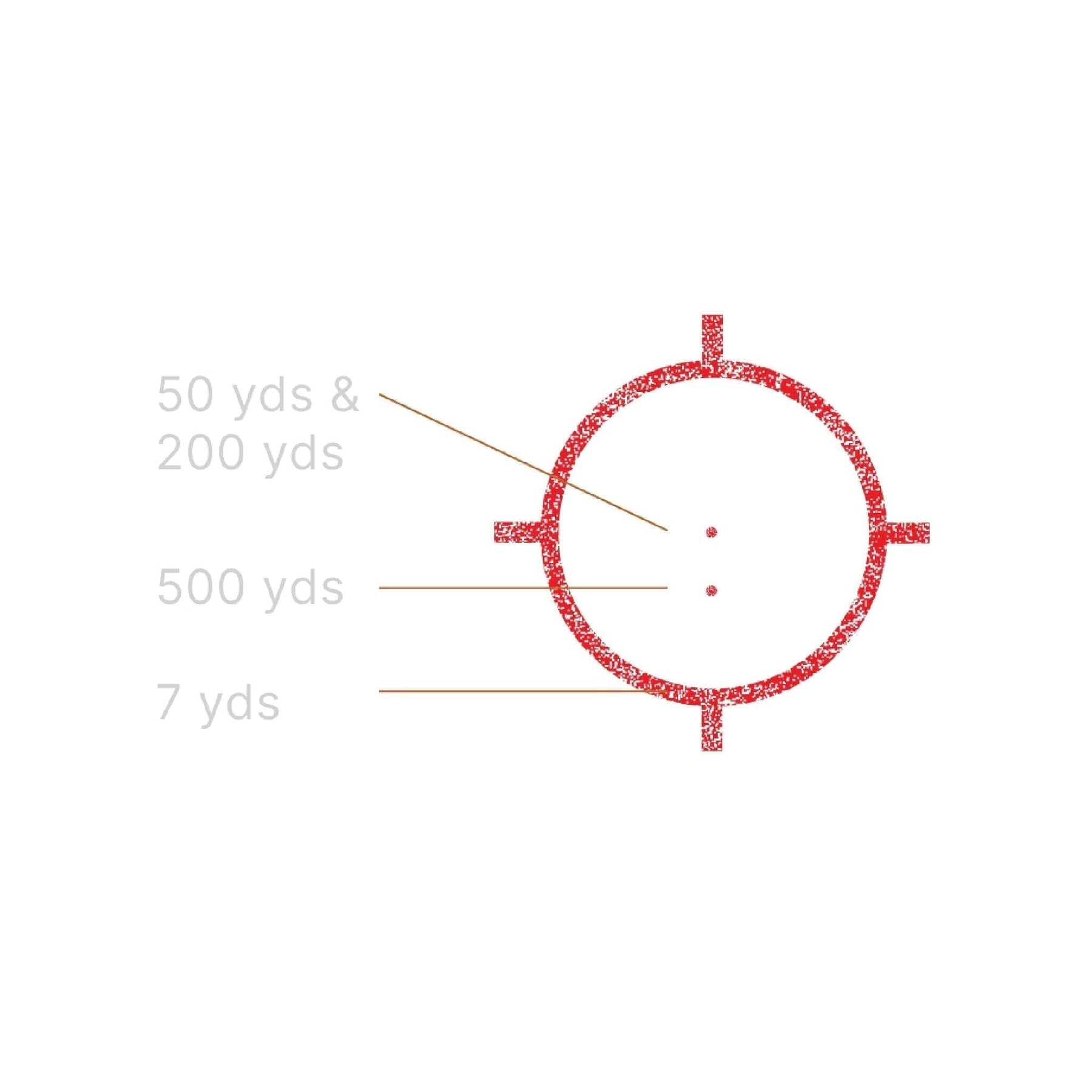

Reticle — 68 MOA ring with two 1 MOA aiming dots, in red
-
Magnifier — EOTech G33 at 3x, roughly 2.2 in of eye relief
-
Mount — Switch-to-Side quick-detach for 1 in Weaver or MIL-STD-1913
-
Power — one CR123 lithium cell, 1,000 continuous hours
-
Night vision — not compatible — this is the daylight kit
What the HHS II fits
Any flat-top receiver or rail with room for both units in line, which in practice means an AR-pattern upper or a comparable rail length. For a night-vision compatible pairing look at the HHS VI with the EXPS3-2 and G43 or the 5x HHS V with the G45. The wider family sits in Holographic Sights.
Specifications
| System |
EXPS2-2 holographic sight with G33 3x magnifier |
| Magnification |
1x sight, 3x magnifier |
| Reticle |
68 MOA ring with dual 1 MOA dots, red |
| Brightness |
20 daylight settings |
| Night vision |
Not compatible |
| Eye relief |
Approx. 2.2 in (56 mm) at the magnifier |
| Adjustment |
Windage and elevation |
| Mount |
Switch-to-Side (STS) quick-detach, 1 in Weaver or MIL-STD-1913 |
| Battery |
CR123 lithium, 1,000 continuous hours |
| Water resistance |
10 ft (3 m) |
| Dimensions |
7.9 x 2.3 x 3.3 in (198.1 x 58.4 x 83.8 mm) |
| Weight |
22.4 oz (635 g) |
| MPN |
HHS II |
Two components, one height, and no fitting problem to solve on the range. Order the HHS II today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
Explore more: Holographic Sights, EOTech HHS VI or browse all EOTech.
