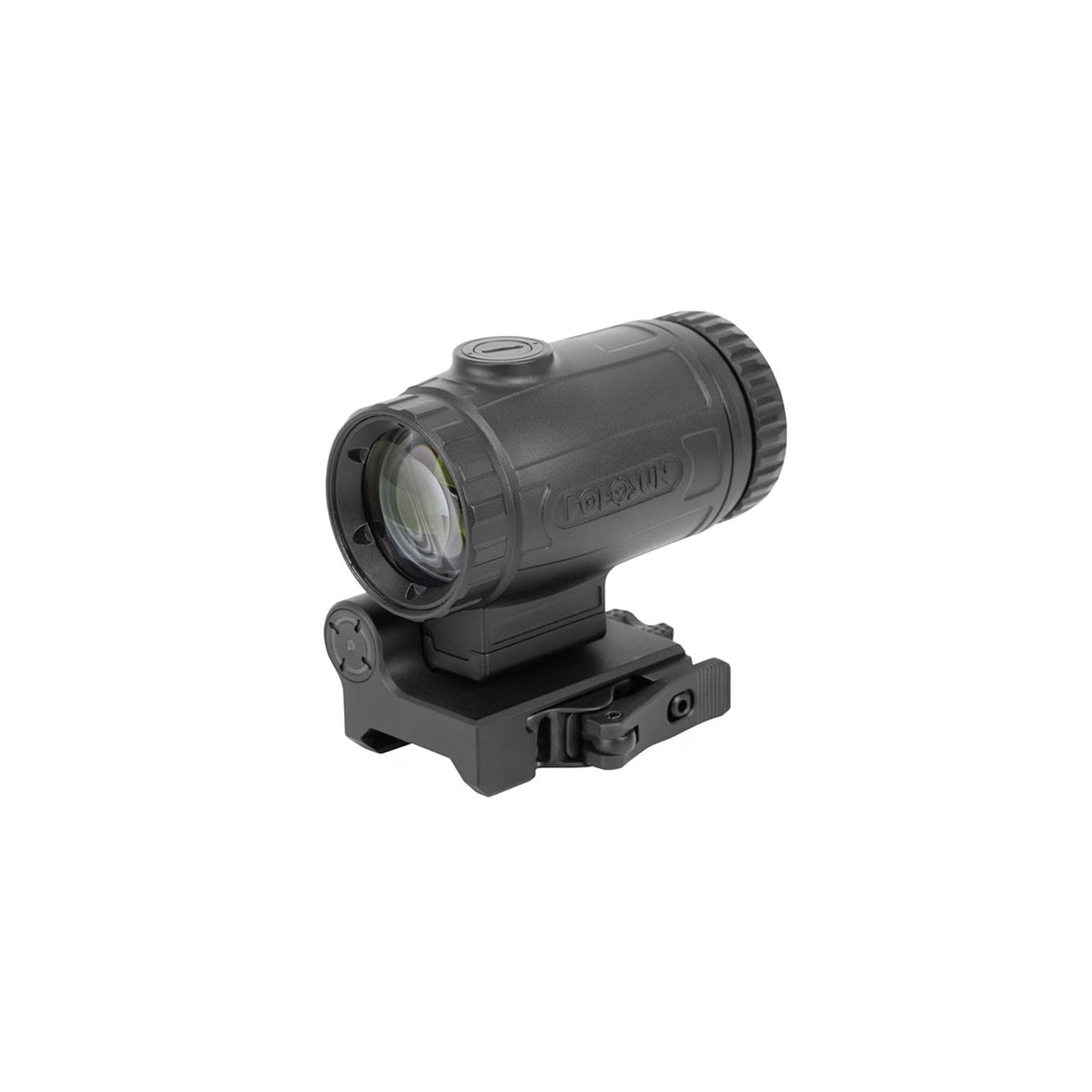

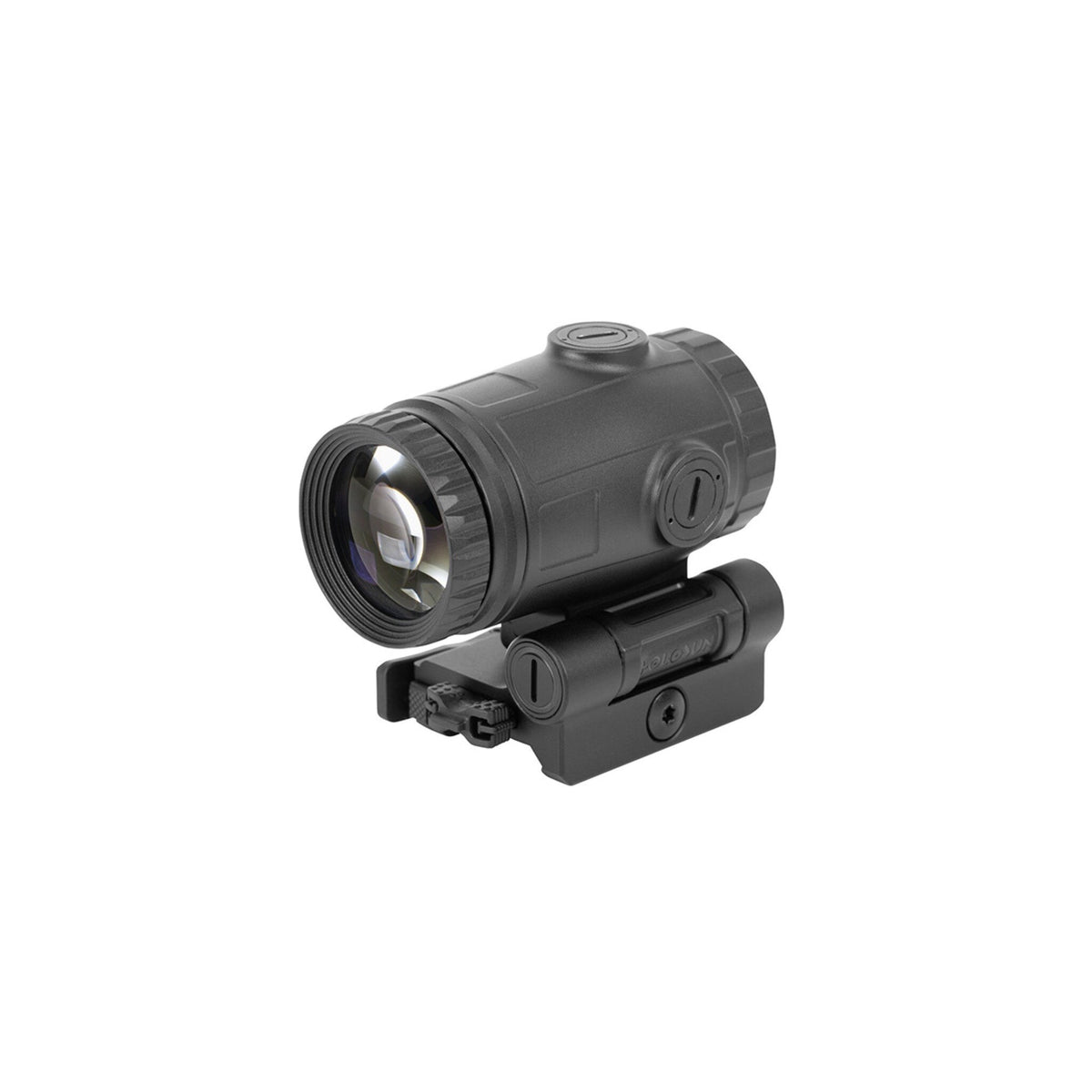

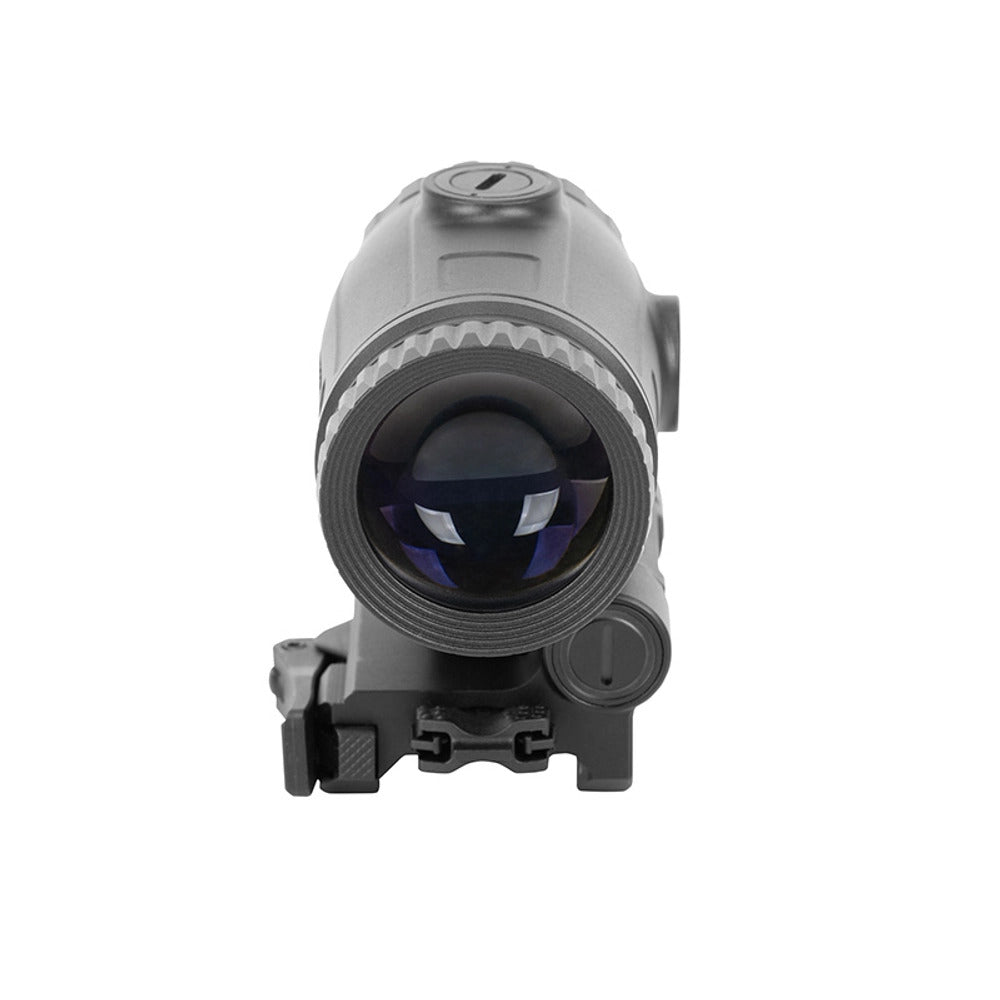

The Holosun HM3X Micro is a 3x magnifier on an ambidextrous flip-to-side quick-detach mount, in a shortened housing measuring 2.76 × 2.44 × 1.81 in (70 × 62 × 46 mm).
Same 3x reach as the full-size HM3X, in a body that gives back rail space and 8.47 oz (240 g) is all it asks of the rifle.

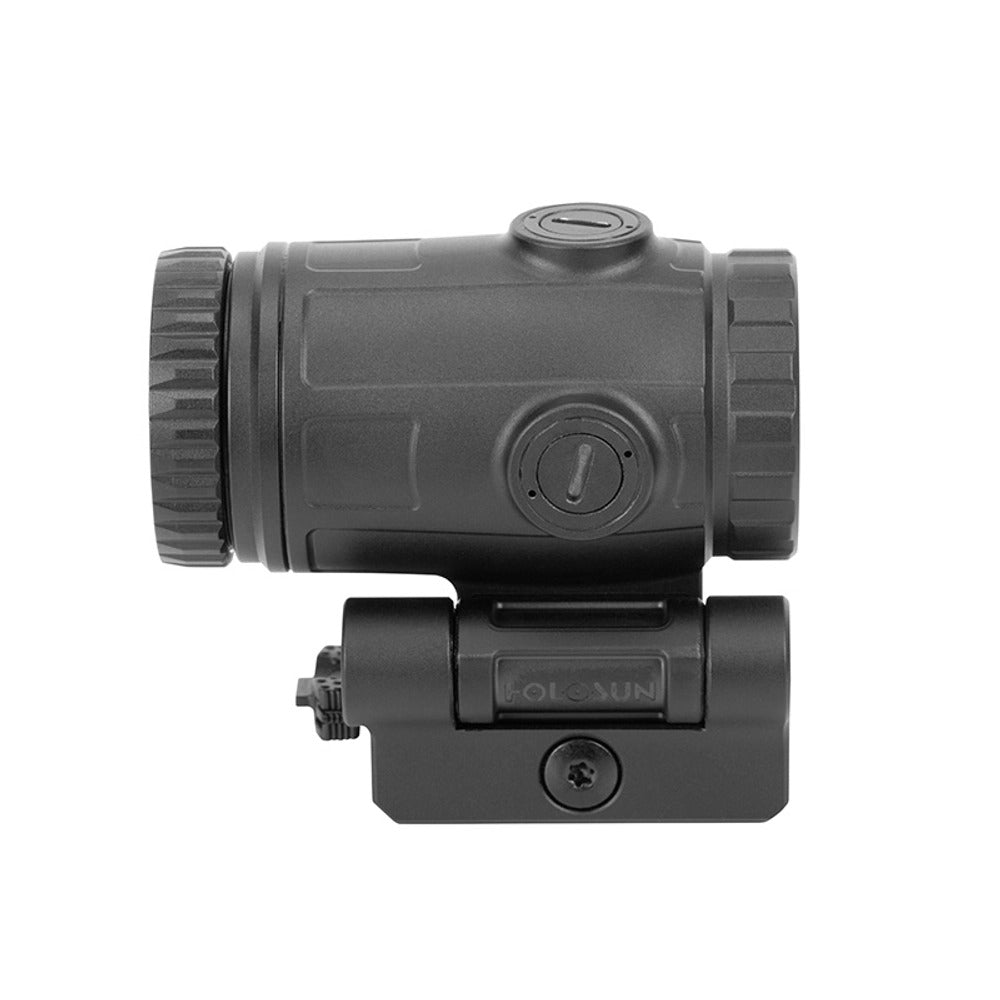

The housing is 7075 T6 aluminium, nitrogen purged against internal fogging and rated IP67 for dust and water. Optically it gives a 7.1 mm exit pupil, 67 mm (2.64 in) of eye relief and a 7 degree field of view, with ±3 dioptre of focus adjustment for your eye. The supplied spacer sets the mount to 1.41in for absolute co-witness or 1.63in for lower 1/3.
A magnifier earns its place on a rifle that lives at 1x and needs reach occasionally rather than constantly. Flipped in, the sight's own dot is magnified — the magnifier has no reticle and changes nothing about zero. Flipped out, it clears the sight picture entirely, and because the mount is ambidextrous it can be set to swing left or right to suit the shooter. What it cannot do is help a sight that is at the wrong height: match the 1.41in or 1.63in setting to the optic in front of it or the dot will sit off-centre in the view.
Why shooters choose the HM3X Micro
-
Magnification — 3x, with a 7.1 mm exit pupil and a 7 degree field of view
-
Size and weight — 2.76 × 2.44 × 1.81 in (70 × 62 × 46 mm), 8.47 oz (240 g)
-
Mount — ambidextrous flip-to-side QD, clearing to either side
-
Height — 1.41in absolute or 1.63in lower 1/3, using the supplied spacer
-
Focus — ±3 dioptre adjustment
-
Housing — 7075 T6 aluminium, nitrogen purged, IP67 rated
What the HM3X Micro fits
It mounts on a Picatinny rail behind a red dot or holographic sight, at whichever of the two heights matches that sight. The full-size version of the same magnifier is the HM3X, and for twice the magnification there is the HM6X. More options sit in red dot magnifiers.
Specifications
| Magnification |
3x, fixed |
| Exit pupil |
7.1 mm |
| Eye relief |
67 mm (2.64 in) |
| Field of view |
7 degrees |
| Dioptre |
±3 |
| Mount |
Ambidextrous flip-to-side QD, 1.41in absolute / 1.63in lower 1/3 |
| Dimensions |
2.76 × 2.44 × 1.81 in (70 × 62 × 46 mm) |
| Weight |
8.47 oz (240 g) |
| Housing |
7075 T6 aluminium, nitrogen purged |
| Sealing |
IP67 |
| MPN |
HM3X-MICRO |
Magnification you can carry without noticing it until you need it. Order the HM3X Micro today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
