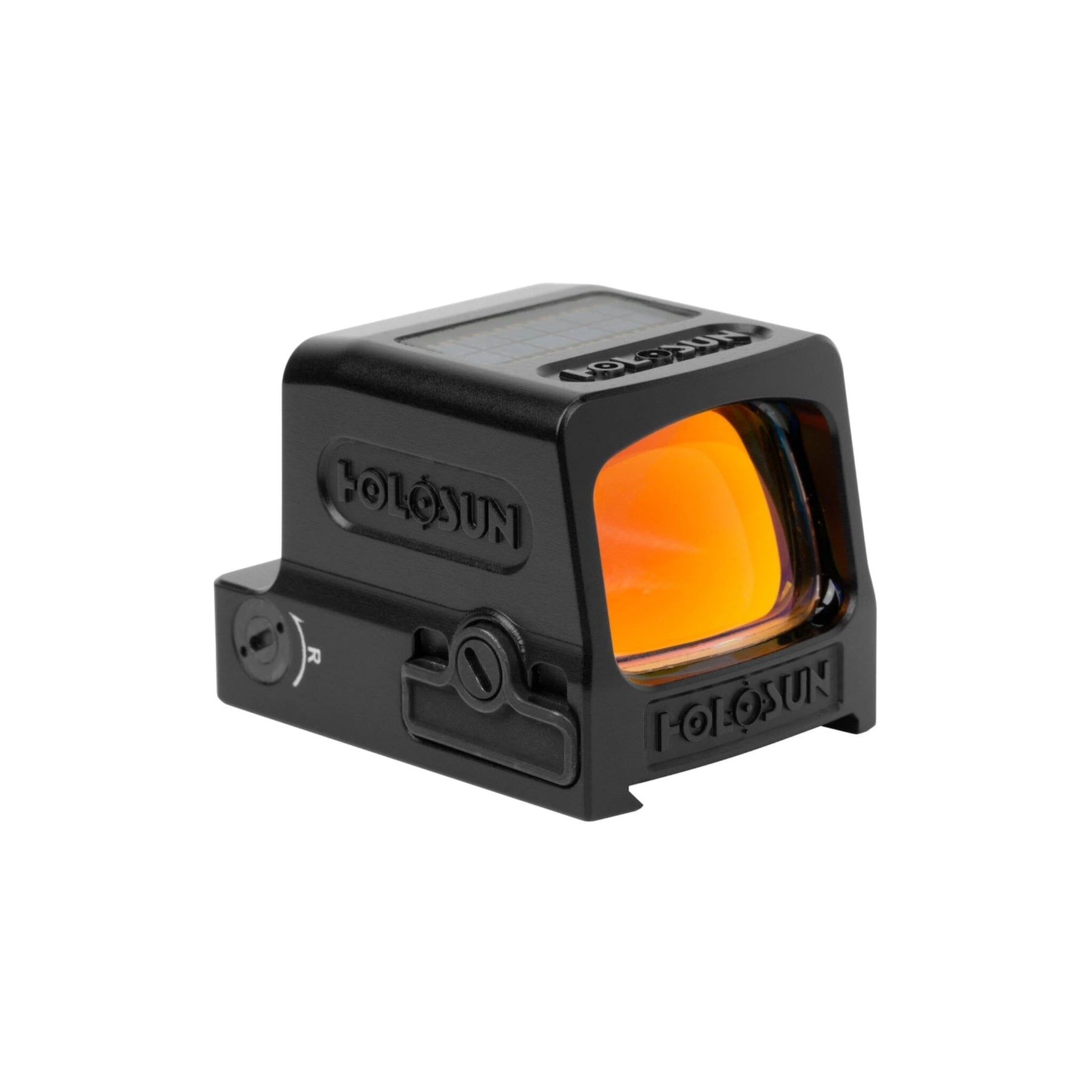

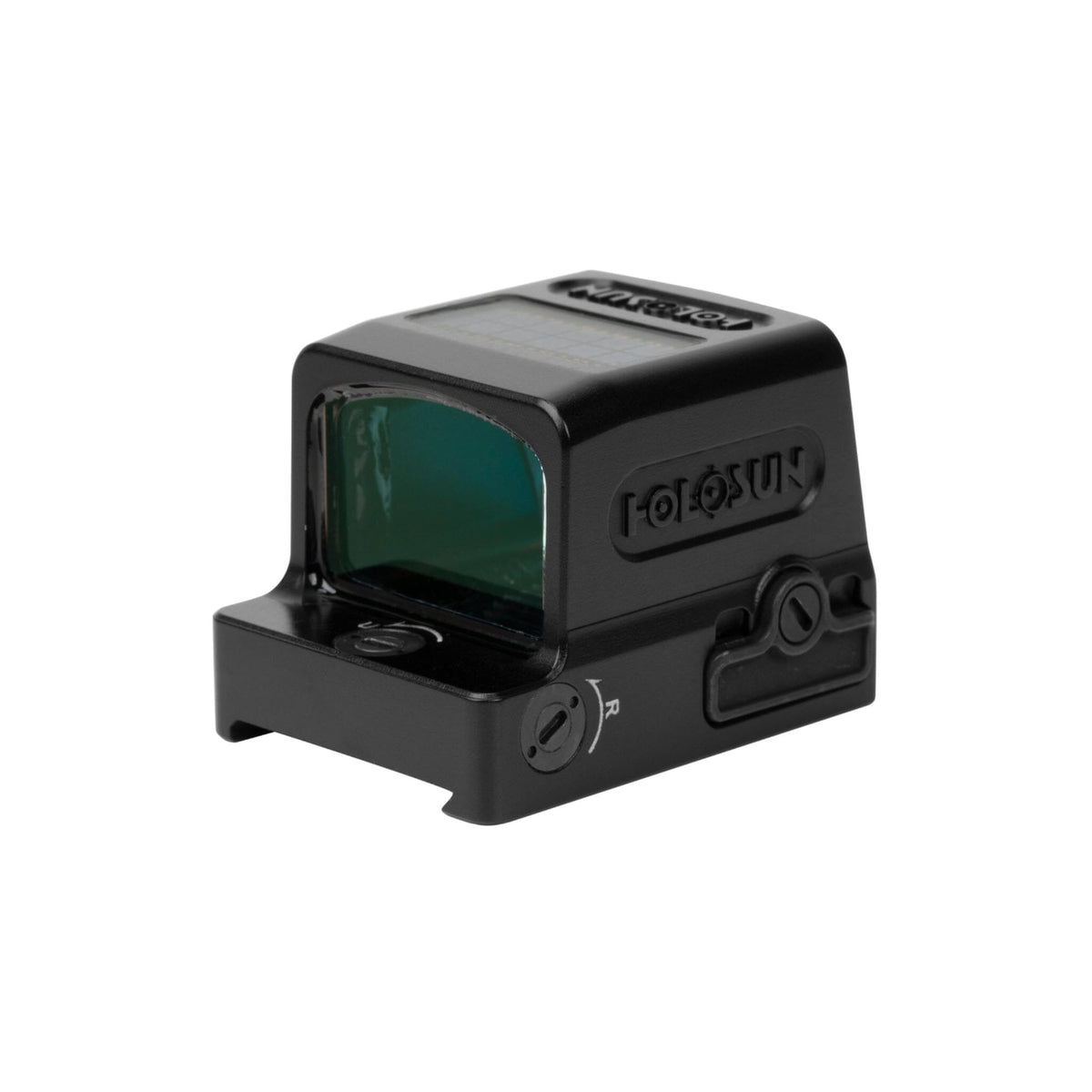

The Holosun HE509T X2 Gold (HE509T-X2-GD) is a 1x fully enclosed pistol optic in a Grade 5 titanium housing on the 509T footprint, running the Multi-Reticle System in gold.
Titanium and a sealed emitter are what you are buying: this is the toughest housing Holosun builds, wrapped around an amber reticle that stays visible against backgrounds that swallow red.

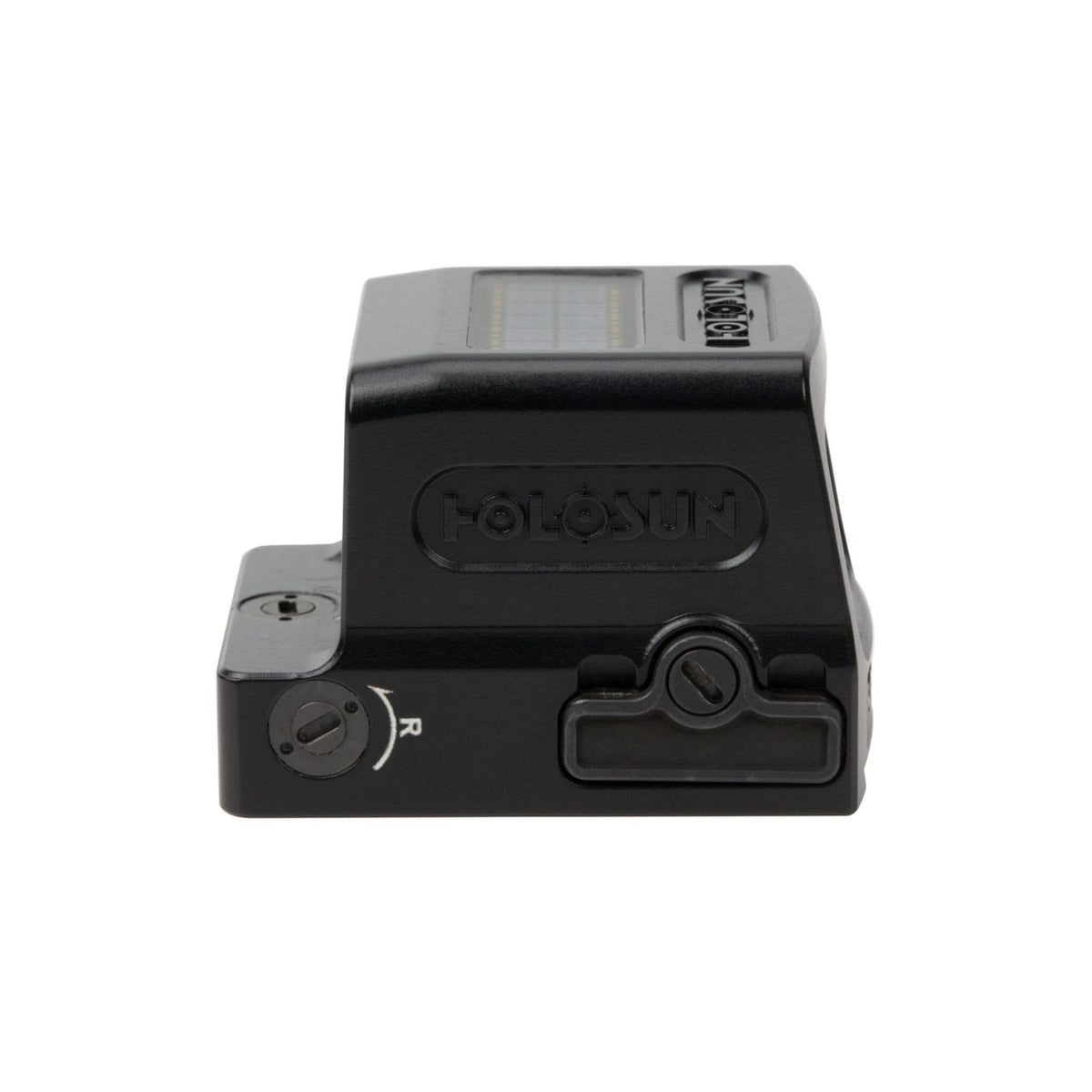

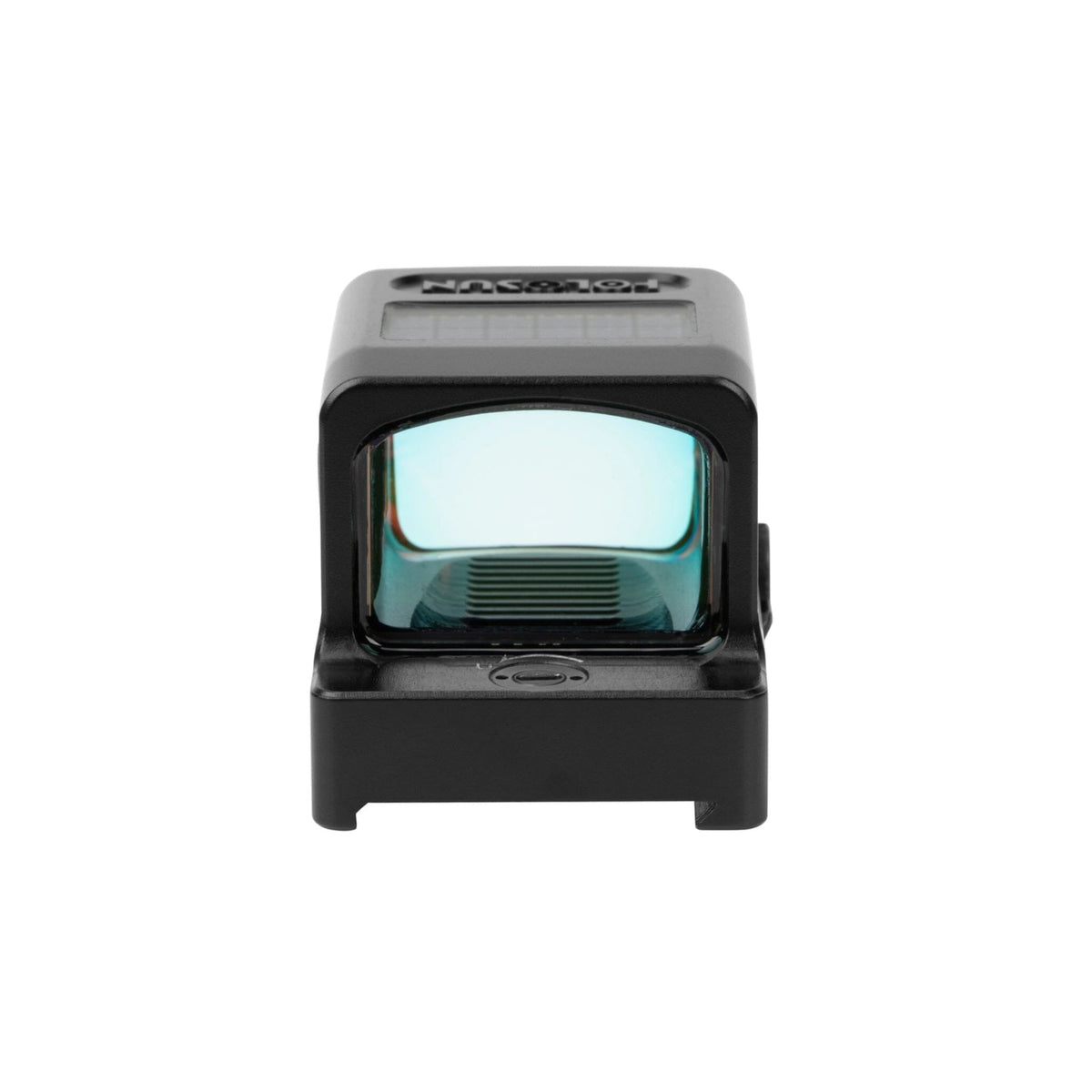

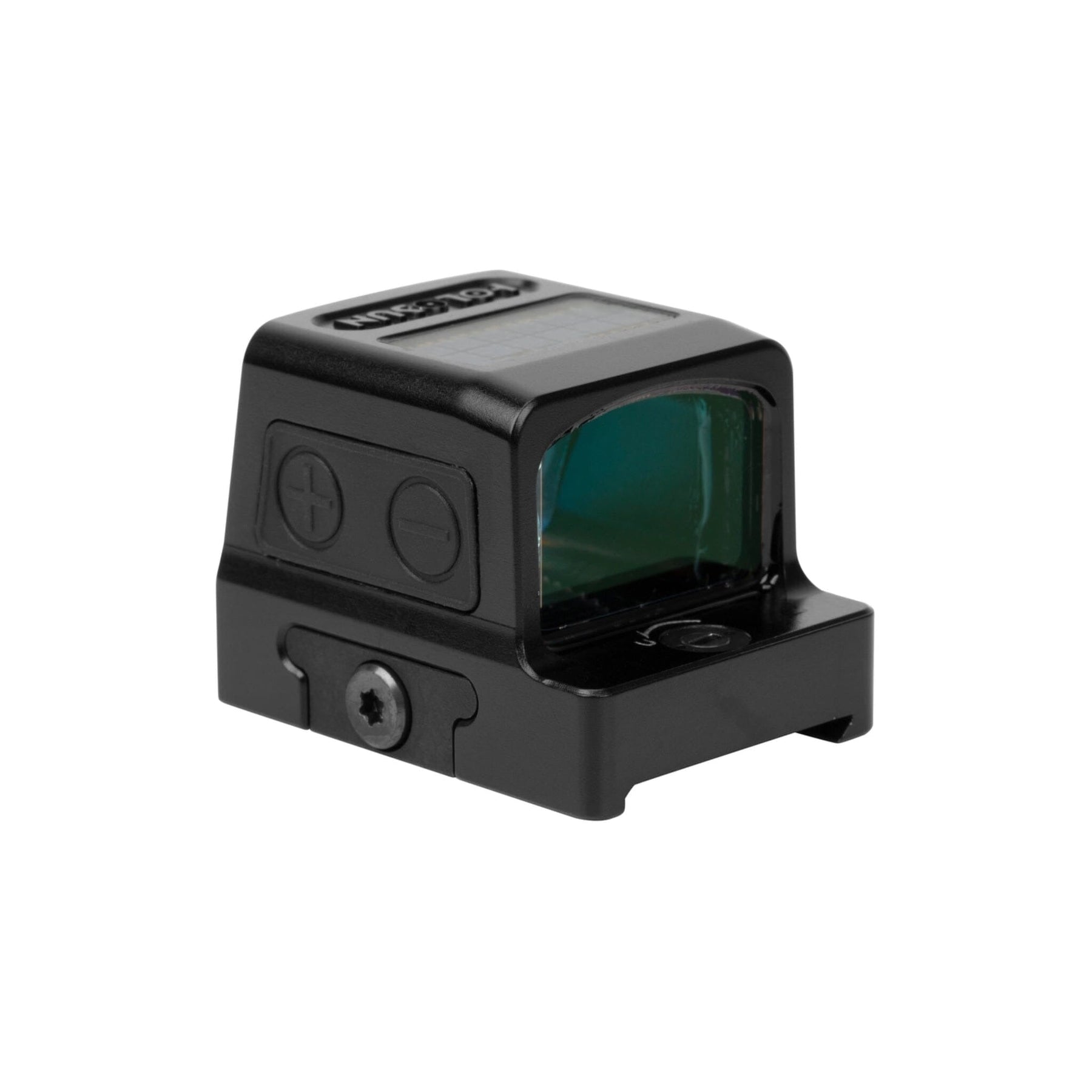

The optic measures 1.6 x 1.16 x 1.13 in and weighs 1.27 oz, with a 0.66 x 0.9 in window. A CR1632 gives up to 50,000 hours at setting 6, supplemented by Solar Failsafe and rested by Shake Awake, with Lock Mode to stop the buttons being nudged. Illumination is 8 daylight settings and 4 night-vision settings. Clicks are 1 MOA with 30 MOA of travel in each direction, and the housing is rated IPX8 and tested to 5000G. An RMR-to-509T adapter plate is in the box.

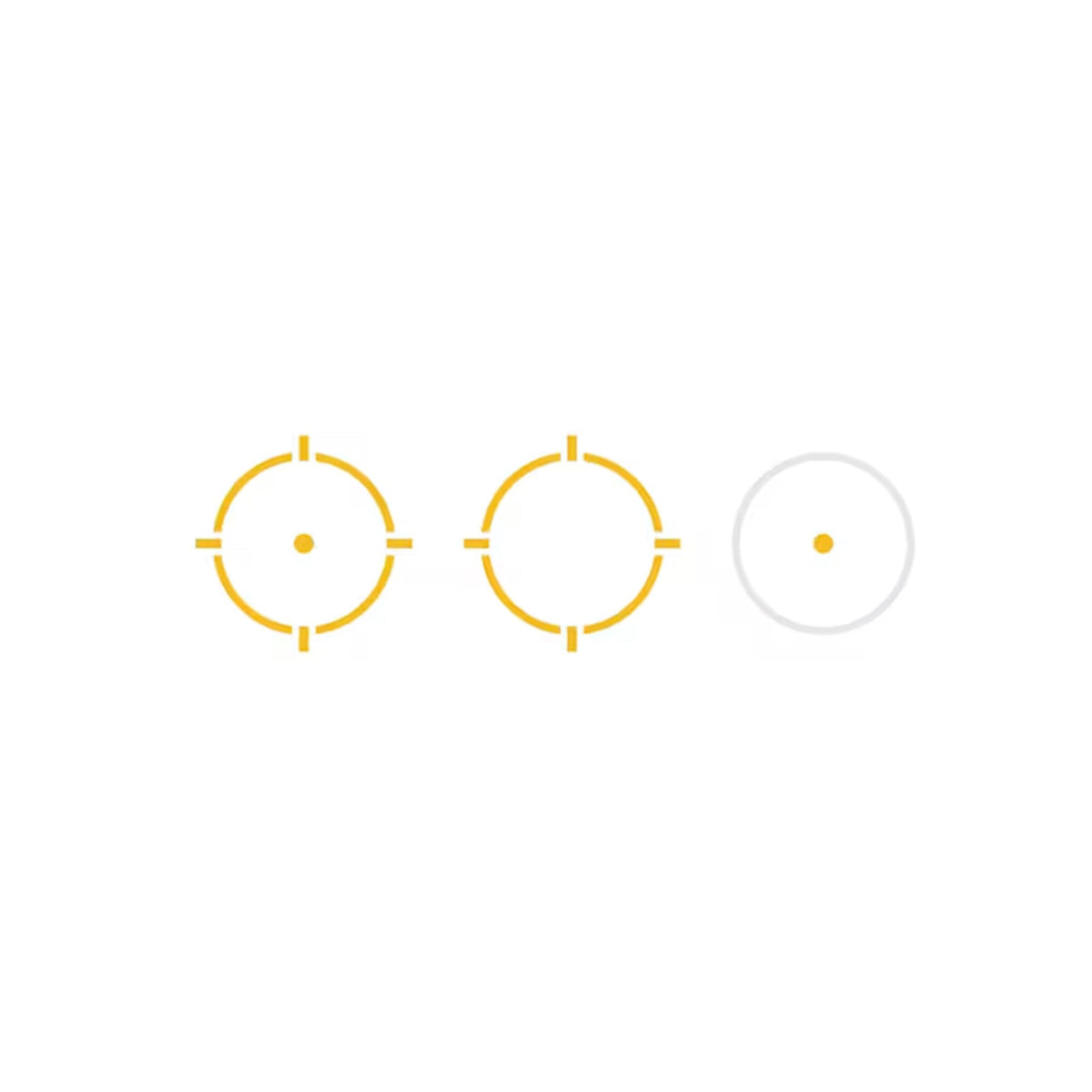

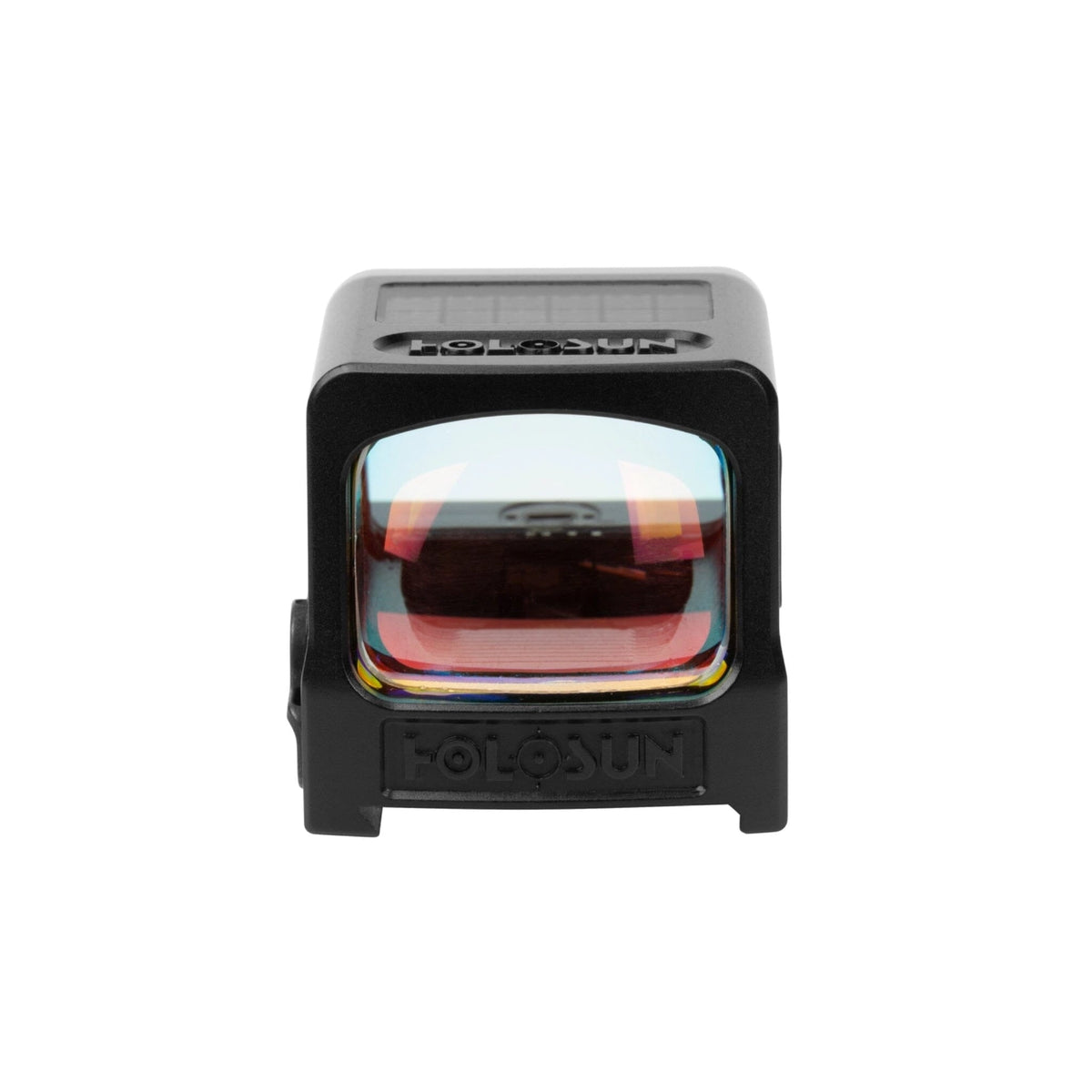

The Multi-Reticle System switches between a 2 MOA gold dot on its own, a 32 MOA circle on its own, and both together, so the same sight can be set up for precision or for speed. Gold separates from red-painted steel, orange targets and autumn woodland where a red dot can disappear. The footprint is the thing to check: the native cut is 509T, not RMR and not RMSc, and the supplied plate is what bridges it to RMR-pattern slides and mounts.
Why shooters choose the HE509T X2 Gold
-

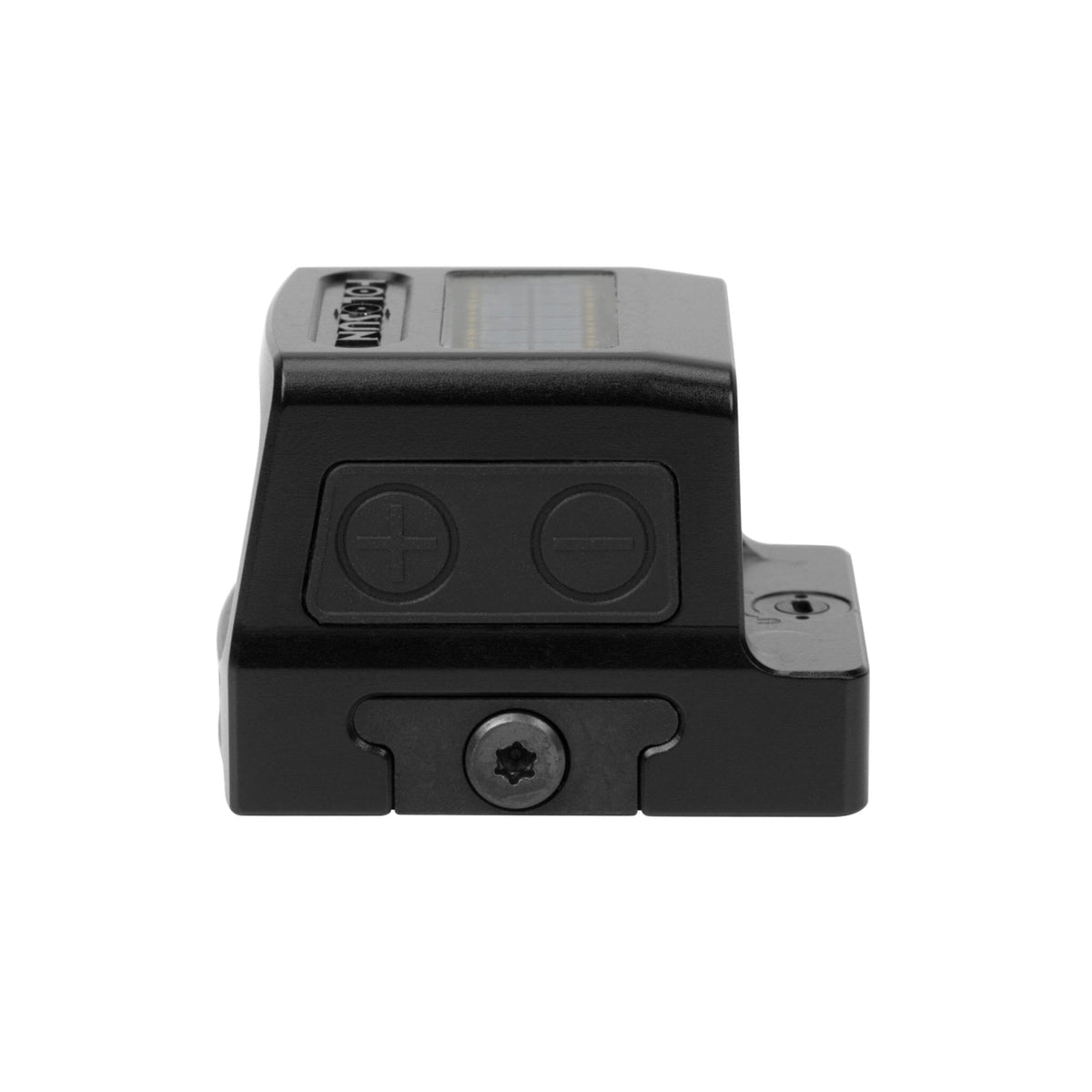

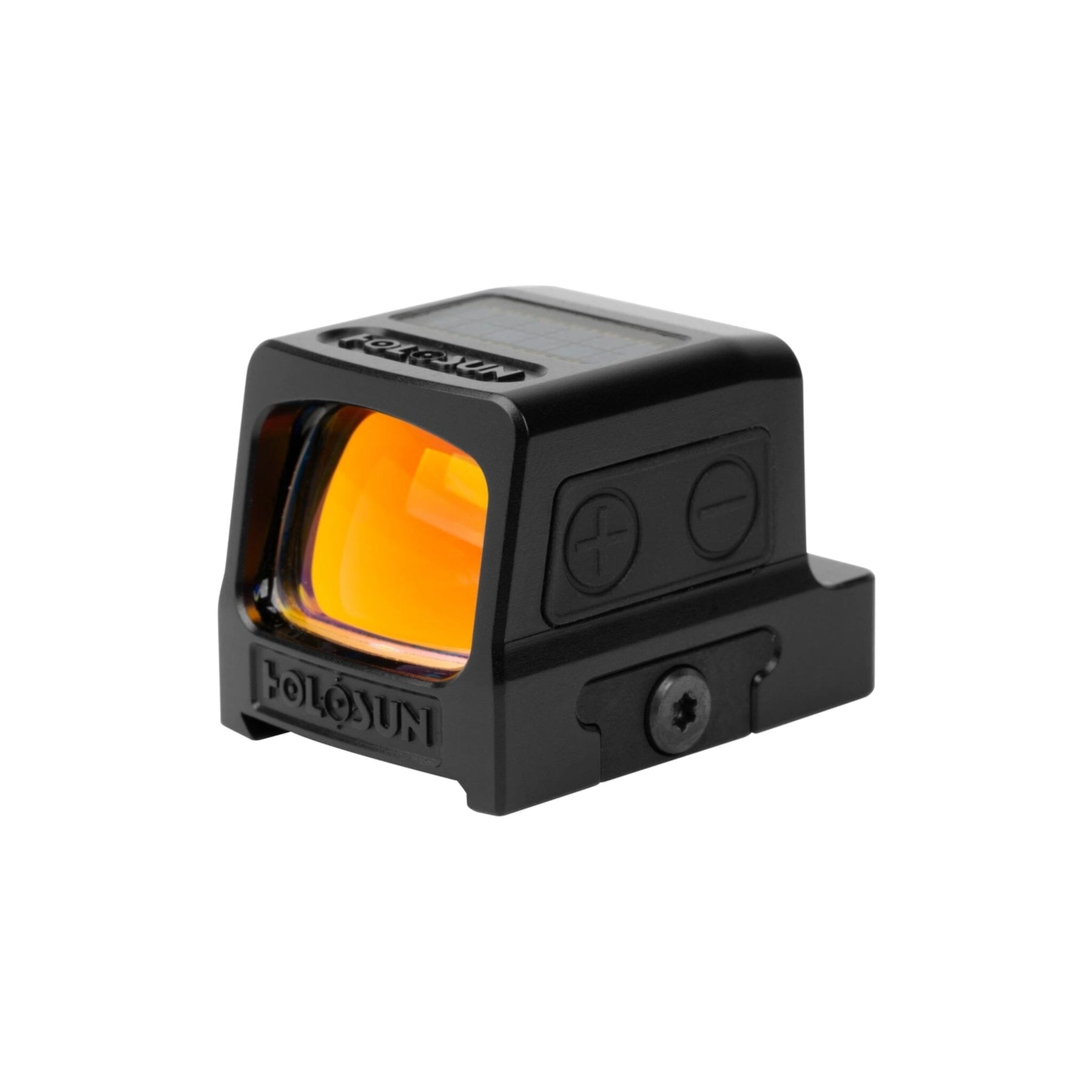

Housing — Grade 5 titanium with a fully enclosed emitter
-
Reticle — gold Multi-Reticle System — 2 MOA dot, 32 MOA circle or circle-dot
-
Footprint — 509T, with an RMR-to-509T adapter plate supplied
-
Illumination — 8 daylight settings and 4 night-vision settings
-
Power — CR1632 rated to 50,000 hours at setting 6, with Solar Failsafe and Shake Awake
-
Adjustment — 1 MOA per click, 30 MOA of travel each way
-
Durability — IPX8 rated and tested to 5000G, 1.27 oz
What the HE509T X2 Gold fits
It fits slides and mounts cut for the 509T footprint directly, and RMR-pattern ones through the adapter plate supplied with it. The identical optic in red is the HE509T X2 red and in green the HE509T X2 green. For a titanium open-emitter sight on the RMR footprint, see the HE508T X2.
Specifications
| Type |
Enclosed-emitter pistol sight, 1x |
| Reticle |
Multi-Reticle System — 2 MOA dot / 32 MOA circle / circle-dot |
| Reticle colour |
Gold |
| Footprint |
509T (RMR-to-509T adapter plate included) |
| Illumination |
8 daylight / 4 night vision settings |
| Battery |
CR1632, up to 50,000 hours at setting 6 |
| Power |
Solar Failsafe, Shake Awake, Lock Mode |
| Window |
0.66 x 0.9 in |
| Adjustment |
1 MOA per click, 30 MOA travel each way |
| Dimensions |
1.6 x 1.16 x 1.13 in |
| Weight |
1.27 oz |
| Housing |
Grade 5 titanium, IPX8, 5000G |
| MPN |
HE509T-X2-GD |
Set the reticle and the brightness once, lock the buttons, and the sight stops being something you think about. Order the HE509T X2 Gold today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
