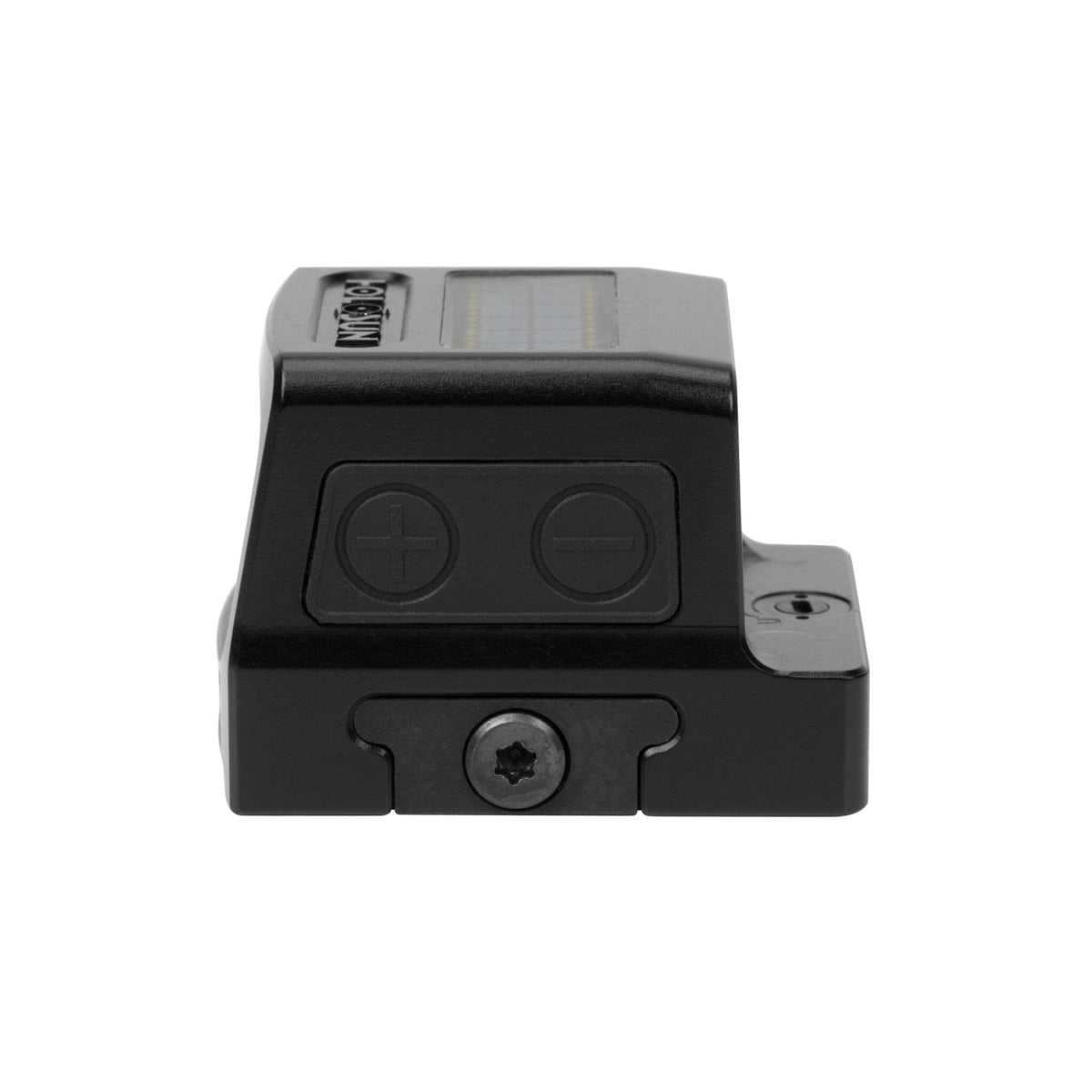

The Holosun HE509T X2 in green is a 1x fully enclosed pistol sight built on the native 509T footprint, in a nitrogen-purged titanium housing.

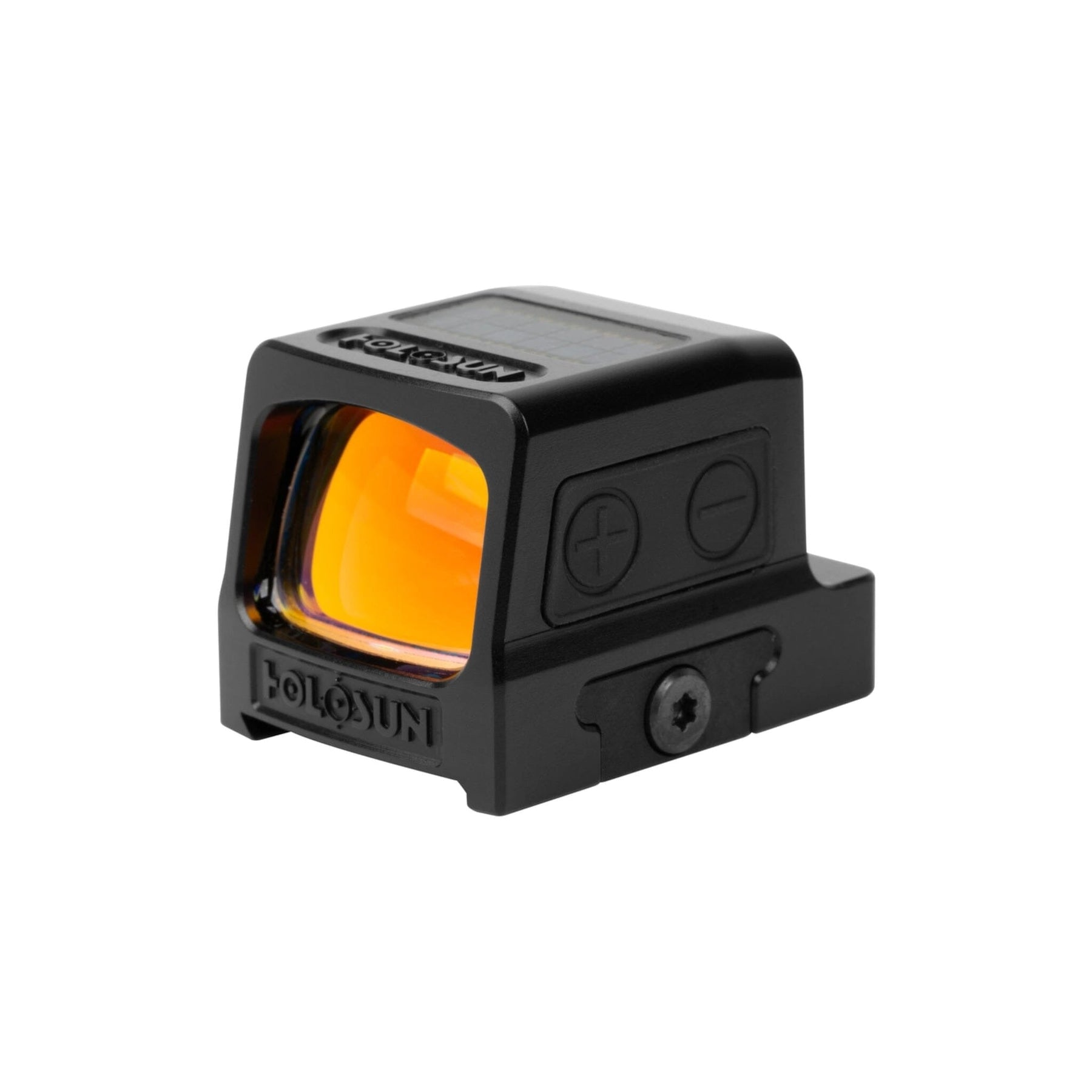

Titanium and a sealed emitter make this the toughest of Holosun's mini reflex sights, and green is the colour the human eye reads brightest for a given amount of power.

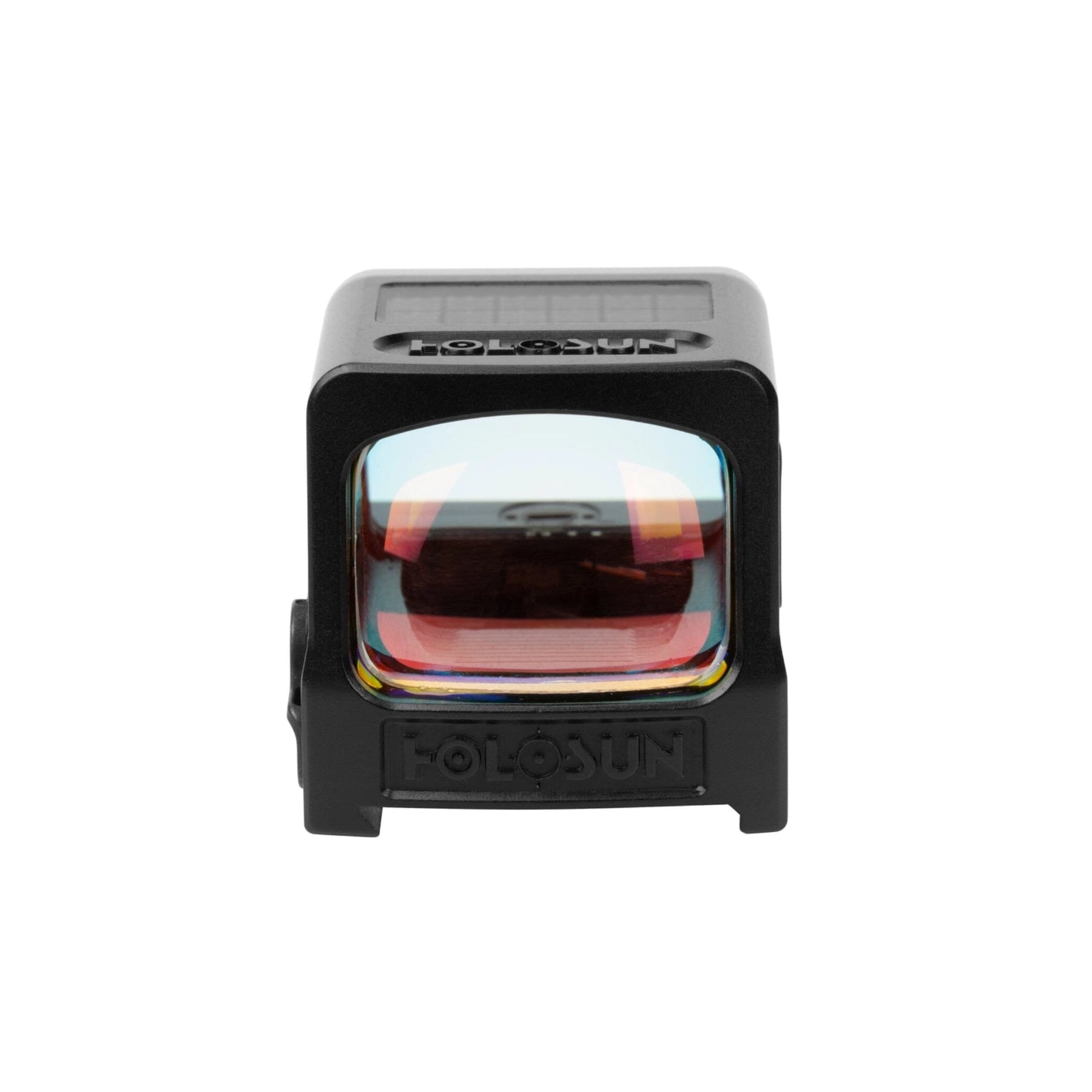

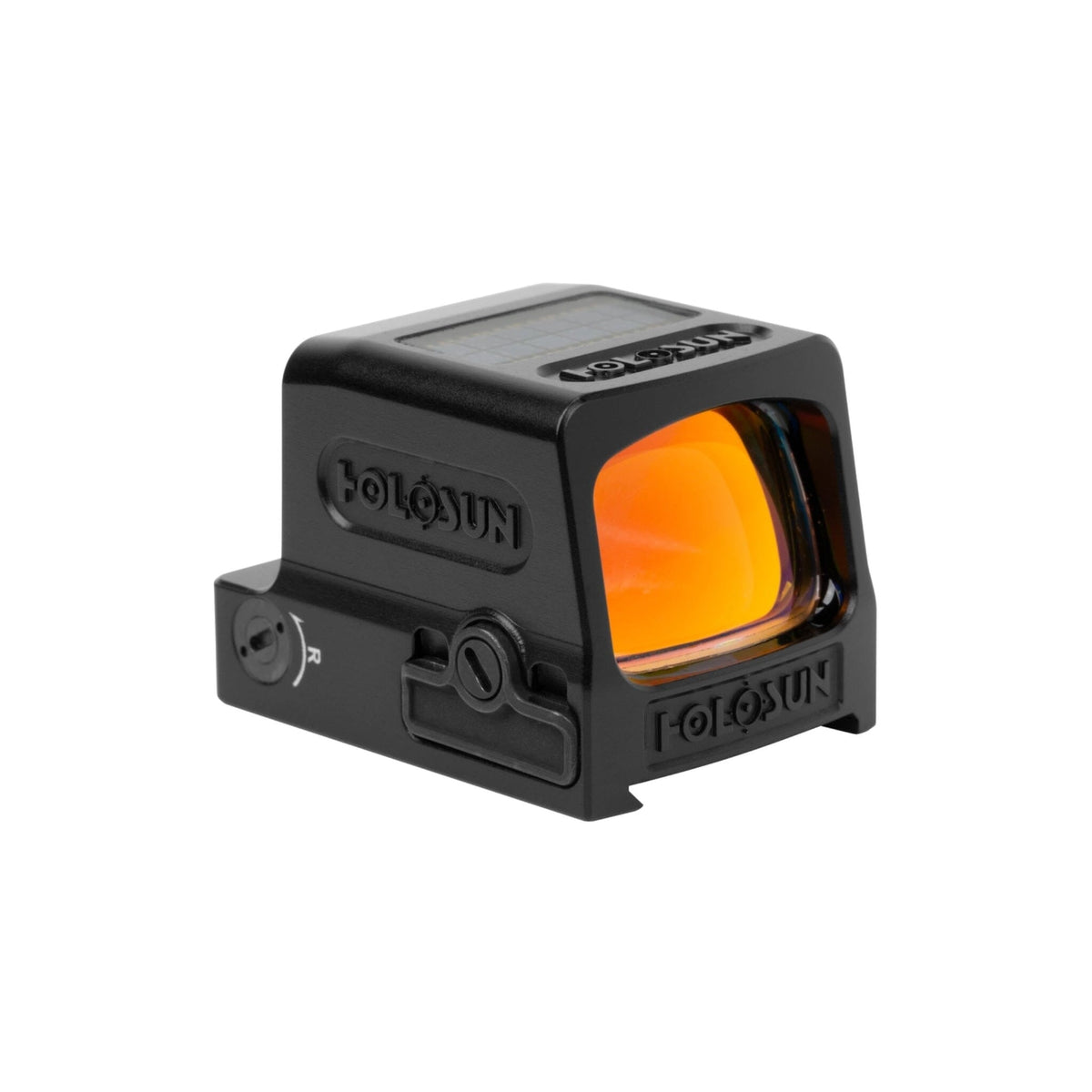

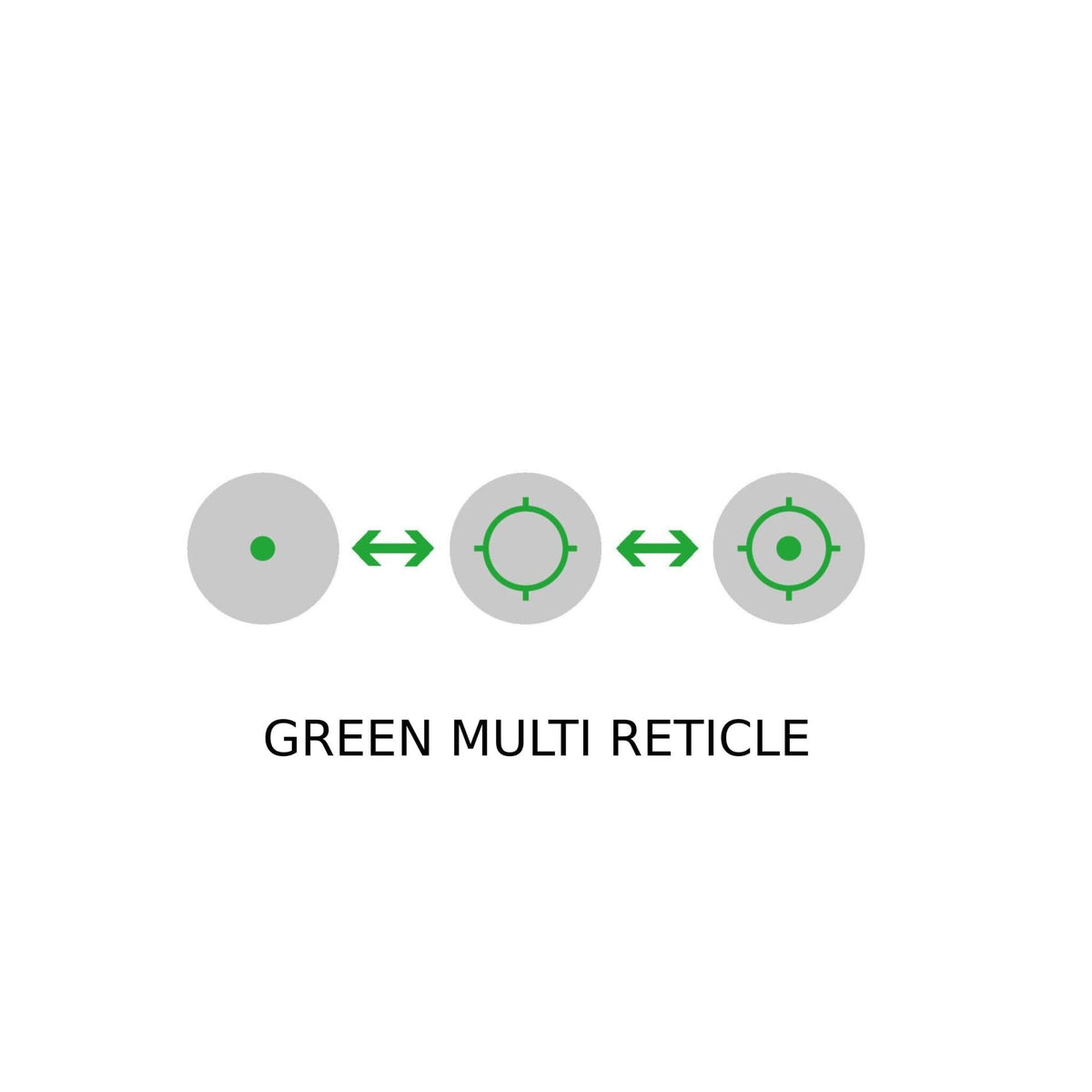

The Multi-Reticle System switches between a 2 MOA dot, a 32 MOA circle and the two together, in green at 540nm behind a 0.66 x 0.9 in window. The housing measures 1.6 x 1.16 x 1.13 in at 1.27 oz, is rated IP67 and tested to 5000G, and being nitrogen-purged it will not fog from the inside. Eye relief is unlimited and the sight is parallax-free.

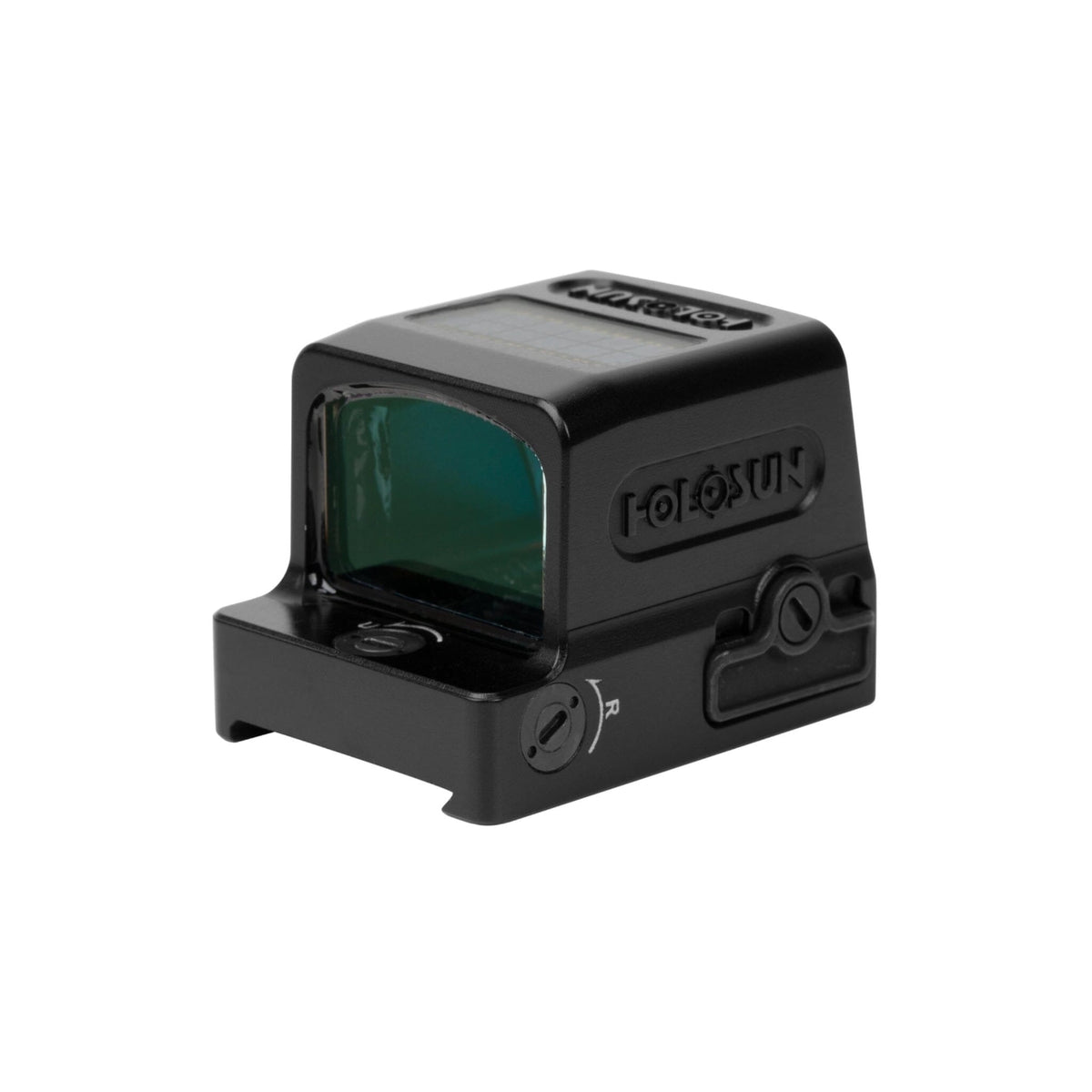

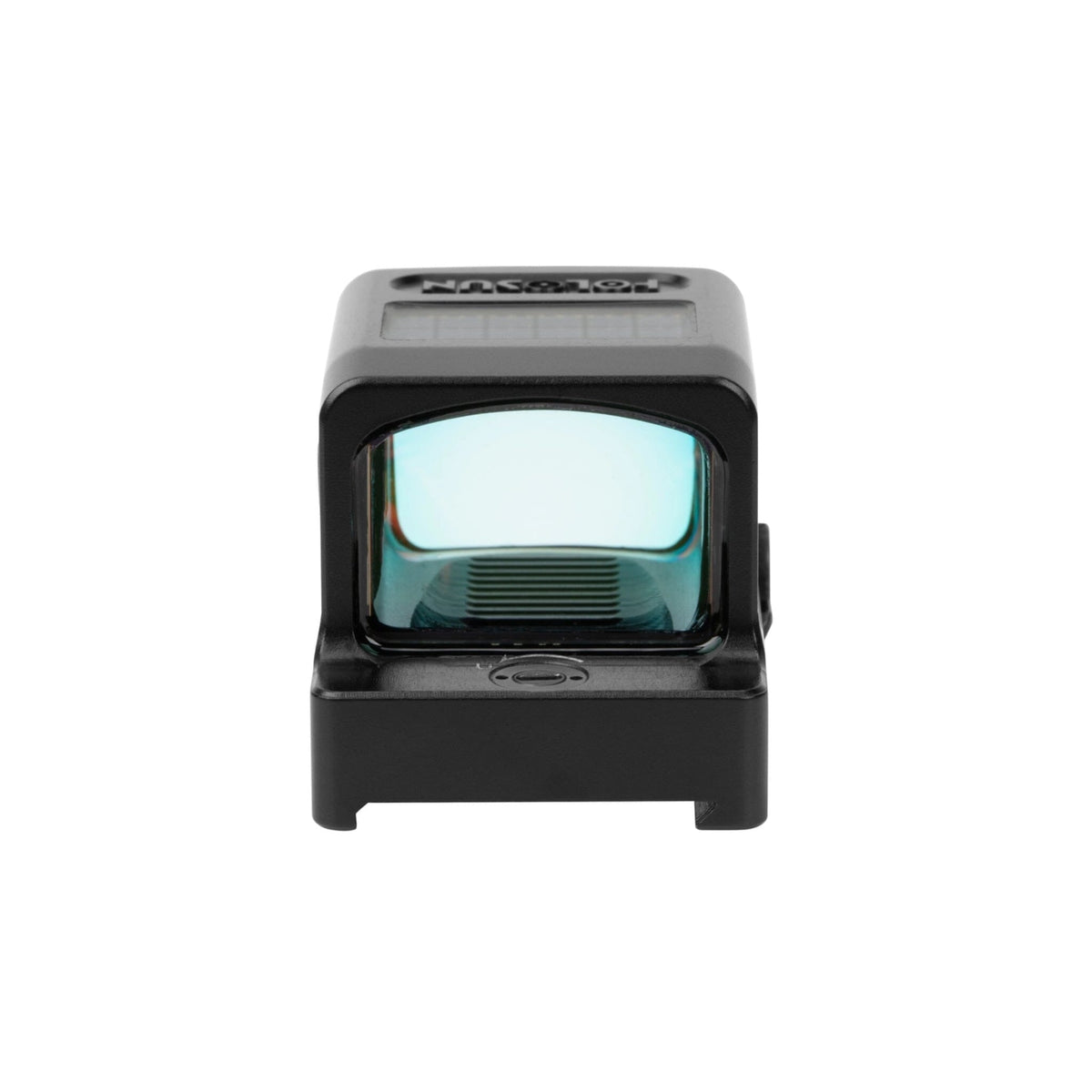

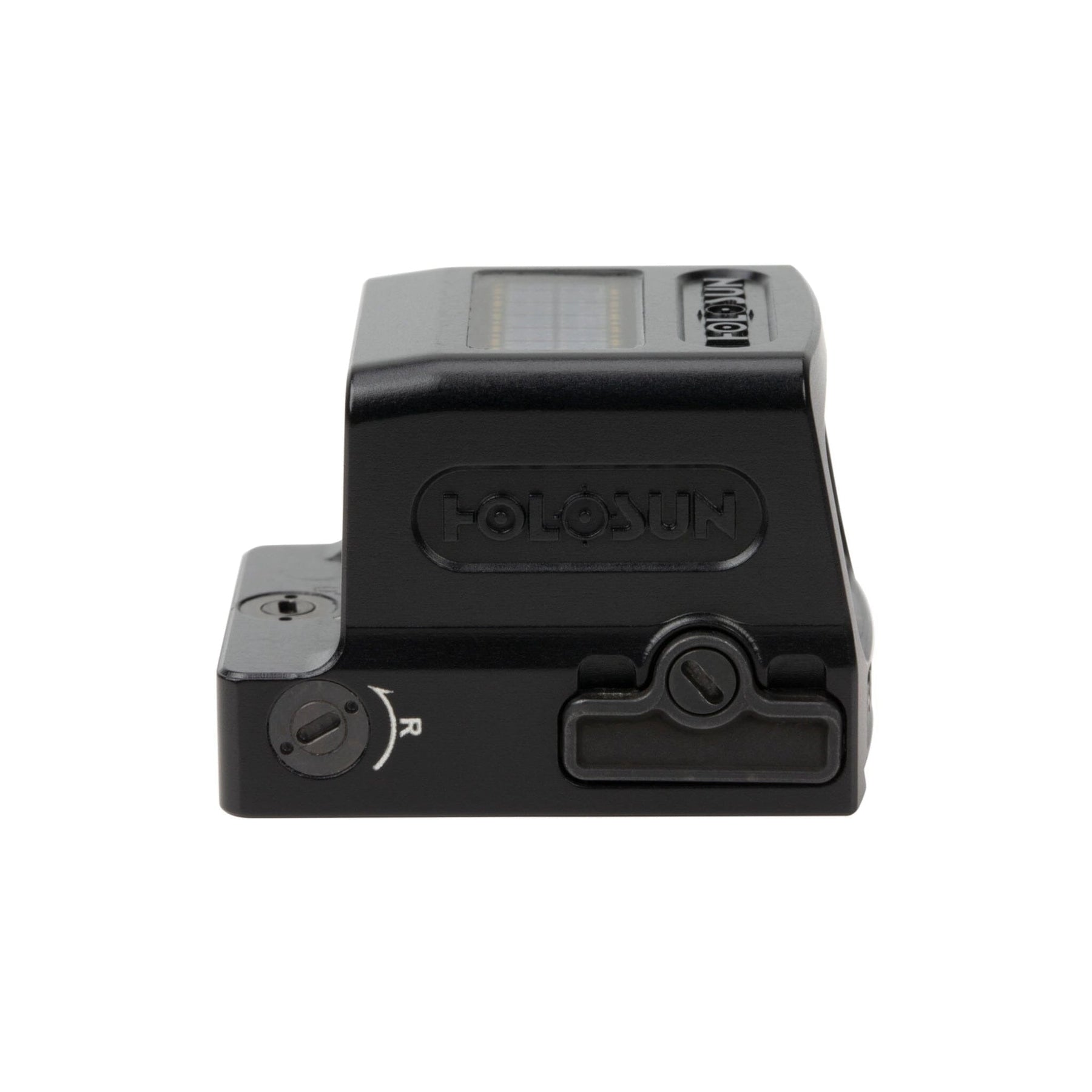

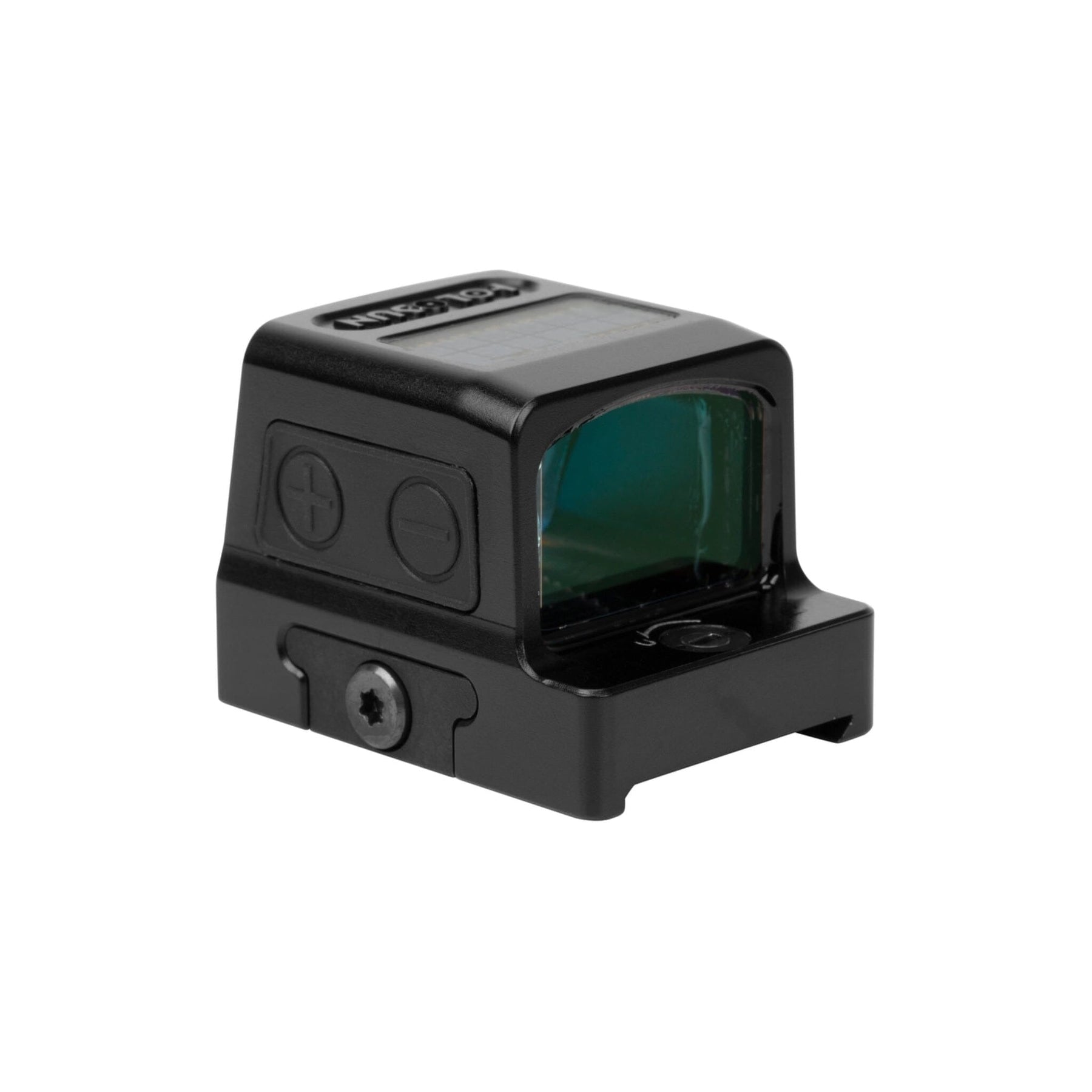

A CR1632 gives up to 50,000 hours at setting 6, backed by Solar Failsafe drawing on ambient light and Shake Awake sleeping the reticle when the pistol is still, with a lock mode to stop settings being knocked in a holster. Illumination runs to eight daylight settings and four night-vision levels, and the turrets move 1 MOA per click with 30 MOA either side of centre. The footprint is worth checking first: it is the 509T pattern, with an RMR-to-509T plate included for RMR-cut slides, and it will not sit on an RMSc slimline cut.
Why shooters choose the HE509T X2 Green
-
Housing — titanium, nitrogen-purged and fully enclosed, IP67 and 5000G rated
-
Reticle — green Multi-Reticle System at 540nm: 2 MOA dot, 32 MOA circle or circle-dot
-
Footprint — native 509T, with an RMR-to-509T adapter plate supplied
-
Illumination — 8 daylight settings and 4 night-vision levels
-
Power — CR1632 up to 50,000 hours at setting 6, with Solar Failsafe and Shake Awake
-
Adjustment — 1 MOA per click with 30 MOA either side of centre
-
Size — 1.6 x 1.16 x 1.13 in at 1.27 oz
What the HE509T X2 Green fits
Slides cut for the 509T take it directly, and the supplied plate carries it onto RMR-cut slides and RMR-pattern mounts, including rifle and shotgun mounts on that pattern. The same optic comes in red and gold; for an open-emitter titanium sight in green on the RMR footprint, see the HE508T X2 green.
Specifications
| Optic Type |
Enclosed pistol green dot sight, 1x, parallax-free |
| Reticle |
Multi-Reticle System: 2 MOA dot / 32 MOA circle / circle-dot |
| Reticle Colour |
Green, 540nm |
| Window Size |
0.66 x 0.9 in |
| Footprint |
509T, RMR-to-509T adapter plate included |
| Illumination |
8 daylight / 4 night-vision settings |
| Click Value |
1 MOA per click |
| Adjustment Range |
30 MOA either side of centre |
| Battery |
CR1632, up to 50,000 hours at setting 6 |
| Power Management |
Solar Failsafe, Shake Awake, lock mode |
| Housing |
Titanium, nitrogen-purged |
| Durability |
IP67, 5000G shock rating |
| Dimensions |
1.6 x 1.16 x 1.13 in |
| Weight |
1.27 oz |
| MPN |
HE509T-GR-X2 |
Sealed, purged and cased in titanium, with the reticle colour the eye works hardest for. Order the HE509T X2 Green today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
