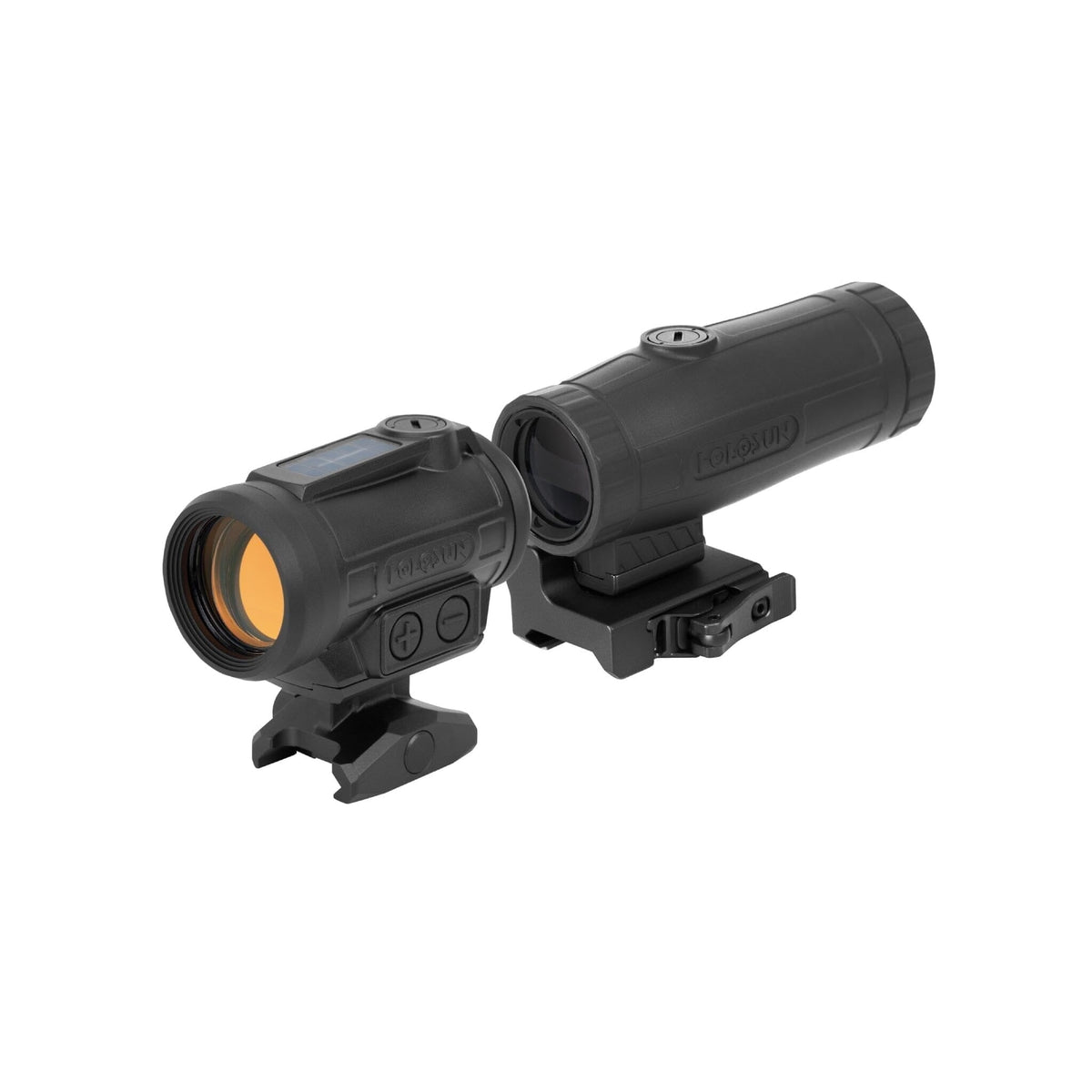

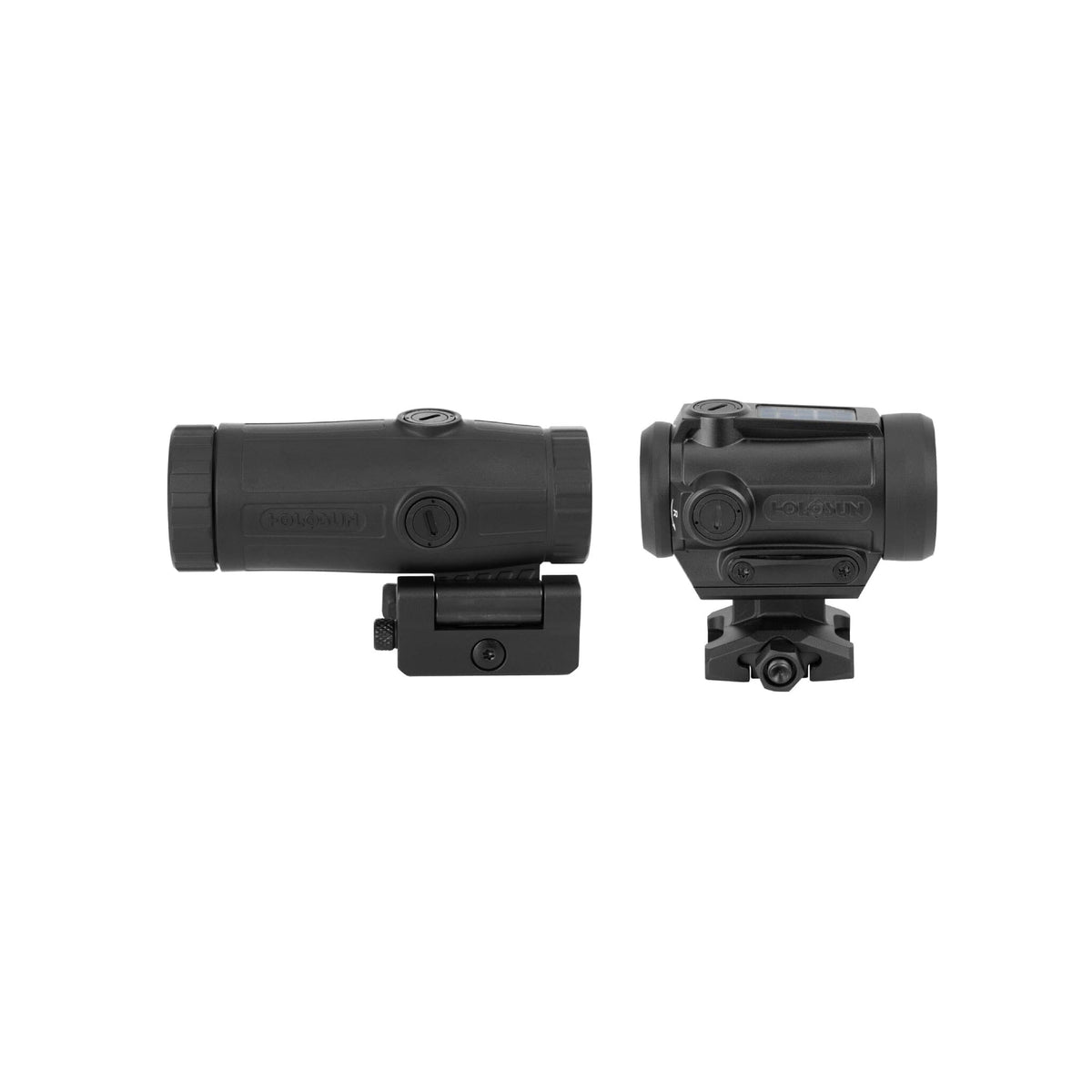

This Holosun kit pairs the enclosed-emitter ARO EVO SPR red dot sight with the HM3X 3x flip-to-side magnifier, supplied together in one box.
The Special Purpose Reticle already carries holdovers and a ranging scale; the magnifier is what lets you see the thing you are holding over. Bought as a pair, the two arrive matched for height.

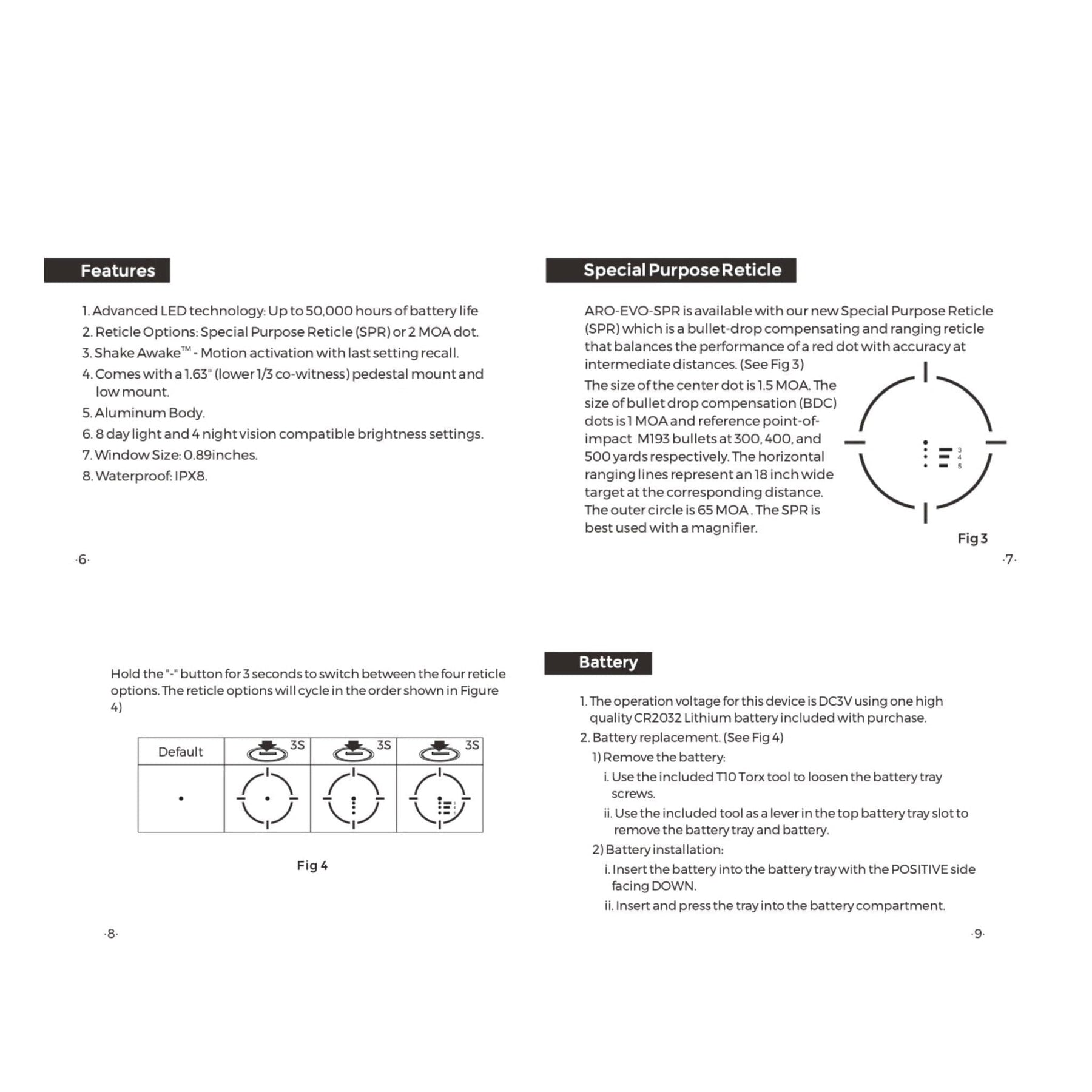

The reticle is a 1.5 MOA centre dot inside a 65 MOA circle, with three 1 MOA holdover dots below it and a ranging feature calibrated for M193 5.56 at 3050 FPS, all behind a 26 mm (1.02 in) window. Illumination runs 8 daylight and 4 night-vision settings, and the turrets move 0.5 MOA per click across ±50 MOA. A CR2032 backed by Solar Failsafe is rated up to 50,000 hours, with Shake Awake handling the rest.

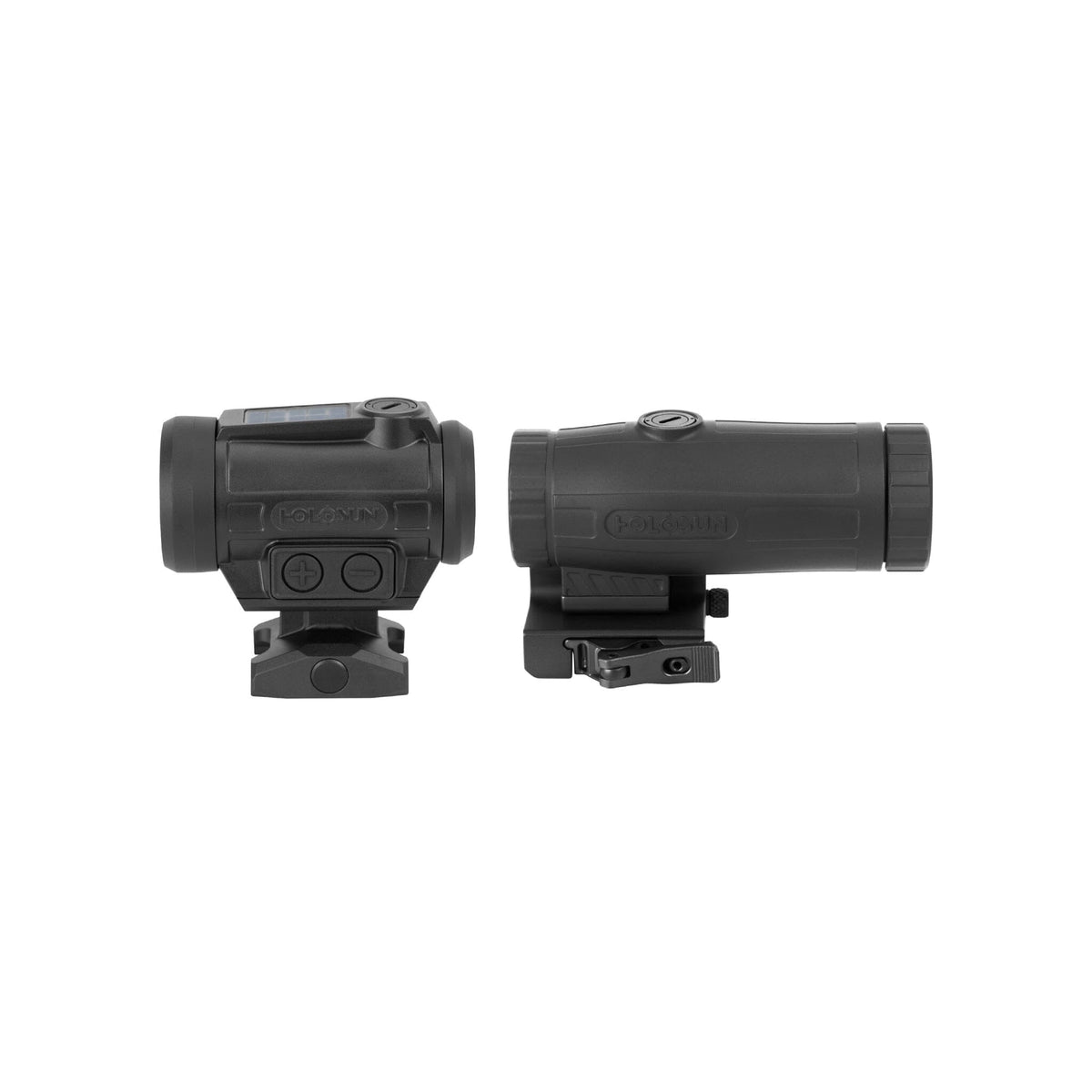

The optic body is 6061 aluminium, hard anodised, rated IPX8 and tested to 1000G of vibration. Both a 1.63 in (41 mm) lower 1/3 mount and a low mount come with the sight, and the HM3X sits on an ambidextrous flip-to-side quick-detach mount that swings clear for a plain 1x picture. The limitation is written into the reticle: the ranging marks are calibrated around M193 5.56 at 3050 FPS, so behind another calibre or a different load they become decoration rather than data.
Why shooters choose the ARO EVO SPR combo
-
Sight — ARO EVO SPR enclosed emitter with a 26 mm (1.02 in) window
-
Reticle — 1.5 MOA dot, 65 MOA circle, three 1 MOA holdovers and a 5.56 ranging scale
-
Magnifier — HM3X 3x on an ambidextrous flip-to-side quick-detach mount
-
Power — CR2032 with Solar Failsafe and Shake Awake, up to 50,000 hours
-
Illumination — 8 daylight and 4 night-vision settings
-
Housing — 6061 aluminium, hard anodised, IPX8, 1000G vibration resistance
What the ARO EVO SPR combo fits
Both units clamp to a MIL-STD-1913 Picatinny rail, and the sight's 1.63 in mount aligns it with the magnifier at lower 1/3 co-witness on an AR-pattern flat-top. If you already own a magnifier, the ARO EVO SPR on its own is the same sight without the kit, and for a plain aiming point in the same housing see the ARO EVO with the 2 MOA dot. Related optics sit in straight-pull rifle optics.
Specifications
| Kit Contents |
ARO EVO SPR red dot sight and HM3X 3x magnifier |
| Reticle |
Special Purpose Reticle — 1.5 MOA dot, 65 MOA circle, three 1 MOA holdovers, 5.56 ranging scale |
| Ranging Calibration |
M193 5.56 at 3050 FPS |
| Window Size |
26 mm (1.02 in), enclosed emitter |
| Magnifier |
HM3X 3x, flip-to-side quick-detach mount |
| Illumination |
8 daylight / 4 night vision settings |
| Click Value |
0.5 MOA per click |
| Adjustment Range |
±50 MOA windage and elevation |
| Battery |
CR2032 with Solar Failsafe, up to 50,000 hours |
| Mounts |
1.63 in (41 mm) lower 1/3 mount and low mount for the sight |
| Housing |
6061 aluminium, hard anodised, IPX8, 1000G vibration resistance |
| MPN |
ARO-EVO-SPR-RD-HM3X |
A reticle with holdovers and the magnification to make them worth having. Order the ARO EVO SPR combo today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
