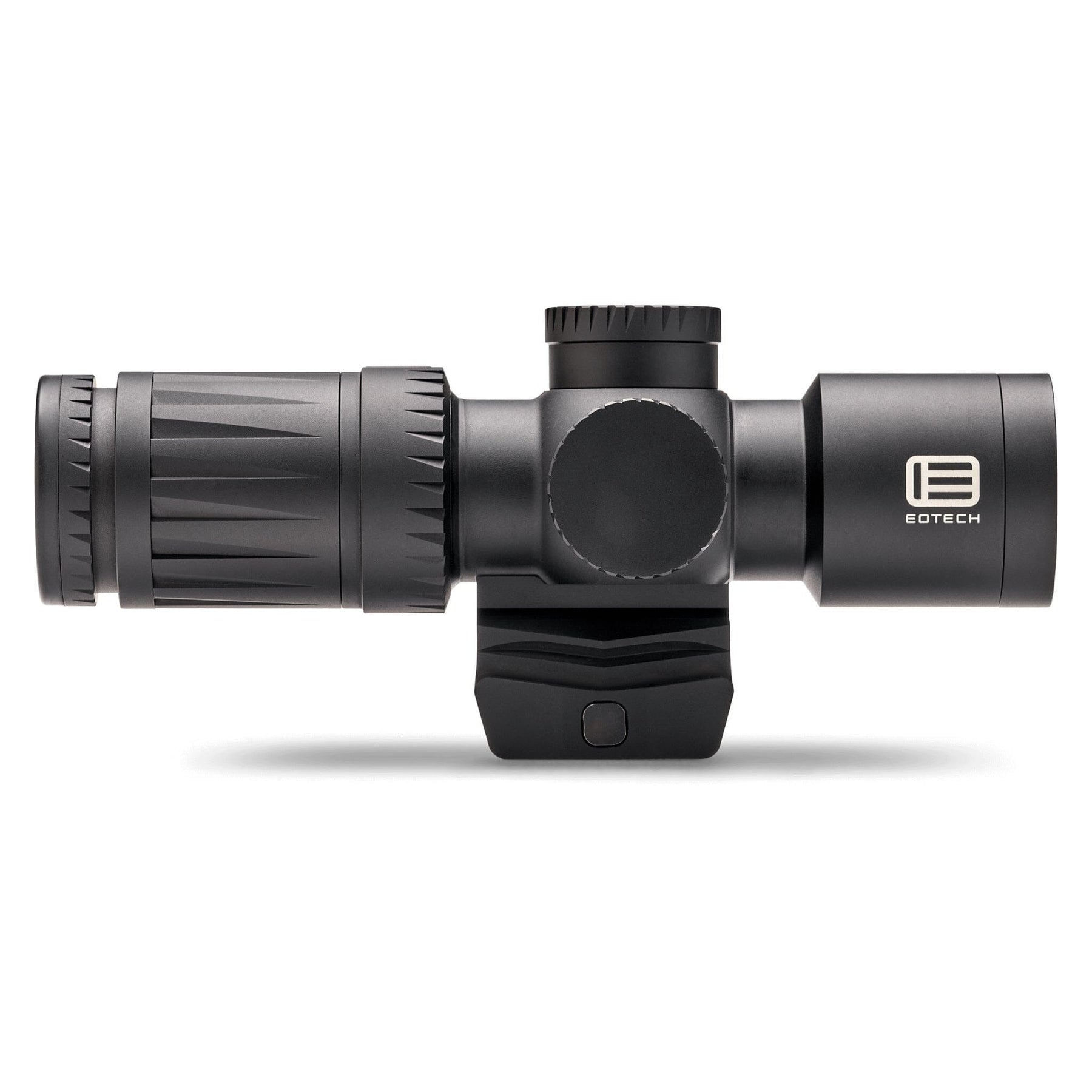

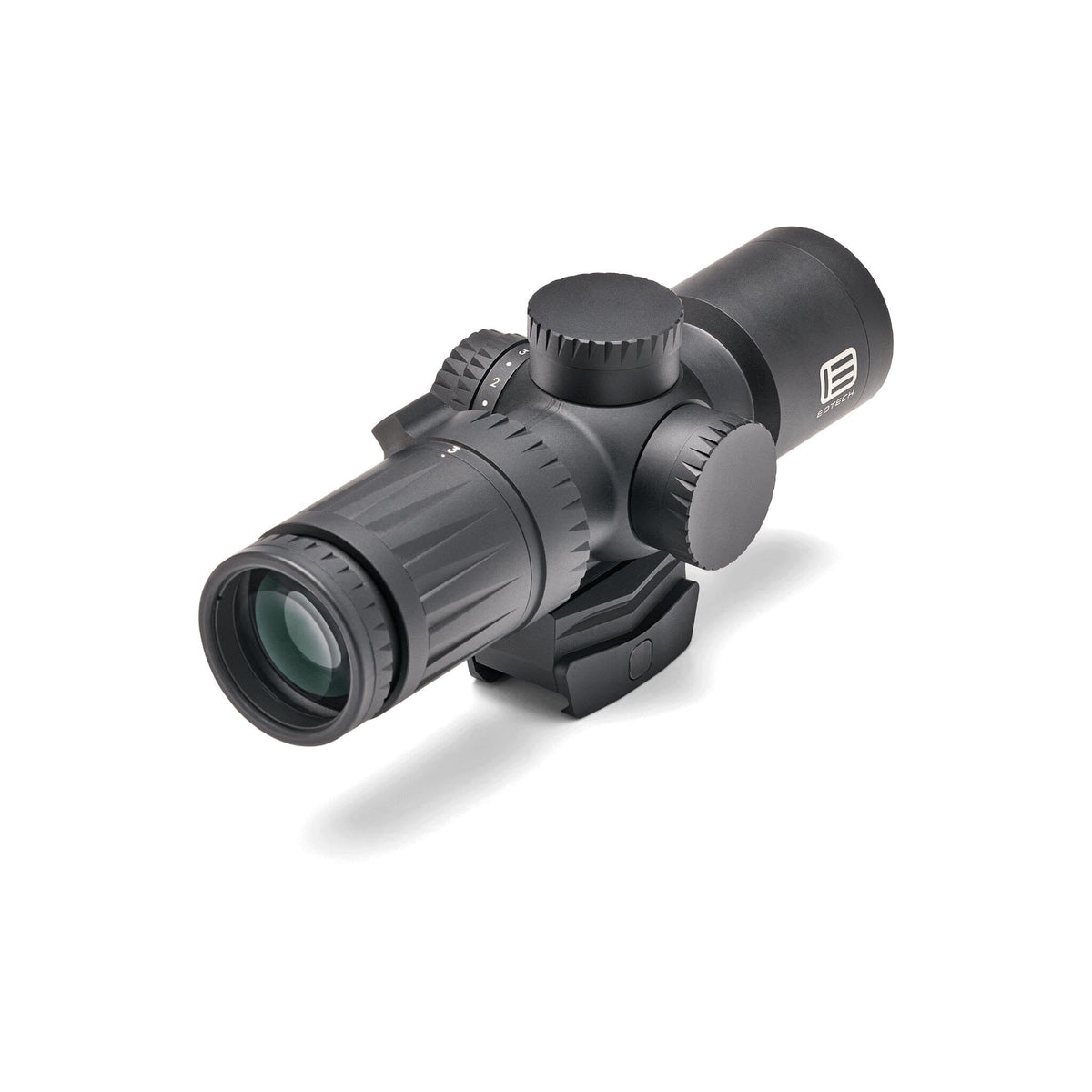

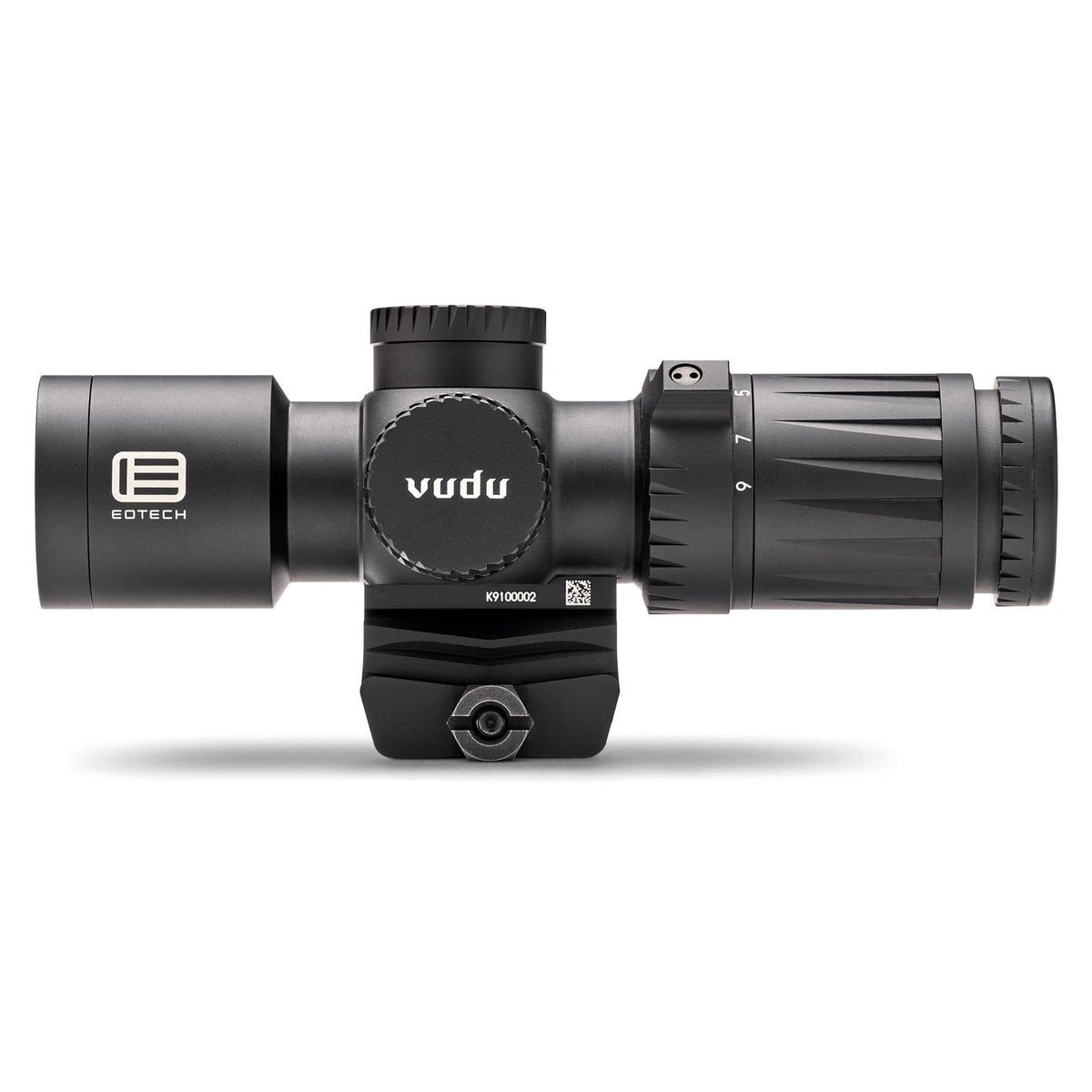

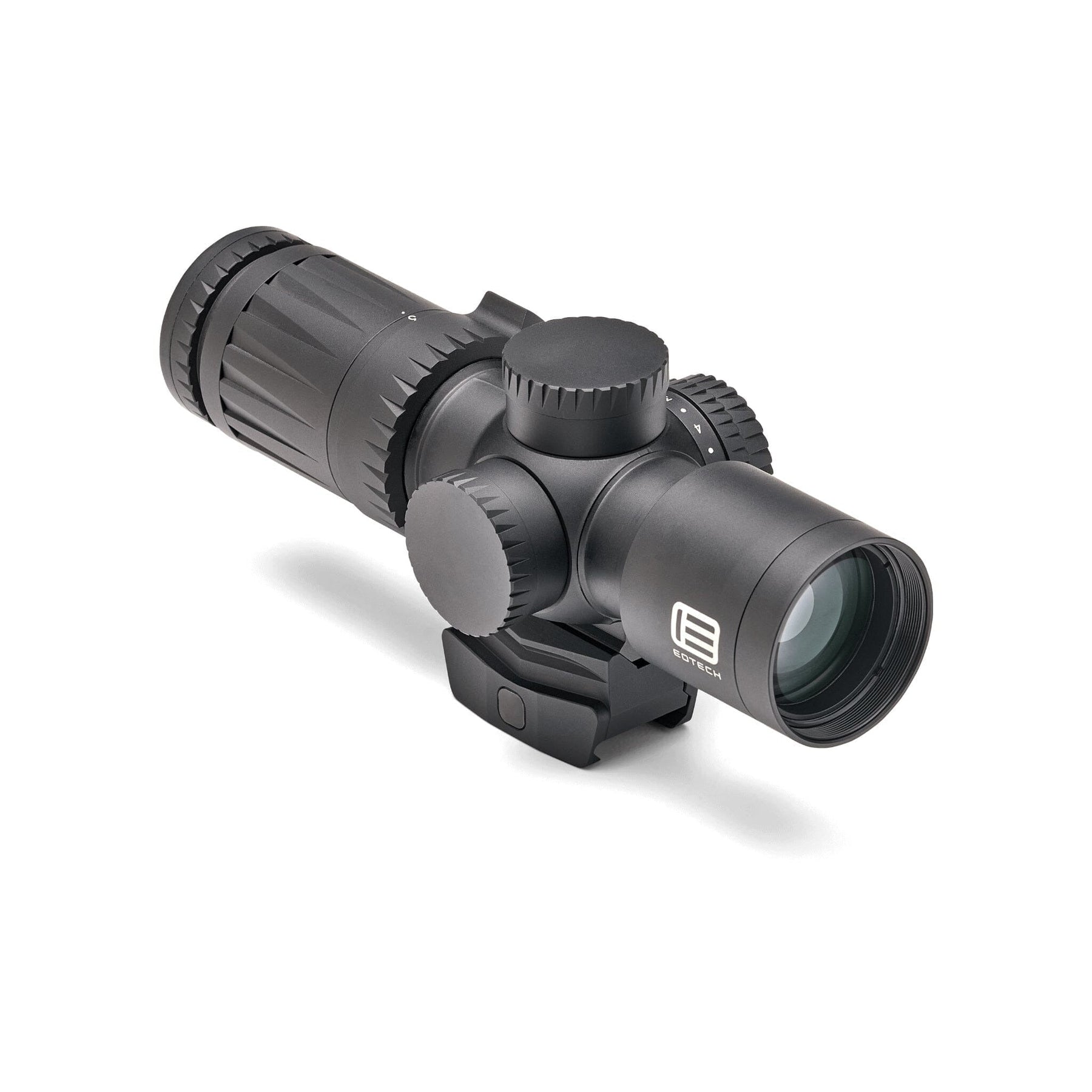

The EOTech Vudu 3-9x32 in this listing is the second focal plane model carrying the MR5 reticle, a MIL-based lattice behind a 32 mm objective, in black.
Three to nine power over a 32 mm objective is the classic stalking and target bracket, and EOTech have kept it genuinely small — 6.8 in and 16 oz, which is less scope on the rifle than the magnification range suggests.
Illumination runs from a CR2032 coin cell and the scope is built in Japan. Field of view at 100 yards is 38 ft at 3x, closing to 12.7 ft at 9x. EOTech do not publish a tube diameter, a click value or a turret travel figure for this model, and rather than repeat numbers from elsewhere we have left all three out — measure the tube against your rings, and count your first zeroing session as the reference for the turrets.
A second focal plane reticle stays the same apparent size whatever the magnification ring is doing, which keeps the MR5 fine and unobtrusive at 9x where a first focal plane lattice would be at its coarsest. The trade is the familiar one: the subtensions are only true at the power EOTech calibrate them to, so a hold read at 5x is not the hold read at 9x. If you want a scale that stays honest at every setting, look at a first focal plane scope instead of this one.
Why shooters choose the Vudu 3-9x32 MR5
-

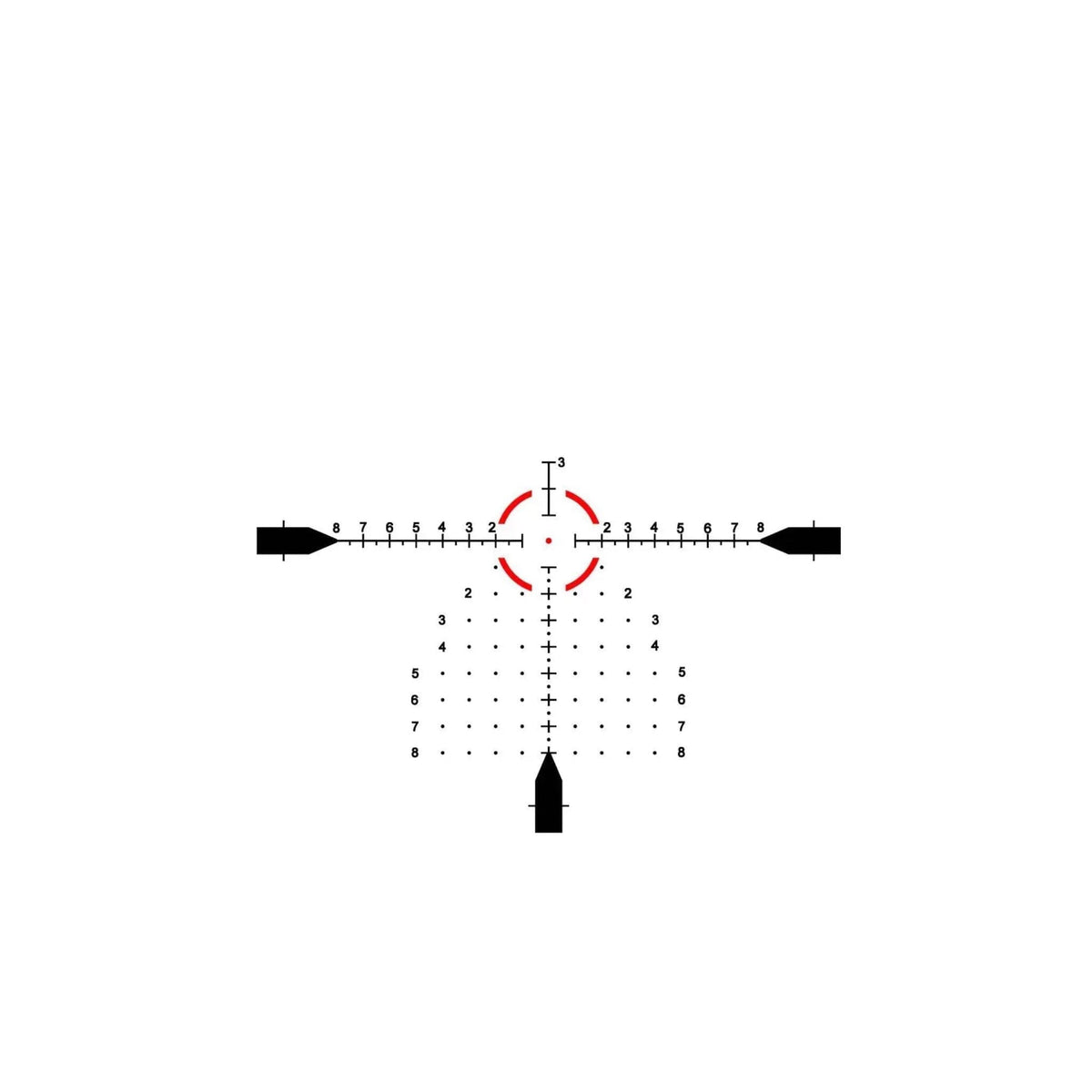

Reticle — MR5, a MIL-based lattice in the second focal plane
-
Magnification — 3-9x over a 32 mm objective
-
Field of view — 38 ft at 3x and 12.7 ft at 9x, measured at 100 yards
-
Size — 6.8 in (172.7 mm) long and 16 oz (454 g)
-
Power — CR2032 cell for the illumination
-
Origin — made in Japan
What the Vudu 3-9x32 MR5 fits
It needs a set of rings or a one-piece mount sized to the tube, and because EOTech publish no tube figure for this model the safe move is to measure before ordering rings. On an AR-pattern or straight-pull host a cantilever base puts the eyepiece in the right place; see precision rifle scope mounts and our optic mount height guide. If you would rather read the reticle in MOA, the same scope carries the MD6 MOA reticle, and it is also sold in Tan.
Specifications
| Magnification |
3-9x (variable) |
| Objective |
32 mm |
| Focal plane |
Second focal plane (SFP) |
| Reticle |
MR5, MIL-based |
| Field of view at 100 yd |
38 ft at 3x / 12.7 ft at 9x |
| Length |
6.8 in (172.7 mm) |
| Weight |
16 oz (454 g) |
| Battery |
CR2032 |
| Finish |
Black |
| Origin |
Made in Japan |
| Brand |
EOTech |
| MPN |
VDU3-9SFMR5 |
A compact variable that reads in mils and does not weigh the front of the rifle down. Order the Vudu 3-9x32 MR5 today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
