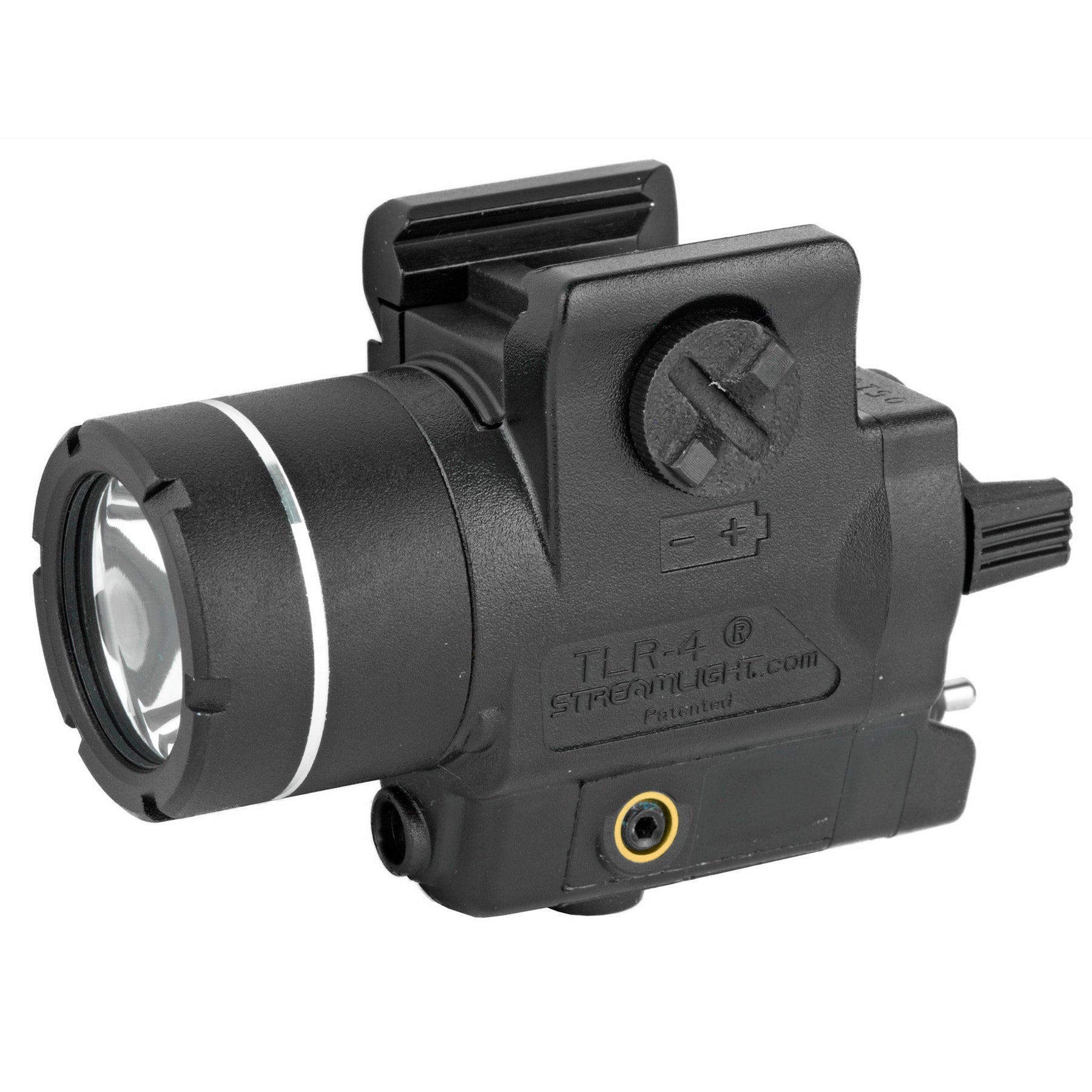

The Streamlight TLR-4, part 69240, is a compact rail-mounted weapon light with an integrated red aiming laser, running from a single CR2 lithium cell.
Two aiming aids in one 2.81 oz body. The light shows you what is there and the laser shows where the muzzle is pointing, and either can be used on its own.

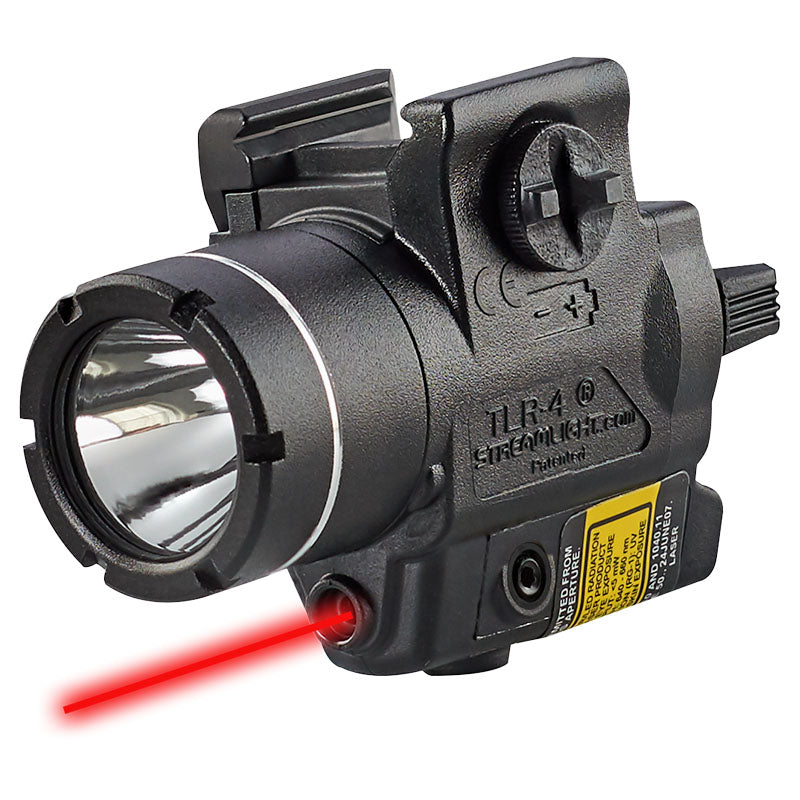

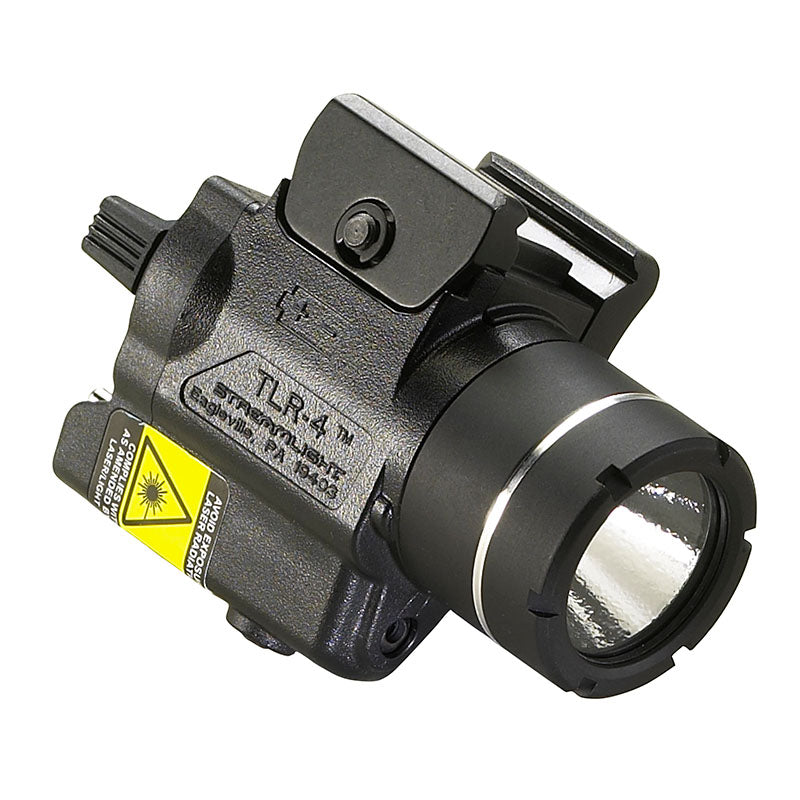

White output is 170 lumens at 3,300 candela for a 115-metre beam. The laser runs at 640-660 nm, rated Class 3R at under 5 mW, and it adjusts for windage and elevation so it can be zeroed and left. The body is impact-resistant polymer with an anodised aluminium facecap, 2.73 in long, mounted by a quick rail clamp with the supplied locating keys and rated IPX4 against water.

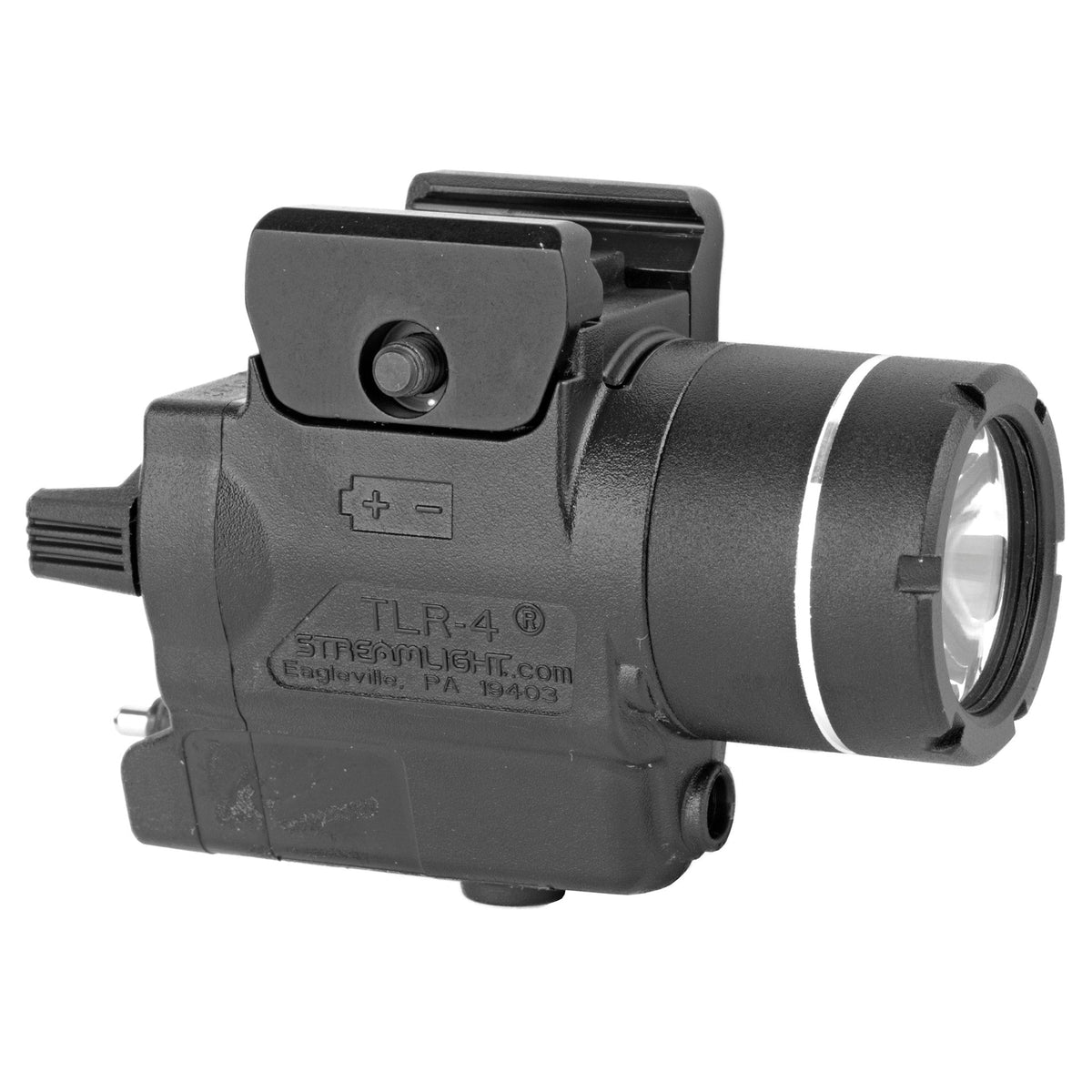

A three-position selector picks light only, laser only, or both together, and the rear switch is ambidextrous with momentary and steady operation. Runtime is an hour and a half on light or in combined mode, and fifteen hours on the laser alone, which is the mode most people forget is there. It is a compact light rather than a searchlight: 170 lumens suits identifying and aiming at close range on a small pistol, not lighting a field.
Why shooters choose the TLR-4
-
White light — 170 lumens at 3,300 candela, reaching 115 metres
-
Laser — red at 640-660 nm, Class 3R under 5 mW, adjustable for windage and elevation
-
Modes — light only, laser only, or both together
-
Runtime — 1.5 hours on light or combined mode, 15 hours on the laser alone
-
Size — 2.73 in and 2.81 oz, in polymer with an anodised aluminium facecap
-
Power — one CR2 lithium cell, supplied
What the TLR-4 fits

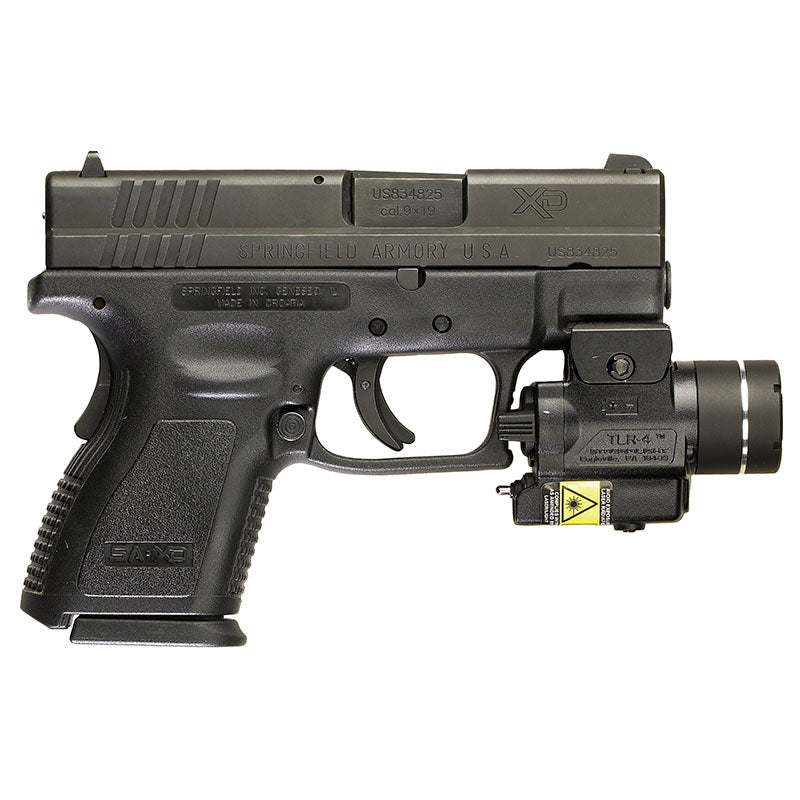

It clamps to compact and subcompact pistols with an accessory rail, using the locating keys in the box to suit the common handgun rail patterns. For a daylight-visible green beam instead, the TLR-4 G is the same light with a green laser, and for far more output with a laser see the TLR-8 HL-X G USB.
Specifications
| Output |
170 lumens |
| Peak beam intensity |
3,300 candela |
| Beam distance |
115 metres |
| Laser |
Red, 640-660 nm, Class 3R, under 5 mW, windage and elevation adjustable |
| Runtime |
1.5 hours (light or light and laser) / 15 hours (laser only) |
| Battery |
One CR2 lithium cell, included |
| Switching |
Ambidextrous rear switch, momentary and steady |
| Length / weight |
2.73 in / 2.81 oz |
| Sealing |
IPX4 |
| MPN |
69240 |
Small enough to leave fitted, and the laser alone will outlast the range day. Order the TLR-4 today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
