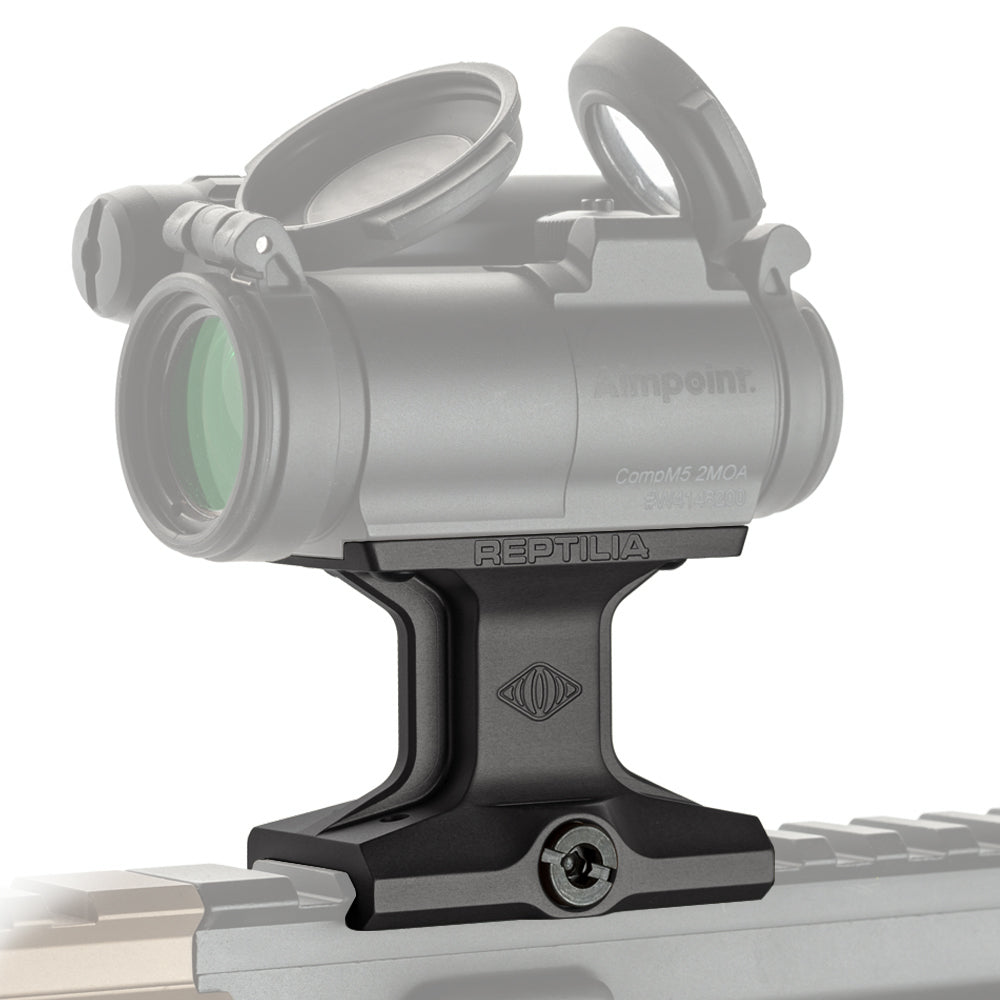

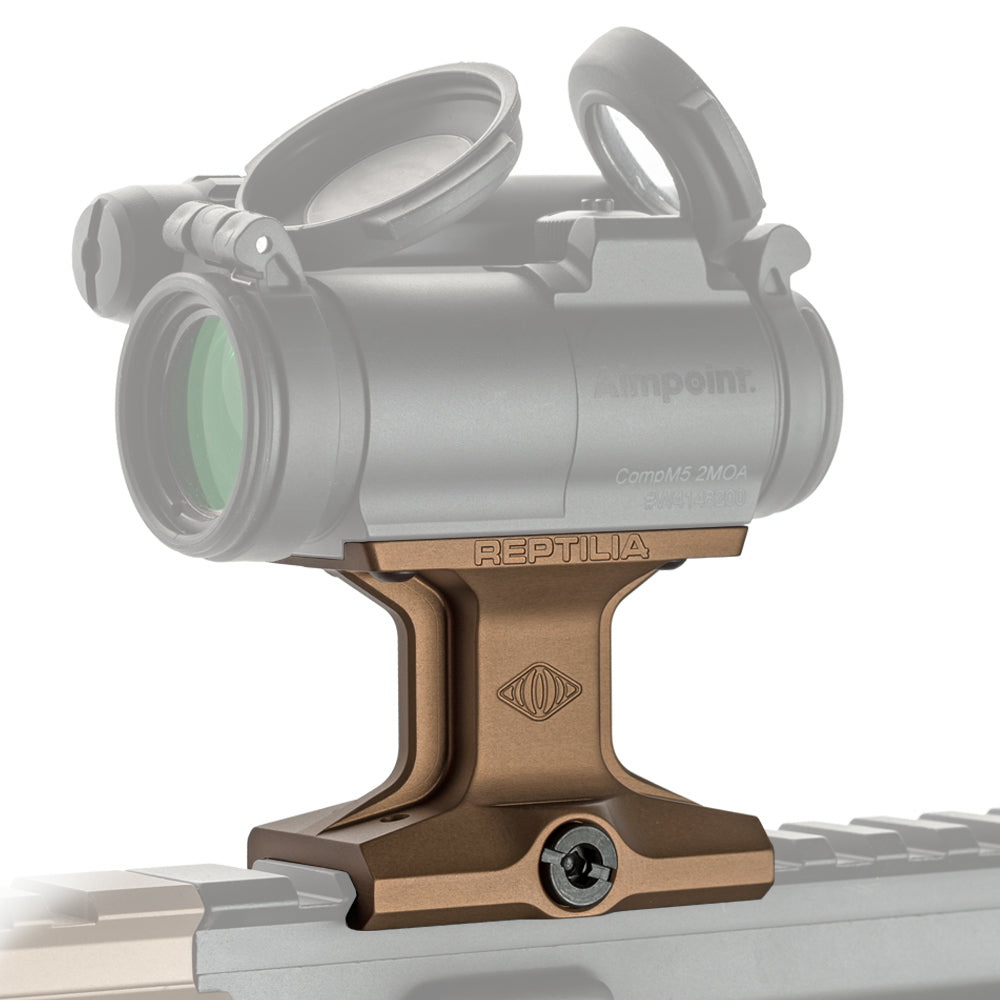

The Reptilia DOT Mount is a one-piece Picatinny optic mount for the Aimpoint Micro, placing the optical axis 1.93in (49 mm) above the rail.
The tall sightline, from a mount with nothing in it that can work loose. One optic footprint, one height, one part.
Machined from billet 7075 aluminium with a Type III hardcoat anodised finish, the 1.93 DOT Mount attaches to any M1913 Picatinny rail. A spring-loaded nitrided 4140 steel clamp and mounting bolt sit flush with the body for a low-profile, anti-snag shape, and the whole mount weighs 55 g (1.9 oz).
1.93in is the modern height. It brings the dot up to a head-up firing position instead of asking you to bury your cheek on the stock, which is easier to hold over a long deliberate string and gives clearance for eye protection, a helmet or night vision. On a UK straight-pull AR-15 the practical gain is comfort and consistency: the same head position every time you mount the rifle. Made in the USA.
Why shooters choose the 1.93" DOT Mount for Aimpoint Micro
-
Optical axis at 1.93in (49 mm) — a head-up position that is easier to hold across a long string
-
One optic footprint — cut for the Aimpoint Micro T-1, T-2, H-1, H-2 and CompM5 and nothing else
-
Spring-loaded steel clamp — nitrided 4140 steel, flush with the body, nothing proud to snag
-
55 g (1.9 oz) — billet 7075 aluminium, Type III hardcoat anodised
-
Fitting kit included — mounting screws and a hex L-key come in the box
What the 1.93" DOT Mount for Aimpoint Micro fits
Fits the Aimpoint Micro family — T-1, T-2, H-1, H-2 and CompM5 — on any M1913 Picatinny rail, including the flat-top upper of a UK straight-pull AR-15. Height and footprint are fixed: 1.93in optical axis, Aimpoint Micro footprint. At 1.93in your standard AR-15 back-up iron sights will sit below the optic window rather than co-witnessing in it, so treat irons as a separate sighting system at this height. If you want the co-witness, the 39mm lower 1/3 version is the same mount lower down.
Specifications
| Platform |
AR-15 / M4 |
| Fits |
Aimpoint Micro T-1, T-2, H-1, H-2 and CompM5, on any M1913 Picatinny rail |
| Type |
One-piece red dot mount — 1.93in (49 mm) optical axis over rail |
| Material |
Billet 7075 aluminium; nitrided 4140 steel clamp |
| Finish |
Type III hardcoat anodised — Black Anodized, Flat Dark Earth Anodized |
| Weight |
55 g (1.9 oz) |
| Mount interface |
Spring-loaded clamp to M1913 Picatinny |
| Made in |
USA |
| Brand |
Reptilia |
| MPN |
100-037 · 100-038 |
Pick the height once and stop thinking about the mount. Order the 1.93" DOT Mount for Aimpoint Micro today — in stock at Xtreme Tactical Gun Parts with free tracked UK delivery in 7–10 days.
