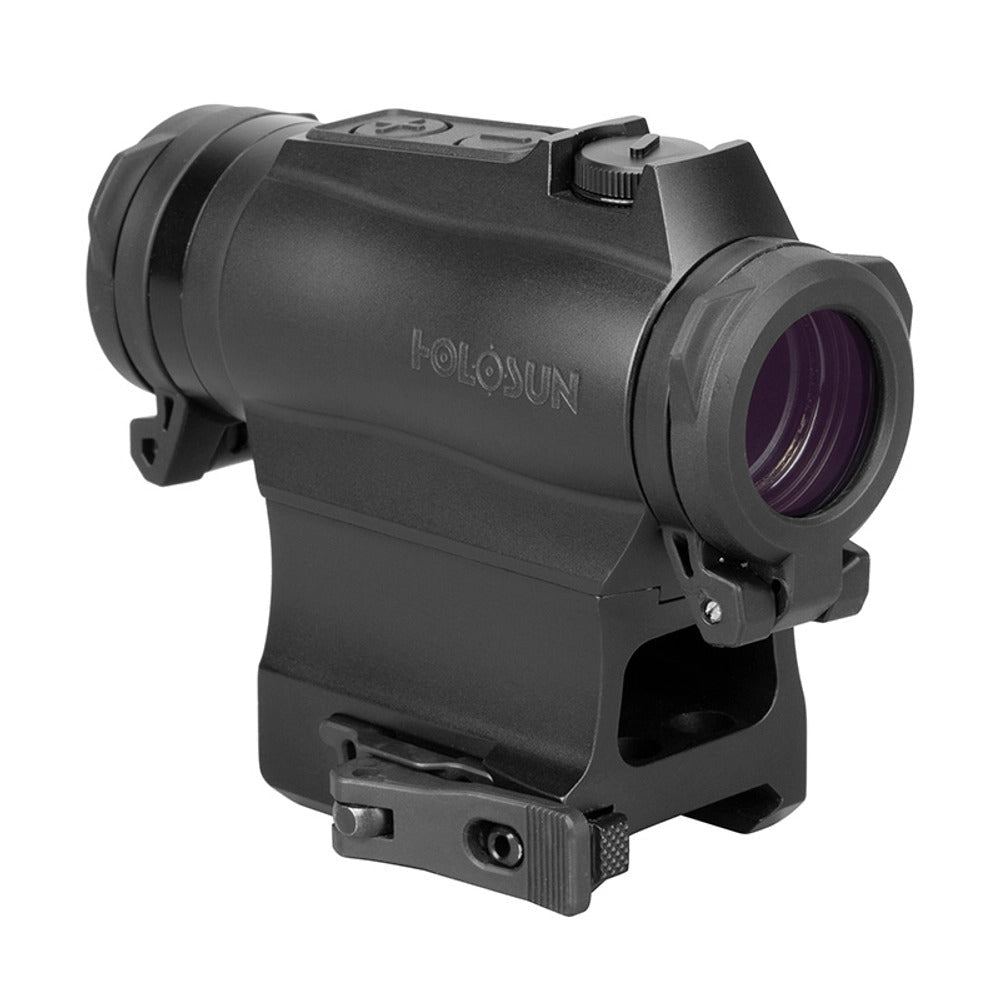

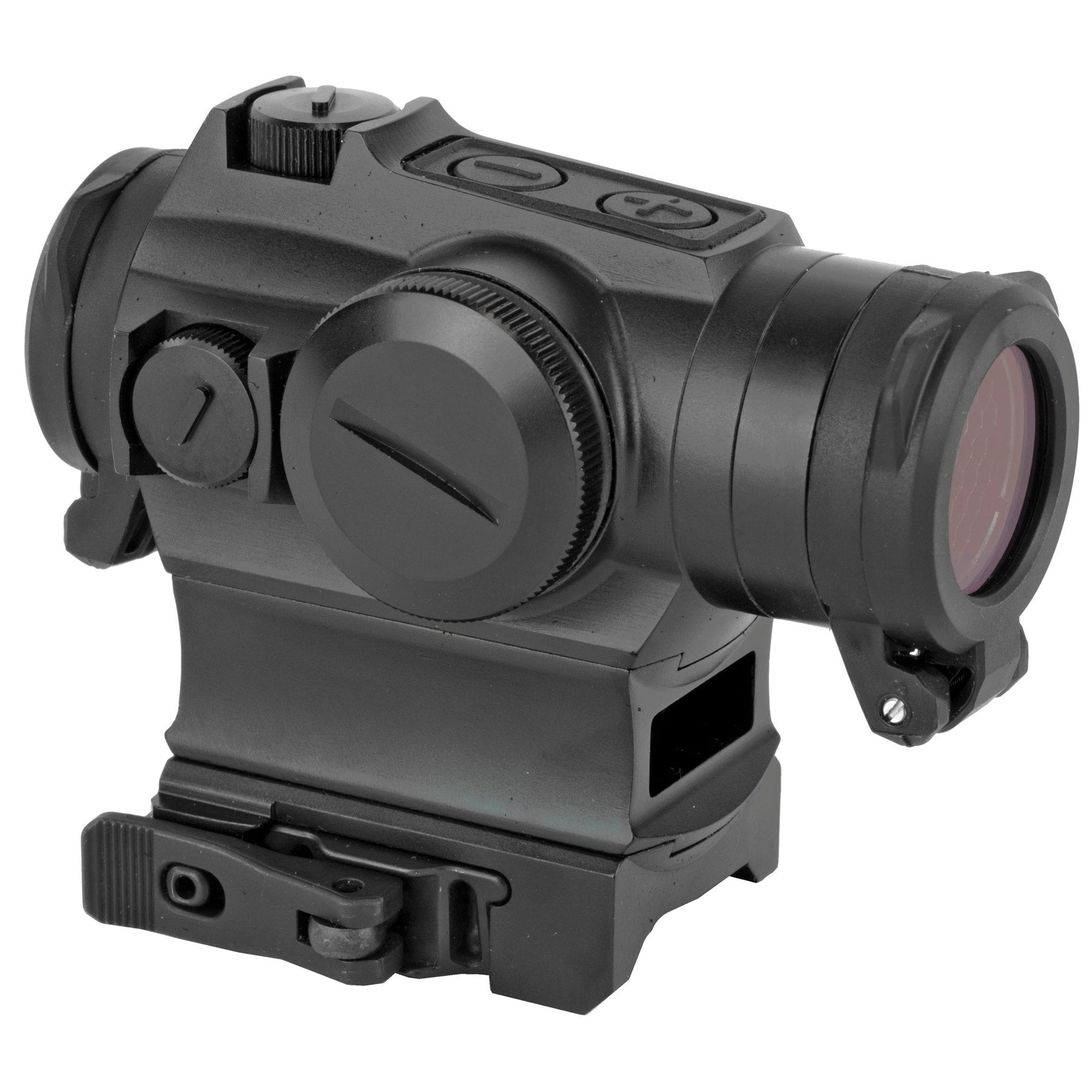

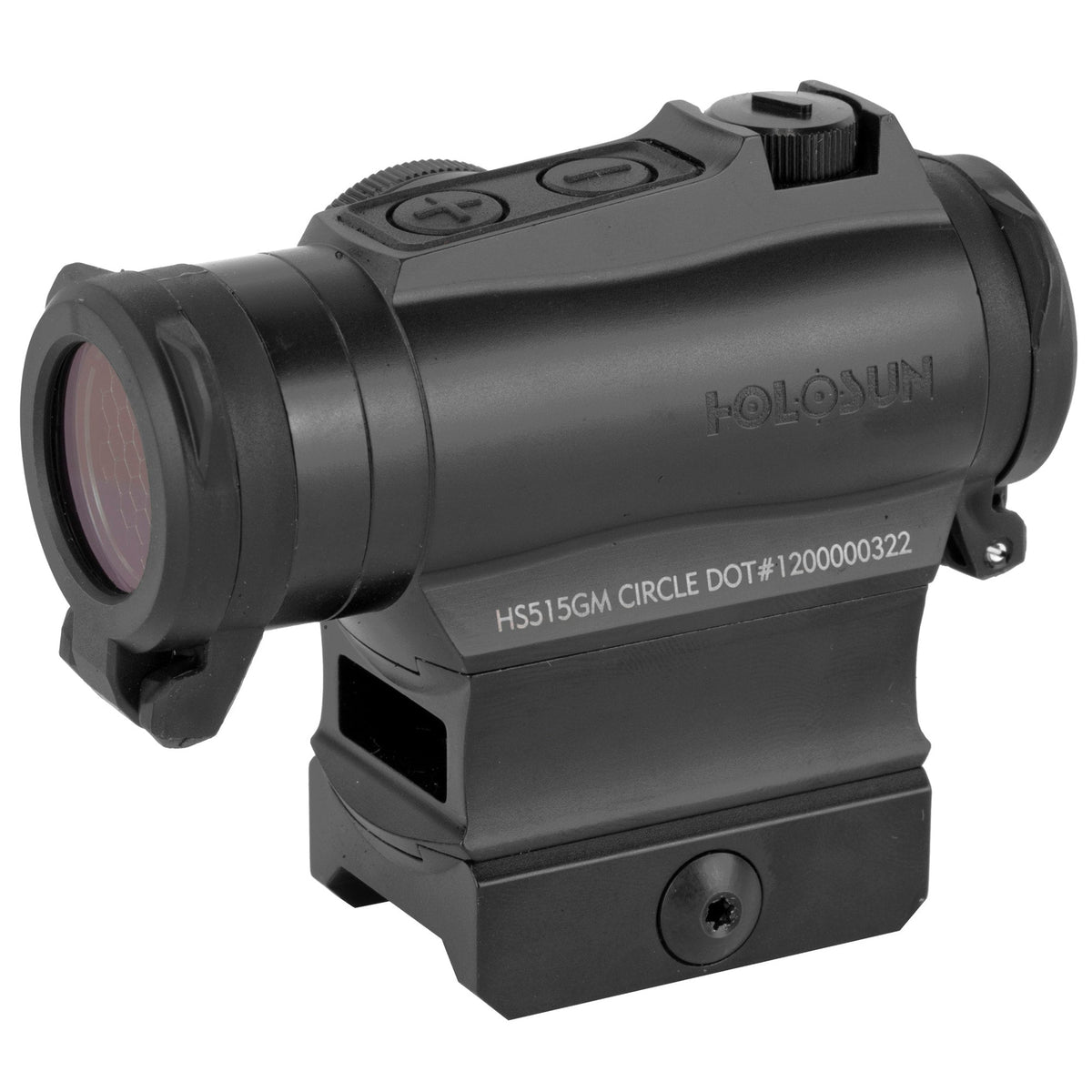

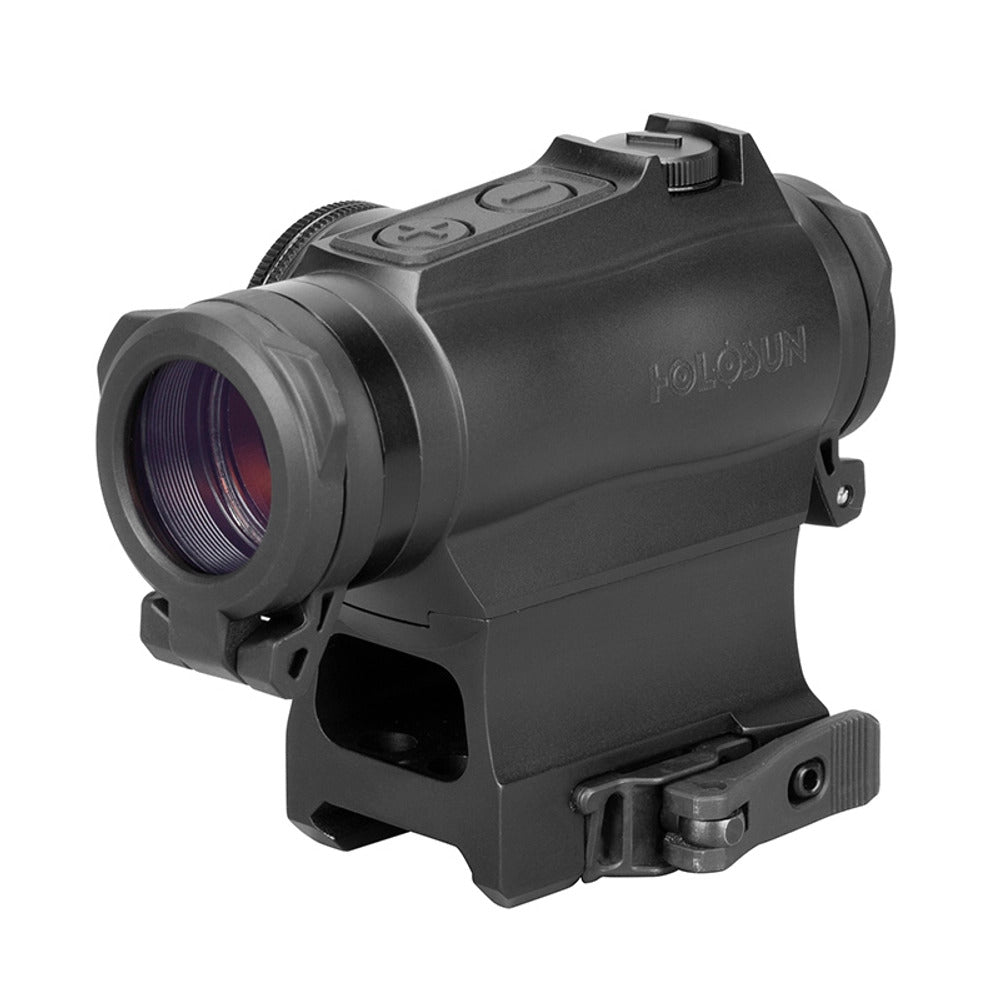

The Holosun HS515GM is a 1x micro rifle red dot sight in a titanium housing, running the red Multi-Reticle System on a quick-detach Picatinny mount at lower 1/3 co-witness height.
Titanium instead of aluminium is the whole argument for this model: the complete optic weighs 3.74 oz (106 g) and the body is stronger for it, not weaker.
The housing is titanium rated IP68 and IPX8, measuring 2.75 × 1.43 × 1.63 in (70 × 36 × 41 mm). The supplied quick-detach Picatinny mount puts the reticle at 1.63 in (41.4 mm), which is lower 1/3 co-witness on an AR-pattern rifle, and a side-tray CR2032 lets the cell be changed with the sight still zeroed on the gun.
The Multi-Reticle System gives a 2 MOA dot for precision, a 65 MOA circle for speed, or both together, from a 650 nm red emitter behind a 0.78 in (19.8 mm) window. Illumination runs to 8 daylight and 4 night-vision settings, adjustment is 0.5 MOA per click across ±50 MOA, and the cell is rated at 50,000 hours with Shake Awake and Solar Failsafe behind it. The quick-detach mount means the sight can come off for transit and go back on without losing zero.
Why shooters choose the HS515GM
-
Housing — titanium, IP68 and IPX8 rated, 3.74 oz (106 g) complete
-
Reticle — red Multi-Reticle System — 2 MOA dot, 65 MOA circle, or circle-dot
-
Emitter — 650 nm red LED behind a 0.78 in (19.8 mm) window
-
Mount — quick-detach Picatinny at 1.63 in (41.4 mm) lower 1/3 co-witness
-
Illumination — 8 daylight and 4 night vision settings
-
Adjustment — 0.5 MOA per click, ±50 MOA
-
Power — side-tray CR2032 rated at 50,000 hours, with Solar Failsafe and Shake Awake
What the HS515GM fits
It clamps to any Picatinny flat-top receiver or straight-pull upper and sits at lower 1/3 with AR-height irons. The aluminium version of the same sight is the HS515CM, and for a wide-window open reflex instead of a micro tube see the HS510C. More sit in red dot sights and straight-pull rifle optics.
Specifications
| Optic type |
Micro rifle red dot sight, 1x |
| Reticle |
Multi-Reticle System — 2 MOA dot / 65 MOA circle / circle-dot, red |
| Light source |
650 nm red LED |
| Window |
0.78 in (19.8 mm) diameter |
| Illumination |
8 daylight / 4 night vision |
| Adjustment |
0.5 MOA per click, ±50 MOA |
| Mount |
Quick-detach Picatinny, 1.63 in (41.4 mm) lower 1/3 co-witness |
| Battery |
CR2032 in a side tray, up to 50,000 hours |
| Power |
Solar Failsafe, Shake Awake |
| Housing |
Titanium, IP68 / IPX8 |
| Dimensions |
2.75 × 1.43 × 1.63 in (70 × 36 × 41 mm) |
| Weight |
3.74 oz (106 g) |
| MPN |
HS515GM |
The flagship of the 515 line, and the one to buy when weight on the rail is the thing you keep counting. Order the HS515GM today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
