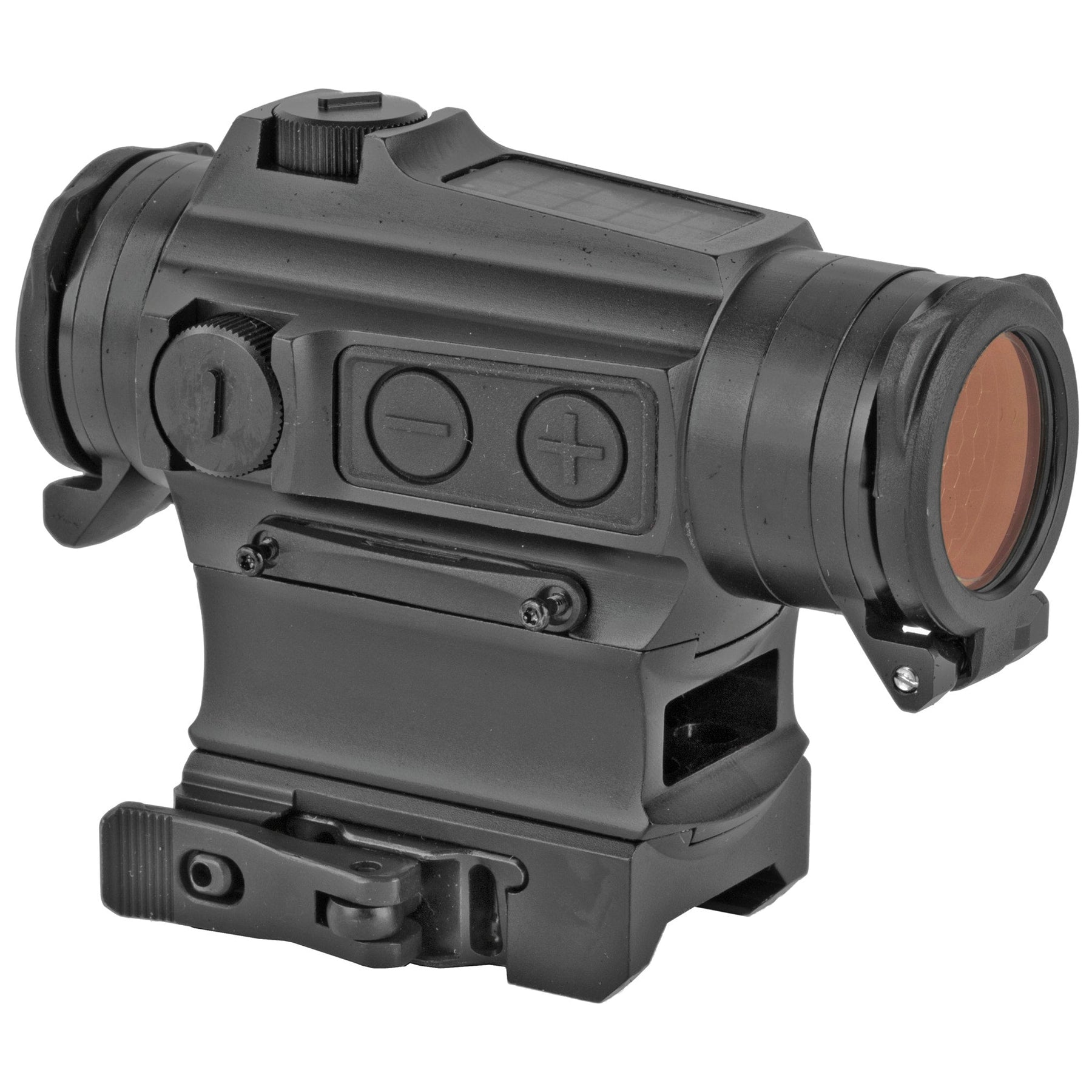

The Holosun HS515CM is a 1x micro rifle red dot sight with the red Multi-Reticle System — 2 MOA dot, 65 MOA circle, or both — behind a 0.78 in (19.8 mm) window, on a quick-detach Picatinny mount at 1.63 in (41.4 mm) lower 1/3 co-witness.
It arrives finished rather than needing parts added: the lever mount and the protective caps with their anti-reflection screen are in the box, not on a list of accessories.

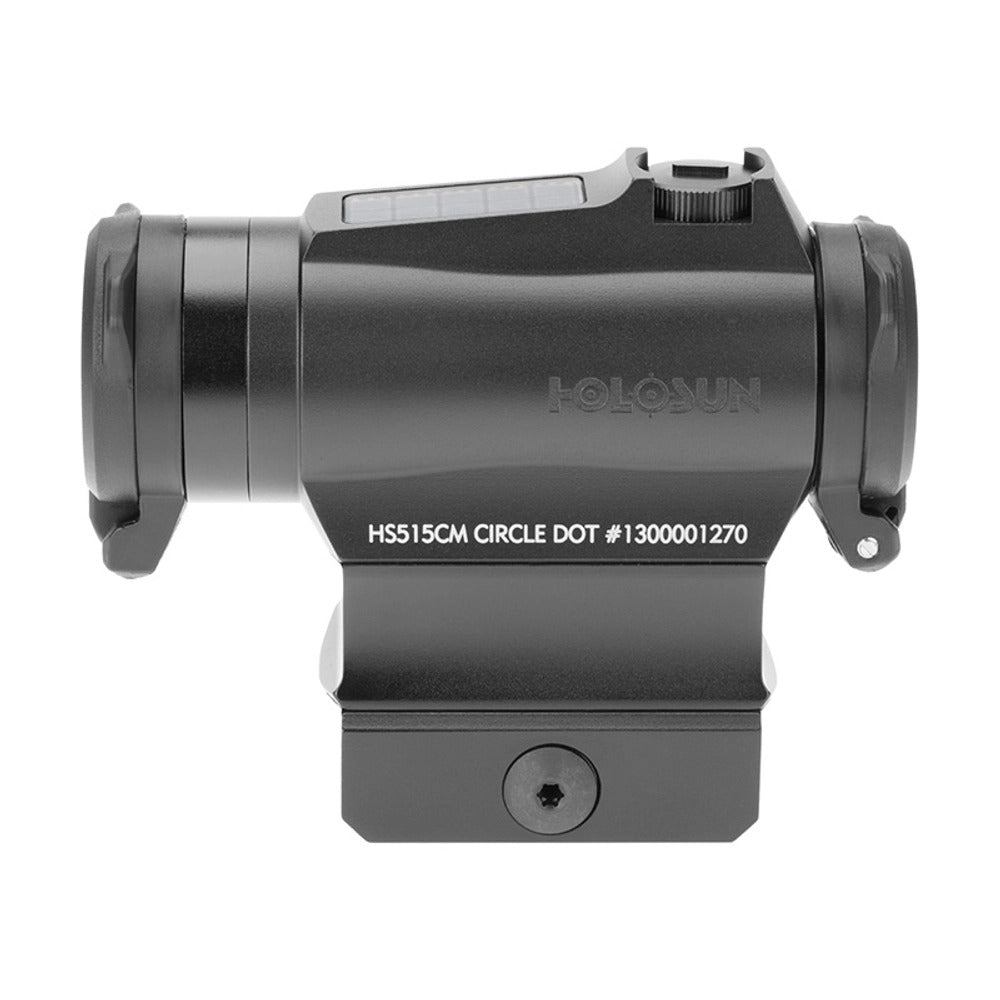

The housing is 6061 T6 aluminium with a MAO finish, rated IP68 and IPX8, measuring 2.75 x 1.43 x 1.63 in and weighing 9.17 oz. A CR2032 is rated up to 50,000 hours at setting 6, with Solar Failsafe drawing on ambient light and Shake Awake sleeping the reticle when the rifle is put down. Brightness runs to 8 daylight settings and 4 for night vision, and the 650 nm red LED adjusts 0.5 MOA per click with 50 MOA of travel each way.

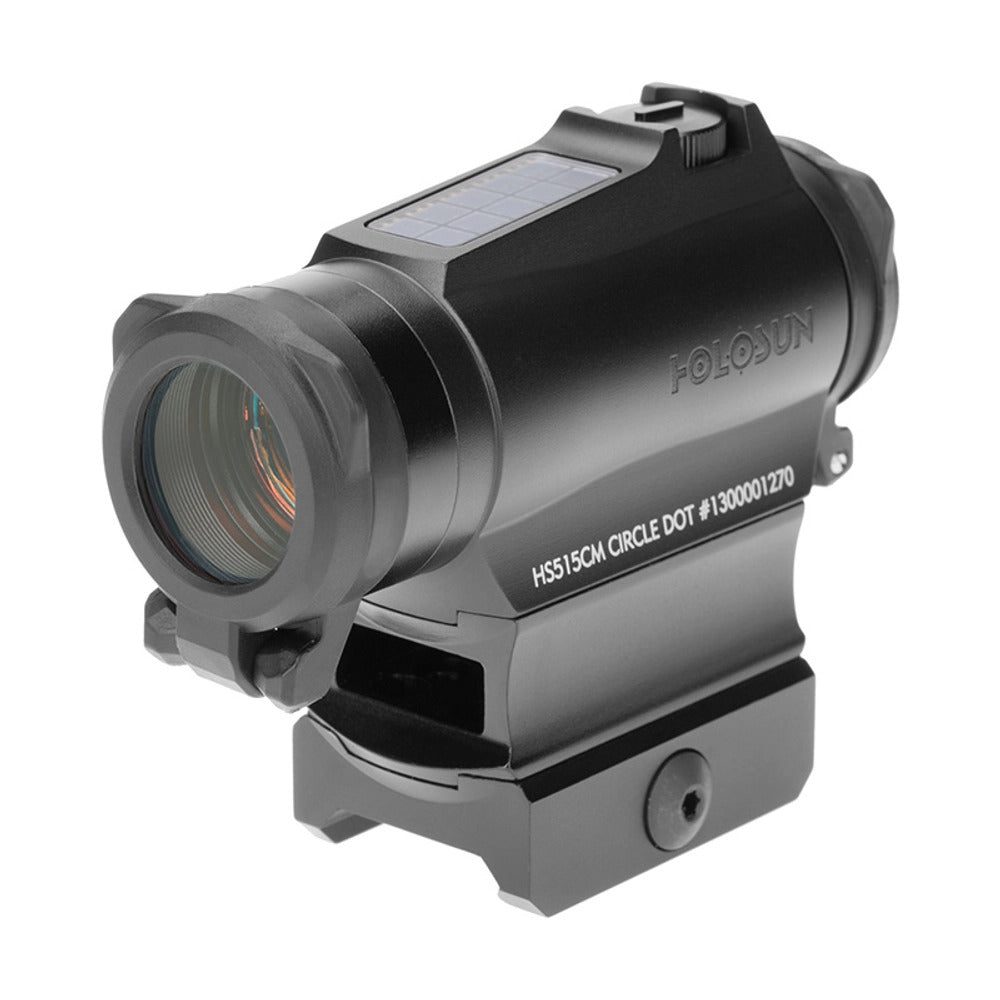

The rotating caps do two jobs: they keep the glass covered when the rifle is slung, and the kill flash screen stops the objective lens flaring light back at you or outwards. Lower 1/3 height puts the reticle above AR-height irons rather than level with them, which is the height most magnifiers are built around, so a flip-to-side unit lines up behind it. The quick-detach lever means one sight can serve two rifles and return to zero.
Why shooters choose the HS515CM
-

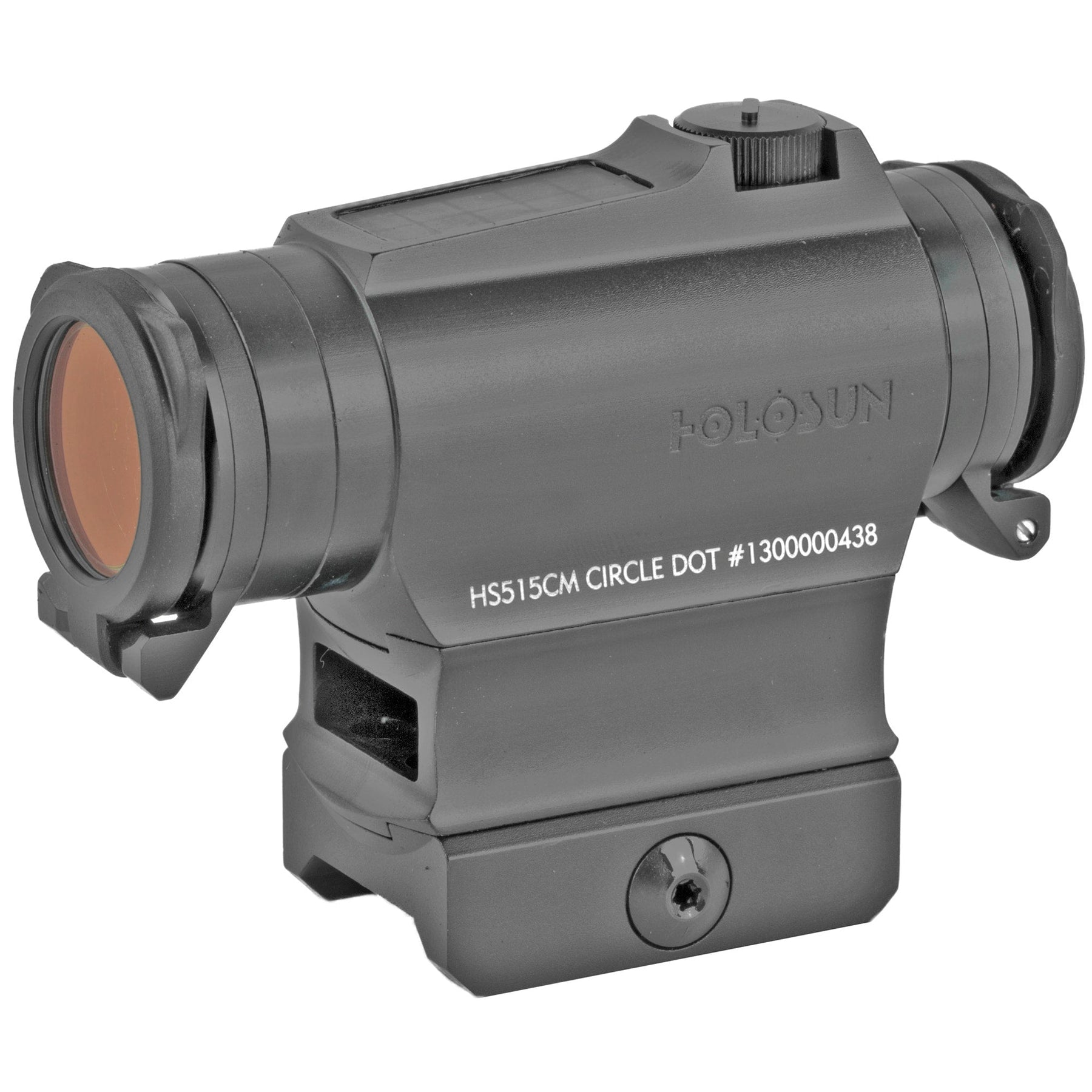

Reticle — red Multi-Reticle System — 2 MOA dot, 65 MOA circle, or circle-dot on a 650 nm LED
-
Mount — quick-detach Picatinny at 1.63 in (41.4 mm) lower 1/3 co-witness
-
Lens protection — rotating caps with an anti-reflection kill flash
-
Power — CR2032 with Solar Failsafe and Shake Awake, up to 50,000 hours at setting 6
-
Brightness — 8 daylight and 4 night vision settings
-
Housing — 6061 T6 aluminium with a MAO finish, rated IP68 and IPX8
What the HS515CM fits
It clamps to any MIL-STD-1913 Picatinny rail and comes off again on the lever, which suits an AR-pattern flat-top or a straight-pull upper. At 1.63 in it sits at the height that lower 1/3 magnifiers are built to. For the same optic in titanium see the HS515GM, and for a wide-window open reflex sight the HS510C. Browse red dot sights.
Specifications
| Type |
Micro rifle red dot sight |
| Magnification |
1x |
| Reticle |
Multi-Reticle System — 2 MOA dot / 65 MOA circle / circle-dot, red |
| Light Source |
650 nm red LED |
| Window Size |
0.78 in (19.8 mm) diameter |
| Mount |
Quick-detach Picatinny, 1.63 in (41.4 mm) lower 1/3 co-witness |
| Lens Caps |
Rotating caps with anti-reflection kill flash |
| Brightness |
8 daylight / 4 night vision |
| Click Value |
0.5 MOA per click |
| Adjustment Range |
±50 MOA windage and elevation |
| Battery |
CR2032, up to 50,000 hours at setting 6 |
| Power Management |
Solar Failsafe and Shake Awake |
| Housing |
6061 T6 aluminium, MAO finish |
| Water Resistance |
IP68 / IPX8 |
| Dimensions |
2.75 x 1.43 x 1.63 in (70 x 36 x 41 mm) |
| Weight |
9.17 oz |
| MPN |
HS515CM |
Everything the sight needs to go to work is already in the box. Order the HS515CM today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
