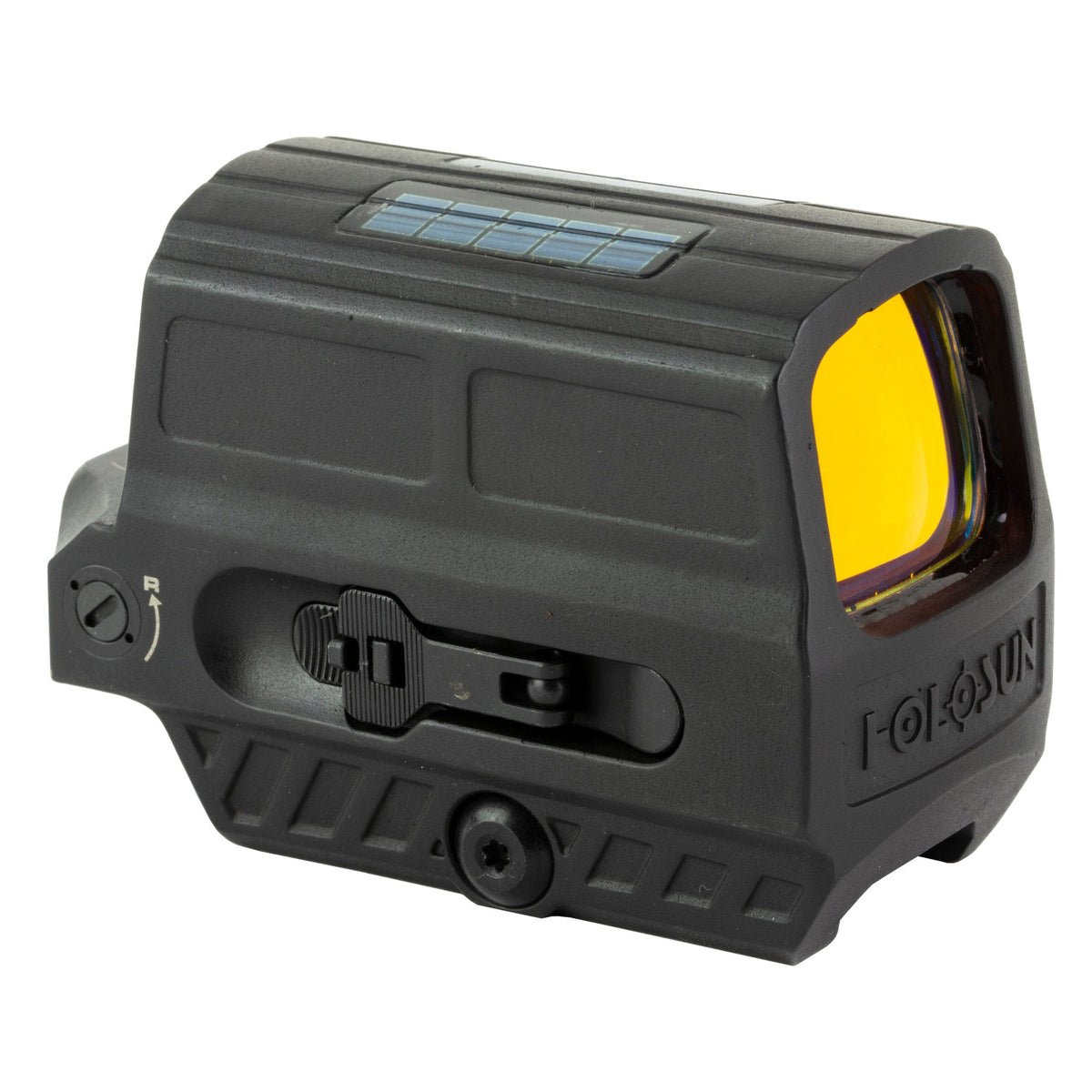

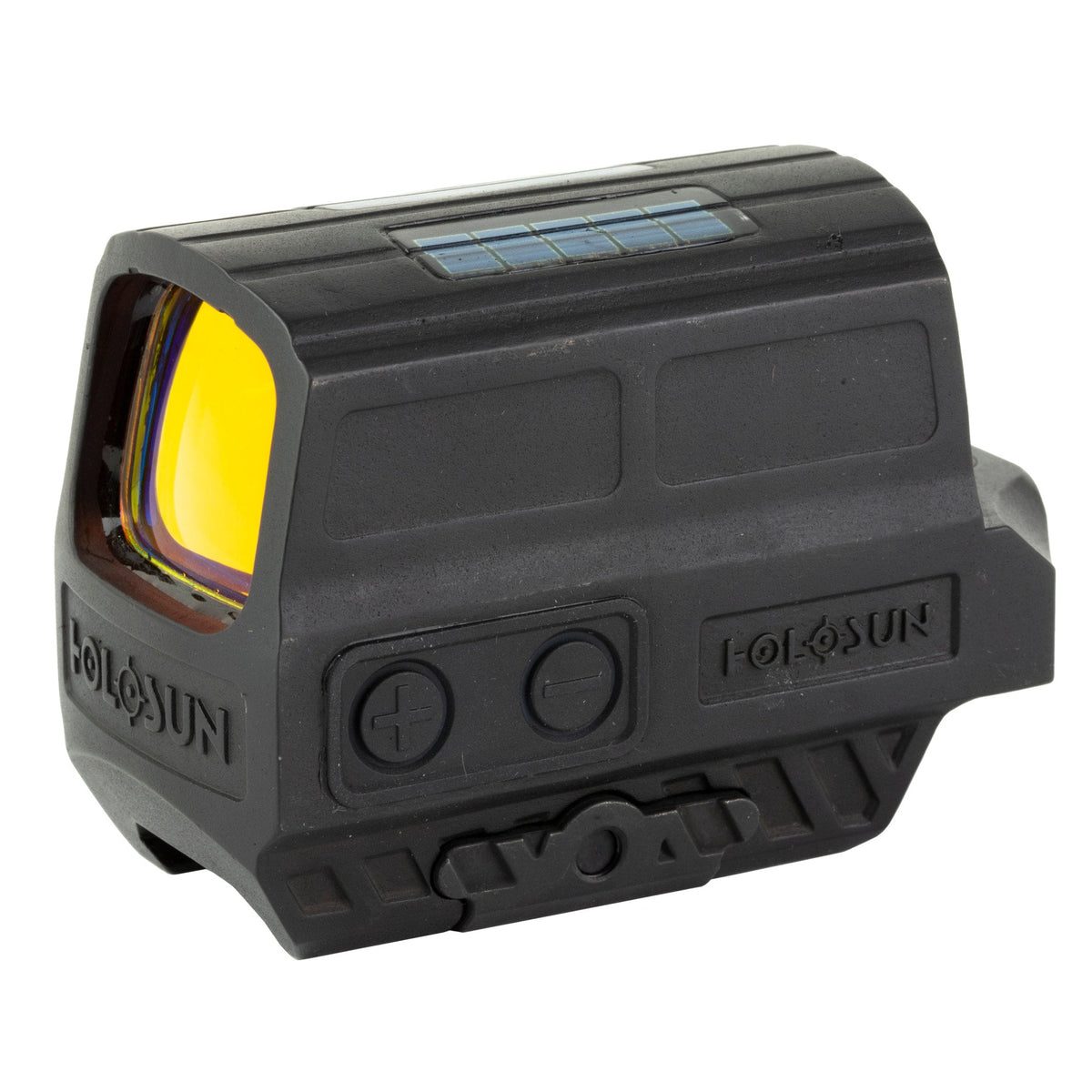

The Holosun HE512T is a 1x fully enclosed rifle red dot sight in a Grade 5 titanium housing, with the red Multi-Reticle System — 2 MOA dot, 65 MOA circle, or both — behind a 0.91 x 1.26 in (23 x 32 mm) window on an integrated Picatinny mount.
Titanium is the reason this one exists: the same sealed optic in a housing that shrugs off knocks a thinner alloy body would carry as a dent, without the weight penalty a steel shroud would bring.

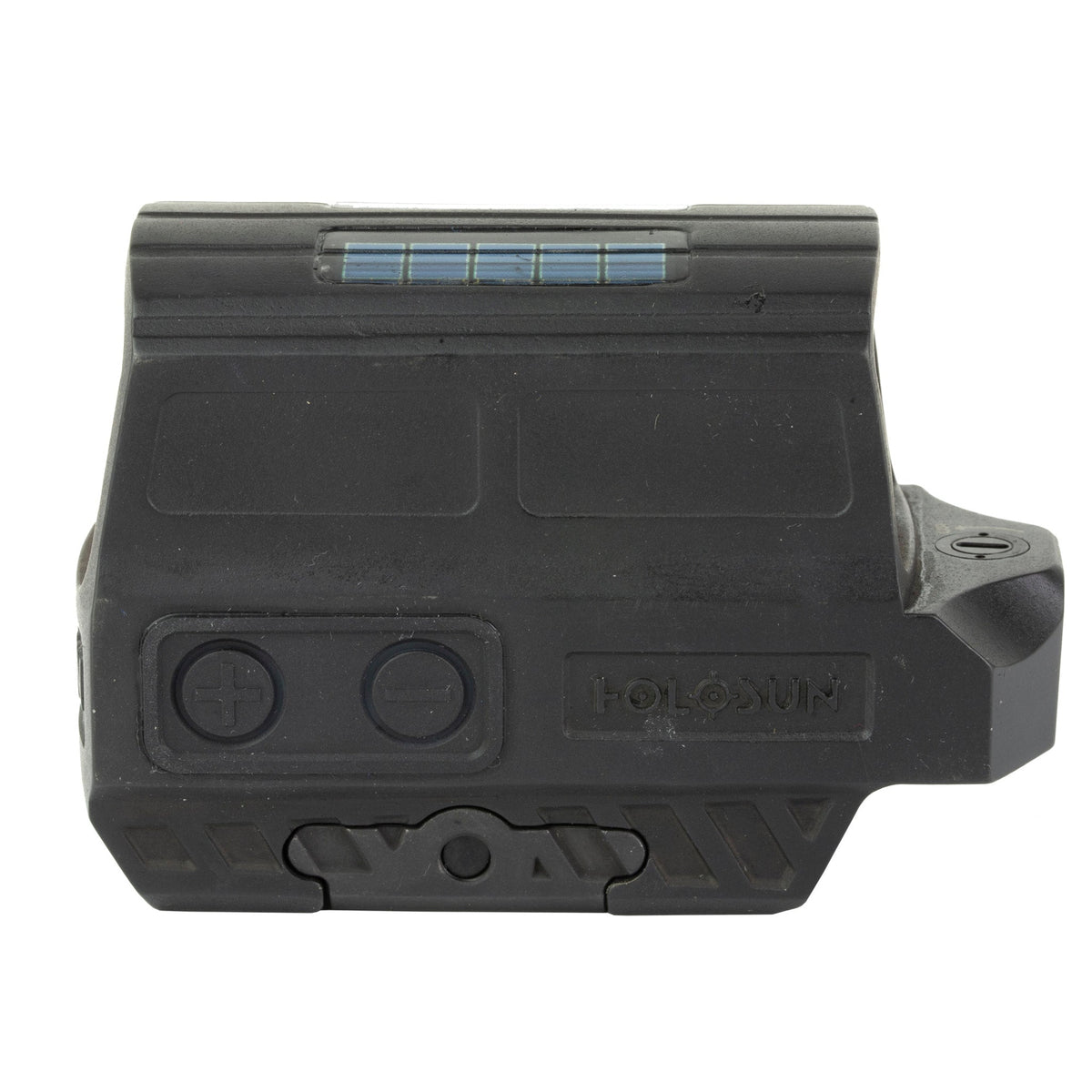

The mount is built into the body at 1.41 in (35.8 mm), which is absolute co-witness height, so AR-height iron sights line up through the middle of the window rather than the bottom third of it. A side-tray CR2032 is rated up to 50,000 hours at setting 6, with Solar Failsafe supplementing it in daylight and Shake Awake sleeping the reticle when the rifle is still. Adjustment is 0.5 MOA per click with 50 MOA each way, the emitter is a 650 nm red LED, and the sight is rated IPX8 and 1000G vibration at 9.17 oz (260 g).
On an open reflex sight, water running down the glass or mud off a wet firing point sits directly in front of the emitter and smears the reticle. Here the LED is sealed inside the housing, so the dot stays clean in weather that puts an open optic out of action. In return it is a heavier sight than an open micro at 3.35 x 1.63 x 1.7 in, and the fixed 1.41 in height cannot be changed — if you want lower 1/3, a different sight is the answer.
Why shooters choose the HE512T
-
Housing — Grade 5 titanium with a fully enclosed emitter, rated IPX8 and 1000G
-
Reticle — red Multi-Reticle System — 2 MOA dot, 65 MOA circle, or circle-dot
-
Window — 0.91 x 1.26 in (23 x 32 mm) behind a 650 nm red LED
-
Mount — integrated Picatinny mount at 1.41 in (35.8 mm) absolute co-witness
-
Power — side-tray CR2032 with Solar Failsafe and Shake Awake, up to 50,000 hours
-
Adjustment — 0.5 MOA per click with ±50 MOA of travel
What the HE512T fits
It needs nothing but a MIL-STD-1913 Picatinny rail, which makes an AR-pattern flat-top or a straight-pull upper the obvious host, and the co-witness height suits AR-height irons. The same sight in green is the HE512T in green, and for a much smaller enclosed sight on a pistol-sized footprint the HE509T X2 in red is the compact option. Browse enclosed red dot sights or straight-pull rifle optics.
Specifications
| Type |
Enclosed rifle red dot sight |
| Magnification |
1x |
| Reticle |
Multi-Reticle System — 2 MOA dot / 65 MOA circle / circle-dot, red |
| Light Source |
650 nm red LED |
| Window Size |
0.91 x 1.26 in (23 x 32 mm) |
| Mount |
Integrated Picatinny, 1.41 in (35.8 mm) absolute co-witness |
| Battery |
CR2032 side tray, up to 50,000 hours at setting 6 |
| Power Management |
Solar Failsafe and Shake Awake |
| Click Value |
0.5 MOA per click |
| Adjustment Range |
±50 MOA windage and elevation |
| Housing |
Grade 5 titanium |
| Durability |
IPX8, 1000G vibration |
| Dimensions |
3.35 x 1.63 x 1.7 in (85 x 41 x 43 mm) |
| Weight |
9.17 oz (260 g) |
| MPN |
HE512T-RD |
Buy it if the rifle lives outdoors and the dot has to be there when you look through it. Order the HE512T today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
