The Holosun HE507-PROMAX-GR-PRS is an open reflex competition pistol sight on the Trijicon RMR footprint, running the green Performance Reticle System behind a 1.18 x 0.98 in window.
A large window, a forward-leaning integrated sunshade and a reticle that opens from a 2 MOA dot to an 8, 20 or 32 MOA circle. This one is built around a stage clock rather than a spec sheet.

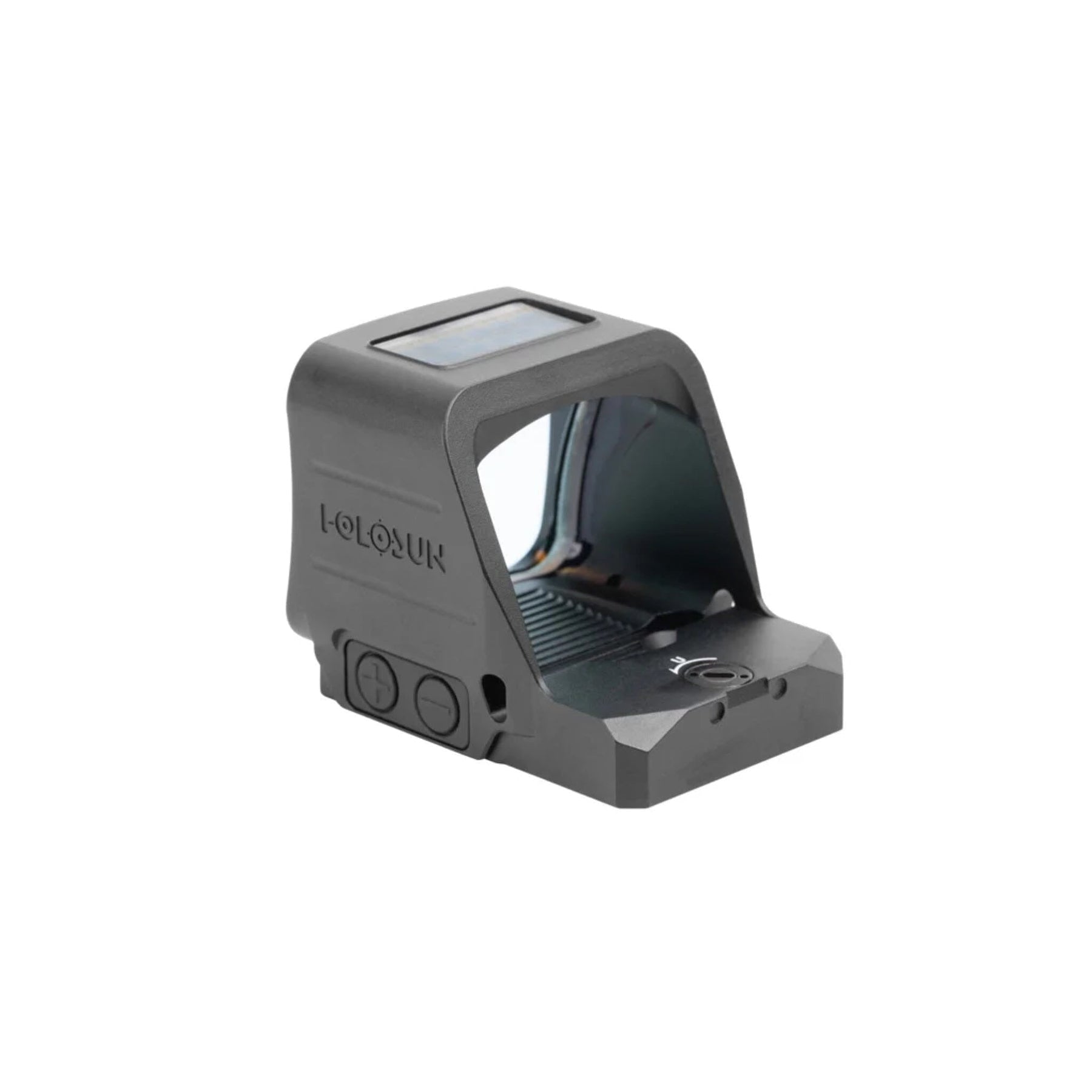

The housing is 7075 T6 aluminium, hard anodised, rated IP67 against water and dust and tested to 5000G, measuring 1.8 x 1.4 x 1.38 in and weighing 1.7 oz. A CR1632 loads from a tray in the side, so the cell changes without unbolting the optic, and Holosun rate it at up to 100,000 hours at setting six with Solar Failsafe adding daylight power. Shake Awake sleeps the reticle between strings and a lockout mode stops the settings being nudged. Windage and elevation move 1 MOA per click with 30 MOA of travel each way, across eight daylight and four night-vision settings.
The eye reads green as brighter than red at the same output, which is why competitors reach for it on a sunlit range, and the forward-leaning shade is there to keep that brightness usable when the sun is behind the target rather than behind you. Being able to shoot a fine 2 MOA dot on a precision stage and then open the reticle to a 32 MOA circle for close, fast work is the argument for the Performance Reticle System over a fixed dot. The limitation is footprint: this is an RMR-pattern optic, so a slide cut for RMSc will not take it.
Why shooters choose the HE507 ProMax
-
Reticle — green Performance Reticle System — 2 MOA dot, or 8, 20 and 32 MOA circles
-

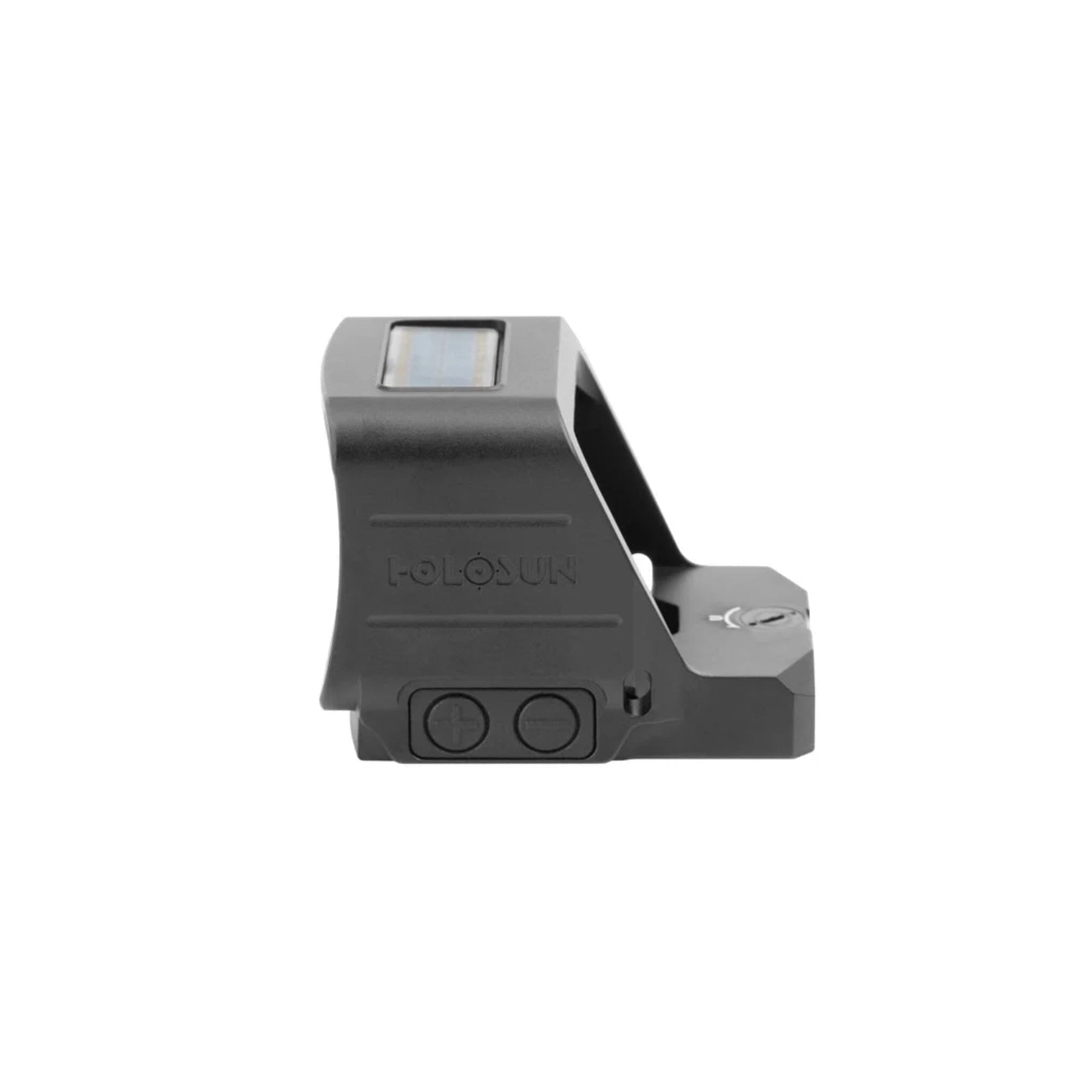

Window — 1.18 x 0.98 in, with a forward-leaning integrated sunshade
-

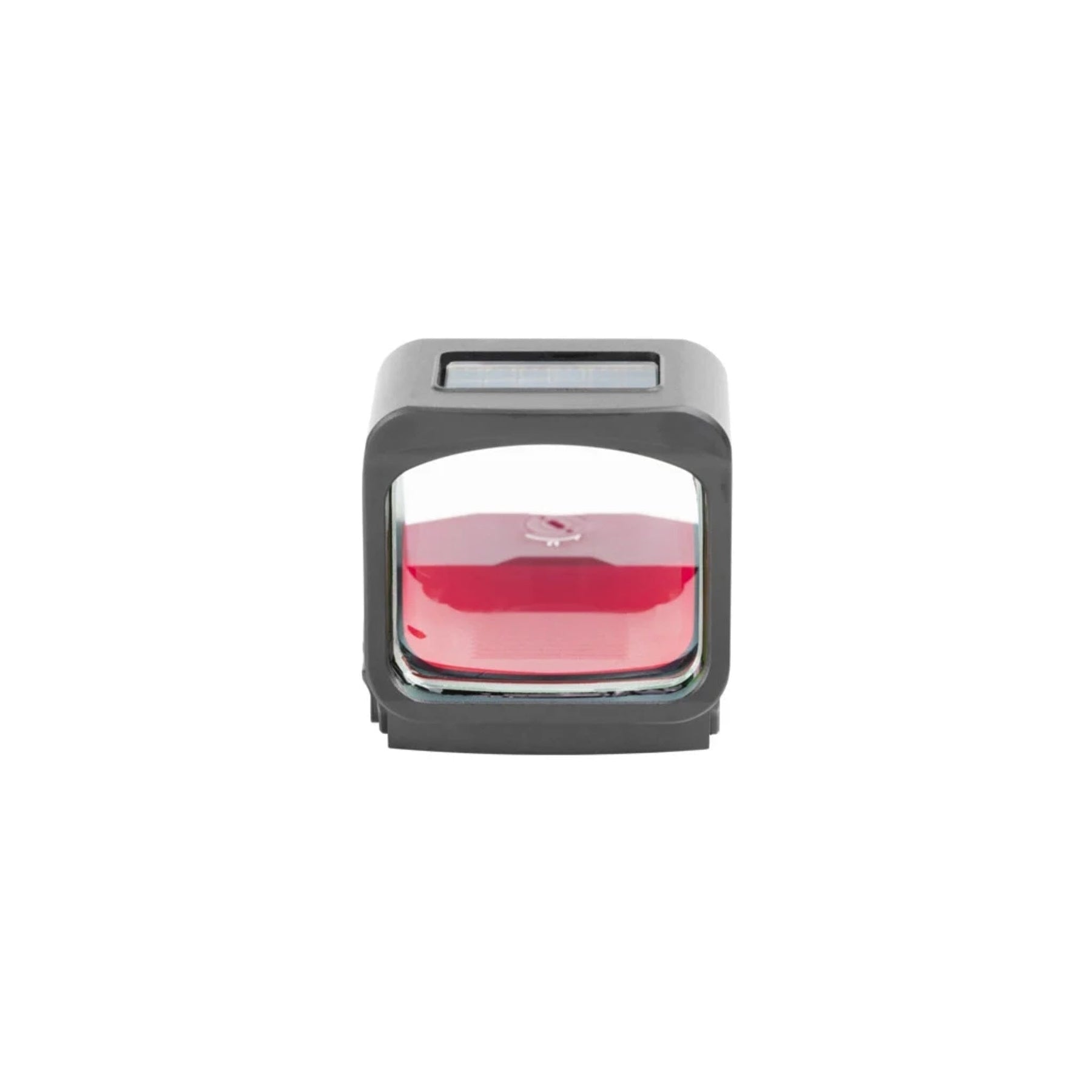

Footprint — Trijicon RMR, for RMR-cut slides and RMR-pattern plates
-

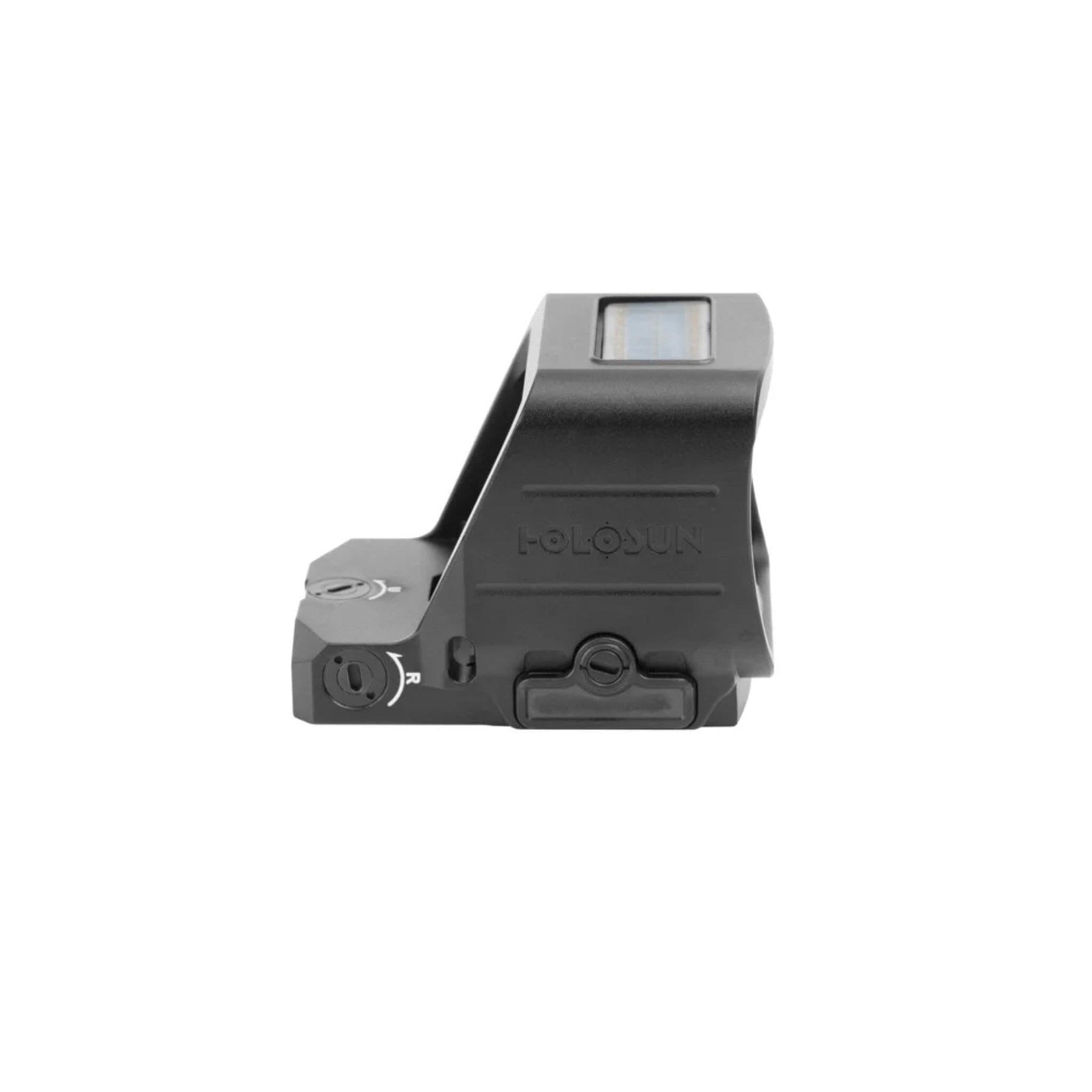

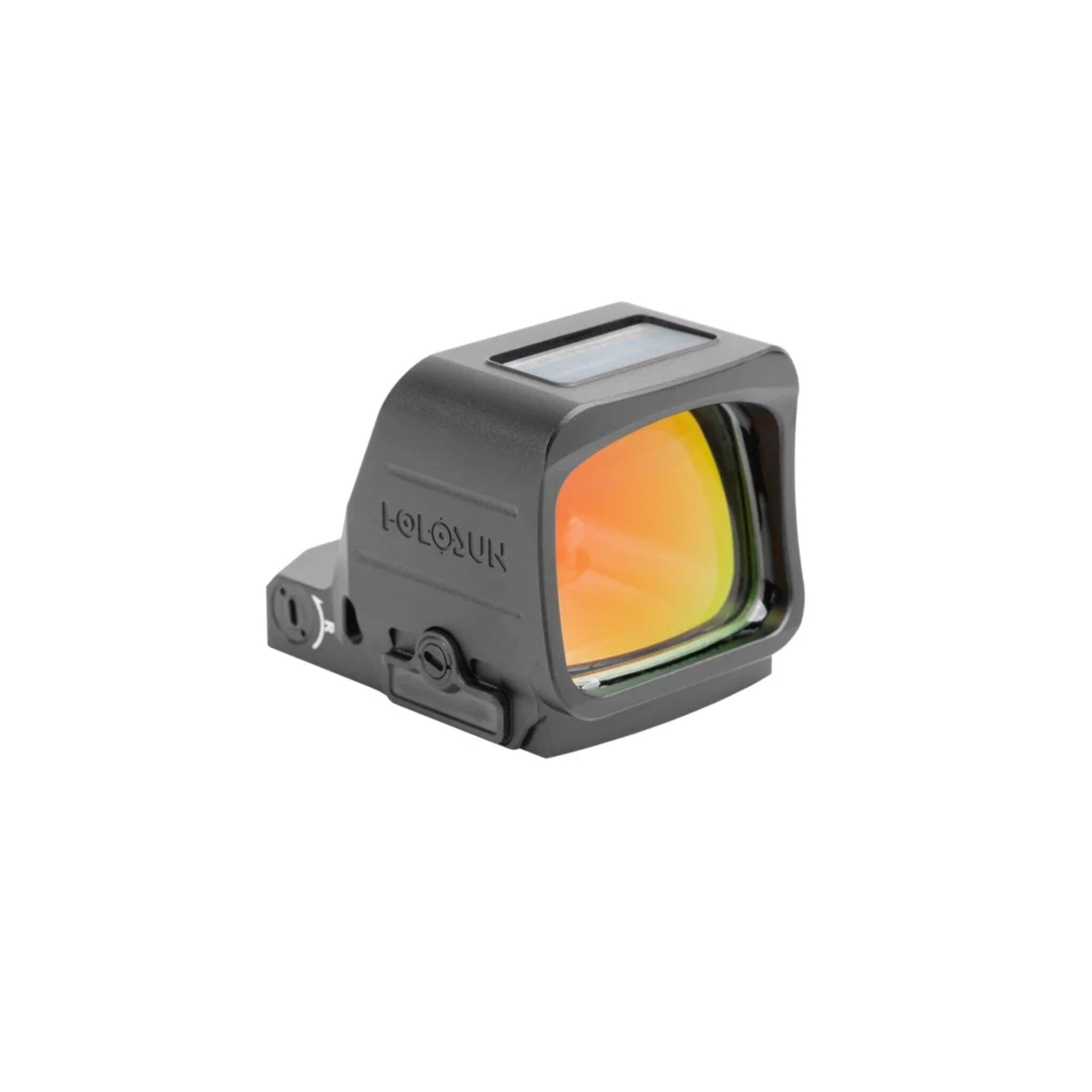

Power — side-loading CR1632 with Solar Failsafe, up to 100,000 hours at setting six
-

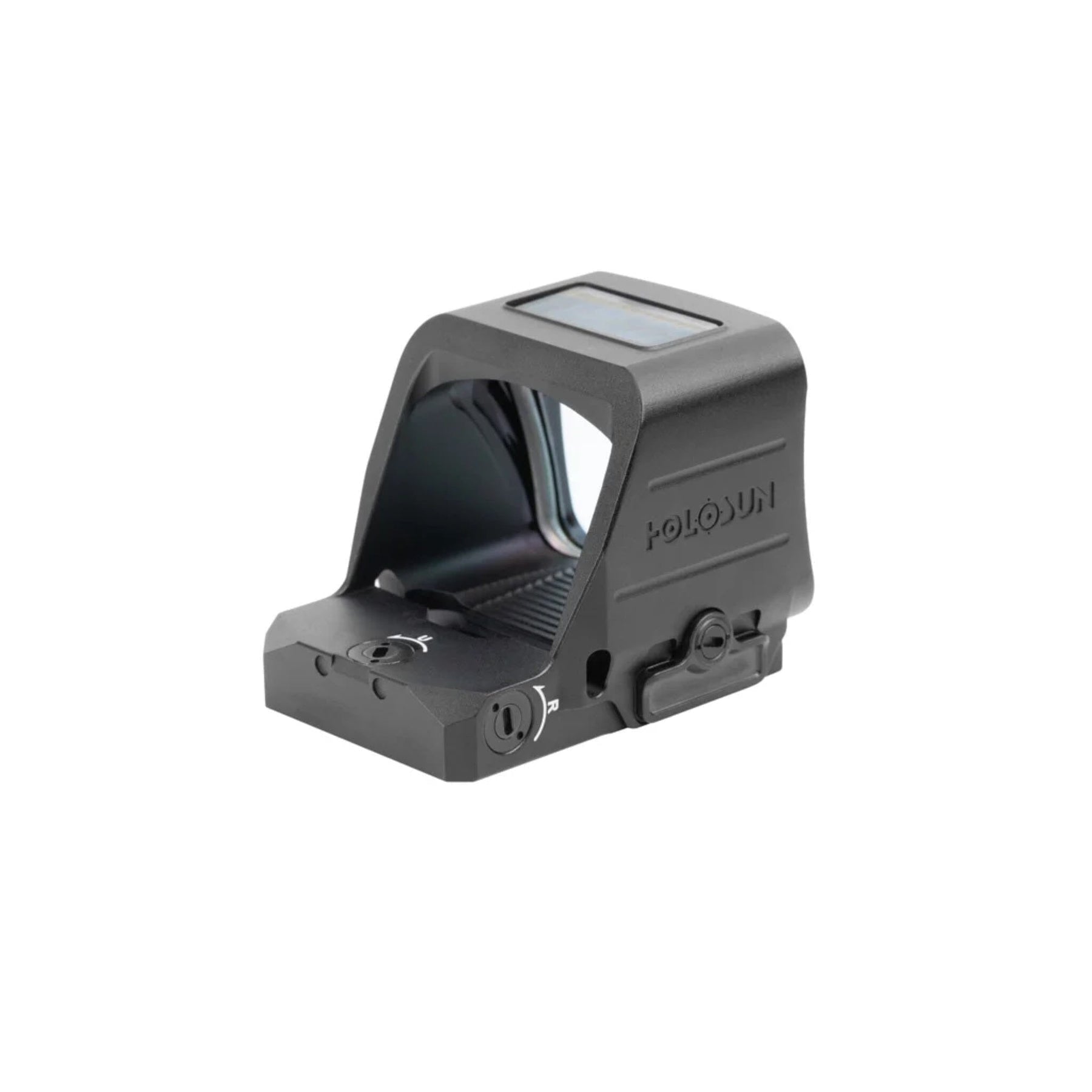

Controls — Shake Awake motion activation and a lockout mode
-

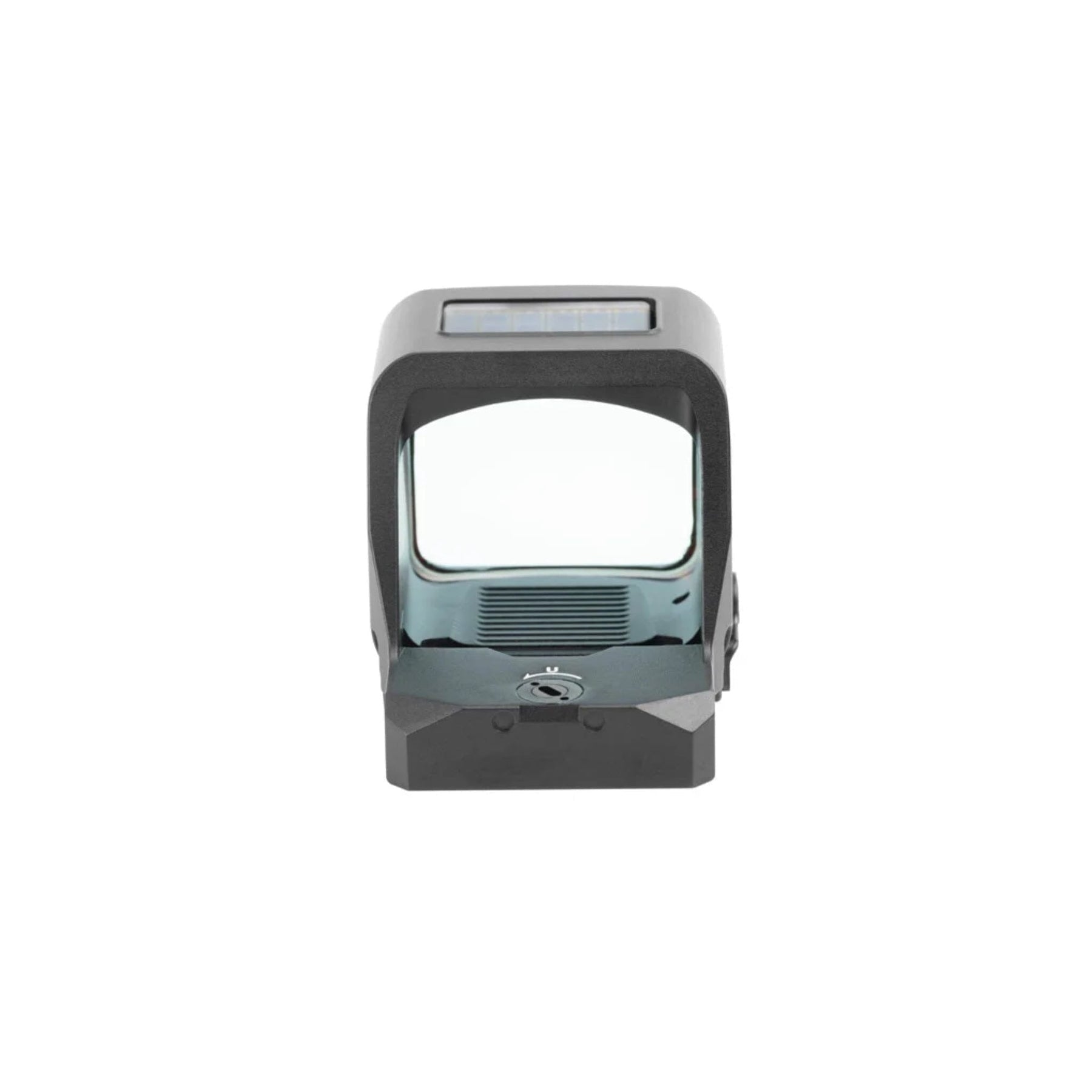

Adjustment — 1 MOA per click with 30 MOA each way, 8 daylight and 4 night-vision settings
-
Build — 7075 T6 hard anodised aluminium, IP67 and 5000G rated, 1.7 oz
What the HE507 ProMax fits
Any slide cut for the Trijicon RMR takes it directly, as does an optics-ready pistol supplied with an RMR-pattern plate. The simpler competition optic without the shade or the solar cell is the HE507COMP Green, the everyday standard-size alternative is the HE507C X3 Green, and more RMR-pattern optics sit in RMR Footprint Red Dot Sights.
Specifications
| Optic type |
Open reflex competition green dot sight, 1x |
| Reticle |
Performance Reticle System — 2 MOA dot / 8, 20, 32 MOA circles |
| Reticle colour |
Green |
| Window size |
1.18 x 0.98 in |
| Sunshade |
Forward-leaning integrated sunshade |
| Footprint |
Trijicon RMR |
| Illumination |
12 settings — 8 daylight / 4 night vision |
| Battery |
CR1632 in a side-loading tray, up to 100,000 hours at setting 6 |
| Power |
Solar Failsafe supplemental power |
| Power management |
Shake Awake and lockout mode |
| Adjustment |
1 MOA per click, 30 MOA each way |
| Housing |
7075 T6 aluminium, hard anodised |
| Dimensions |
1.8 x 1.4 x 1.38 in |
| Weight |
1.7 oz |
| Ratings |
IP67 water and dust resistance, 5000G shock |
| MPN |
HE507-PROMAX-GR-PRS |
Glare control and a reticle you can resize mid-match, on the most widely cut pistol footprint there is. Order the HE507 ProMax today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
Explore more: Green Dot Sights, HE507C X2 Green ACSS Vulcan or browse all Holosun.
