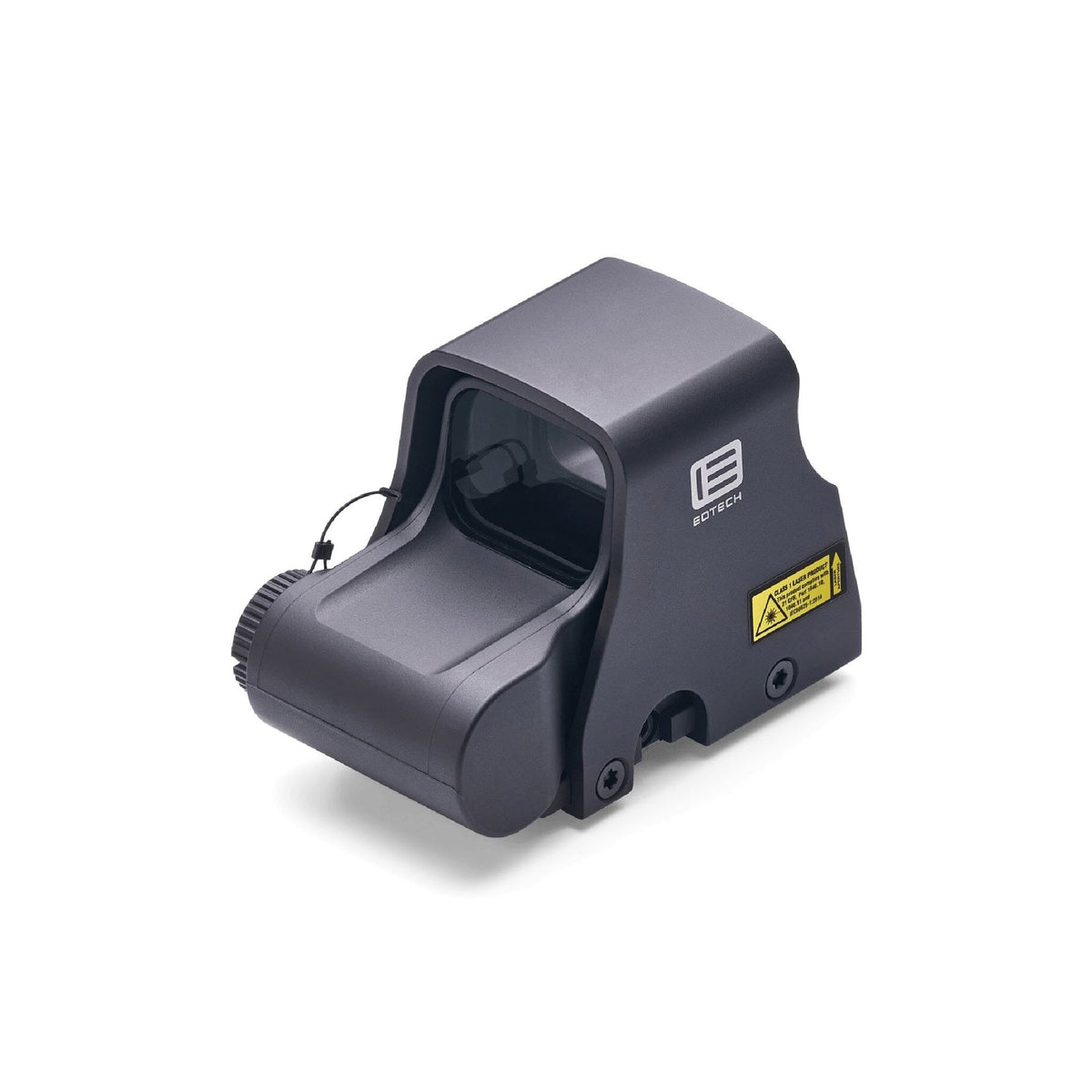

The EOTech XPS2-1 is a 1x holographic weapon sight with a bare 1 MOA red dot and no surrounding ring, clamped to the rail by a 1in Weaver or MIL-STD-1913 cross-bolt.
Take the 68 MOA ring away and what is left is the smallest aiming mark EOTech make, in the largest amount of clear window they can give it — which is exactly what you want if the sight spends most of its life behind a magnifier.

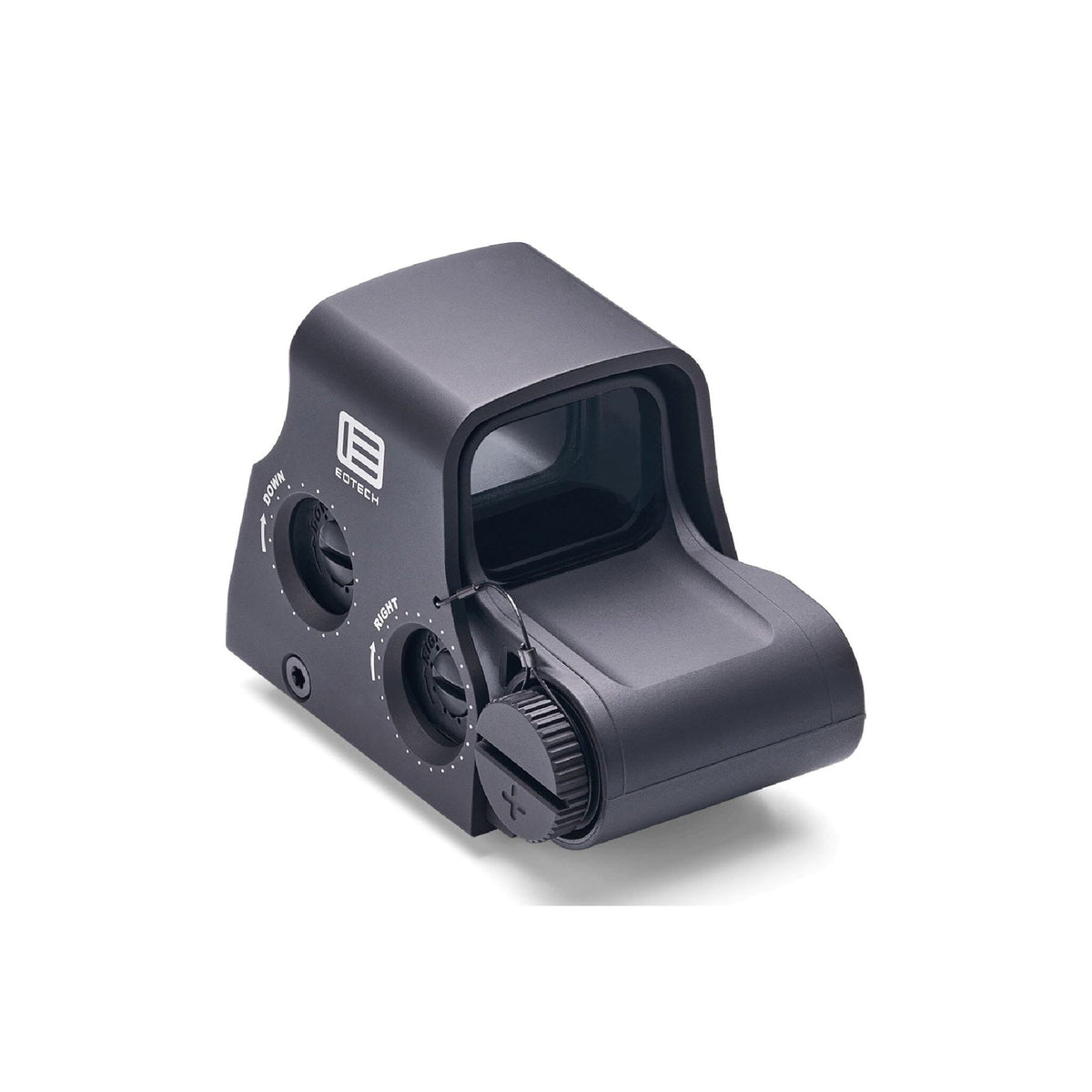

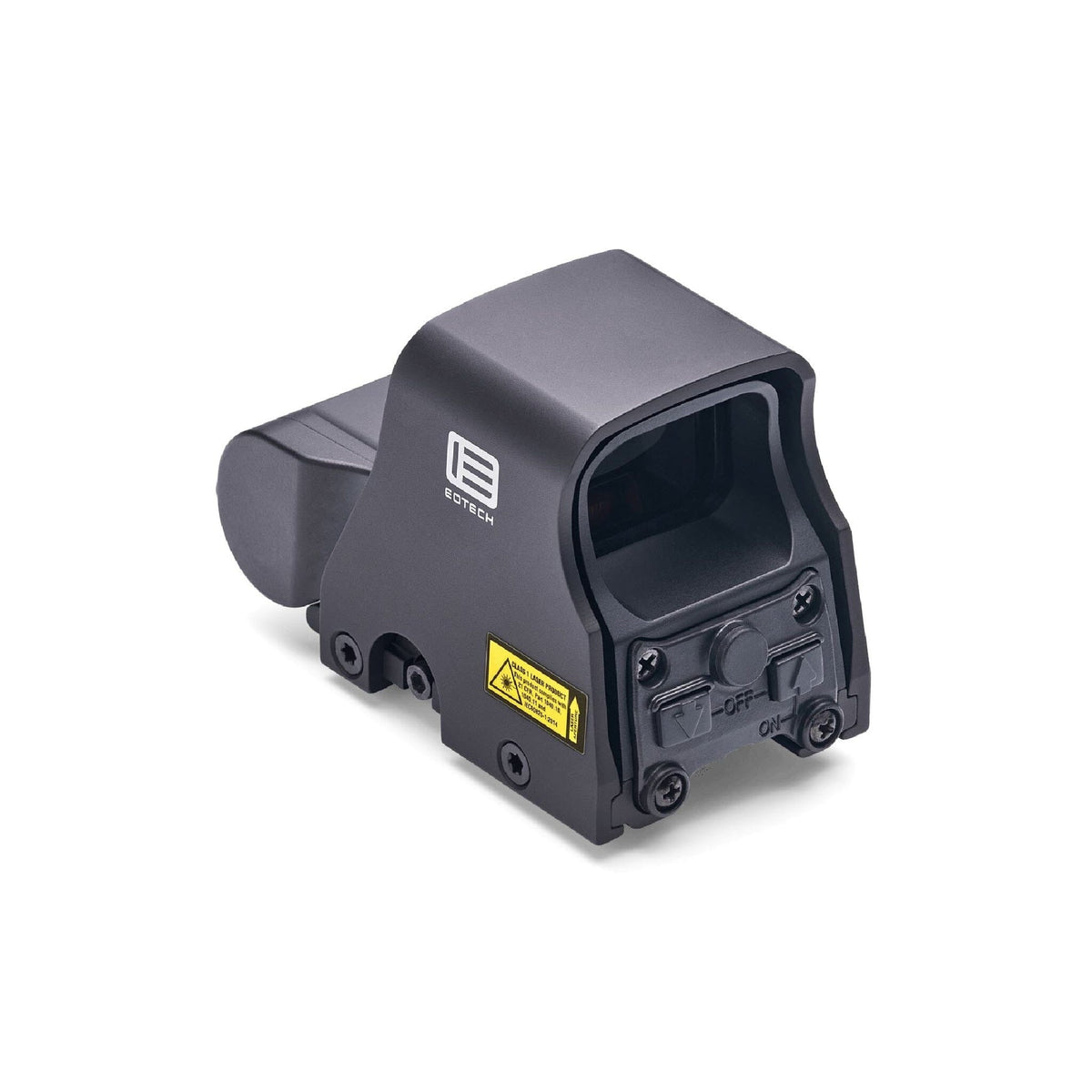

The body weighs 9.0 oz (255 g) and is made in the USA, sealed against submersion to 10 ft (3 m). A single CR123 cell lies transversely across the front of the hood, giving up to 1,000 hours of continuous use, and windage and elevation adjust in 0.5 MOA clicks. The cross-bolt clamp is a fixed fitting rather than a lever, so it is tightened once and left alone.
A ringless reticle suits deliberate shooting: at distance a 1 MOA dot covers very little of the target, and behind a 3x magnifier the ring of a standard EOTech would fill an uncomfortable amount of the magnified picture. The trade is real and worth stating — without the ring, close-range pickup is slower, because there is less for the eye to catch when the rifle comes up in a hurry. This is also a daylight-only sight, with 20 daylight settings and nothing dim enough for night vision.
Why shooters choose the XPS2-1
-
Reticle — a single 1 MOA holographic red dot, with no surrounding ring
-
Window — uncluttered, which is what makes it work well behind a magnifier
-
Illumination — 20 daylight settings, no night-vision settings
-
Turrets — 0.5 MOA per click
-
Mount — 1in Weaver or MIL-STD-1913 cross-bolt clamp
-
Power — one CR123 cell, up to 1,000 continuous hours, 9.0 oz (255 g)
What the XPS2-1 fits
It clamps to any 1in Weaver or MIL-STD-1913 rail, so an AR-pattern flat-top, a straight-pull carbine or a railed shotgun all take it. If you want the ring back for faster close-range pickup, the XPS2-0 adds it around the same dot, and the twin-dot version is the XPS2-2. See the whole holographic sight range.
Specifications
| Magnification |
1x, non-magnified |
| Reticle |
1 MOA red dot only, no ring |
| Illumination |
20 daylight settings, not night-vision compatible |
| Adjustment |
0.5 MOA per click |
| Mount |
1in Weaver or MIL-STD-1913 cross-bolt |
| Battery |
One CR123, up to 1,000 continuous hours |
| Weight |
9.0 oz (255 g) |
| Submersion |
10 ft (3 m) |
| Origin |
Made in USA |
| MPN |
XPS2-1 |
A fine dot, a clear window and nothing else in the way. Order the XPS2-1 today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
