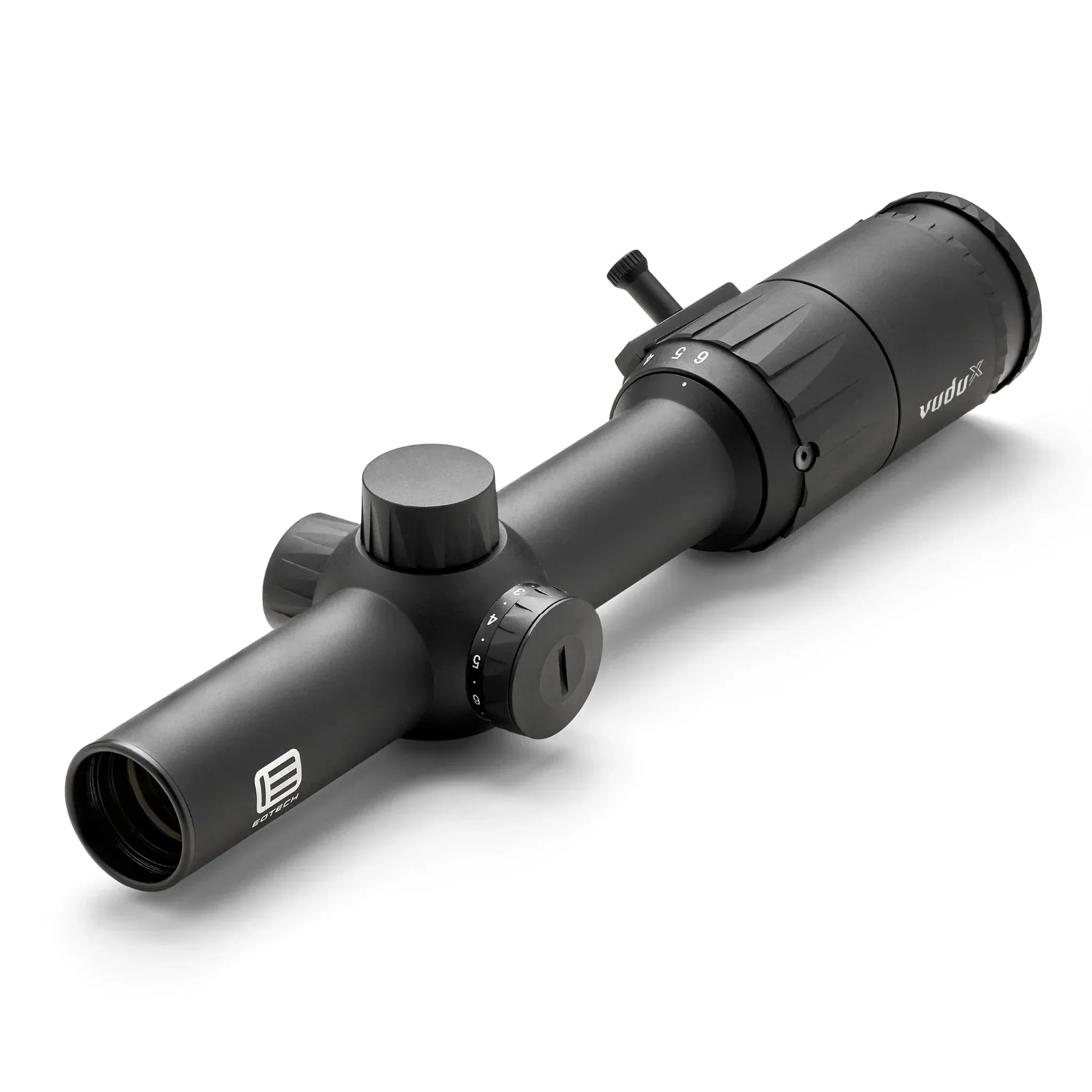

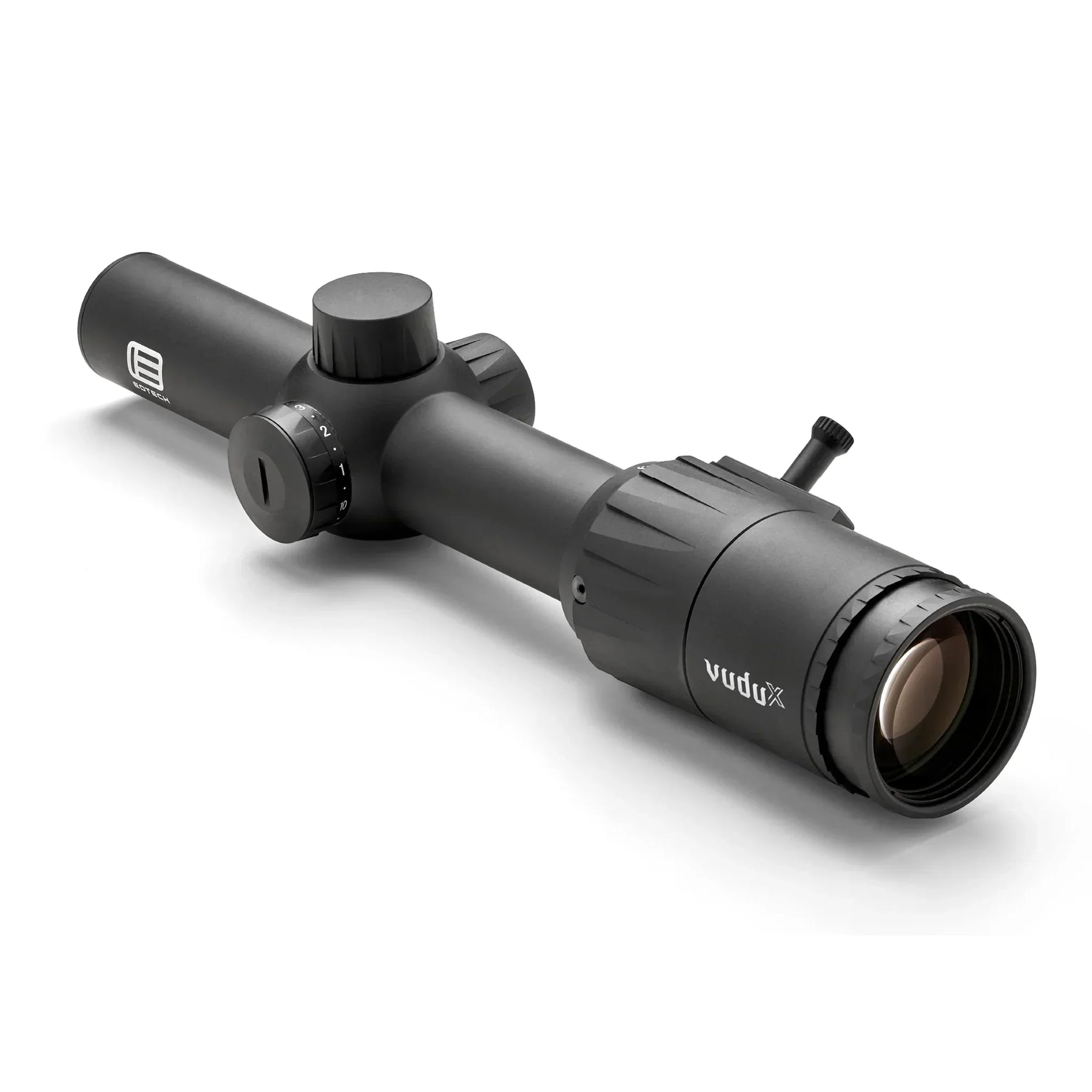

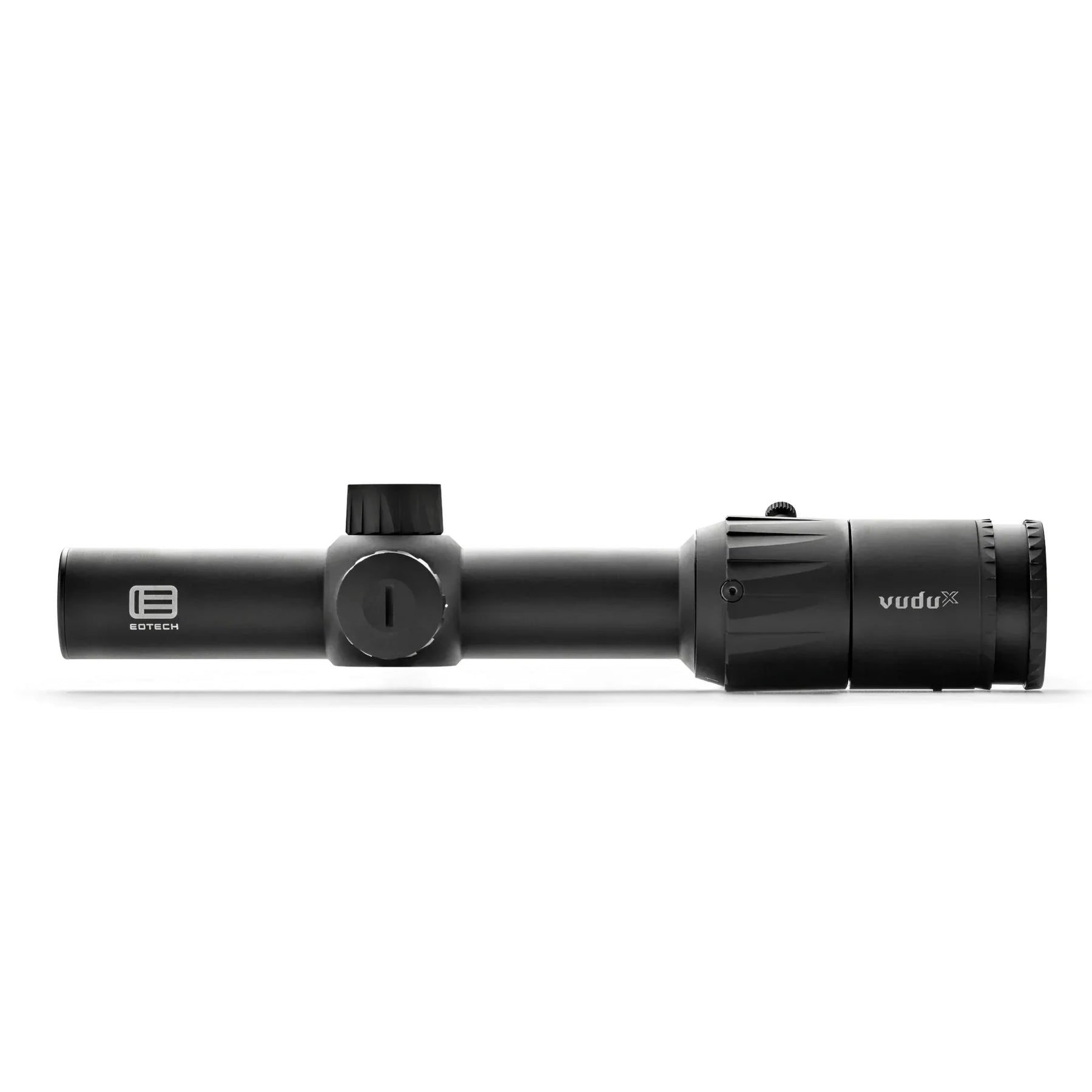

The EOTech Vudu X 1-6x24 is a second focal plane low power variable optic on a 30 mm tube, supplied in black with the illuminated DP1 reticle.
Second focal plane is the deliberate choice here: the DP1 stays the same apparent size however far you zoom, so it never thins away to nothing at 1x or swallows a small target at 6x.
Turrets move in 1/2 MOA clicks with 160 MOA of total travel in both windage and elevation. Illumination runs through 10 operator-controlled brightness levels with an off position between each, so the reticle can be switched off in one click rather than scrolled back down the range. Eye relief is 3.3-3.9 in (84-99 mm). The scope is 10.3 in (261 mm) long, weighs 17.8 oz (505 g) and takes a single CR2032.
It suits a shooter who wants one rifle to work from close range out to the far end of a 6x picture, with a 24 mm objective that is still gathering usable light at dusk and an illuminated reticle for shooting into shadow. The trade to understand before ordering: in the second focal plane the subtensions only read true at one magnification, so if you want holds that scale with the zoom ring, an EOTech Vudu in the first focal plane is the other side of that decision.
Why shooters choose the Vudu X 1-6x24
-
Magnification — 1-6x with a 24 mm objective
-
Reticle — DP1, illuminated, in the second focal plane
-
Illumination — 10 brightness levels with an off position between each
-
Turrets — 1/2 MOA clicks, 160 MOA of total windage and elevation travel
-
Tube — 30 mm aluminium, taking standard 30 mm rings
-
Size — 10.3 in (261 mm) and 17.8 oz (505 g), on one CR2032
What the Vudu X 1-6x24 fits
The 30 mm tube takes any standard 30 mm rings or cantilever mount, which makes an AR-pattern flat-top or a railed bolt action the usual host. The same scope with EOTech's bullet-drop reticle is the Vudu X 1-6x24 BD1, and for a first focal plane alternative at the same magnification see the Vudu 1-6x24 SR3 MOA. Mounts sit in optic mounts.
Specifications
| Type |
LPVO rifle scope |
| Magnification |
1-6x |
| Objective |
24 mm |
| Tube |
30 mm aluminium |
| Focal Plane |
Second focal plane |
| Reticle |
DP1, illuminated |
| Illumination |
10 brightness levels, with an off position between each |
| Adjustment |
1/2 MOA per click |
| Total Travel |
160 MOA windage and elevation |
| Eye Relief |
3.3-3.9 in (84-99 mm) |
| Length |
10.3 in (261 mm) |
| Weight |
17.8 oz (505 g) |
| Battery |
CR2032 |
| Finish |
Black |
| MPN |
VDX1-6SFDP1 |
A reticle that behaves the same at every power, which is exactly what some shooters want. Order the Vudu X 1-6x24 today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
