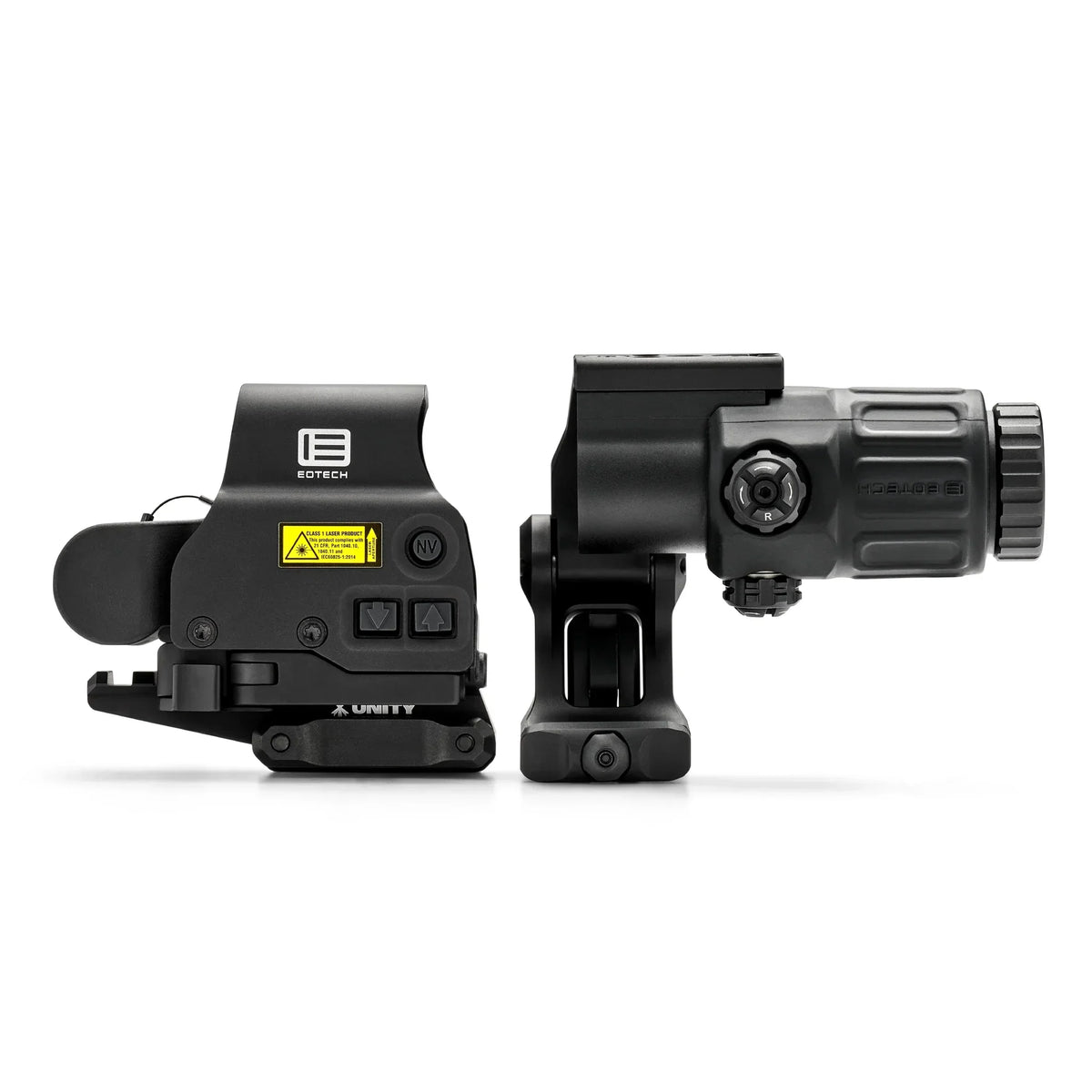

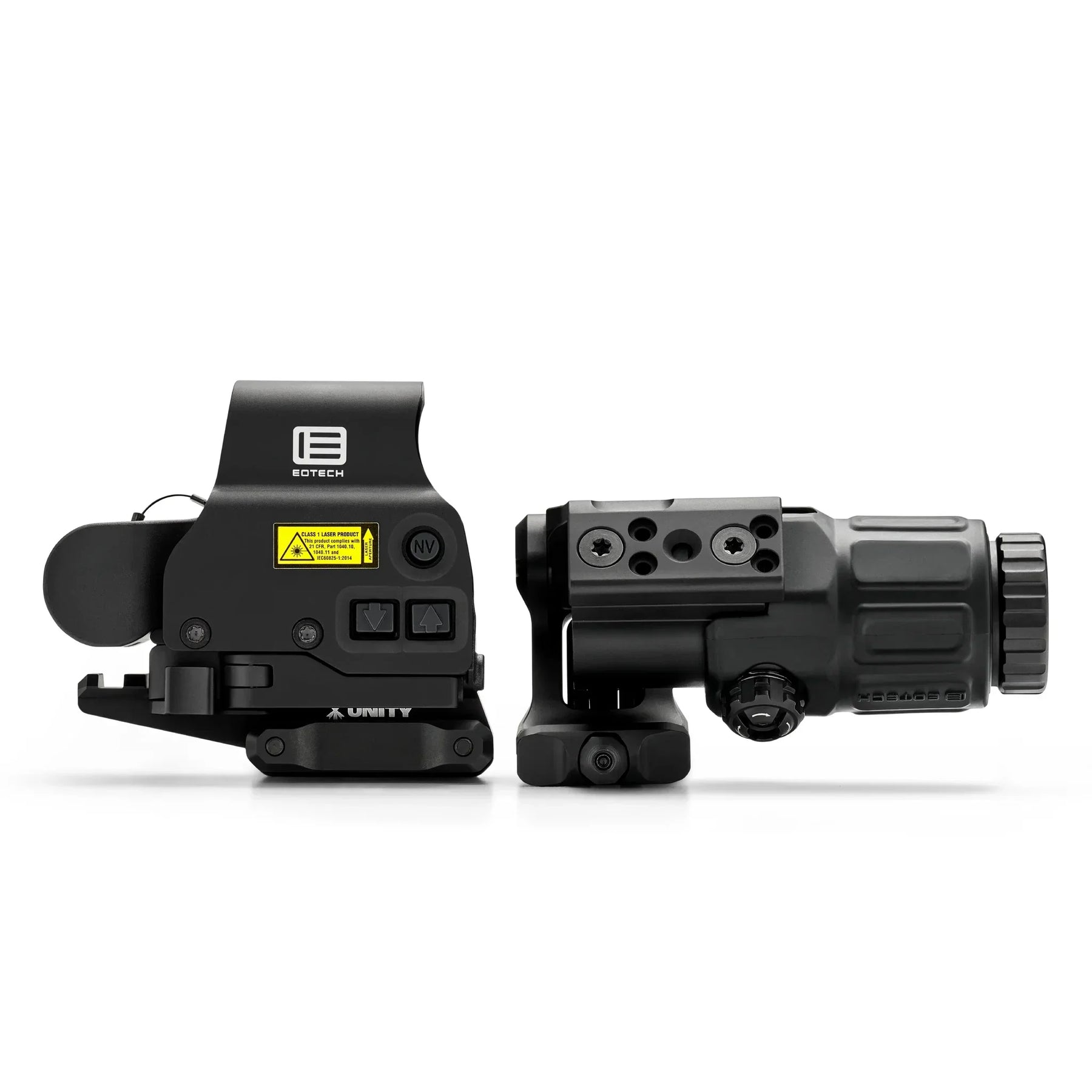

The EOTech HHS UNITY I in black, part number HHS1 FTCU-BLK, is a complete holographic sight system: an EOTech EXPS3-0 holographic weapon sight and a G33 3x magnifier supplied together on a UNITY Tactical FAST FTC OMNI mount with the FAST Optic Riser.
Buying the sight, the magnifier and the mount separately is where most builds go wrong. This one arrives as a matched set at a known height, with nothing left to work out.
The EXPS3-0 projects a 68 MOA ring with a 1 MOA dot at 1x, with 20 brightness settings of which 10 are compatible with night vision, and turrets that move 0.5 MOA per click. Power comes from a single CR123 cell, which EOTech rates at 1,000 continuous hours at nominal setting 12 at room temperature. The complete system weighs 26.3 oz, measures 8.35 x 2.65 x 3.6 in and is rated to a depth of 33 ft (10 m).

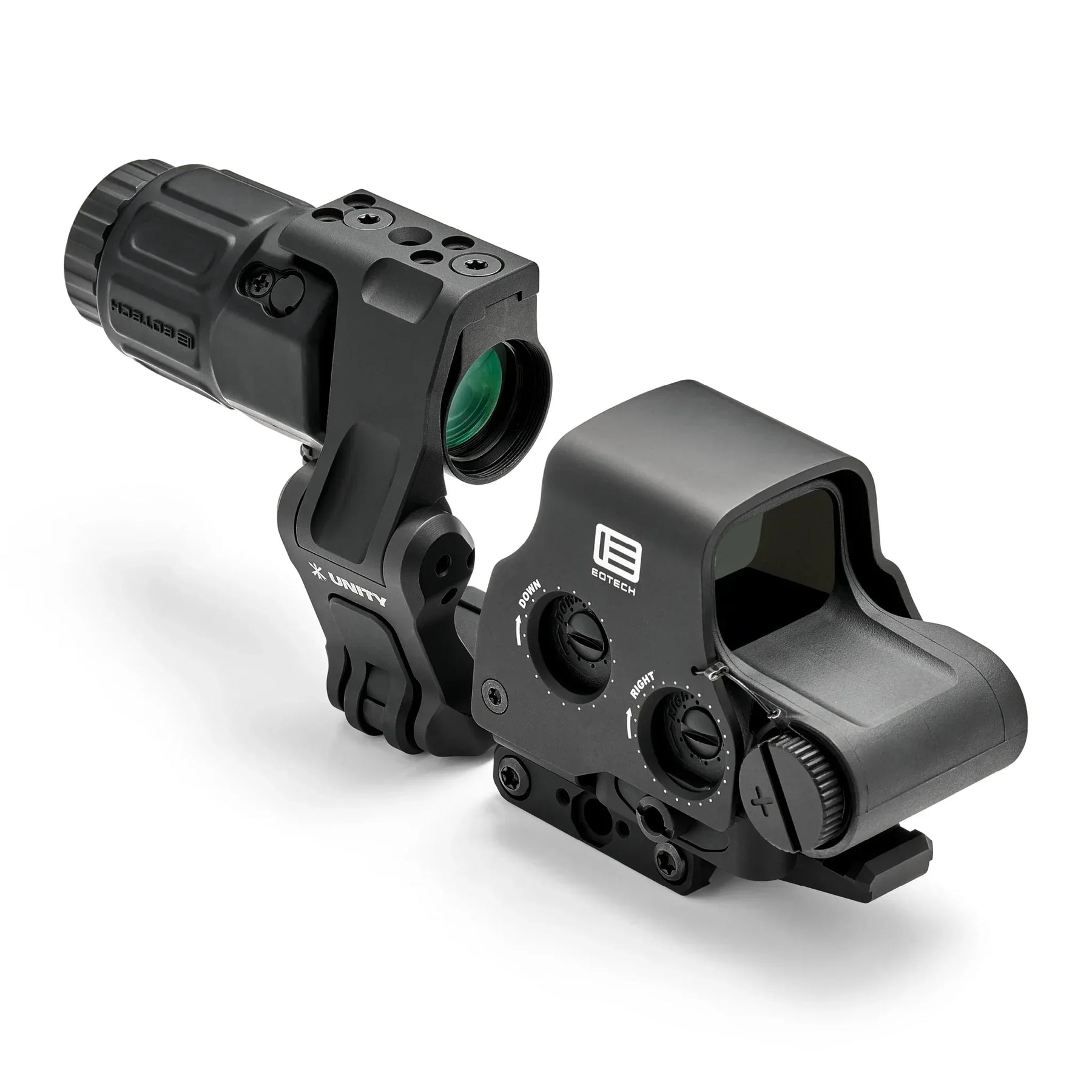

The UNITY FAST FTC OMNI mount with its Optic Riser sets the optical centreline 2.26 in above the rail — a raised height rather than an iron-sight co-witness, which brings the head up off the stock and speeds up the sight picture in body armour or under a helmet. The magnifier lives on the same mount and swings to the centre behind the sight when magnification is wanted, so the ring and dot stay where they were the rest of the time. If your build is set up around a co-witness height, this is not that system.
Why shooters choose the HHS UNITY I
-

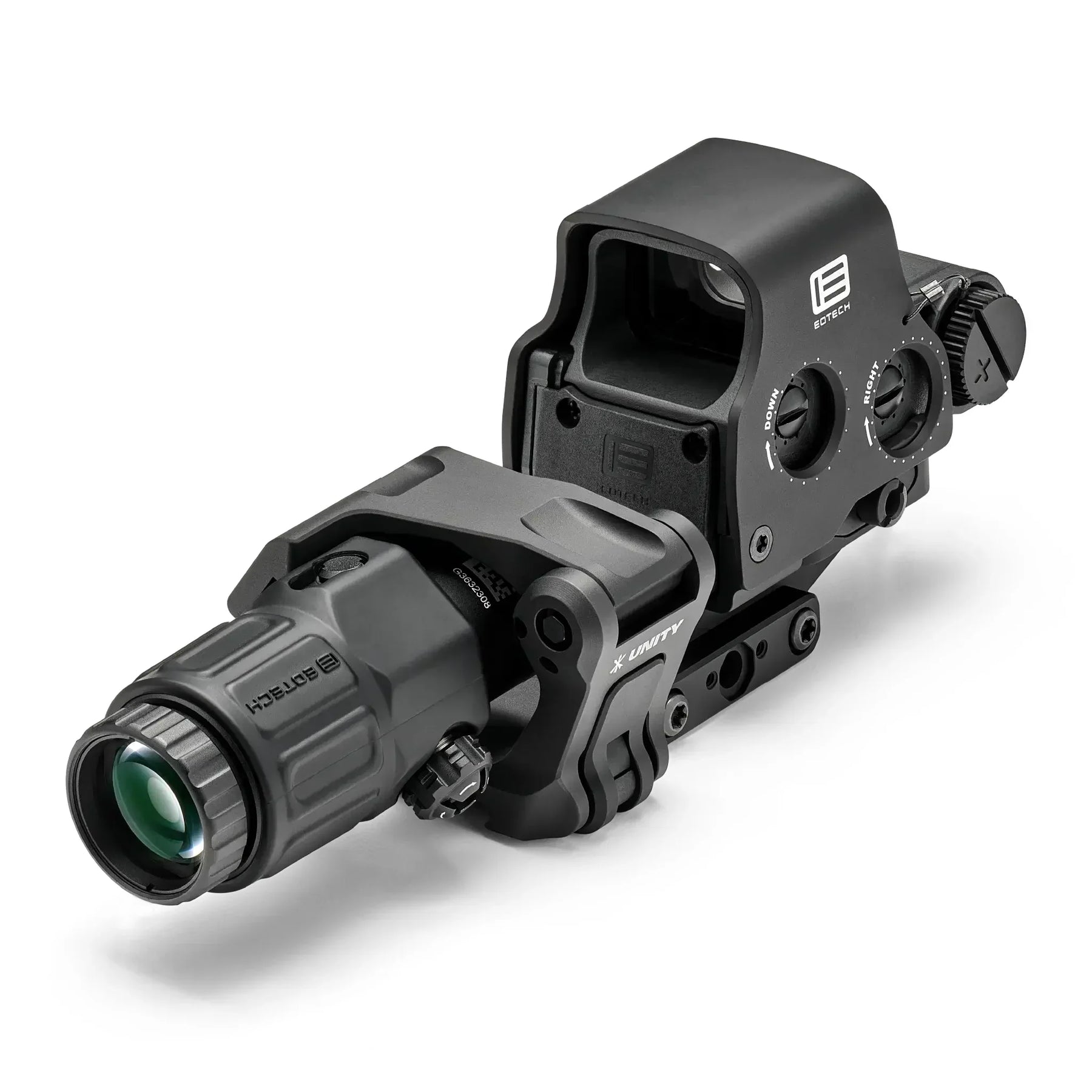

Reticle — 68 MOA ring with a 1 MOA dot
-
Components — EXPS3-0 holographic weapon sight plus G33 3x magnifier
-
Mount — UNITY Tactical FAST FTC OMNI with FAST Optic Riser, 2.26 in optical centreline
-
Illumination — 20 settings, 10 of them night-vision compatible
-
Turrets — 0.5 MOA per click
-
Power and build — one CR123 cell rated 1,000 continuous hours, 26.3 oz complete, rated to 10 m
What the HHS UNITY I fits
The mount clamps to a MIL-STD-1913 Picatinny rail, so any flat-top AR-pattern upper or straight-pull receiver with enough rail length for both bodies will take it. The same system in tan is the HHS UNITY I in Tan, and for a co-witness-height hybrid on EOTech's own mounts see the HHS VI with the EXPS3-2 and G43. More sit in holographic sights.
Specifications
| Type |
Holographic weapon sight and magnifier system |
| Sight |
EOTech EXPS3-0 holographic weapon sight, 1x |
| Reticle |
68 MOA ring with 1 MOA dot |
| Magnifier |
EOTech G33 3x |
| Mount |
UNITY Tactical FAST FTC OMNI with FAST Optic Riser |
| Optical centreline |
2.26 in above the rail |
| Brightness |
20 settings, 10 night-vision compatible |
| Adjustment |
0.5 MOA per click |
| Battery |
1x CR123, 1,000 continuous hours at nominal setting 12 at room temperature |
| Weight and size |
26.3 oz, 8.35 x 2.65 x 3.6 in |
| Water resistance |
Rated to 33 ft (10 m) |
| Finish |
Black |
| MPN |
HHS1 FTCU-BLK |
One box, one height, one battery type — and a magnifier that is already aligned with the sight in front of it. Order the HHS UNITY I today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
