The EOTech EXPS3-4 is a 1x holographic weapon sight built around a 68 MOA ring, and its -4 reticle is EOTech's ballistic pattern for 5.56 NATO and .223 firing 62gr M855.
A ballistic holographic reticle does the arithmetic on the glass, so the shooter changes aiming reference rather than turret setting when the target moves out.
Windage and elevation move in 0.5 MOA clicks, and the sight runs a single CR123 lithium cell, which EOTech rates at 1,000 hours at brightness setting 12. Illumination covers 20 daylight settings and 10 for use behind night vision. The housing measures 3.8 x 2.3 x 2.9 in, weighs approximately 11.2 oz (318 g), carries an integrated quick-detach lever for 1in Weaver and MIL-STD-1913 rails, and is waterproof to 33 ft (10 m). It is made in the USA.
It suits the shooter who works several known distances on one course of fire and would rather hold than dial, and the raised base clears an in-line magnifier if you want reach behind it. Two honest limits: the ballistic reticle is drawn around a specific 5.56 load, so a different bullet weight will not track it exactly, and EOTech does not publish a total windage and elevation travel figure for this model.
Why shooters choose the EXPS3-4
-

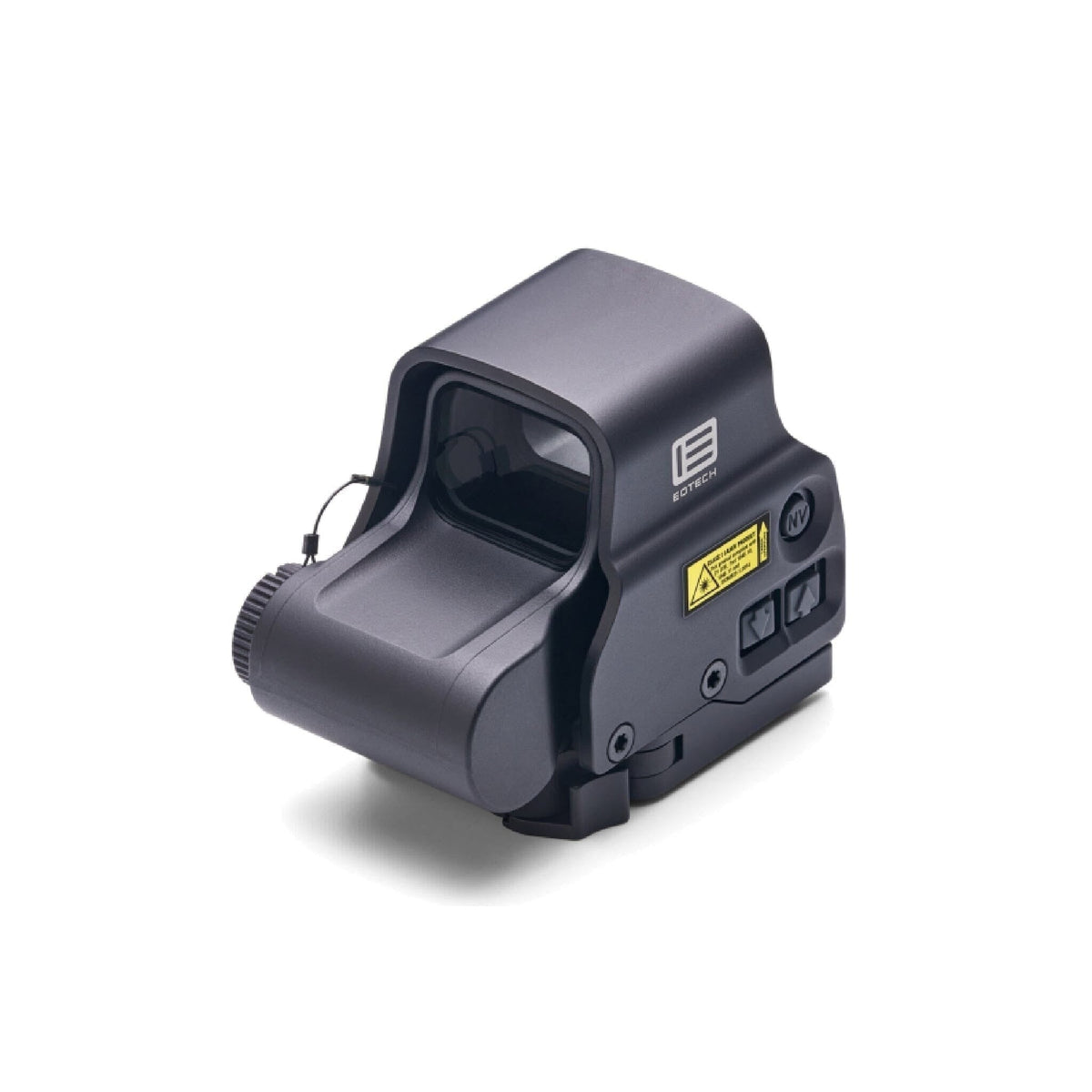

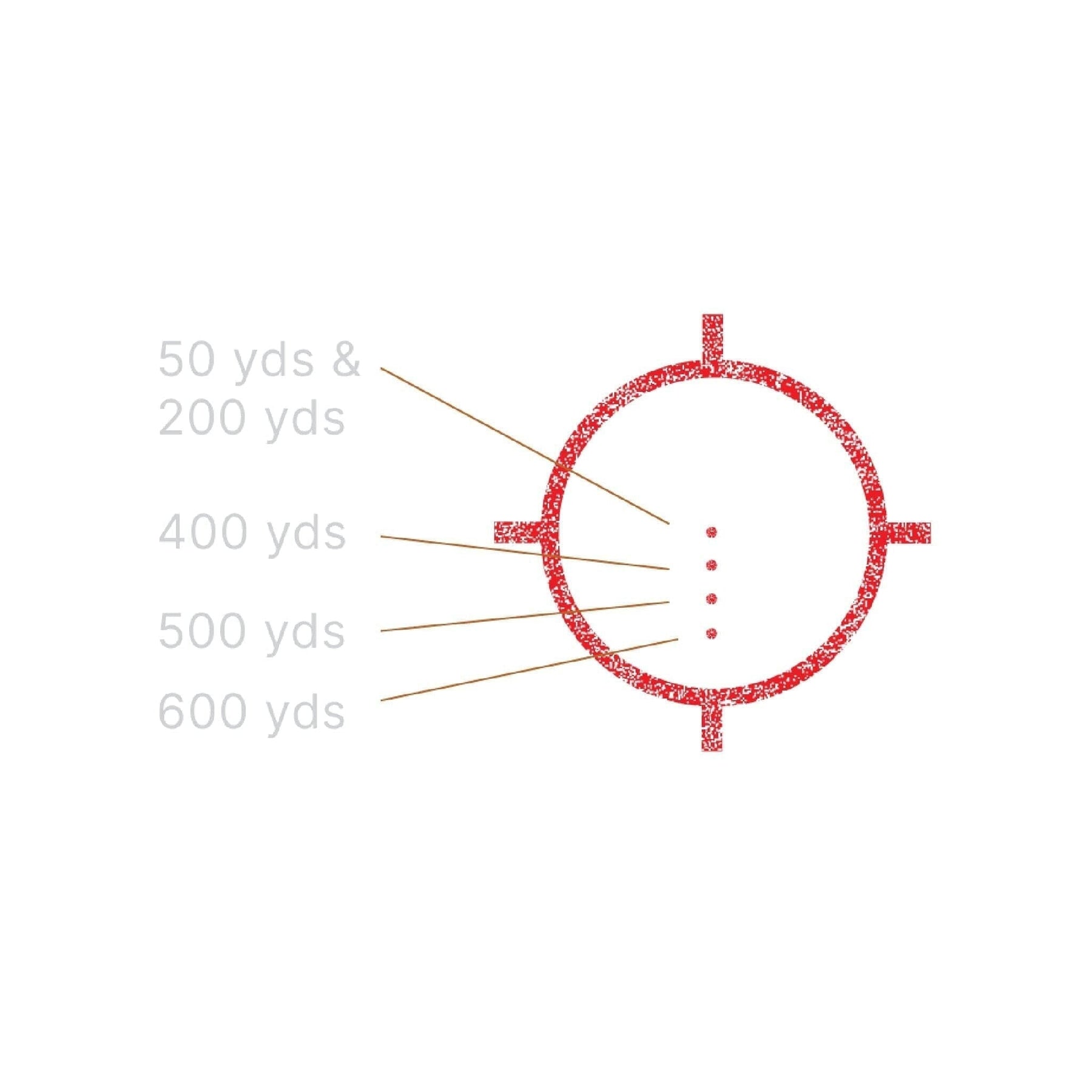

Reticle — holographic ballistic reticle for 5.56 NATO and .223 with 62gr M855, inside a 68 MOA ring
-
Magnification — 1x, parallax-free with no critical eye relief
-
Illumination — 20 daylight settings and 10 night-vision settings
-
Turrets — 0.5 MOA per click for windage and elevation
-
Power — one CR123 lithium cell, rated 1,000 hours at setting 12
-

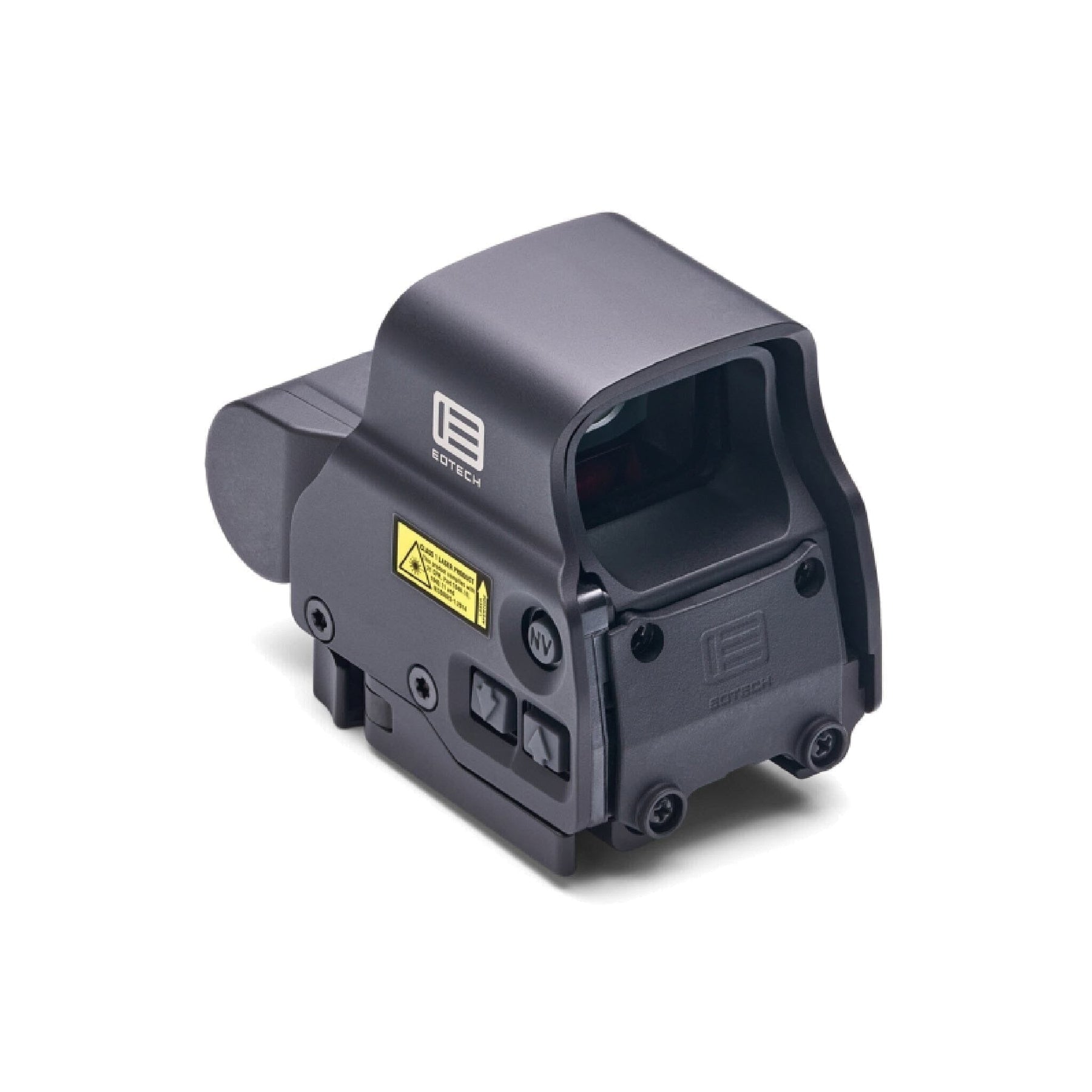

Mount — integrated quick-detach lever for 1in Weaver and MIL-STD-1913
What the EXPS3-4 fits
The quick-detach lever goes straight onto a Picatinny or 1in Weaver rail, so an AR-pattern flat-top or a straight-pull receiver rail takes it without an adapter. If you want a single aiming point instead of a ballistic pattern, the EXPS3-0 is the one-dot sight in the same housing and the EXPS3-2 the two-dot version. The rest of the family sits in holographic sights.
Specifications
| Type |
Holographic weapon sight |
| Magnification |
1x (non-magnified) |
| Reticle |
Ballistic reticle for 5.56 NATO / .223, 62gr M855, in a 68 MOA ring |
| Brightness |
20 daylight / 10 night vision |
| Adjustment |
0.5 MOA per click, windage and elevation |
| Battery |
CR123 lithium, 1,000 hours at setting 12 |
| Mount |
Integrated QD lever, 1in Weaver / MIL-STD-1913 |
| Dimensions |
3.8 x 2.3 x 2.9 in |
| Weight |
Approximately 11.2 oz (318 g) |
| Waterproof |
33 ft (10 m) |
| Origin |
Made in the USA |
| MPN |
EXPS3-4 |
Hold the reference, break the shot, move on. Order the EXPS3-4 today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
Explore more: Holographic Sights, EOTech EXPS3-0 or browse all EOTech
