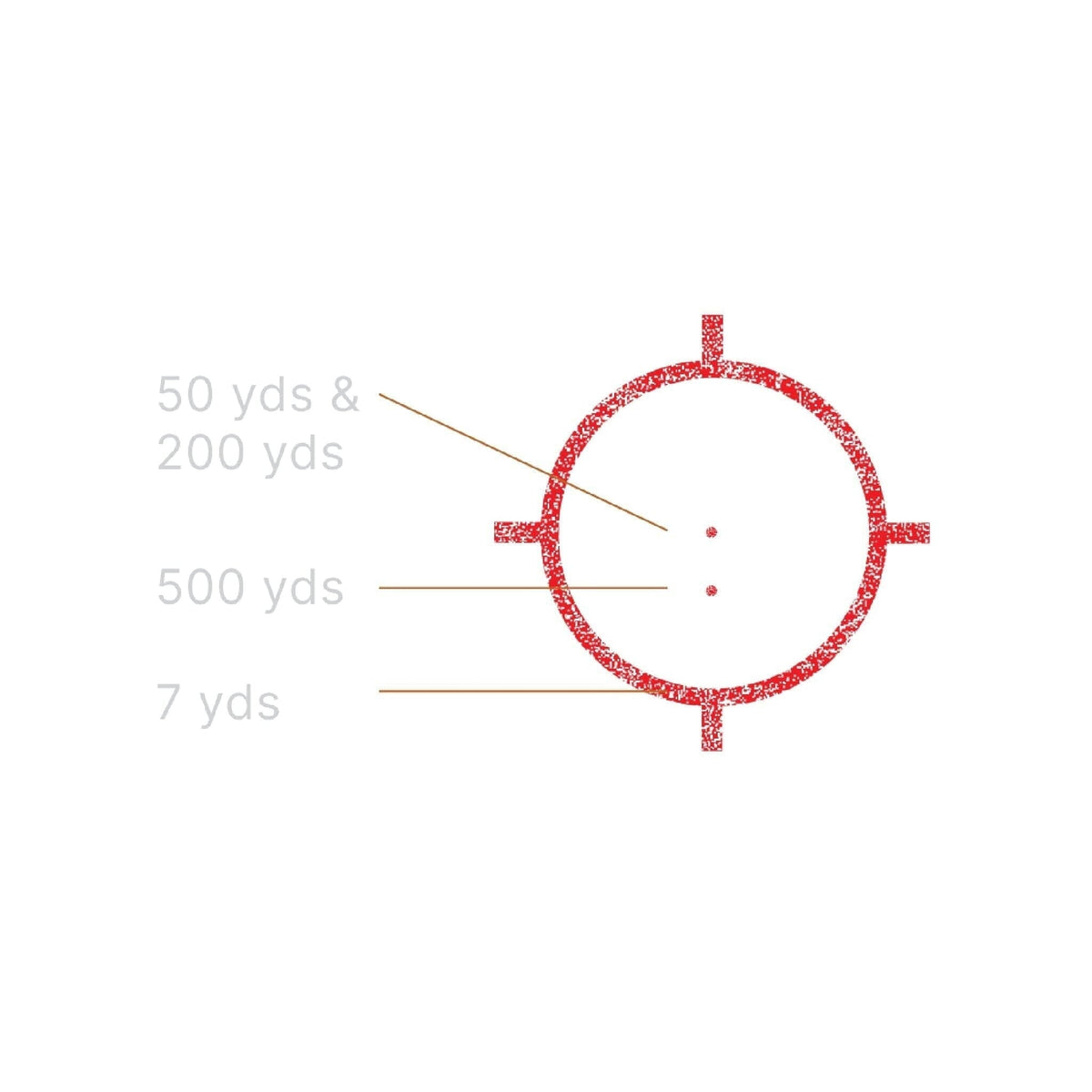

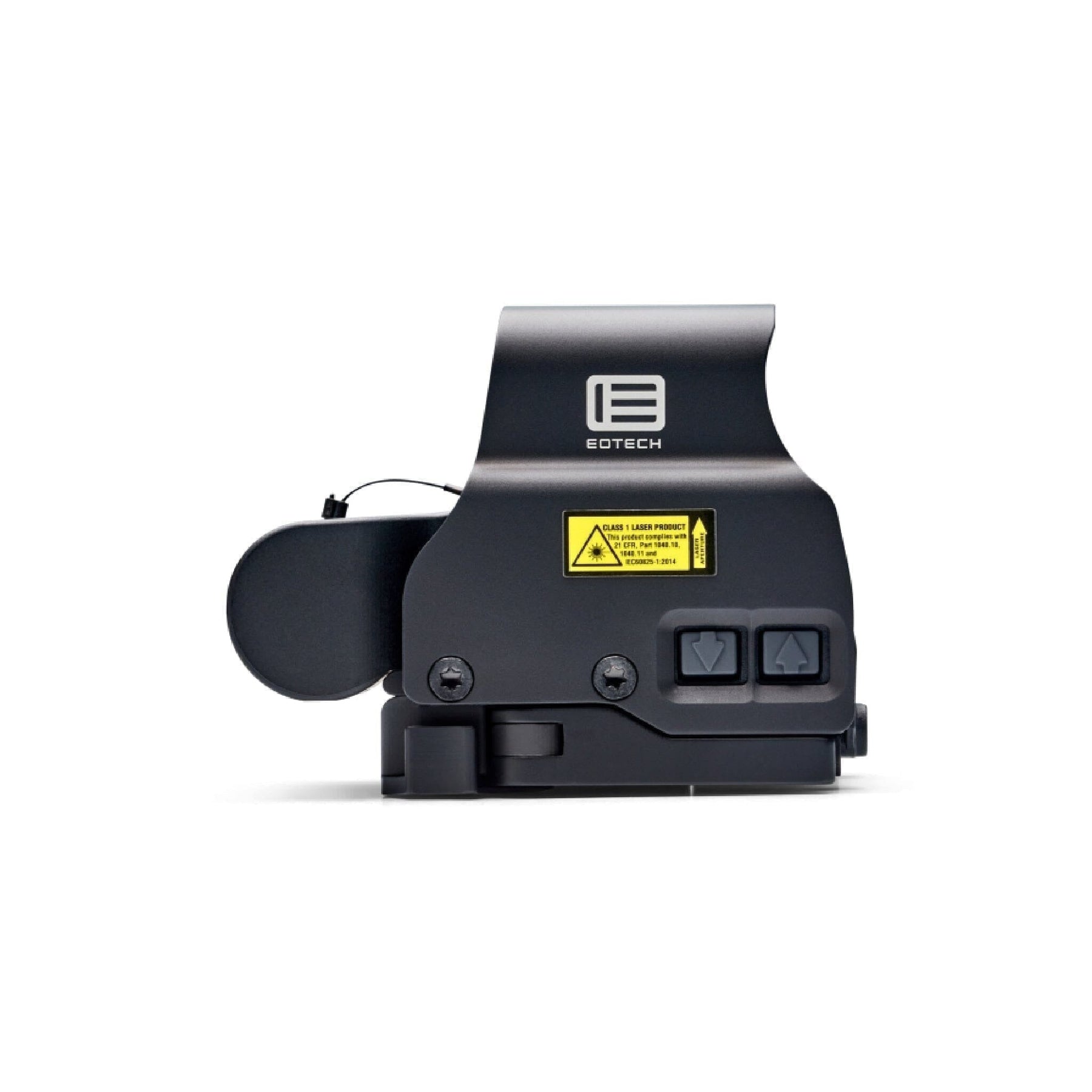

The EOTech EXPS2-2 is a 1x holographic weapon sight whose reticle is a 68 MOA speed ring around two stacked 1 MOA red dots, running from a single transverse CR123 cell.
The second dot is the whole argument for this model. It gives a fixed holdover reference that is always there, always the same distance below the primary aiming point, and costs nothing in window clutter compared with holding the bottom of the ring on a target.

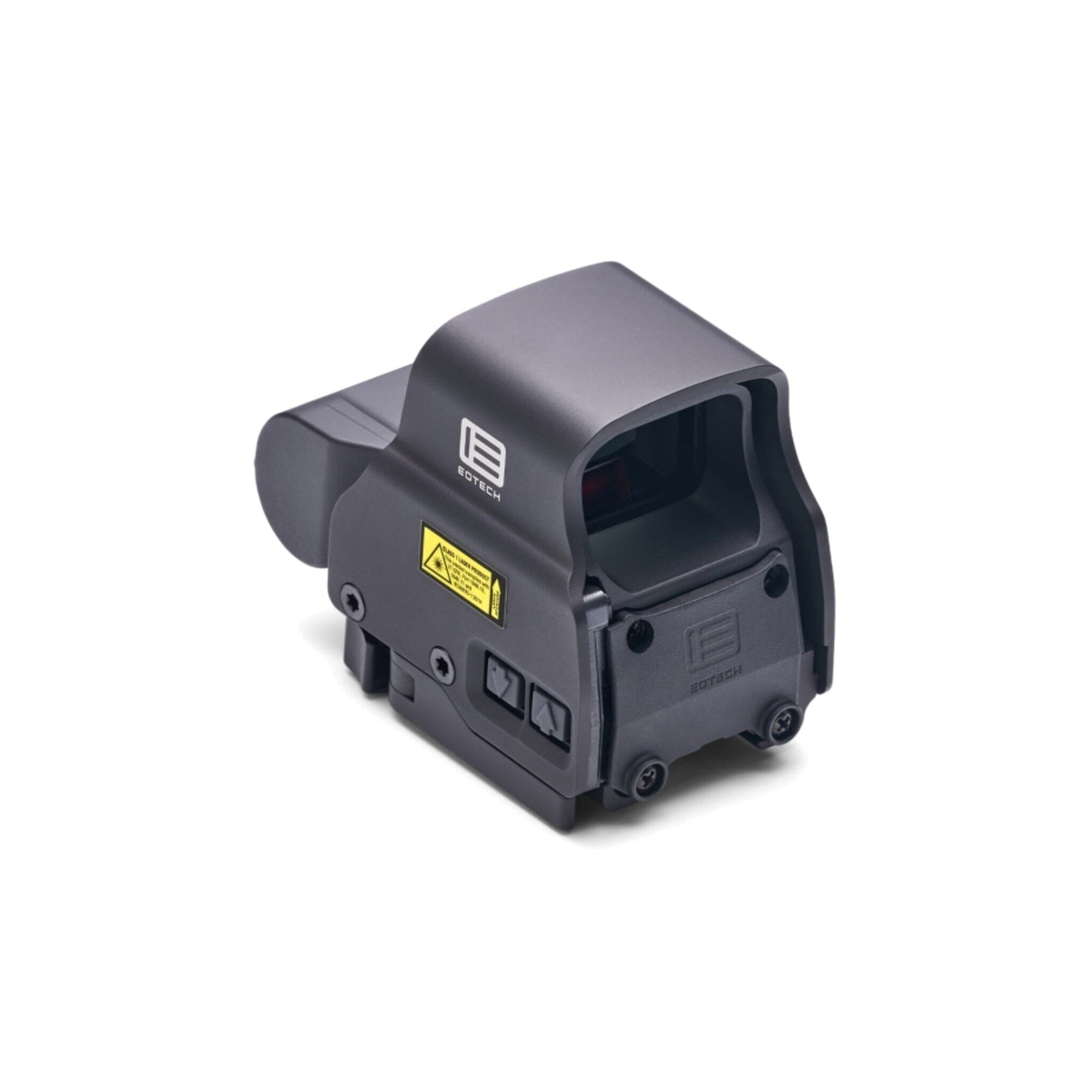

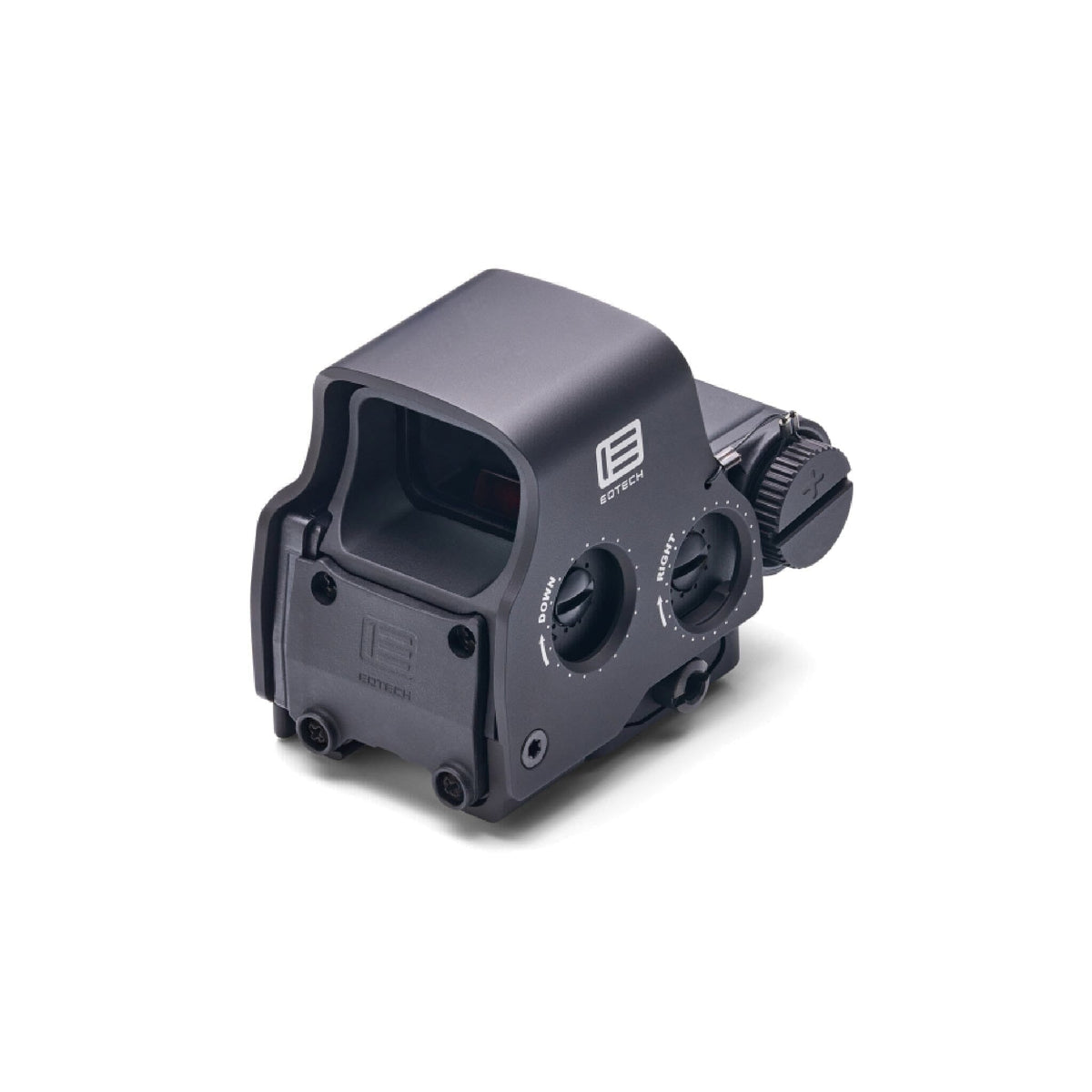

EOTech build it at 3.8 x 2.3 x 2.9in and 11.2 oz (317.5g) in the USA, with an integral quick-detach lever that clamps to a 1in Weaver or MIL-STD-1913 rail without tools. Windage and elevation move in 0.5 MOA clicks. The CR123 sits across the front of the hood rather than under it, which is what keeps the EXPS body short, and EOTech rate it at 1,000 continuous hours at setting 12. Submersion is rated to 10 ft (3 m).

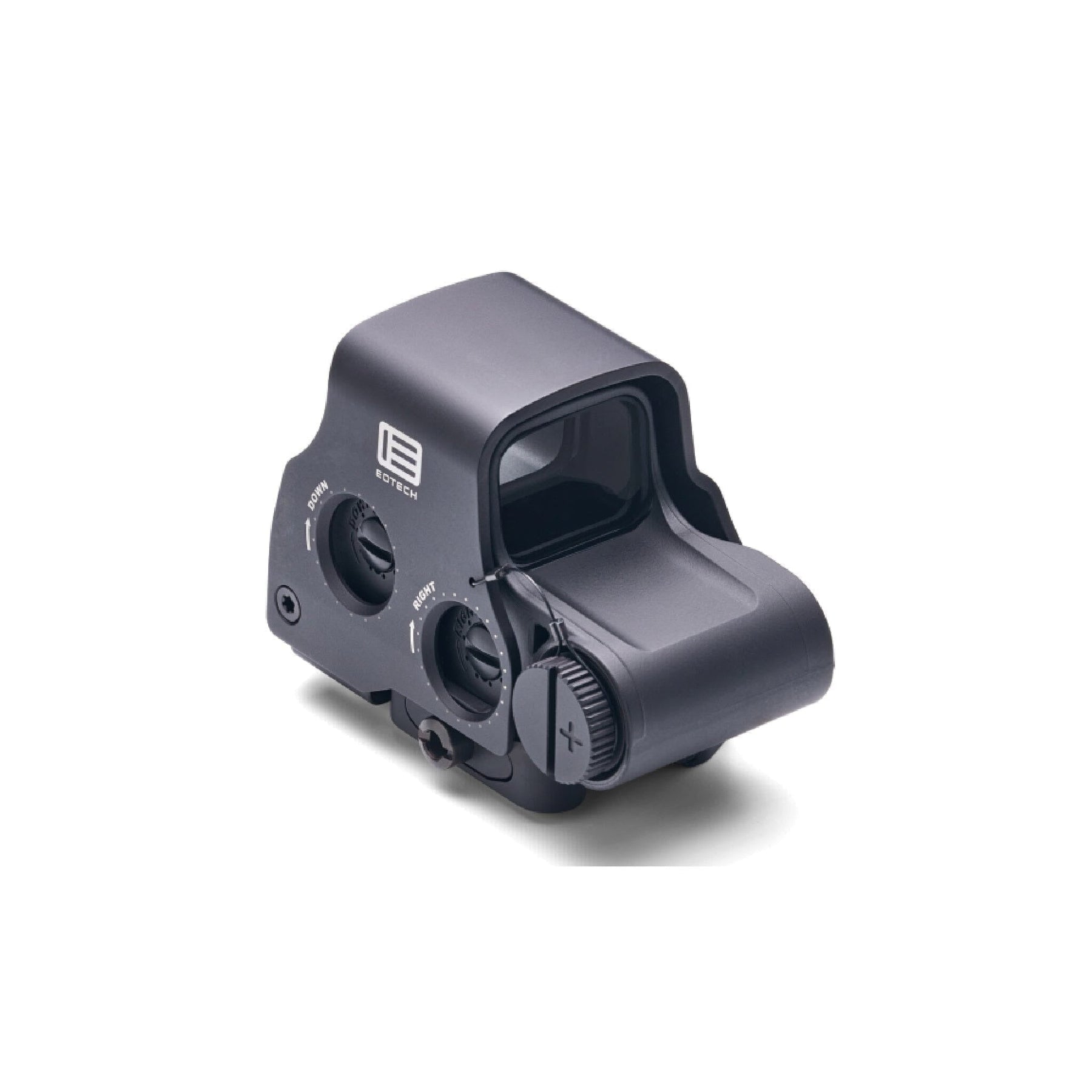

Holographic reticles are worth the battery draw because they stay parallax-free and usable through a window that is scratched, cracked or partly obscured, and because the ring gets the eye onto a close target faster than a bare dot does. The limitation to be clear about is illumination: the EXPS2-2 has 20 daylight settings and no night-vision settings at all, so it will bloom badly behind an image intensifier. If you need to run it under night vision, the EXPS3 body is the one to buy.
Why shooters choose the EXPS2-2
-
Reticle — 68 MOA holographic ring around two stacked 1 MOA red dots
-
Second dot — a permanent, built-in holdover reference below the primary aiming point
-
Illumination — 20 daylight settings, no night-vision settings
-
Turrets — 0.5 MOA per click, windage and elevation
-
Mounting — integral quick-detach lever for a 1in Weaver or MIL-STD-1913 rail
-
Power — one CR123 cell, rated 1,000 continuous hours at setting 12
What the EXPS2-2 fits
Any 1in Weaver or MIL-STD-1913 rail section takes it directly, which covers AR-pattern flat-tops, straight-pull carbines and railed shotguns. For one aiming point instead of two, the EXPS2-0 drops the lower dot, and the EXPS3-2TAN is the night-vision-compatible twin-dot sight in tan. Browse every holographic sight we carry.
Specifications
| Magnification |
1x, non-magnified |
| Reticle |
68 MOA ring with two 1 MOA red dots |
| Illumination |
20 daylight settings, not night-vision compatible |
| Adjustment |
0.5 MOA per click |
| Mount |
1in Weaver or MIL-STD-1913, integral quick-detach lever |
| Battery |
One CR123, 1,000 continuous hours at setting 12 |
| Dimensions |
3.8 x 2.3 x 2.9in |
| Weight |
11.2 oz (317.5 g) |
| Submersion |
10 ft (3 m) |
| Origin |
Made in USA |
| MPN |
EXPS2-2 |
One lever, one battery and two dots that never move relative to each other. Order the EXPS2-2 today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
