The BCM QRF is a free-float quad rail handguard for AR-15 and M4 rifles, with integral 1913 Picatinny rail machined into all four faces.
Every face is a rail, and the barrel still floats — the QRF is the quad rail for shooters who never wanted to give up rigidity to get mounting space.
The QRF (Quad Rail Free Float) is machined from a single billet of 6061-T6 aluminium with the Picatinny rail cut into the extrusion rather than bolted on, then hard-coat anodised to Mil-A-8625F Type III Class 2. BCM's proprietary profile adds cross-sectional strength where a thin-walled quad rail would flex, and the same steel barrel nut used across the KMR, MCMR and QRF series resists movement as the barrel heats.
Free-float construction is the point. A traditional quad rail that hangs off the front sight base transmits every sling load and bipod load straight into the barrel; the QRF does not touch the barrel at all. For a UK straight-pull AR-15 — a rifle that lives on a bipod, a bag or a barricade and is asked for one accurate shot at a time — that isolation is worth more than any other change to the front end.
Continuous rail at 12, 3, 6 and 9 o'clock means the QRF takes anything with a Picatinny clamp without adapters: lights, lasers, vertical and angled grips, bipods, backup sights, night vision. Rail panels or covers make the unused faces comfortable in the hand.
Why shooters choose the QRF
-
Free-float quad rail — full Picatinny coverage without loading the barrel
-
Rail machined into the extrusion — no bolted-on sections to shift or shoot loose
-
Reinforced cross-section — resists flex where thin-walled quad rails give
-
Steel barrel nut — shared with the KMR and MCMR series, holds position under heat
-
Five lengths, 7" to 12" — from a compact front end to near-full-length rail coverage
What the QRF fits

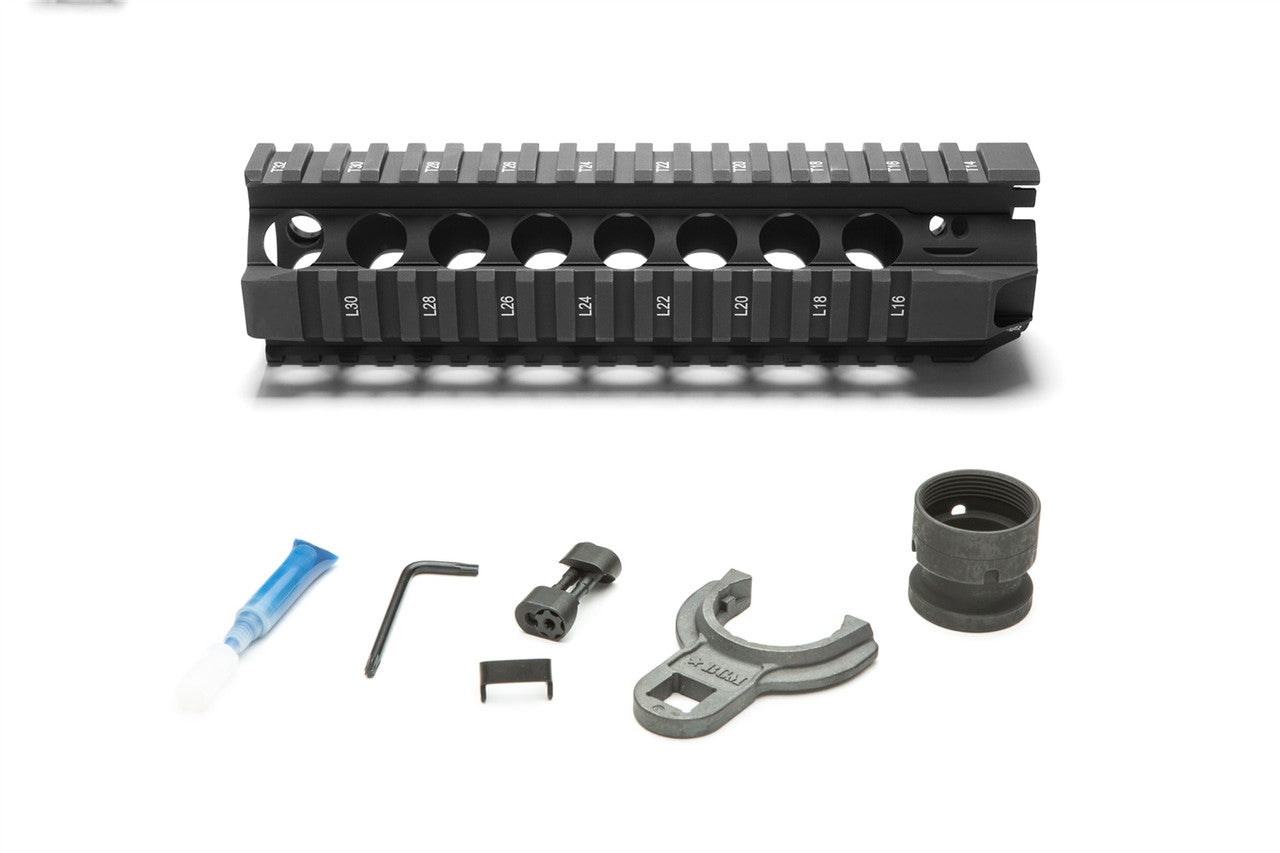

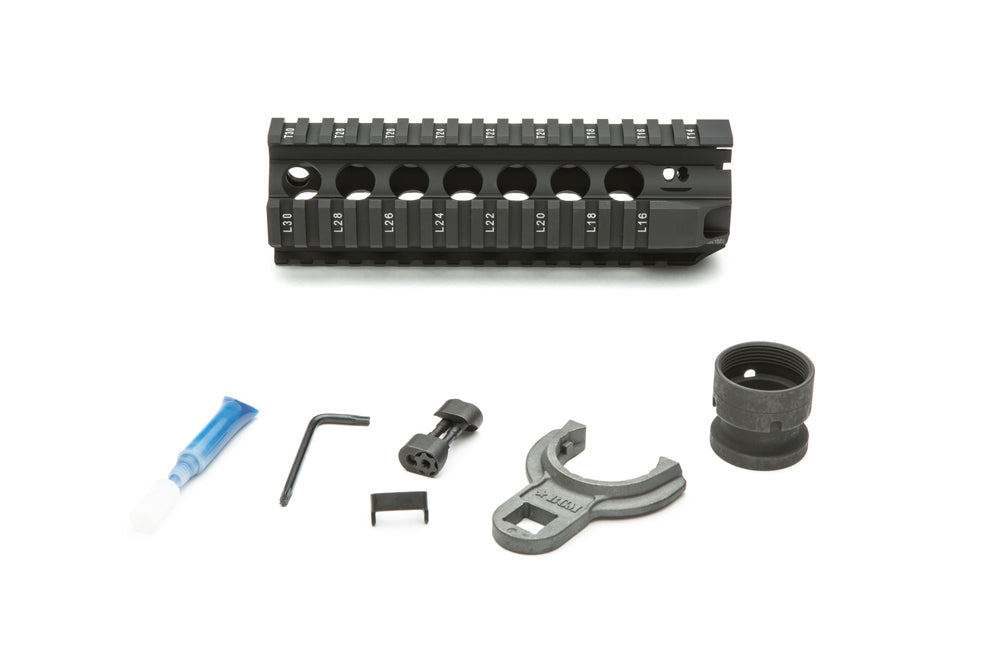

Fits AR-15/M4 upper receivers, including UK straight-pull AR-15 builds, and is supplied with its own steel barrel nut — so fitting means removing the existing handguard and barrel nut, not sliding a new tube over the old one. The handguard must clear your gas block along its full length, so measure from the receiver face to the front of the block before choosing a length. Shorter tubes suit pistol- and carbine-length gas with a low-profile block; 10" and 12" cover mid-length systems. Bear in mind the QRF is the heaviest of BCM's free-float tubes for a given length — that is the cost of full rail coverage, and if you do not need rail on every face, an M-LOK tube saves several ounces.
Specifications
| Platform |
AR-15 / M4 |
| Fits |
Mil-spec upper receivers; steel barrel nut supplied |
| Type |
Free-float quad rail handguard, integral 1913 Picatinny on all four faces |
| Material |
6061-T6 aluminium |
| Finish |
Hard-coat anodised, Mil-A-8625F Type III Class 2 |
| Weight |
7" 7.6 oz (215 g) · 8" 7.5 oz (215 g) · 9" 9.4 oz (265 g) · 10" 12.3 oz (350 g) · 12" 15.1 oz (430 g); mounting hardware 2.3 oz (65 g) |
| Length |
7.24" (184 mm) · 8.00" (203 mm) · 9.24" (235 mm) · 10.36" (263 mm) · 12.62" (321 mm) |
| Mount interface |
Integral 1913 Picatinny rail at 12, 3, 6 and 9 o'clock |
| Brand |
Bravo Company USA |
| MPN |
BCM-QRF-7-556-BLK · BCM-QRF-8-556-BLK · BCM-QRF-9-556-BLK · BCM-QRF-10-556-BLK · BCM-QRF-12-556-BLK |
