The Streamlight TLR RM 1 System, part 69440, is a low-profile single-cell rail-mounted light producing 500 lumens and 11,000 candela for a 210 metre beam, supplied with its remote pressure switch.

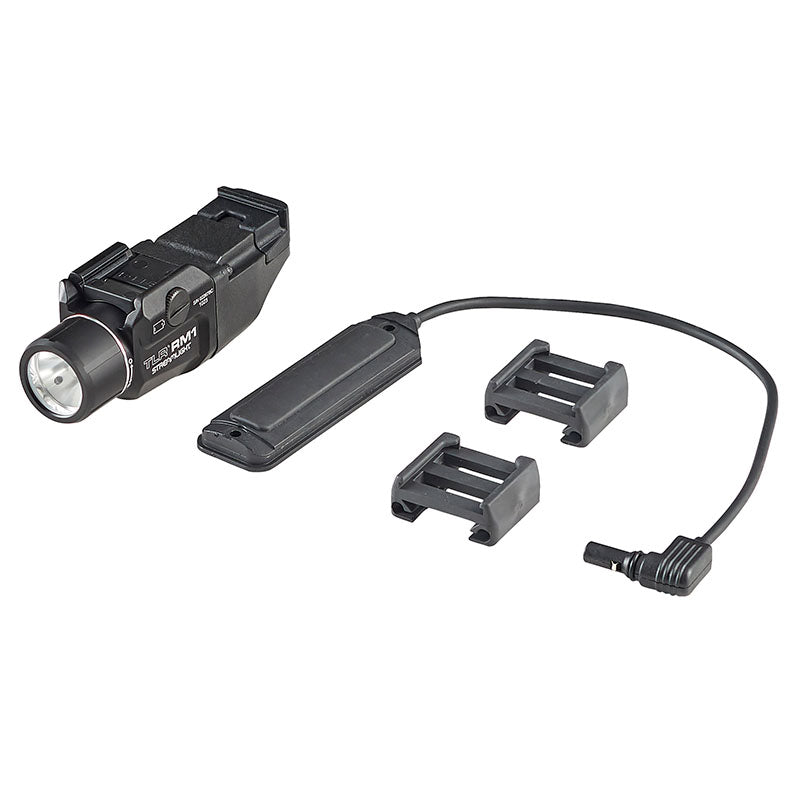

System is the word that matters in the part number: the remote pad, its 90 degree cable exit and the retaining clips are all in the box, so the light arrives ready to set up on a handguard rather than needing a switch ordered separately.
One CR123A lithium cell runs it for 1.5 hours of light, or three hours in strobe. The push-button tail switch and the remote pad work independently, so if one is knocked out of action the other still operates the light. It mounts directly to a MIL-STD-1913 Picatinny rail using the supplied key kit, measures 3.64 in (9.25 cm), weighs 3.02 oz (85.6 g) and is rated IPX7.

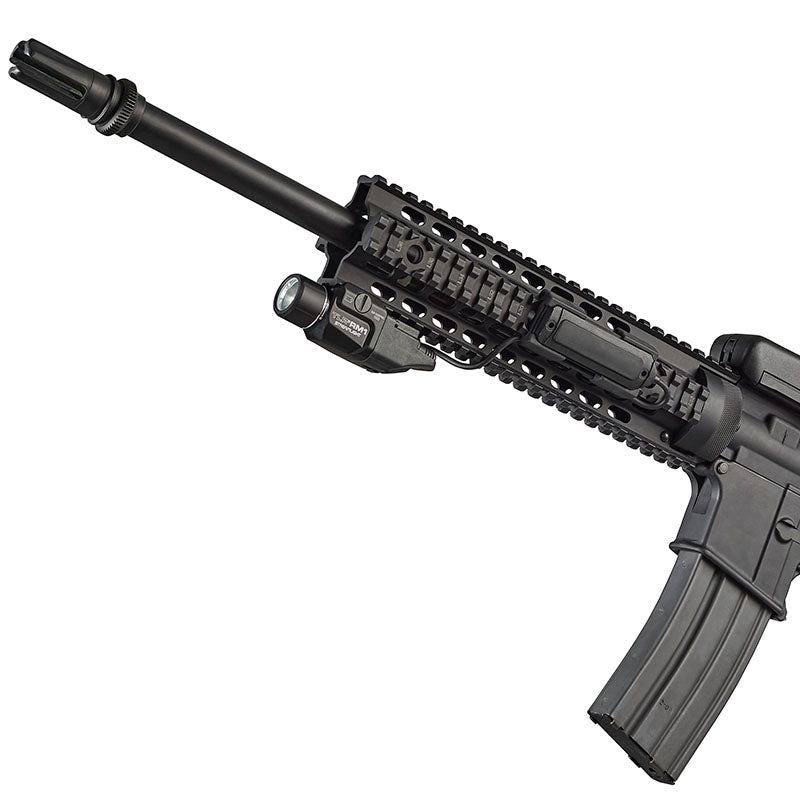

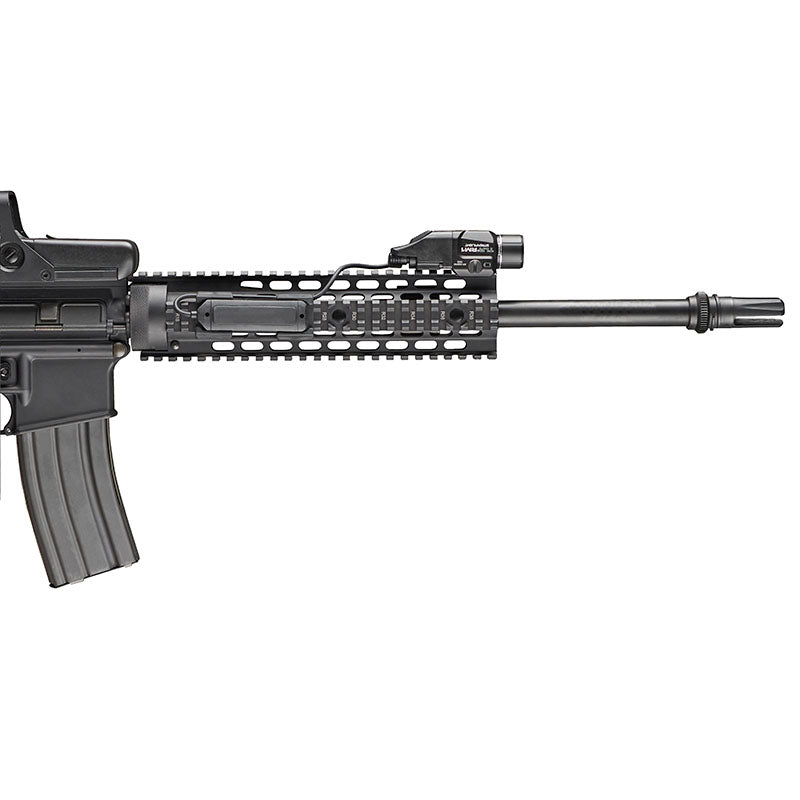

On a carbine, a straight-pull rifle or a practical shotgun this is the compact end of the rail-light range: enough beam for identification at realistic distances without the bulk or the weight of a two-cell body. If you would rather not have a cable on the handguard at all, the light-only version is the cleaner build.
Why shooters choose the TLR RM 1
-
Output — 500 lumens and 11,000 candela, reaching 210 metres
-
Runtime — 1.5 hours of light, or three hours in strobe
-

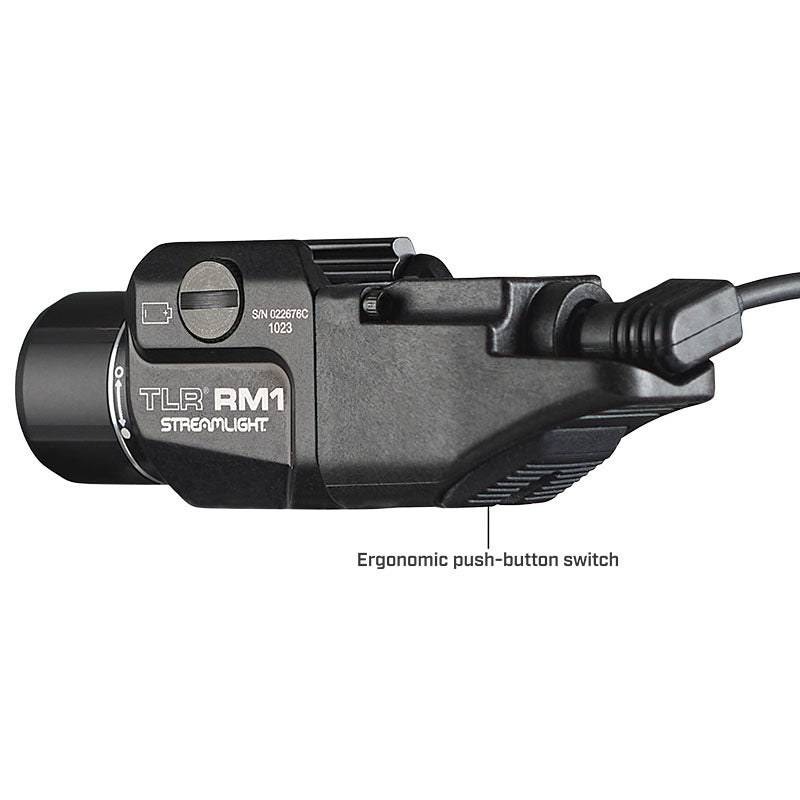

Switching — tail switch and remote pad operate independently
-
Supplied — remote pressure switch with 90 degree exit, retaining clips and key kit
-
Power — one CR123A lithium cell, included
-
Size — 3.64 in (9.25 cm) and 3.02 oz (85.6 g), rated IPX7
What the TLR RM 1 fits
It clamps straight to a MIL-STD-1913 Picatinny rail with the key kit supplied, which covers AR-pattern carbines, straight-pull builds and rail-equipped shotguns. Without the remote, the same light is the TLR RM 1 light only; with a green aiming laser it is the TLR RM 1 Laser-G System; and the rechargeable 1000 lumen version is the TLR RM 1 HL-X USB System.
Specifications
| Type |
Rail-mounted long gun light |
| Output |
500 lumens |
| Peak Beam Intensity |
11,000 candela |
| Beam Distance |
210 m |
| Runtime |
1.5 hours; strobe 3 hours |
| Battery |
One CR123A lithium cell, included |
| Switching |
Push-button tail switch plus remote pressure switch, 90 degree exit |
| Mount |
MIL-STD-1913 Picatinny, using the supplied key kit |
| Sealing |
IPX7 |
| Length |
3.64 in (9.25 cm) |
| Weight |
3.02 oz (85.6 g) |
| MPN |
69440 |
A small light, a real beam and the switch already in the box. Order the TLR RM 1 today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
