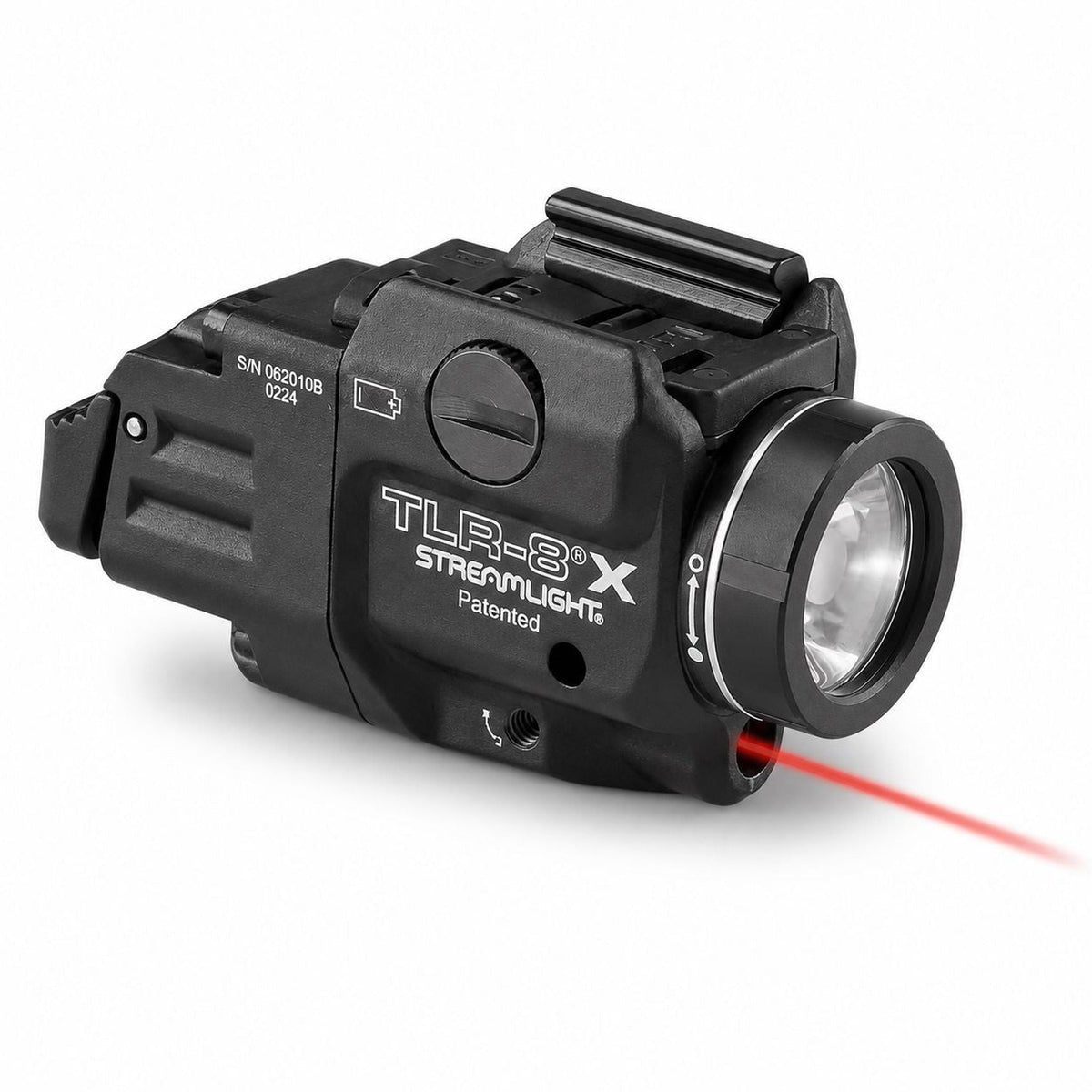

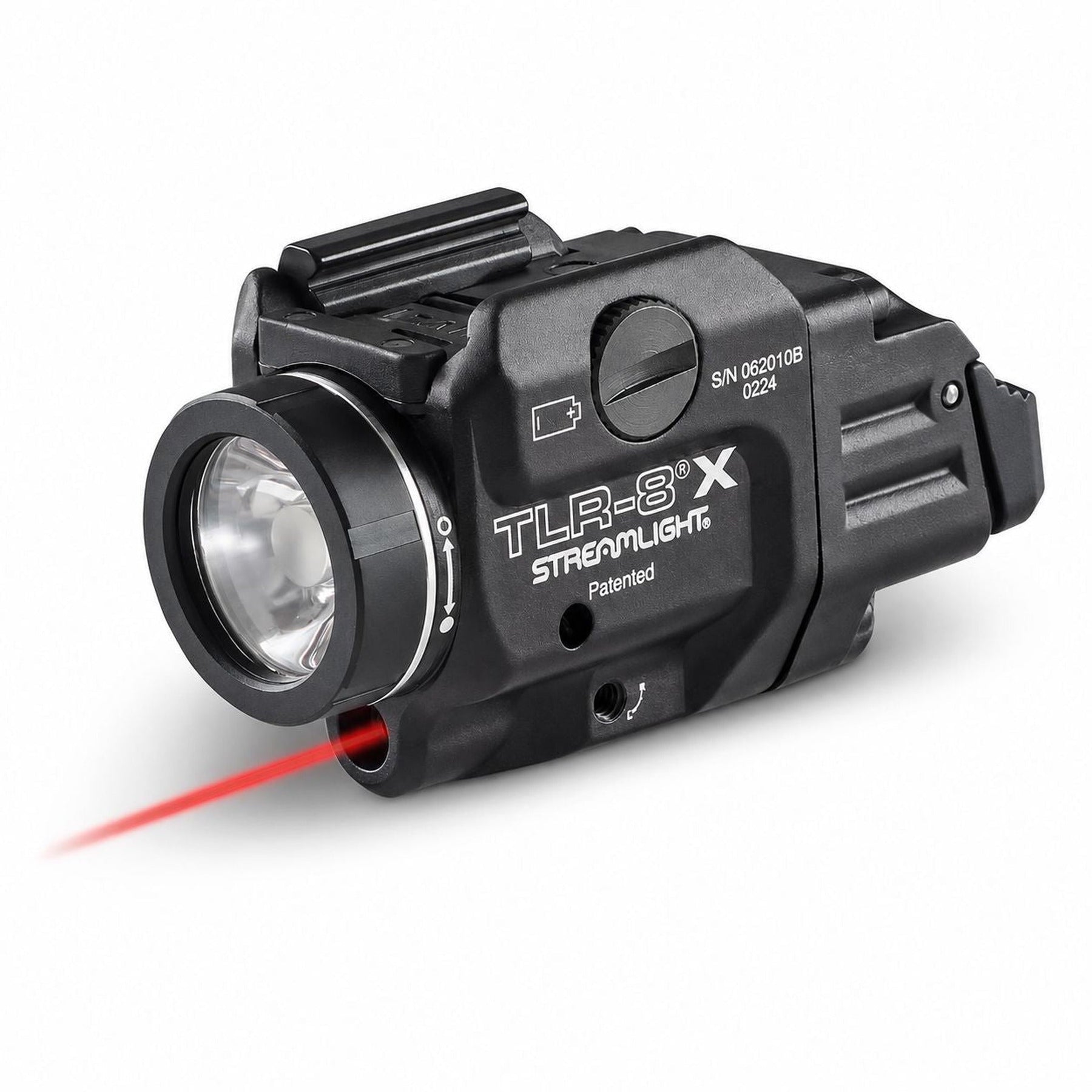

The Streamlight TLR-8 X, part number 69414, is a rail-mounted pistol light with an integrated red aiming laser, sized for full-size and compact railed handguns.

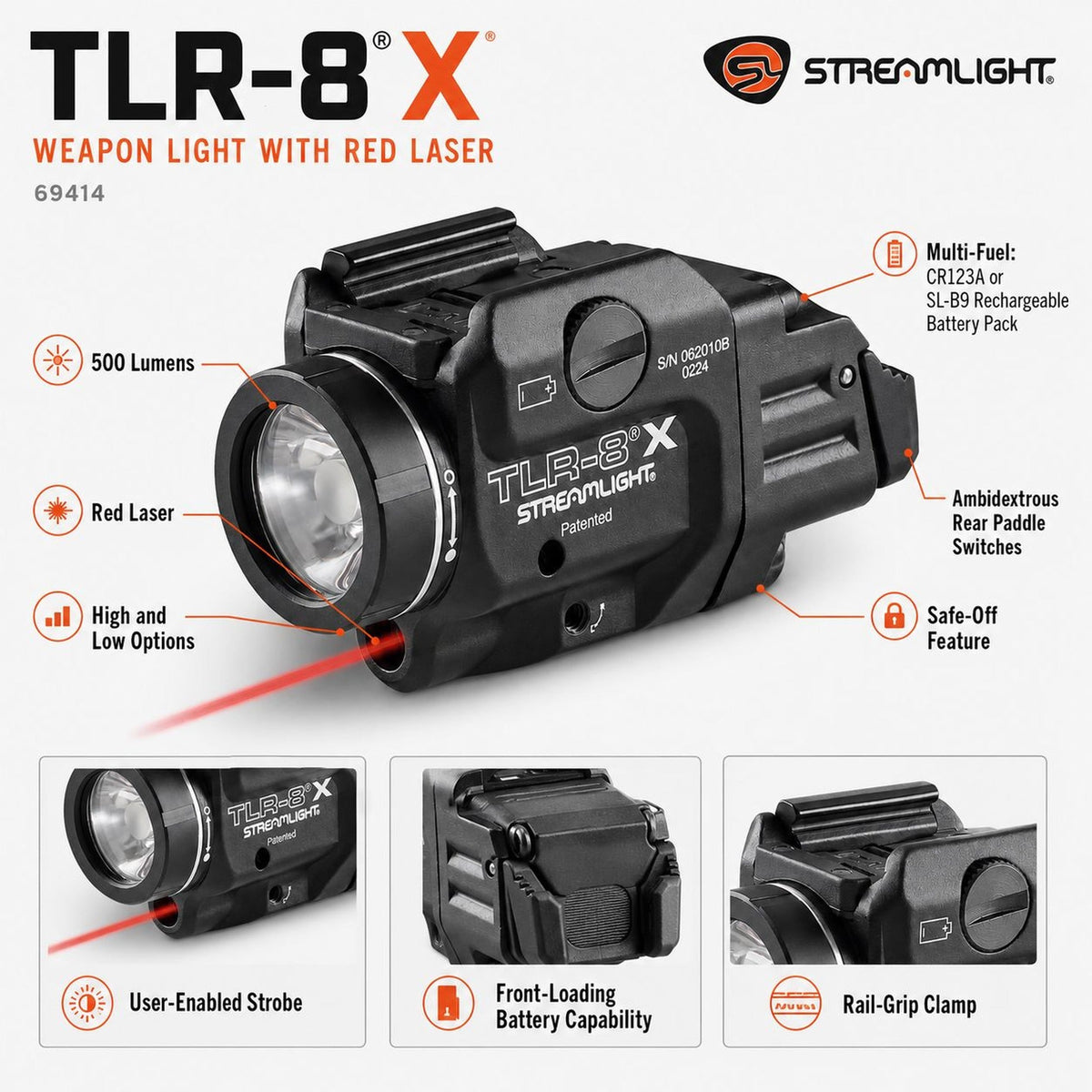

Multi-fuel is the useful part: one CR123A lithium cell comes in the box, and the same light will run Streamlight's SL-B9 USB-C rechargeable pack when you would rather charge than replace.
Output is 500 lumens with 5,000 candela, a 141 metre beam, on either battery type. The white light runs 1.5 hours on a CR123A or 1 hour on an SL-B9, while the laser alone will go 60 hours on the CR123A or 36 hours on the pack. The laser is red at 640-660 nm, Class 3R with an output below 5 mW. The body is machined anodised aluminium rated IPX4, 2.58 in (6.55 cm) long, and it weighs 2.64 oz with a CR123A or 2.74 oz with the SL-B9.

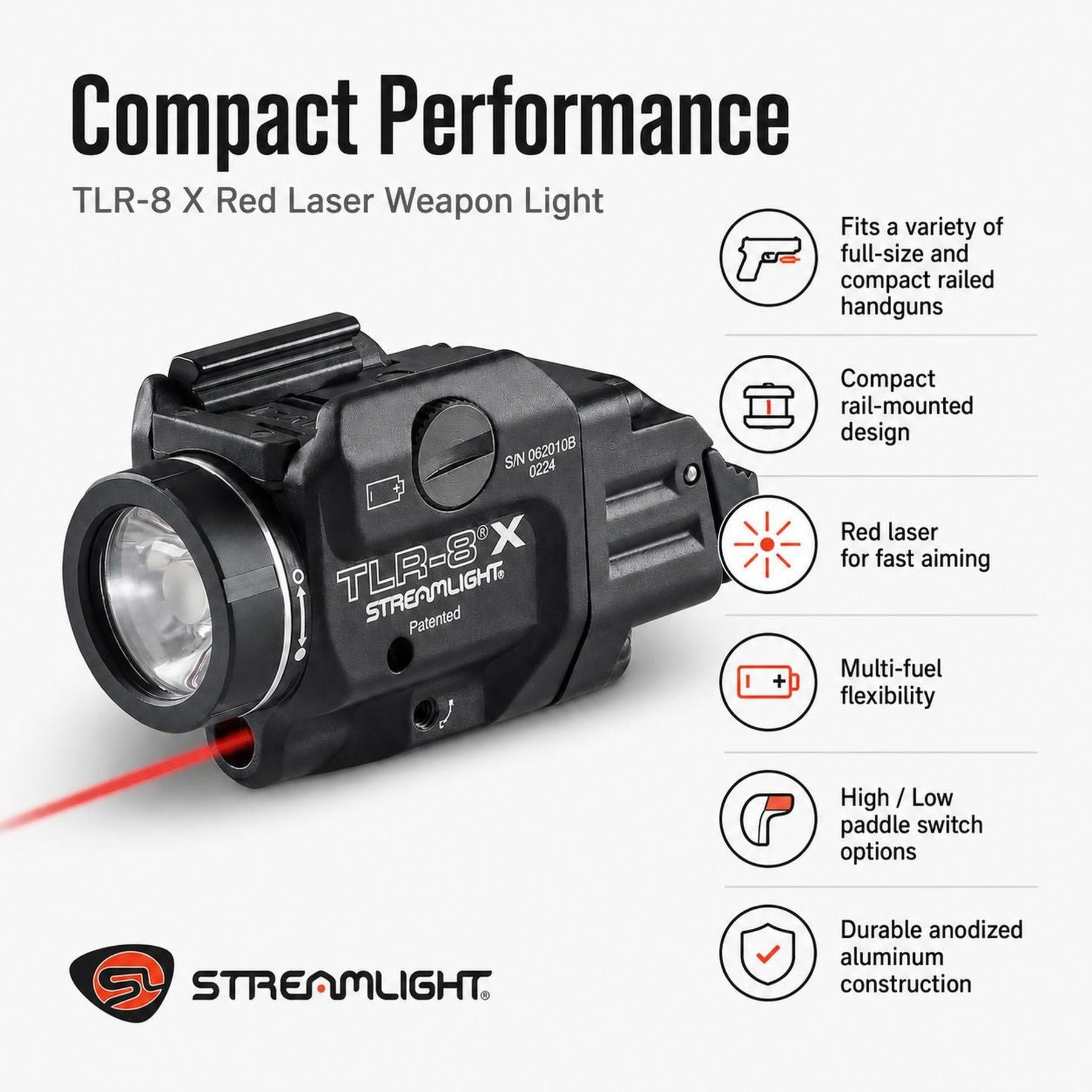

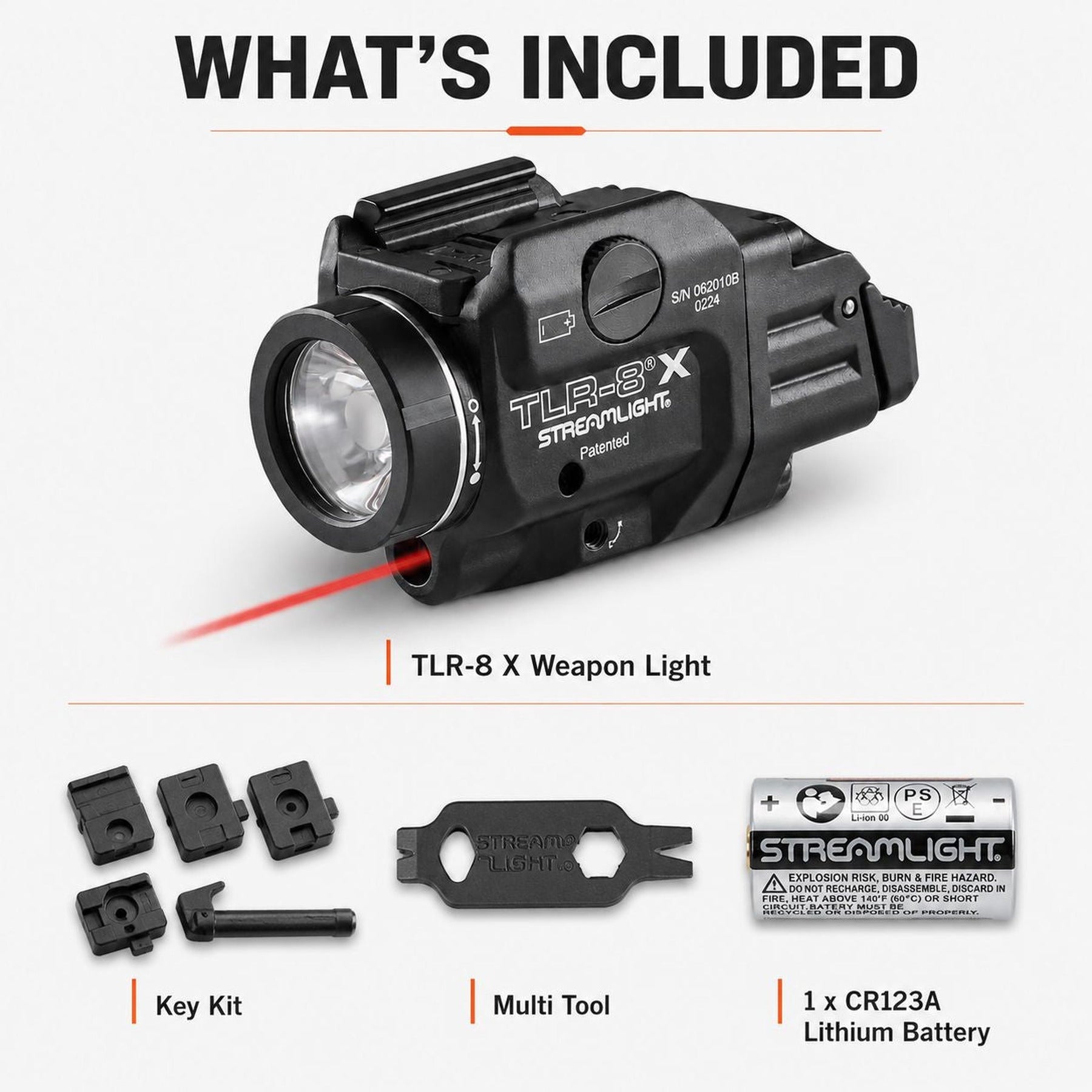

Ambidextrous high and low rear paddles give momentary and constant-on with a safe-off position and a strobe that can be enabled if you want it, and a key kit is supplied so the clamp indexes correctly on the common handgun rail patterns. It suits a full-size or compact railed pistol and the 1:1 replicas built on the same rail spacing. One thing to weigh: IPX4 is splash resistance rather than immersion, so this is not the light to take swimming.
Why shooters choose the TLR-8 X
-
Output — 500 lumens and 5,000 candela, a 141 metre beam on either cell
-
Laser — red, 640-660 nm, Class 3R, output under 5 mW
-
Runtime — 1.5 hours light on CR123A or 1 hour on SL-B9; 60 and 36 hours laser only
-
Power — one CR123A supplied, or an SL-B9 USB-C rechargeable pack
-
Switching — ambidextrous high and low paddles, momentary, constant-on, safe-off and enabled strobe
-
Build — anodised machined aluminium, IPX4, 2.58 in and 2.64 oz with a CR123A
What the TLR-8 X fits
It clamps to the accessory rail of a full-size or compact handgun, with the supplied keys setting it to the common rail patterns. Subcompact pistols take the shorter body — the TLR-8 X sub for 1913 rails or the Glock 43X/48 version — and the green-laser model is the TLR-8 X G sub. See also rechargeable weapon lights.

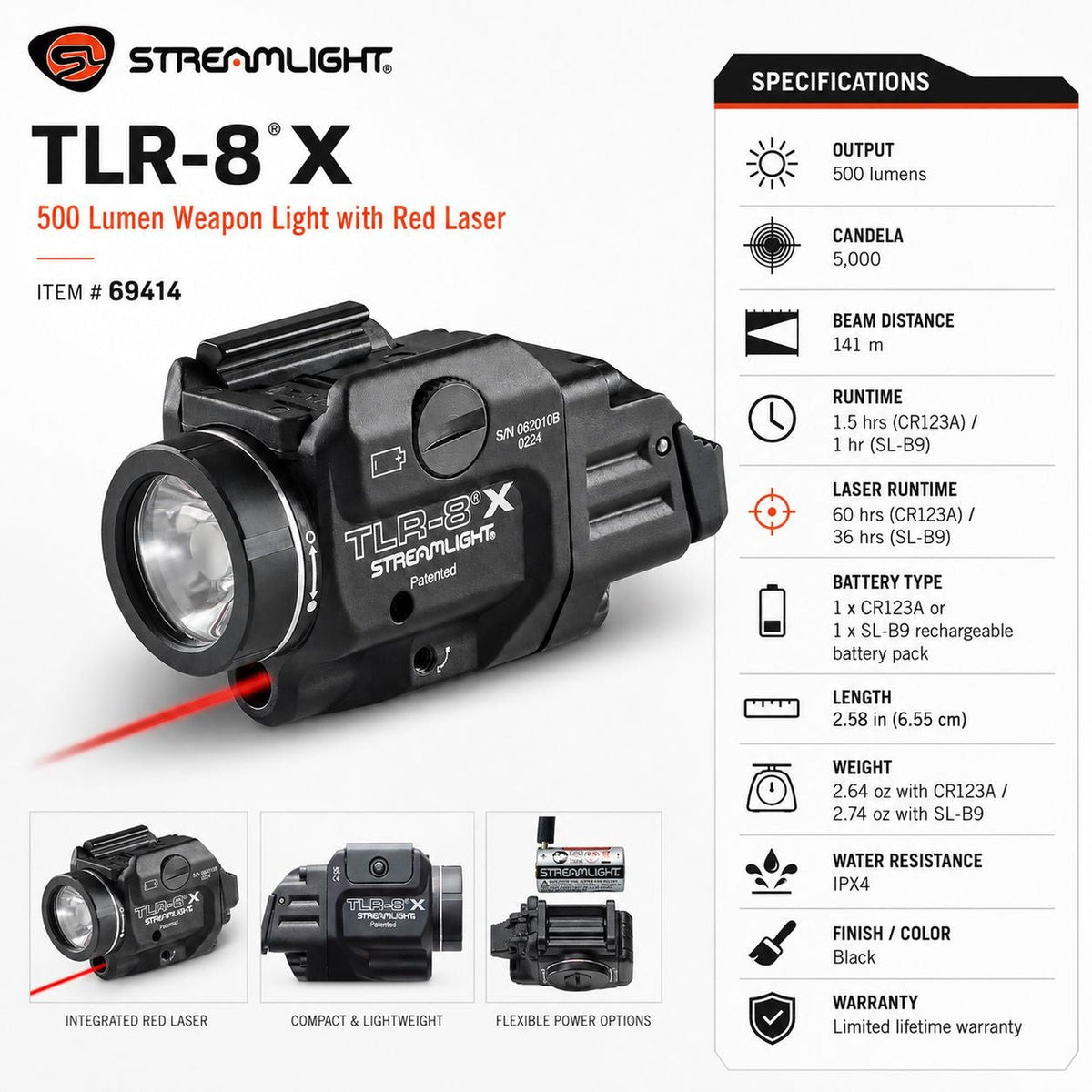

Specifications
| Output |
500 lumens |
| Peak Beam Intensity |
5,000 candela |
| Beam Distance |
141 m |
| Laser |
Red, 640-660 nm, Class 3R, output under 5 mW |
| Runtime (light) |
1.5 hours on CR123A / 1 hour on SL-B9 |
| Runtime (laser only) |
60 hours on CR123A / 36 hours on SL-B9 |
| Battery |
One CR123A lithium cell (included) or an SL-B9 USB-C rechargeable pack |
| Mount |
Rail clamp with locating keys for common handgun rails |
| Housing |
Anodised machined aluminium |
| Water Resistance |
IPX4 |
| Length |
2.58 in (6.55 cm) |
| Weight |
2.64 oz (74.8 g) with CR123A, 2.74 oz (77.7 g) with SL-B9 |
| MPN |
69414 |
One clamp, one light, one laser, and a choice of how you power it. Order the TLR-8 X today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
