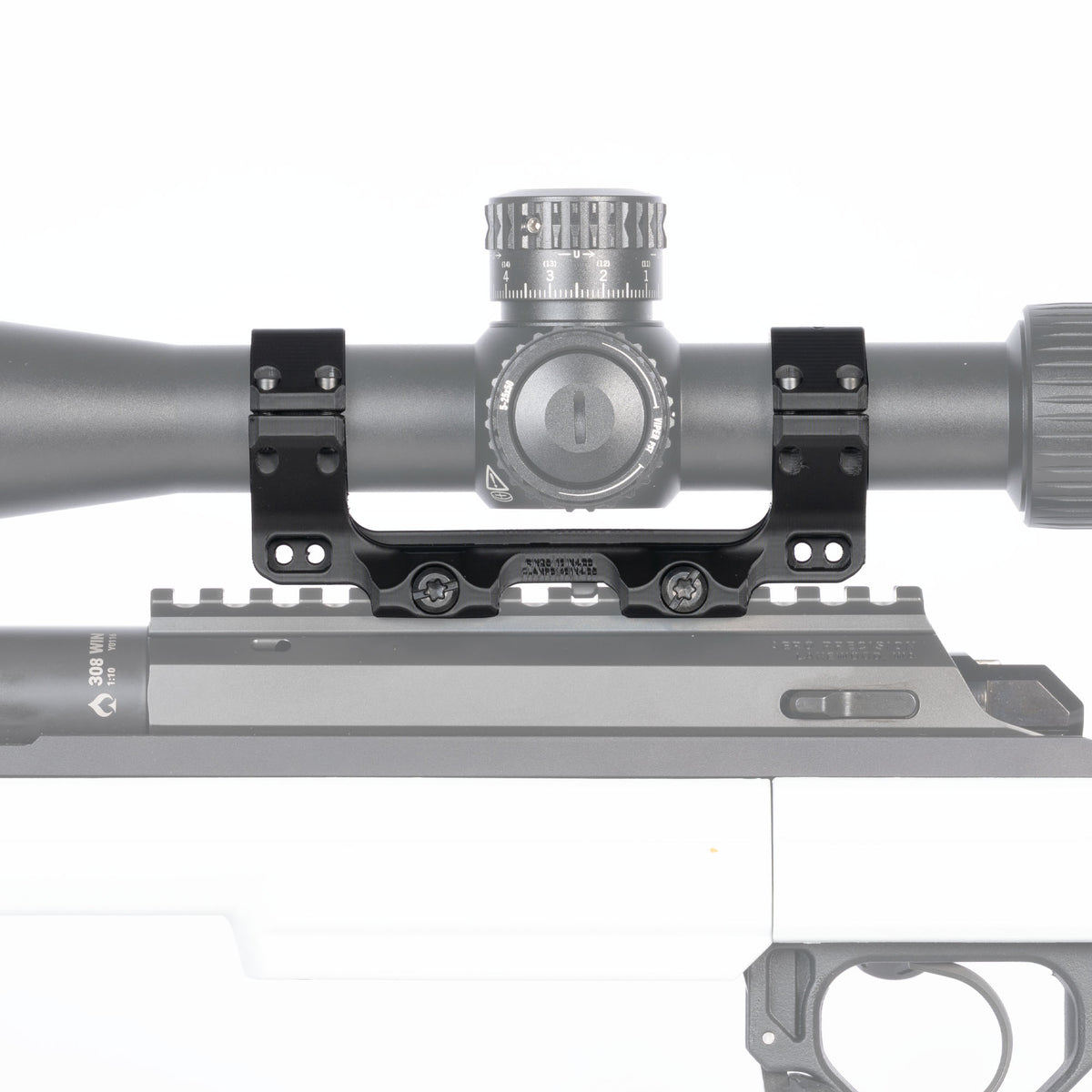

The Reptilia AGS Mount is a one-piece riflescope mount built for modern bolt-action rifles, holding the scope at a low 1.34in centreline over the rail with 20 MOA of elevation bias built in.
Low over the action, with 20 MOA already in the mount. The turret starts closer to where you need it at distance.
Reptilia describe the AGS as a precision optic mounting solution purpose-built for modern bolt-action rifles, and the low 1.34in centreline is the point of it: the optic sits closer to the bore, which gives a more natural cheek weld on a conventional stock. Dealers commonly list the same mount as 1.3in; 1.34in is Reptilia's own published figure and the one we quote.
The 20 MOA is machined into the mount as a forward inclination, so the scope's internal elevation starts biased for distance and you keep more usable travel at the top of the dial. Reptilia make 0 MOA versions of the AGS as well; those are not part of this listing. It is machined from billet 7075-T6 aluminium in MIL-STD Type III hardcoat anodising and weighs 148 g (5.2 oz). Made in the USA.
Why shooters choose the AGS Mount 1.3" 20 MOA
-
1.34in centreline over rail — Reptilia's own figure — the trade lists the same mount as 1.3in
-
20 MOA built in — elevation bias machined into the mount, so more of the scope's travel is left for distance
-
Built for bolt-action rifles — a low, natural cheek weld on a conventional precision stock
-
One-piece body — base and rings are the same part, so there is no base-to-ring joint to move
-
148 g (5.2 oz) — billet 7075-T6 aluminium in MIL-STD Type III hardcoat anodising
What the AGS Mount 1.3" 20 MOA fits
Fits riflescopes with a 30mm or 34mm main tube — choose the diameter above — on any M1913 Picatinny rail, which on a bolt-action precision rifle means a rail bolted to the action. This listing is the 20 MOA version only; Reptilia also produce the AGS in 0 MOA, which is a different part and is not stocked here. Tube diameter and MOA are both fixed once you have chosen, because a one-piece mount cannot be re-cut. If you want a taller sightline for a chassis with a high adjustable comb, the AUS Mount at 1.93in is the other end of Reptilia's range.
Specifications
| Fits |
30mm or 34mm tube riflescopes, on any M1913 Picatinny rail |
| Type |
One-piece riflescope mount — 1.34in height over rail, 20 MOA |
| Material |
Billet 7075-T6 aluminium |
| Finish |
MIL-STD Type III hardcoat anodised — Black Anodize |
| Weight |
148 g (5.2 oz) |
| Mount interface |
M1913 Picatinny |
| Made in |
USA |
| Brand |
Reptilia |
| MPN |
100-445 · 100-437 |
A low mount for a bolt gun, with the elevation bias already in it. Order the AGS Mount 1.3" 20 MOA today — in stock at Xtreme Tactical Gun Parts with £5 tracked UK delivery in 7–10 business days.
