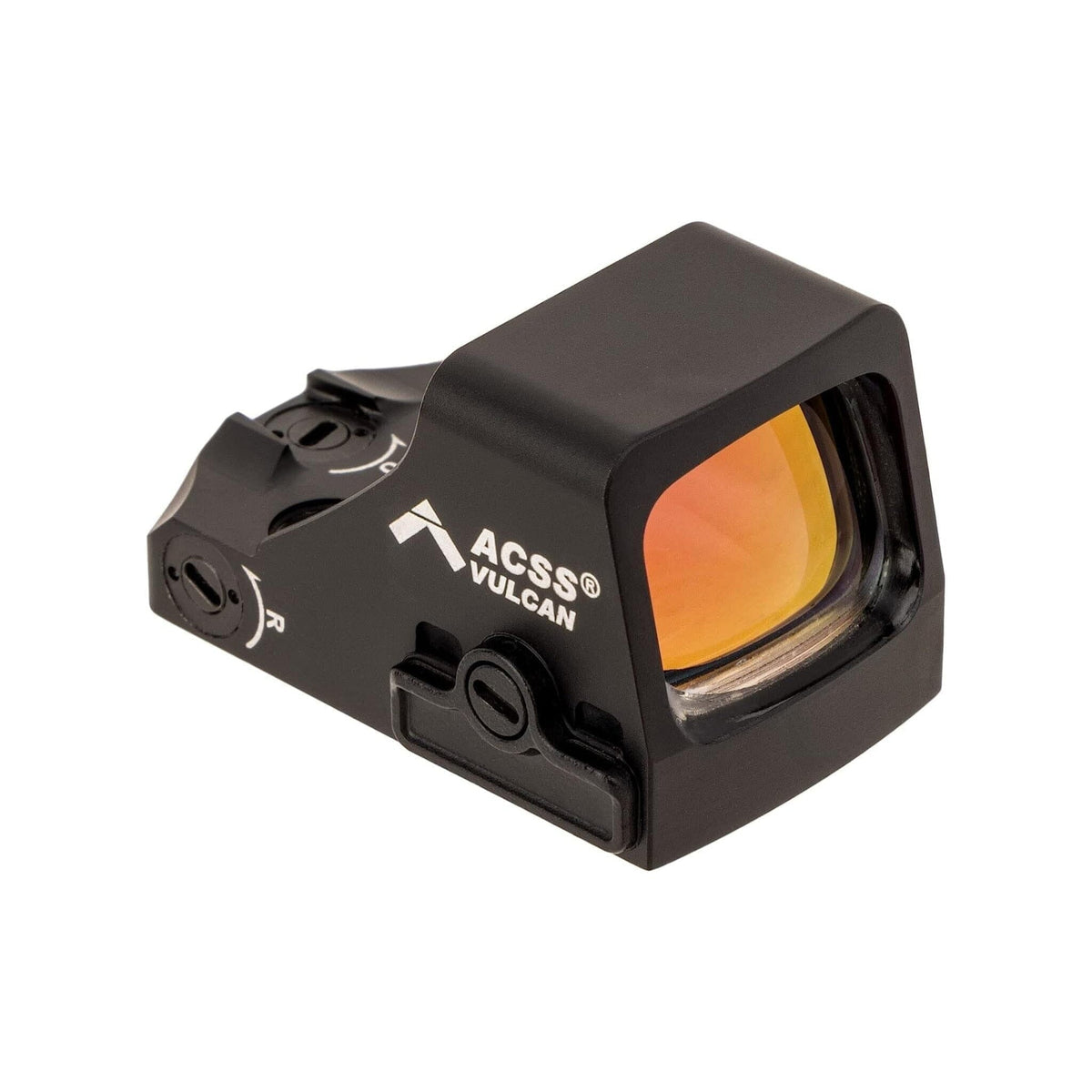

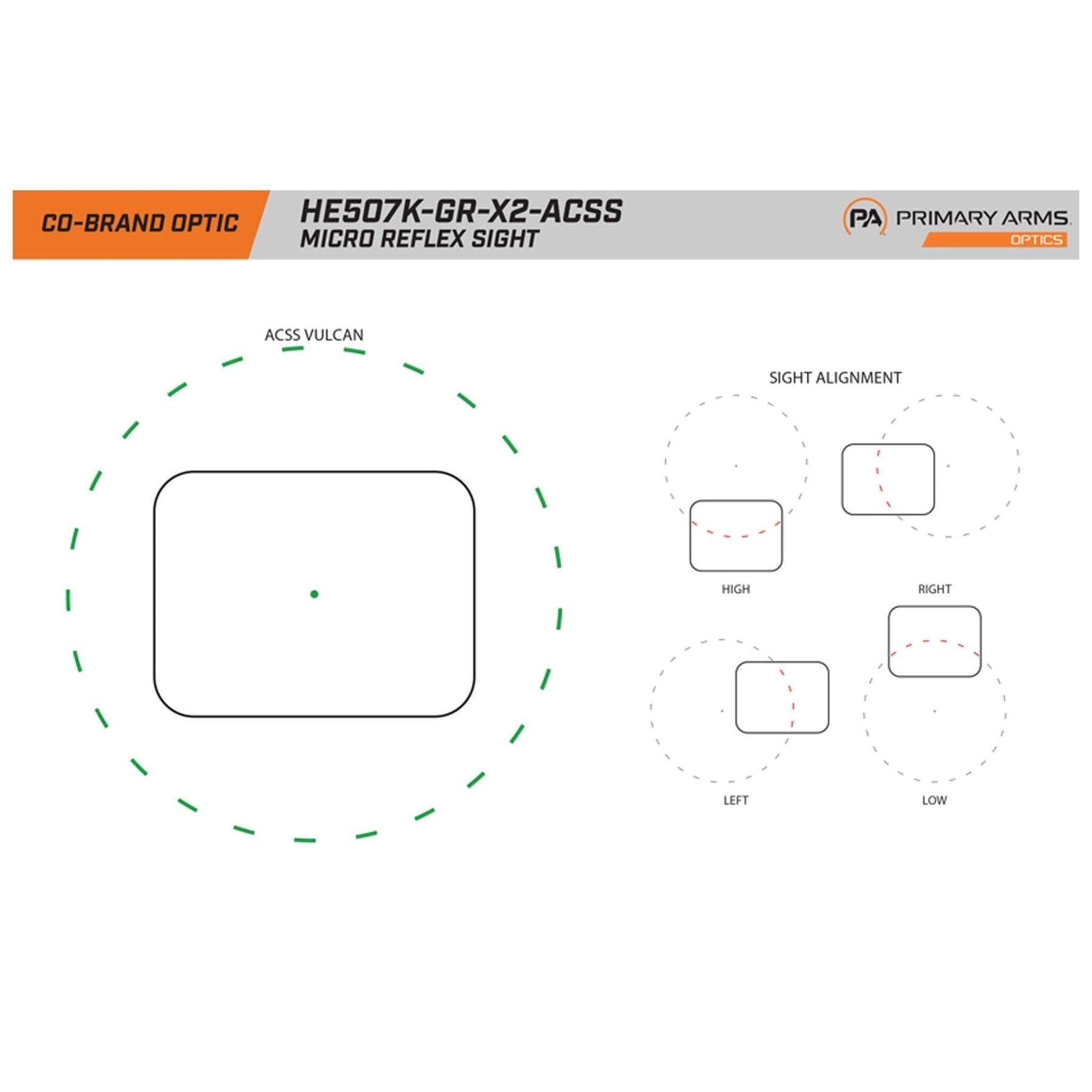

The Holosun HE507K X2 ACSS is a compact open-reflex green dot sight on Holosun's K footprint, carrying the ACSS Vulcan reticle — a chevron aiming point inside a large guidance circle.
The circle pulls your eye to the middle of the window and the chevron tip gives you something finer than a dot to aim with. That combination is why the Vulcan has a following.
The aluminium housing measures 1.6 x 0.98 x 0.95 in (40.6 x 24.9 x 24.1 mm) and weighs 1.0 oz (28 g), rated IP67 for water and dust and tested to 5000G. A CR1632 sits in a side-loading tray, rated up to 50,000 hours, and Shake Awake with last-setting recall means it comes back on where you left it.

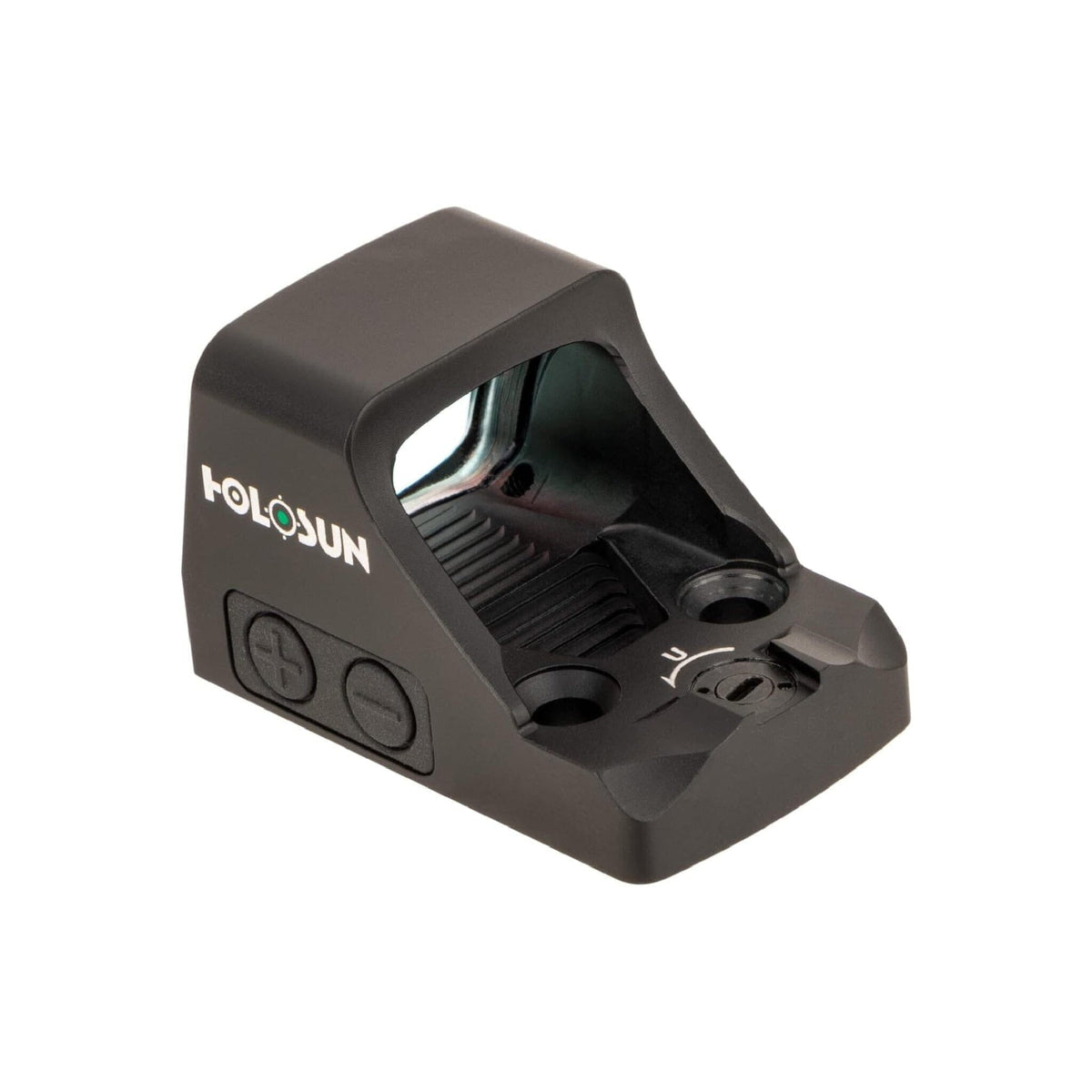

Twelve brightness levels cover ten daylight settings and two that work under night vision, with 1 MOA clicks and 30 MOA of travel each way. Two things to be clear about: the emitter is open rather than sealed, and this is the K footprint, so an RMR-cut mounting needs the C-series version of the same optic instead.
Why shooters choose the HE507K X2 ACSS
-
Reticle — ACSS Vulcan — a green chevron inside a large guidance circle
-
Footprint — Holosun K, for RMSc-pattern cuts and plates
-
Illumination — 12 settings — 10 daylight and 2 night vision
-
Power — side-loading CR1632 up to 50,000 hours, Shake Awake with last-setting recall
-
Adjustment — 1 MOA per click with 30 MOA of travel each way
-
Size — 1.6 x 0.98 x 0.95 in and 1.0 oz (28 g), IP67 and 5000G rated
What the HE507K X2 ACSS fits
It fits mountings cut to the Holosun K pattern. The switchable circle-dot version on the same footprint is the HE507K X2 with the Multi-Reticle System, the full-size ACSS Vulcan option is the HE507C X2 ACSS, and other green emitters are in green dot sights.
Specifications
| Type |
Open-reflex green dot sight, 1x |
| Reticle |
ACSS Vulcan — chevron inside a guidance circle |
| Reticle colour |
Green |
| Footprint |
Holosun K footprint |
| Illumination |
10 daylight and 2 night vision settings |
| Adjustment |
1 MOA per click, 30 MOA travel |
| Battery |
CR1632 side-loading tray, up to 50,000 hours |
| Power management |
Shake Awake with last-setting recall |
| Dimensions |
1.6 x 0.98 x 0.95 in (40.6 x 24.9 x 24.1 mm) |
| Weight |
1.0 oz (28 g) |
| Housing |
Aluminium, IP67, 5000G |
| MPN |
HE507K-GR-X2-ACSS |
A chevron and a guidance circle in green, on an optic that weighs an ounce. Order the HE507K X2 ACSS today — imported from the USA with all duties paid by us and dispatched tracked from the UK in 7–10 business days, with nothing to pay on delivery.
Explore more: Green Dot Sights, HE507K X2 Multi-Reticle System or browse all Holosun
