The BCM KMR ALPHA is a free-float KeyMod handguard for AR-15 and M4 rifles, machined entirely from aluminium with a continuous 1913 Picatinny top rail.
Long, light and rigid — the KMR ALPHA is the full-length free-float tube for shooters who want the support hand out at the muzzle and the barrel untouched.
The ALPHA is the all-aluminium generation of BCM's KMR, and the numbers are the argument: 8.6 oz (245 g) for a 15" tube and 9.9 oz (280 g) for a 17". Very little else gives you that much rail length for that little mass. BCM's proprietary mounting, indexing and lock-up system mitigates movement at the 12 o'clock rail caused by heat travelling through the barrel nut, which is what keeps a long top rail honest between the receiver sight and a muzzle-end backup.
At these lengths the free-float principle earns its keep twice over. The support hand goes right out to the muzzle for maximum control of the rifle, and a bipod or barricade stop can sit at the very front — and none of that load reaches the barrel. On a UK straight-pull AR-15 built for deliberate, aimed shooting from support, a 15" or 17" free-float tube is one of the highest-value changes you can make to the front end.

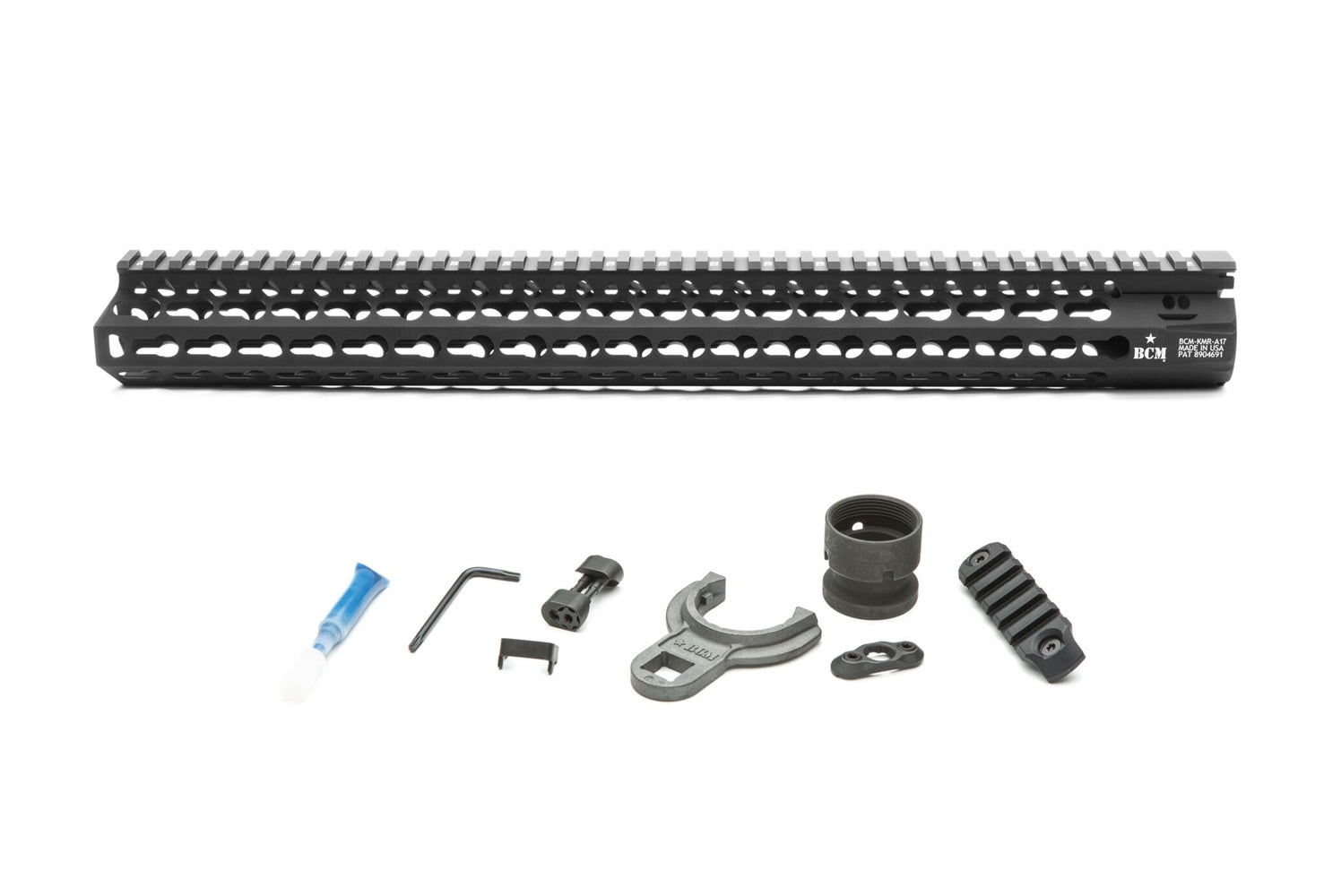

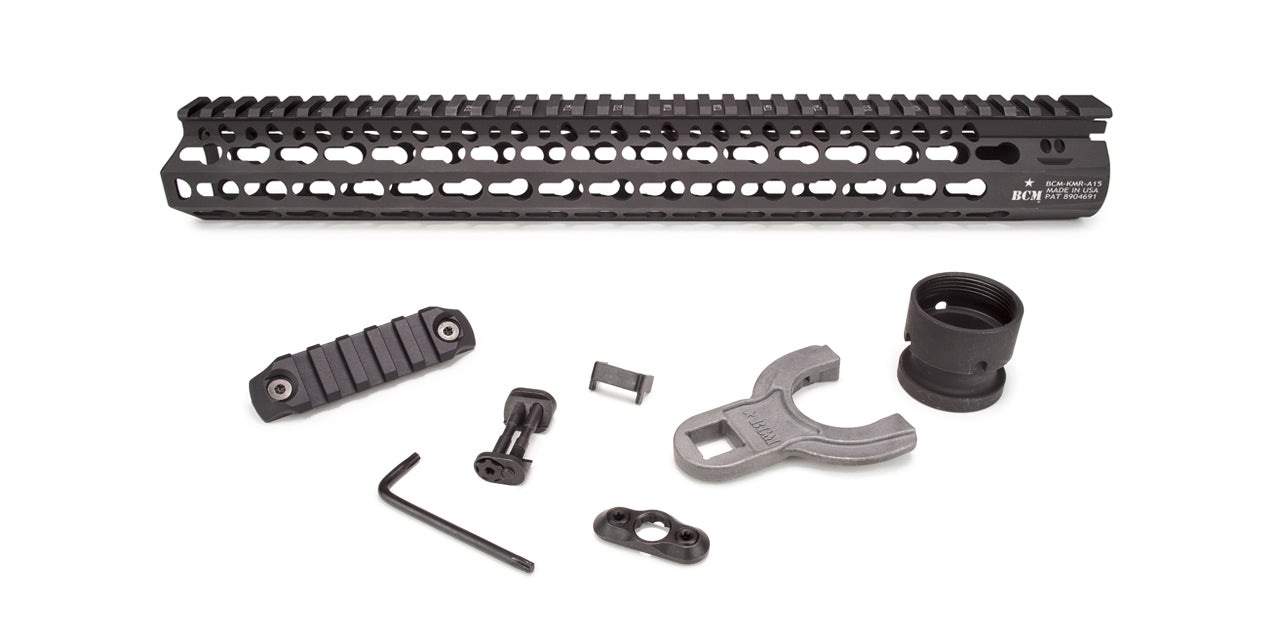

KeyMod slots run at 3, 6 and 9 o'clock with four further offset positions between the clock faces, so accessories can be indexed exactly where the hand wants them rather than where the slot happens to be. The handguard flares forward approximately ¼" at 3 and 9 o'clock, and a BCM KeyMod sling mount is supplied.
Why shooters choose the KMR ALPHA
-
8.6 oz (245 g) at 15" — full-length rail coverage with very little weight penalty
-
Free-float tube — bipod, sling and hand load never reach the barrel
-
Patent-pending lock-up — mitigates 12 o'clock rail movement as heat reaches the barrel nut
-
Eight KeyMod positions — 3, 6 and 9 o'clock plus four offsets, so accessories sit where the hand wants them
-
Continuous 1913 top rail — one plane from receiver to muzzle for sights and night vision
What the KMR ALPHA fits
Fits AR-15/M4 upper receivers, including UK straight-pull AR-15 builds, and clears barrels up to 1.0" (25.4 mm) in diameter. At 15" and 17" these are long tubes: they need a low-profile gas block and a barrel long enough that the handguard does not overhang the muzzle device, so measure from the receiver face to the muzzle before ordering. Fitting replaces the barrel nut with BCM's own, so it is an armourer's job rather than a slip-on swap. Accessories must be KeyMod — M-LOK hardware will not fit these slots, and if your kit is M-LOK the MCMR is the equivalent tube in that interface.
Specifications
| Platform |
AR-15 / M4 |
| Fits |
Mil-spec upper receivers; barrels up to 1.0" (25.4 mm) diameter |
| Type |
Free-float KeyMod handguard with full-length 1913 top rail |
| Material |
Aluminium |
| Finish |
Hard-coat anodised |
| Weight |
15" 8.6 oz (245 g) · 17" 9.9 oz (280 g); with mounting hardware 11 oz (310 g) and 12.3 oz (350 g) |
| Length |
15.0" (381 mm) · 17.00" (432 mm), measured to the flare |
| Mount interface |
KeyMod slots at 3, 6 and 9 o'clock plus four offset positions; continuous 1913 Picatinny top rail |
| Brand |
Bravo Company USA |
| MPN |
BCM-KMR-A15-556-BLK · BCM-KMR-A17-556-BLK |
Reach the muzzle without touching the barrel. Order the KMR ALPHA today — in stock at Xtreme Tactical Gun Parts with free tracked UK delivery in 7–10 days.
